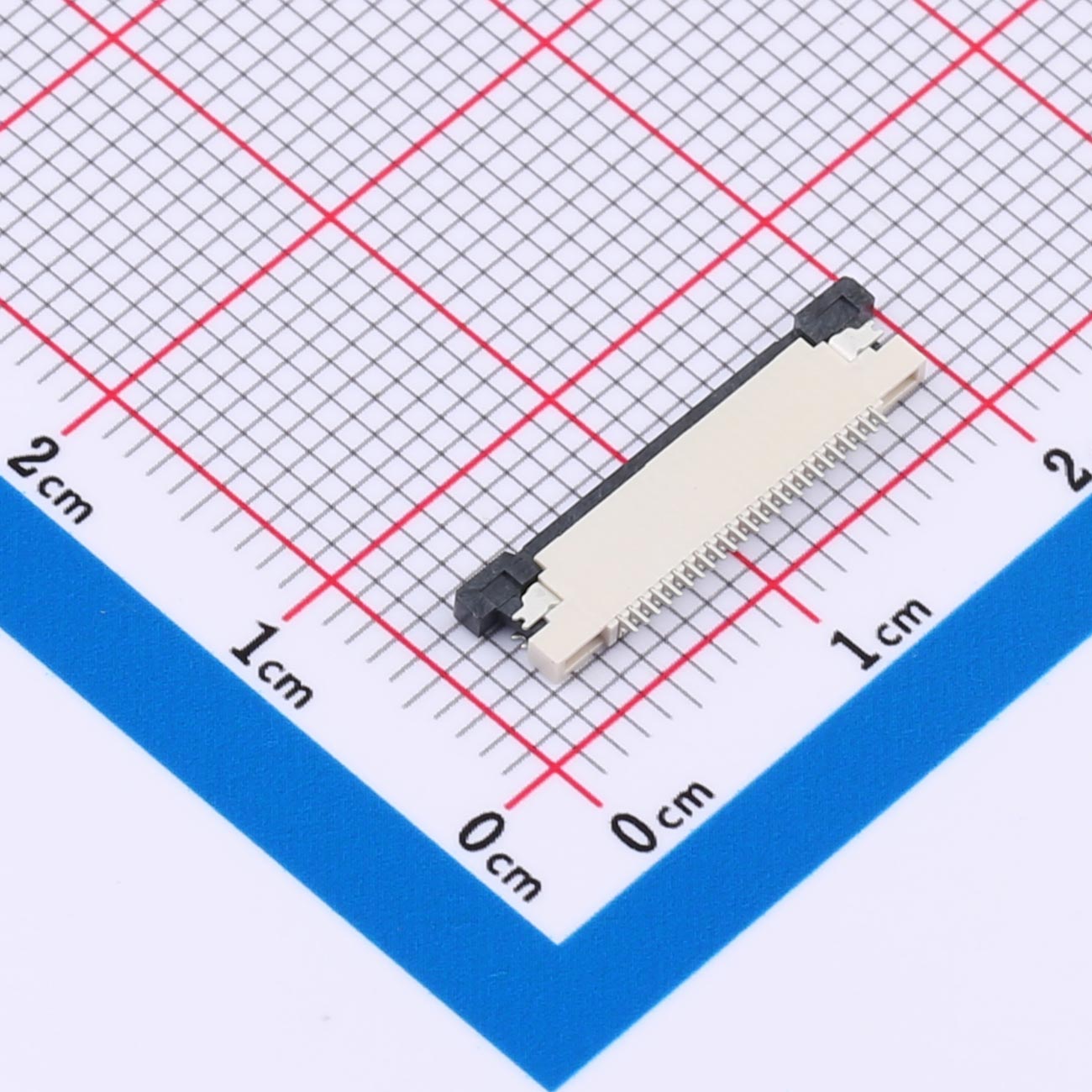

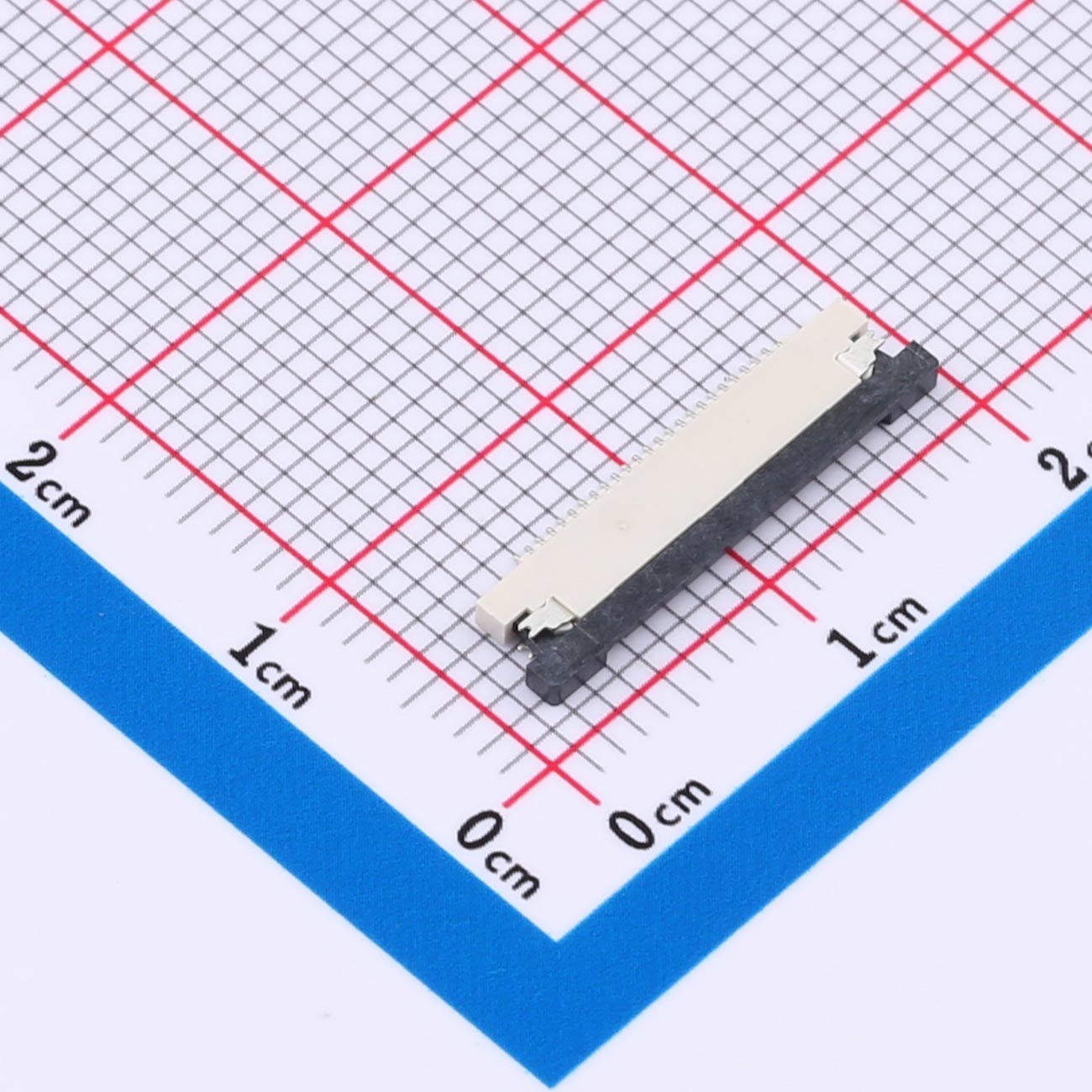

FFC/FPC Connector, 0.5mm Pitch, 24P,?KH-CL0.5-H1.2-24PIN-SMT
Temperature Range: -25℃ to 85℃
Rated Voltage: 50V AC/DC (equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Plating: Full Matte Tin on Terminals
Product Benefits
● Compact design for space-saving applications
● High reliability with low contact resistance
● Excellent insulation resistance for enhanced safety
● Wide temperature range suitable for various environments
● Full matte tin plating for improved durability
● Easy integration with SMT assembly
Product Applications
● Consumer electronics including smartphones and tablets
● Automotive electronics for reliable connections
● Industrial automation equipment for robust performance
● Medical devices requiring precision connectors
● Communication devices for effective signal transmission
