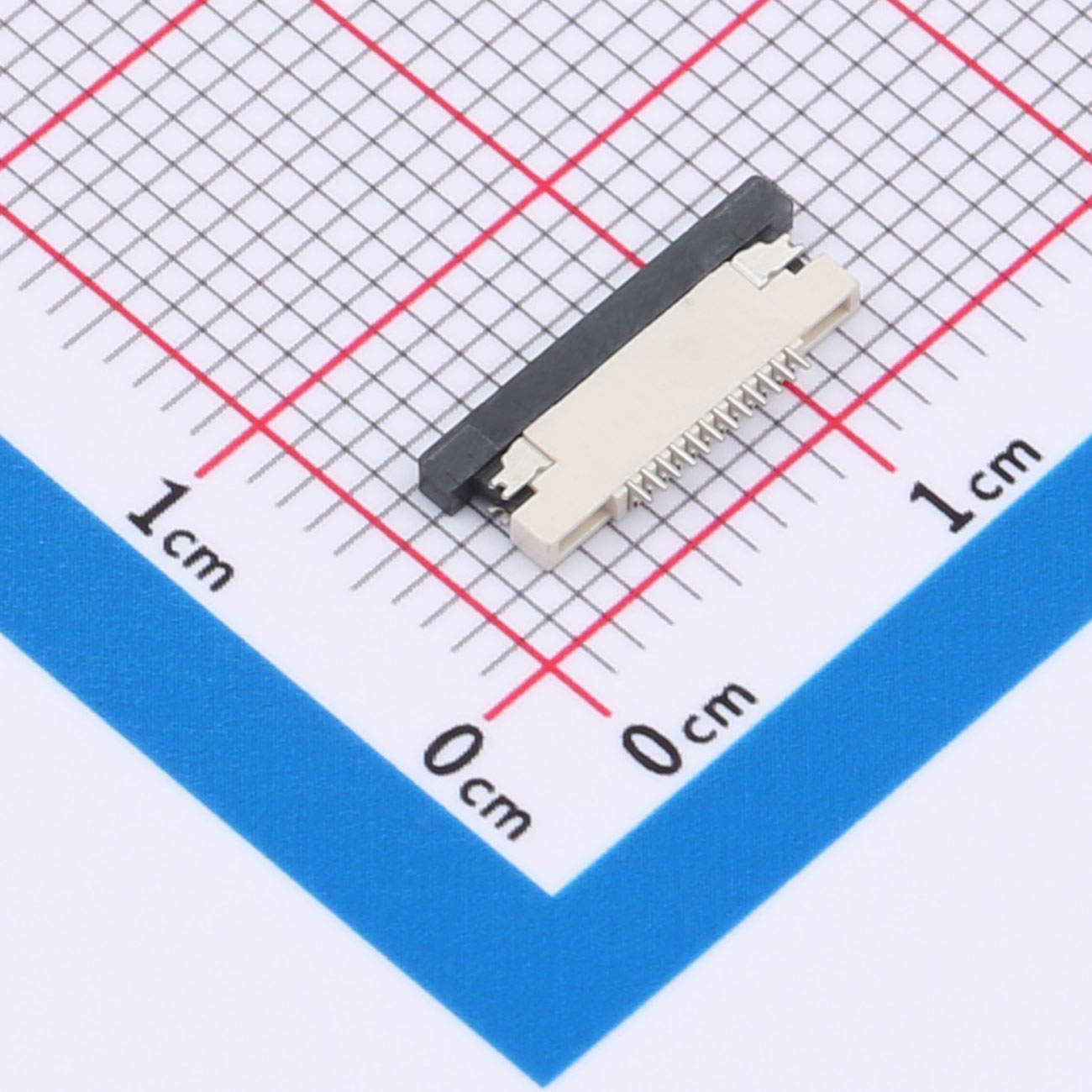

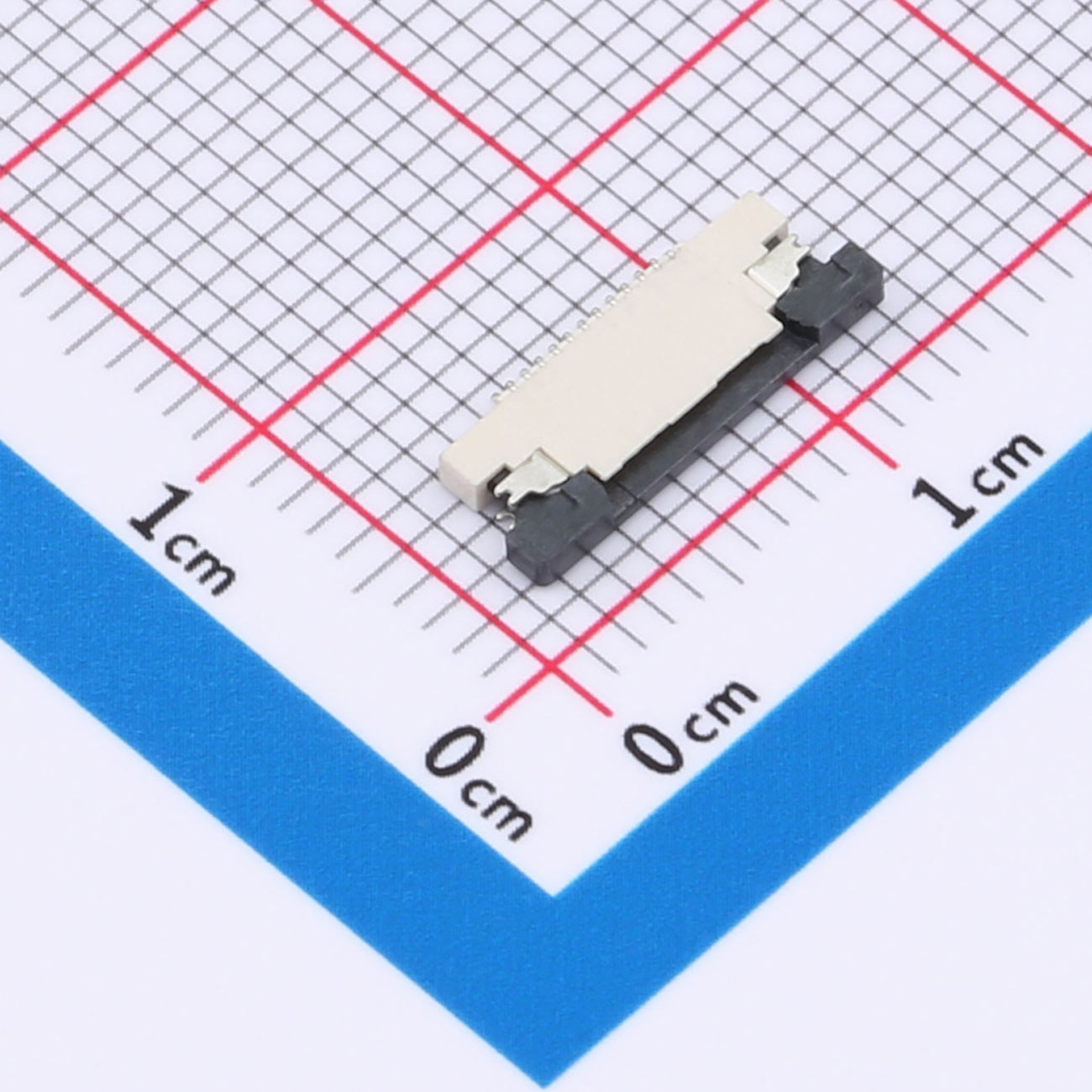

FFC/FPC Connector, 0.5mm Pitch, 12P, KH-CL0.5-H1.2-12PS-SMT
Temperature Range: -25℃ to 85℃
Rated Voltage: 50V AC/DC (equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Plating: Full Matte Tin on Terminals
Product Benefits
● Compact and efficient design
● Secure connection with high retention
● 0.5mm pitch for space-saving layouts
● Low profile height of 1.2mm
● Optimized for surface mount technology
● Excellent thermal and electrical performance
● Compatible with multiple FPC types
● Convenient tape & reel format for assembly
Product Application
● Mobile devices
● Digital signage
● IoT sensors
● Smart appliances
● Automotive controls
● Industrial equipment
● Security systems
● Medical monitoring devices
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
