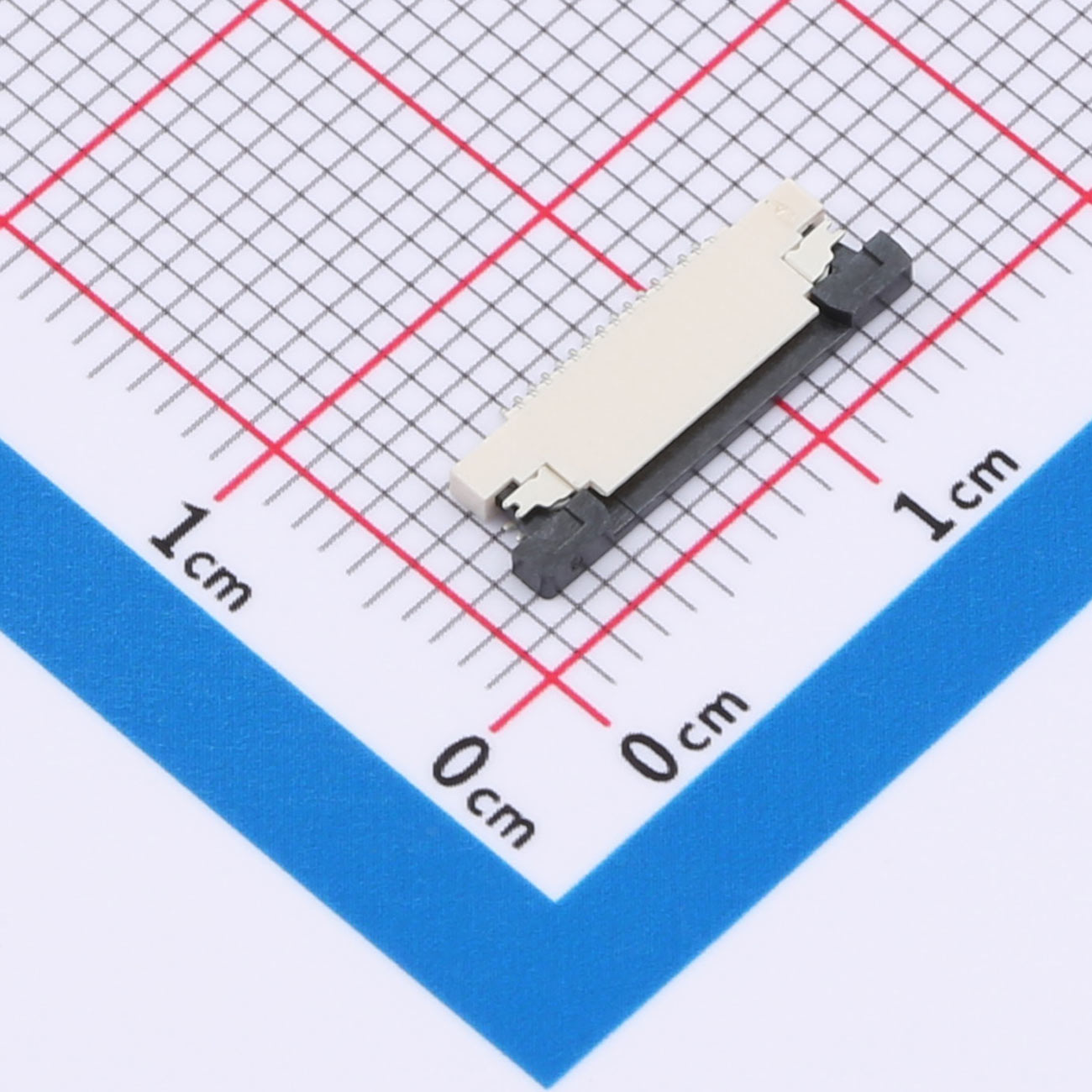

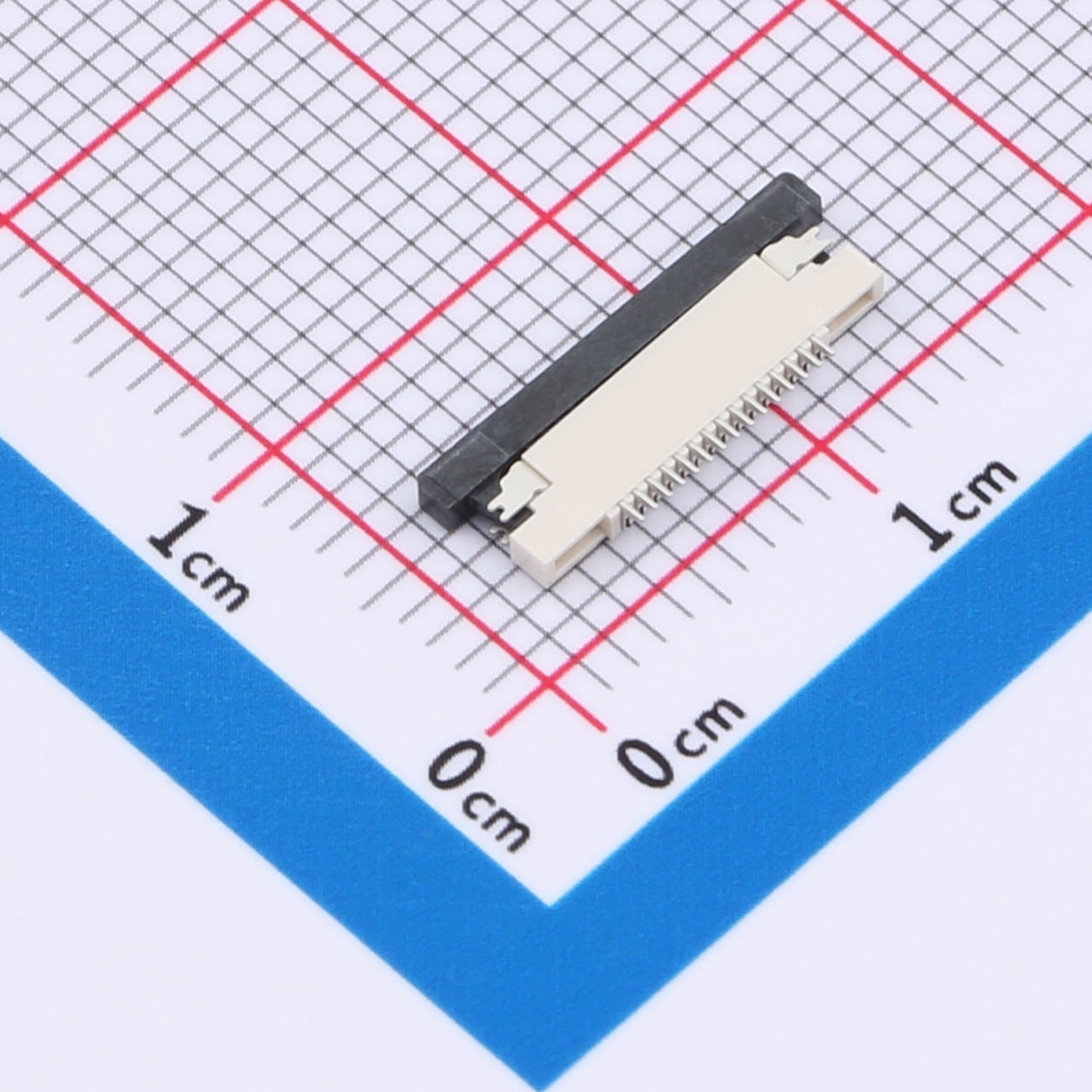

FFC/FPC Connector, 0.5mm Pitch, 15P, KH-CL0.5-H1.2-15PS-SMT
Temperature Range: -25℃ to 85℃
Rated Voltage: 50V AC/DC (equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Plating: Full Matte Tin on Terminals
Product Benefits
● Space-efficient design
● Strong connector retention
● 0.5mm pitch for high-density layouts
● Low profile of 1.2mm
● Optimized for SMT assembly
● Reliable thermal performance
● Flexible FPC compatibility
● Easy tape & reel handling
Product Application
● Fitness trackers
● Miniature electronic devices
● Audio equipment
● Automotive sensors
● Smart home gadgets
● Industrial automation
● Handheld devices
● Medical instruments
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
