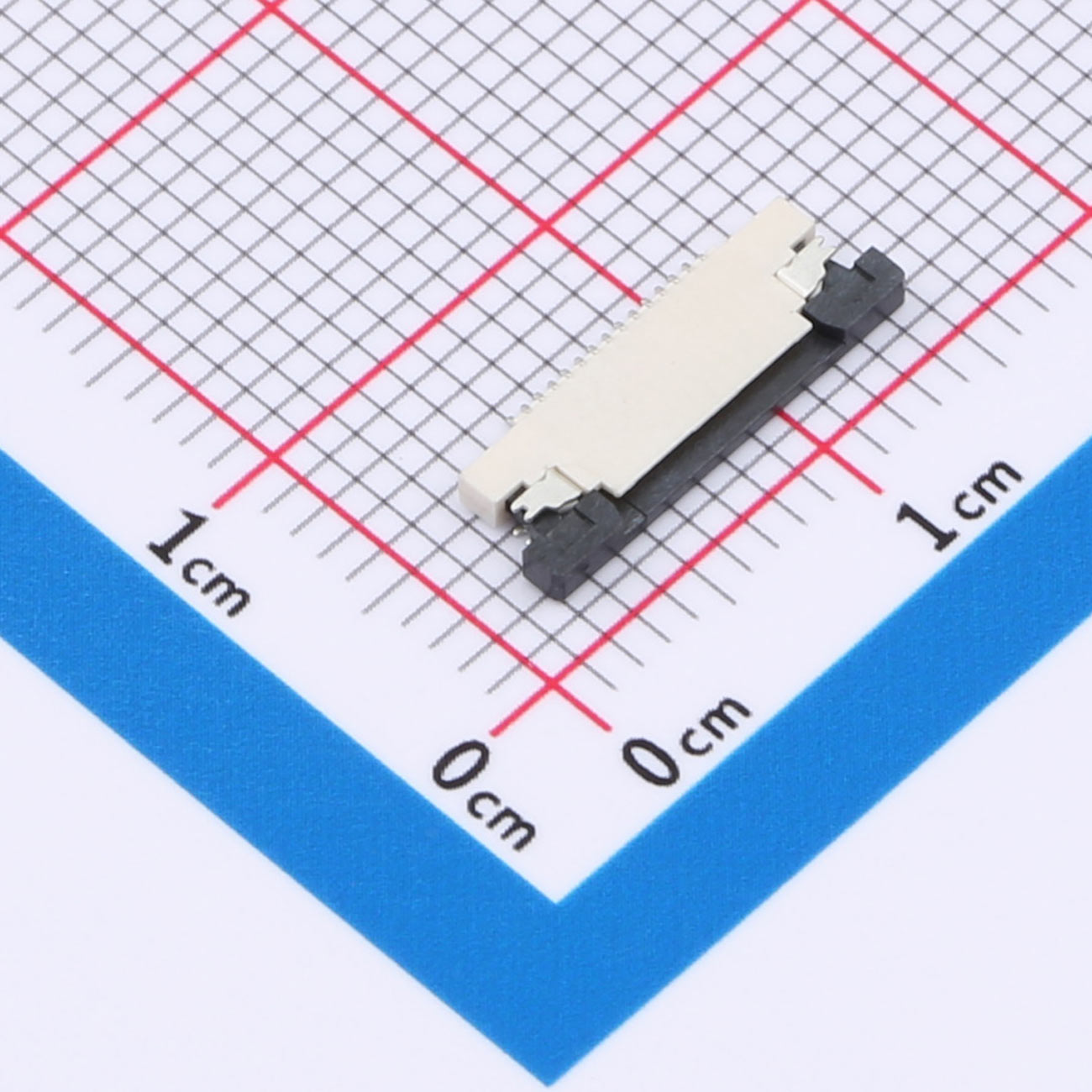

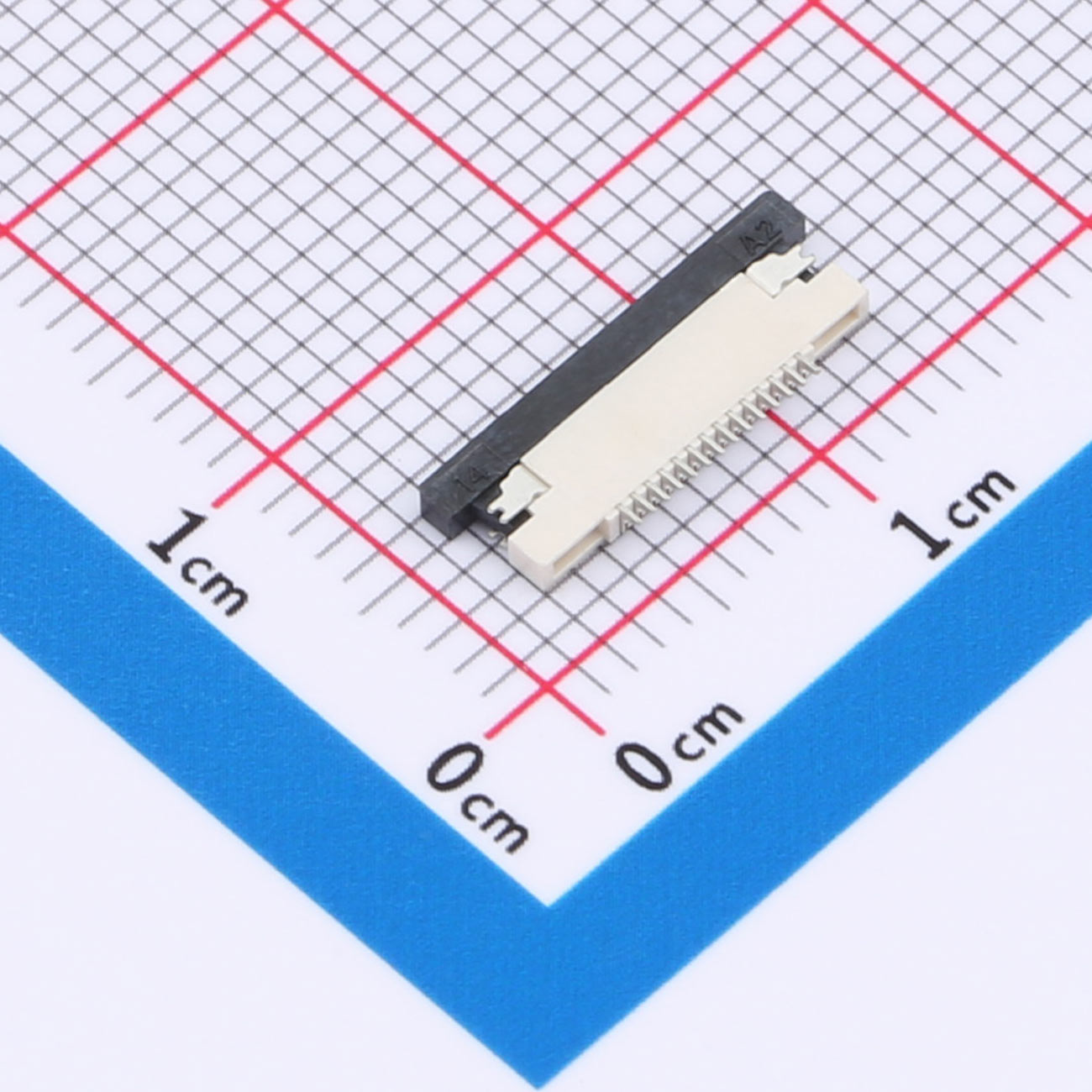

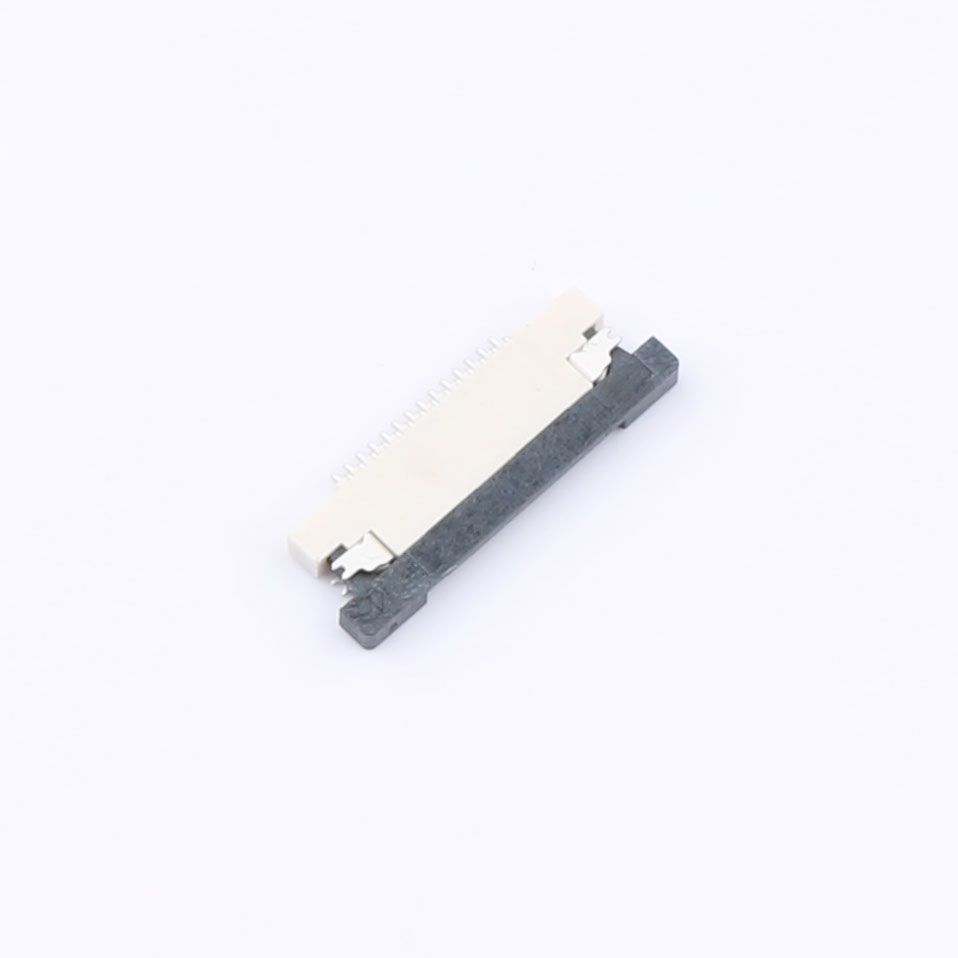

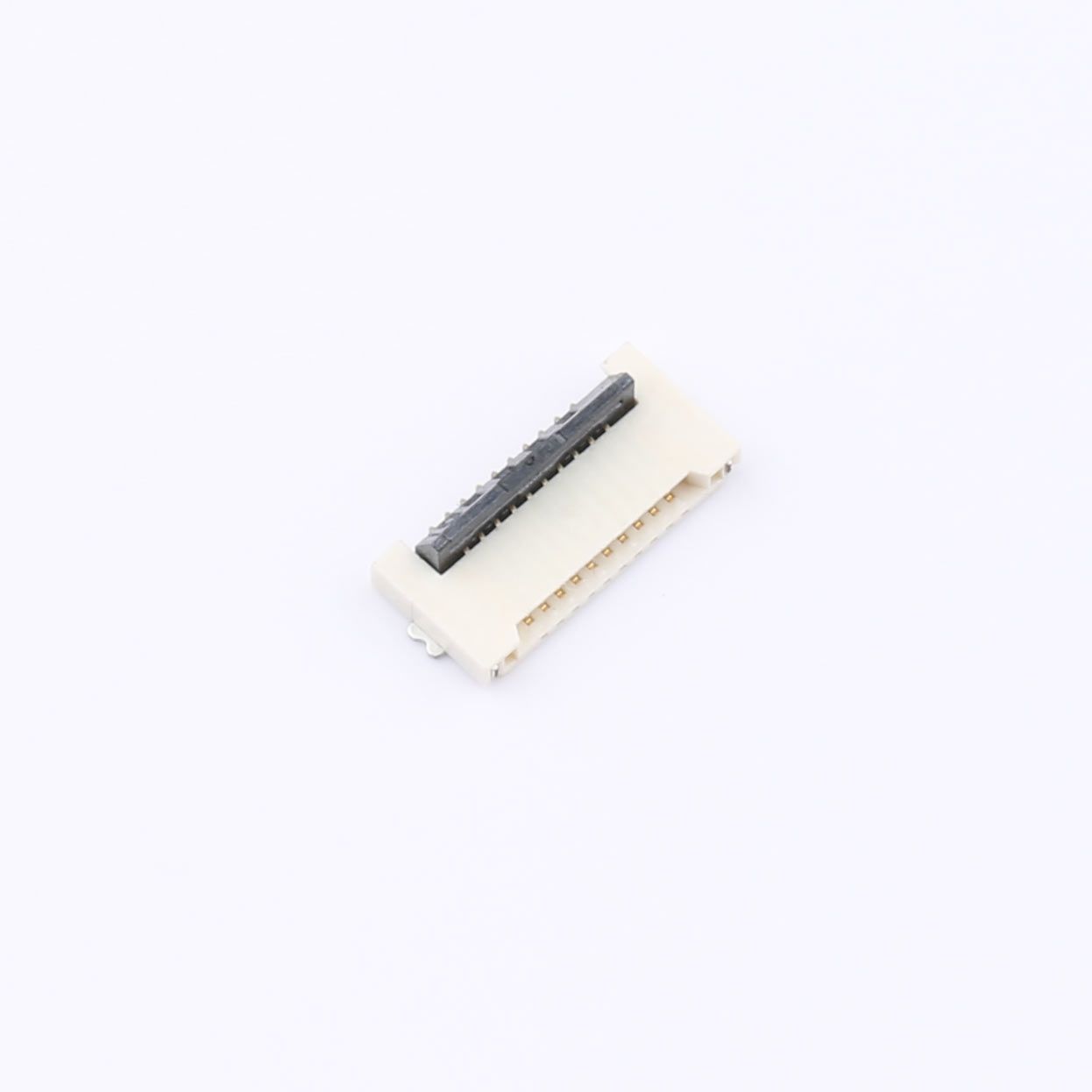

FFC/FPC Connector, 0.5mm Pitch, 14P, KH-CL0.5-H1.2-14PS-SMT
Temperature Range: -25℃ to 85℃
Rated Voltage: 50V AC/DC (equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Plating: Full Matte Tin on Terminals
Product Benefits
● Compact and lightweight
● High retention force for secure connections
● 0.5mm pitch for dense configurations
● Low height of 1.2mm for slim profiles
● Ideal for SMT production
● Reliable thermal characteristics
● Supports a variety of FPC types
● Convenient tape & reel packaging
Product Application
● Wearable technology
● Consumer audio devices
● Robotics components
● Home appliance controls
● Industrial monitoring systems
● Medical diagnostic tools
● Telecommunications devices
● Gaming peripherals
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
