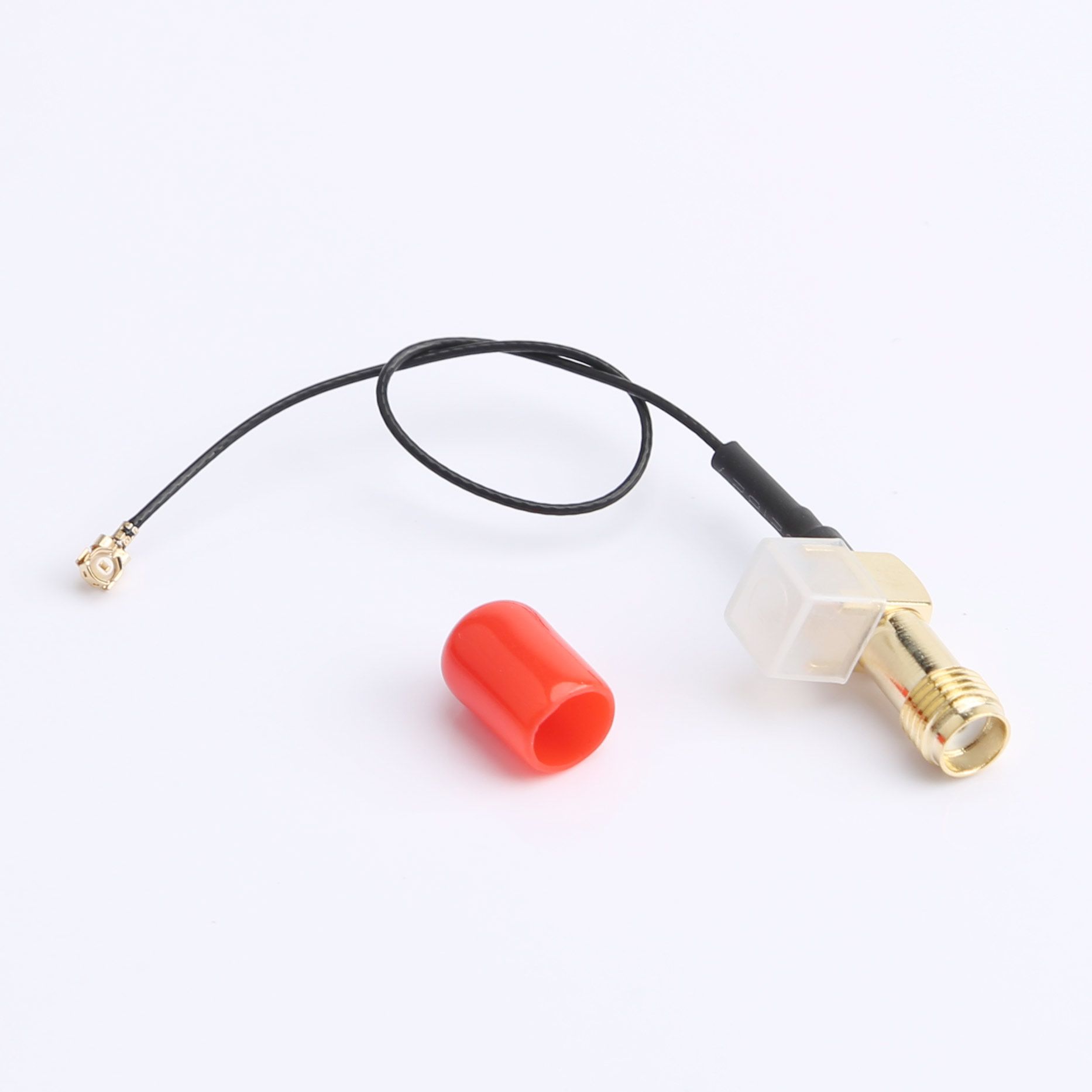

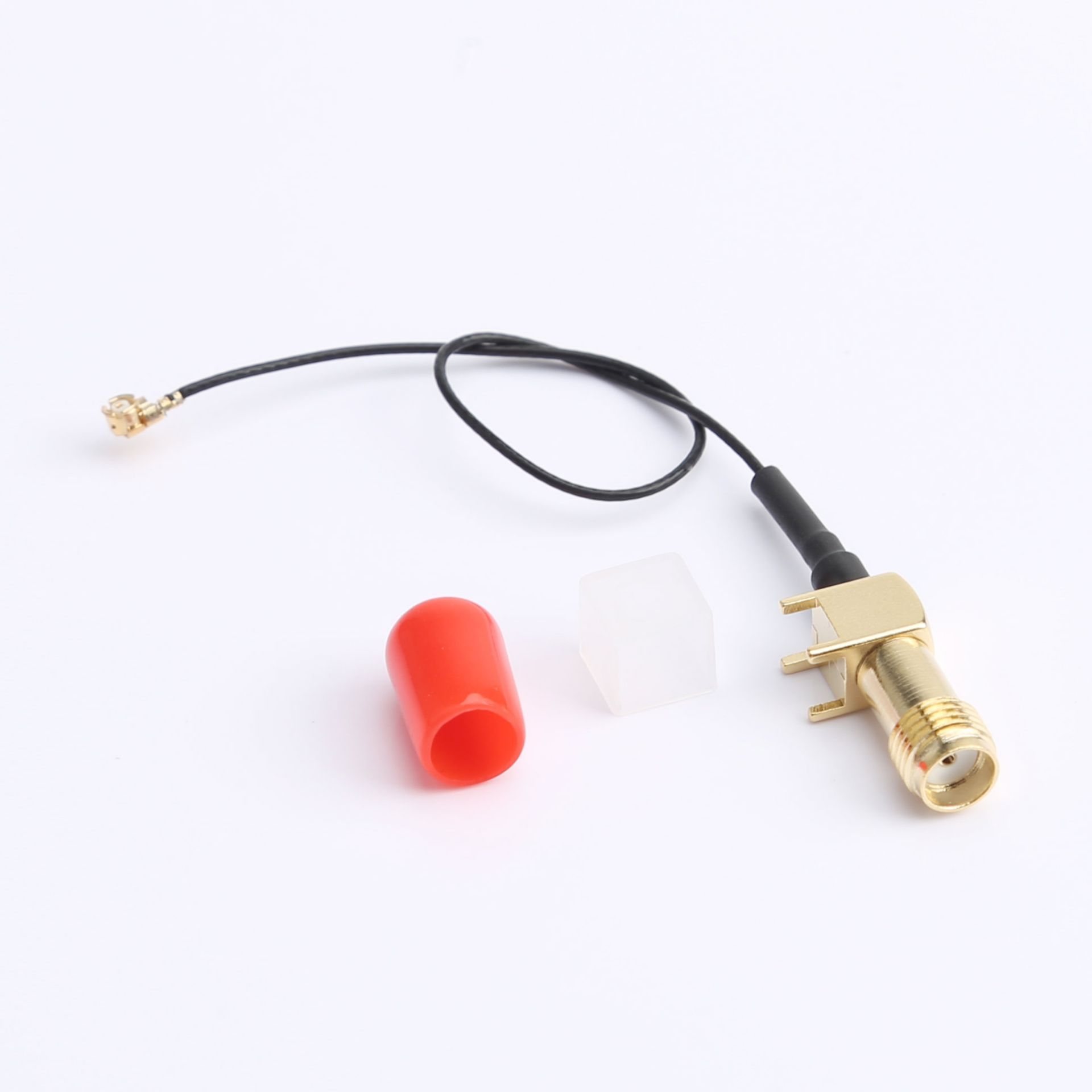

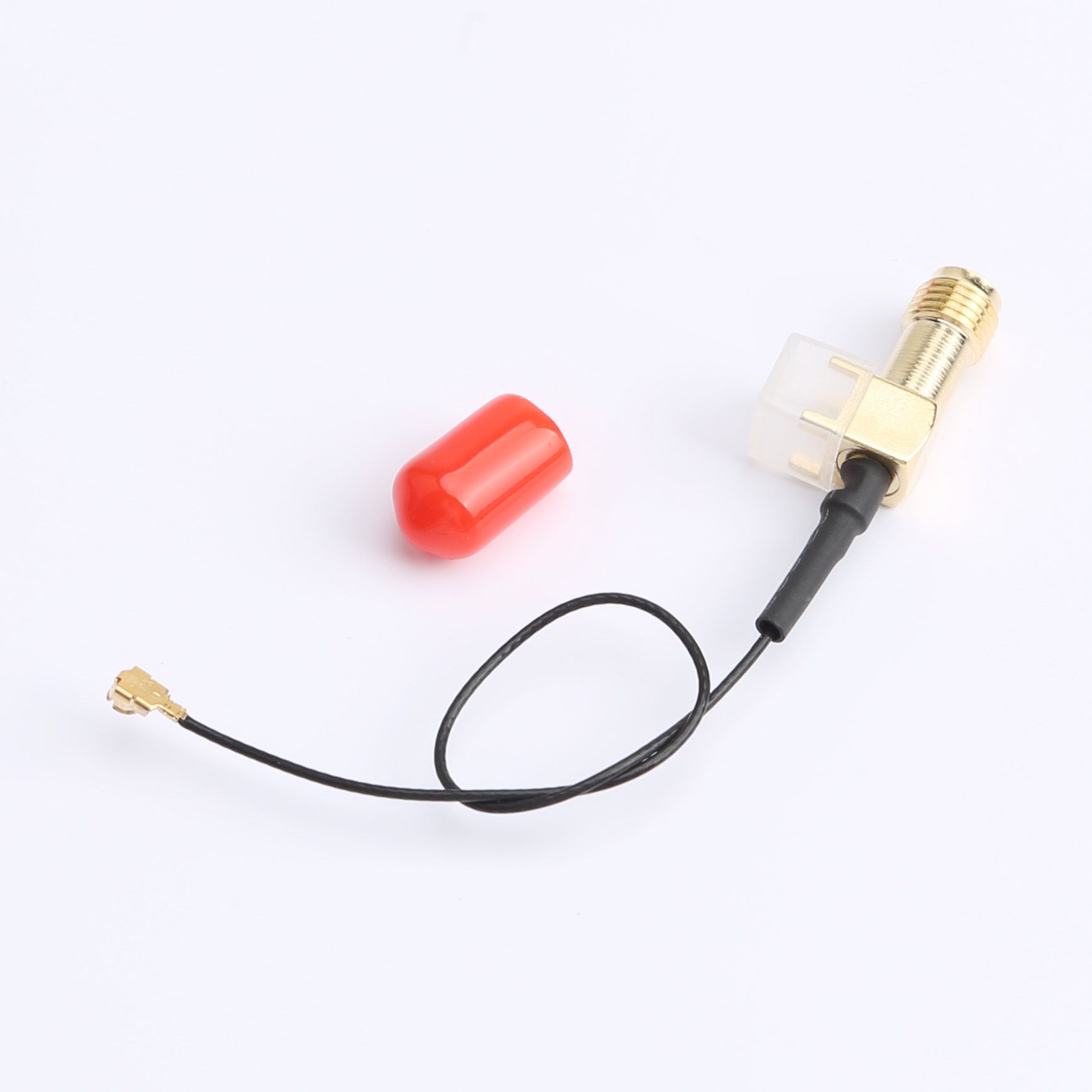

KH-IPEX-SMAKWE5-RG0.81-B120H
Brand: Kinghelm
Product: IPEX to SMA Female Cable
Cable Length: 120 mm
IPEX Generation: 1st Generation
Rated Voltage: 300 V
Features
- Designed with a first-generation IPEX connector and SMA female interface for reliable RF signal conversion.
- Uses RG0.81 black coaxial cable with stable impedance consistency for signal transmission.
- Four-leg half-thread SMA structure enhances mounting stability during installation.
- Gold-plated contacts help maintain reliable conductivity and stable connection performance.
- Flexible coaxial cable design supports convenient internal RF routing and cable management.
Benefits
- Flexible cable structure allows easier installation in complex device layouts.
- Standardized connector interfaces simplify maintenance and replacement.
- Stable connection structure helps improve installation reliability during operation.
- Gold-plated terminals support dependable signal transmission performance.
- Suitable for a wide range of RF connection and antenna extension requirements.
Applications
- Wireless communication module connections.
- Internal antenna extension and RF signal routing.
- RF interface extension for testing and debugging equipment.
- Signal transmission connections in industrial and consumer electronic devices.
- Embedded systems and electronic devices requiring SMA to IPEX RF connectivity.
