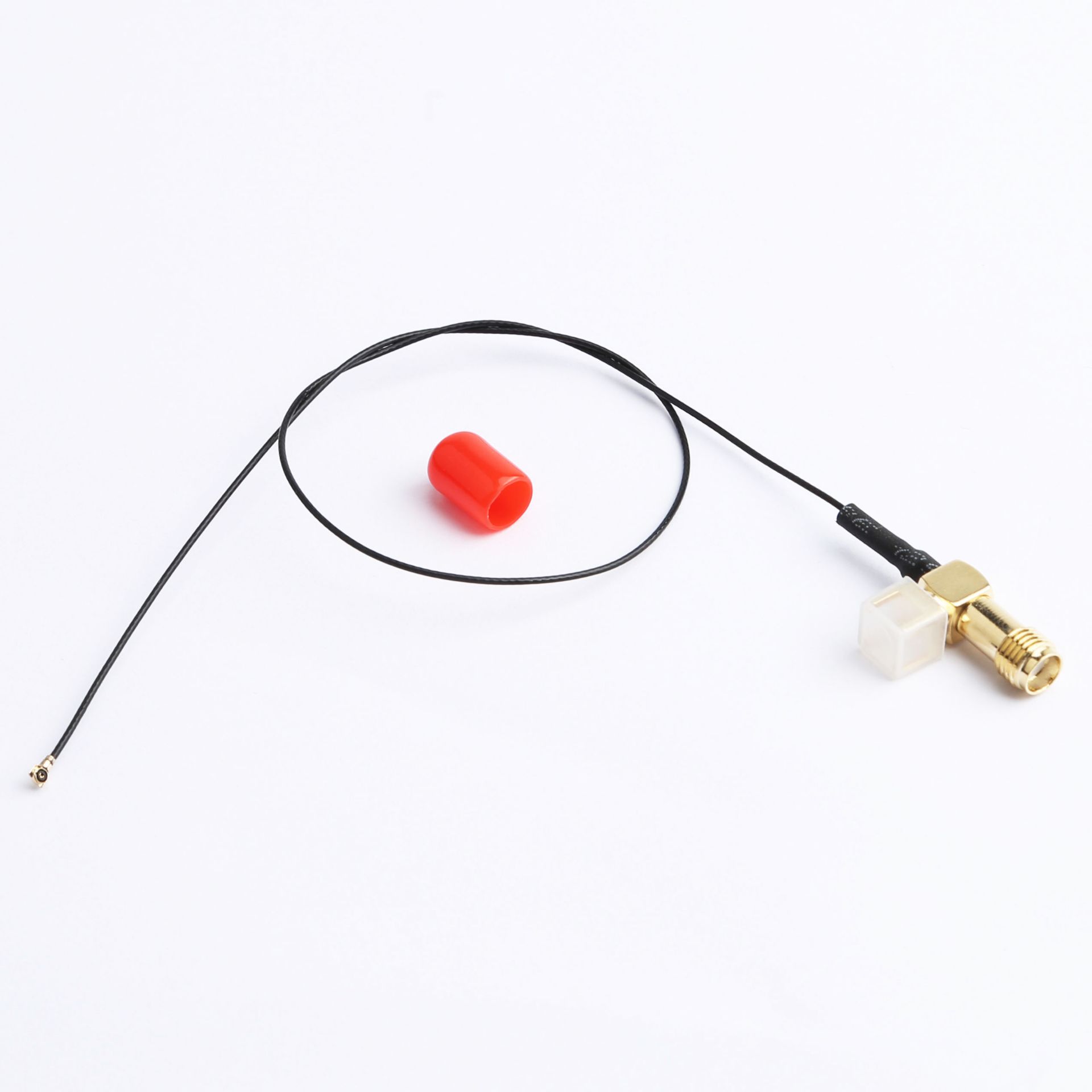

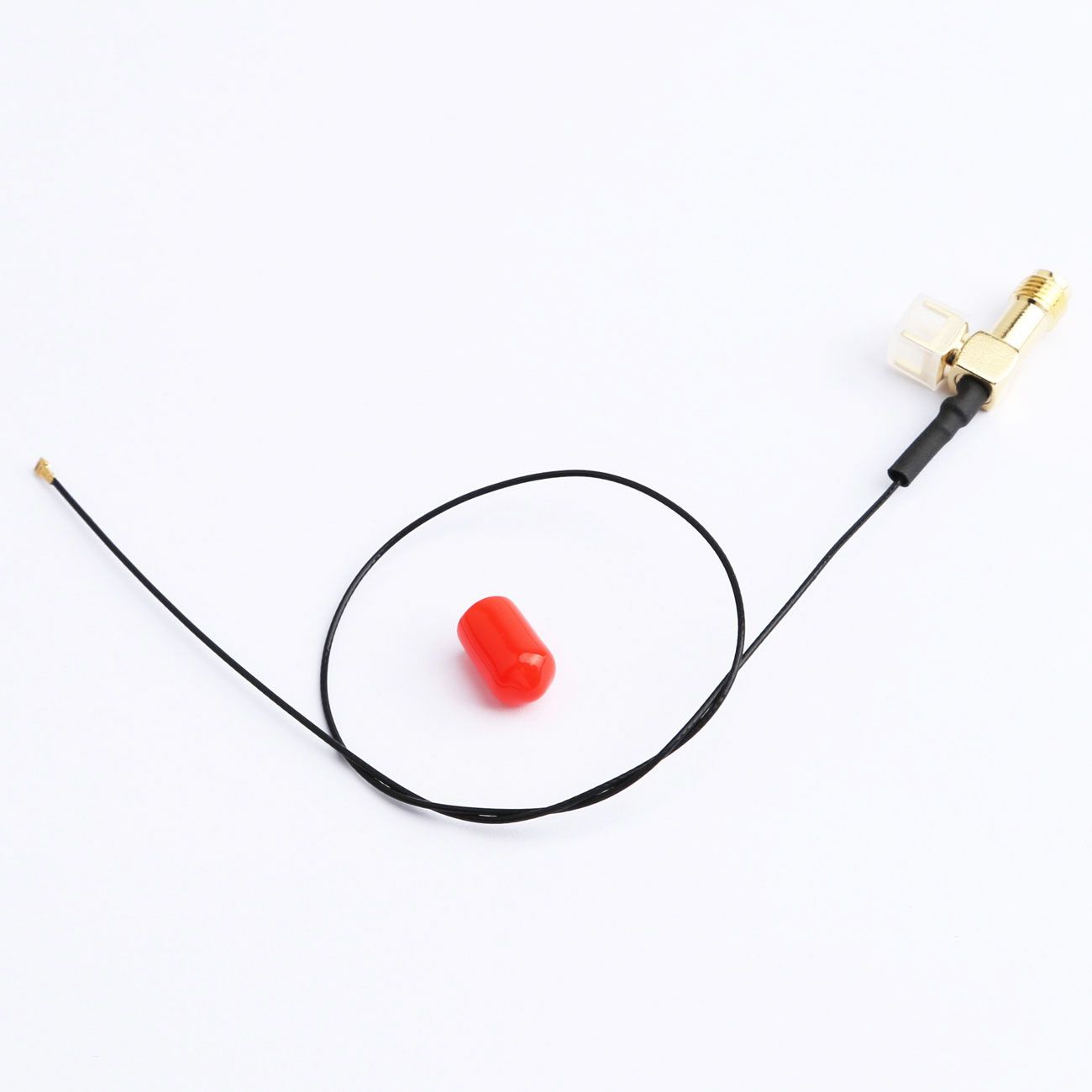

KH-IPEX4-SMAKWE5-RG0.81-B0300H

Brand: Kinghelm

Product: IPEX to SMA RF Cable Assembly

Cable Length: 300 mm

IPEX Generation: 4th Generation

Rated Voltage: 300 V

Download Datasheet Online Consultation

Product Features

  • IPEX 4th generation to SMA female RF coaxial cable assembly

  • Uses RF0.81 black coaxial cable for stable signal transmission

  • Gold-plated SMA female connector with four-leg half-thread structure

  • SMA connector designed with groove and 5mm threaded section

  • Equipped with IPEX 4th generation micro RF connector

  • Supports high-frequency RF signal transmission

  • Compact structure for embedded wireless applications

  • Reliable impedance performance and secure connection design

Product Benefits

  • Ensures stable and efficient RF signal transmission between modules and antennas

  • Gold-plated connector improves conductivity and corrosion resistance

  • Compact IPEX 4 connector saves installation space in small devices

  • Durable coaxial cable structure enhances mechanical reliability

  • SMA female interface allows easy integration with external antennas

  • Reduces signal loss for wireless communication systems

  • Suitable for repeated connection and disconnection applications

Product Applications

  • Wi-Fi modules and wireless communication devices

  • Bluetooth equipment and smart hardware systems

  • IoT modules and embedded RF applications

  • GPS and GNSS antenna connection systems

  • Industrial wireless control equipment

  • Smart home and consumer electronic devices

  • RF testing and communication development platforms

  • Antenna extension and signal transmission applications

Name
Title
Description
KH-IPEX4-SMAKWE5-RG0.81-B0300H
KH-IPEX4-SMAKWE5-RG0.81-B0300H
-
Datasheet
Support
