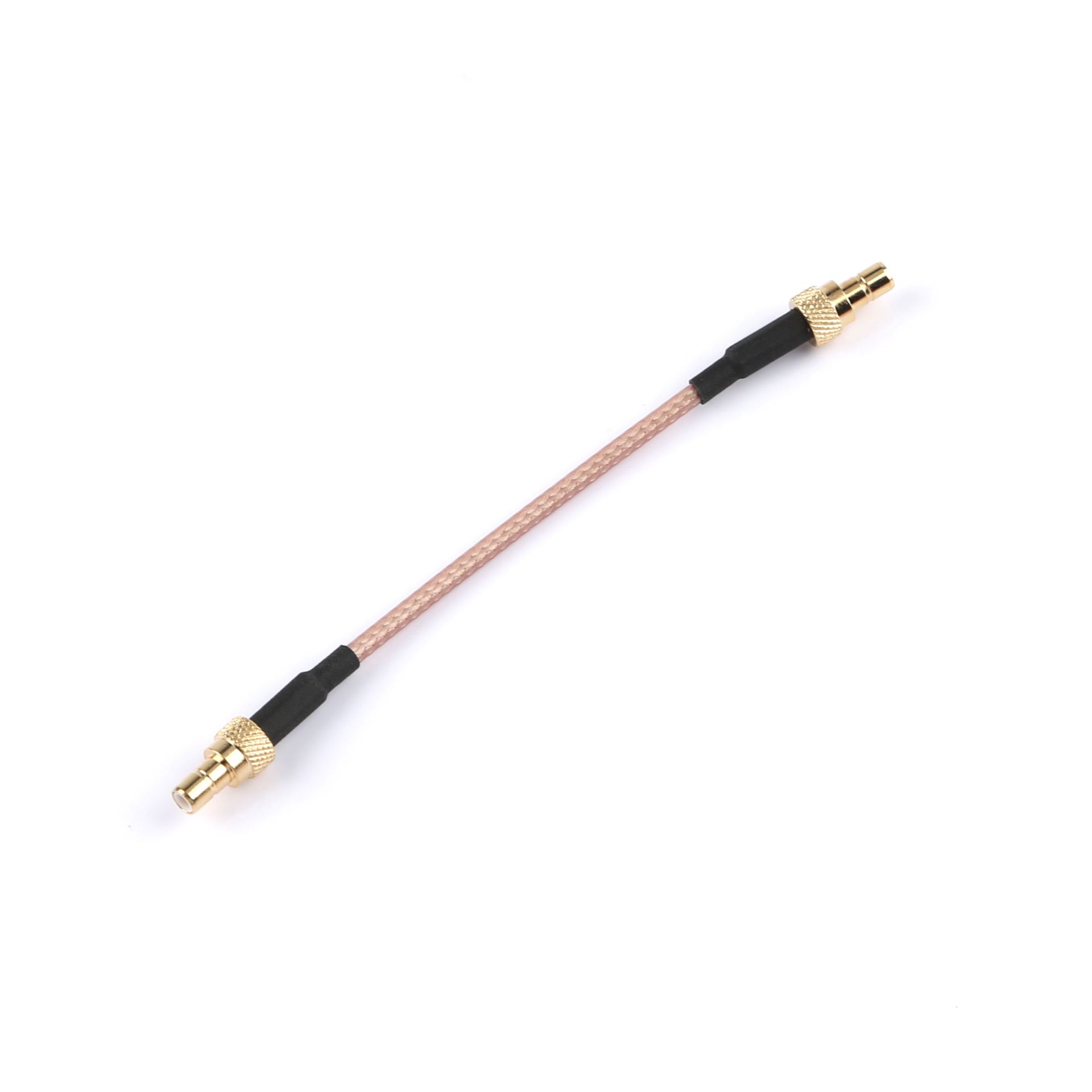

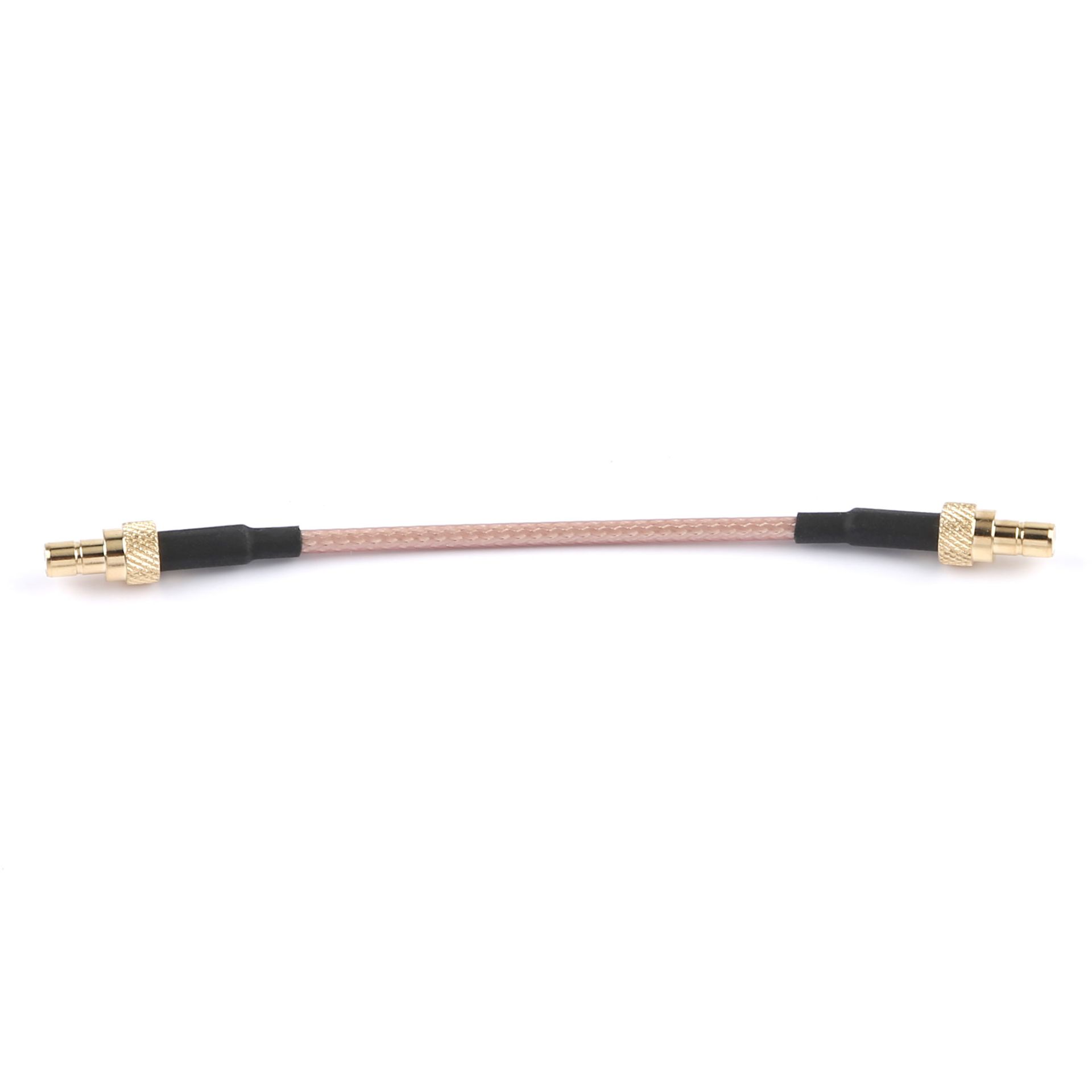

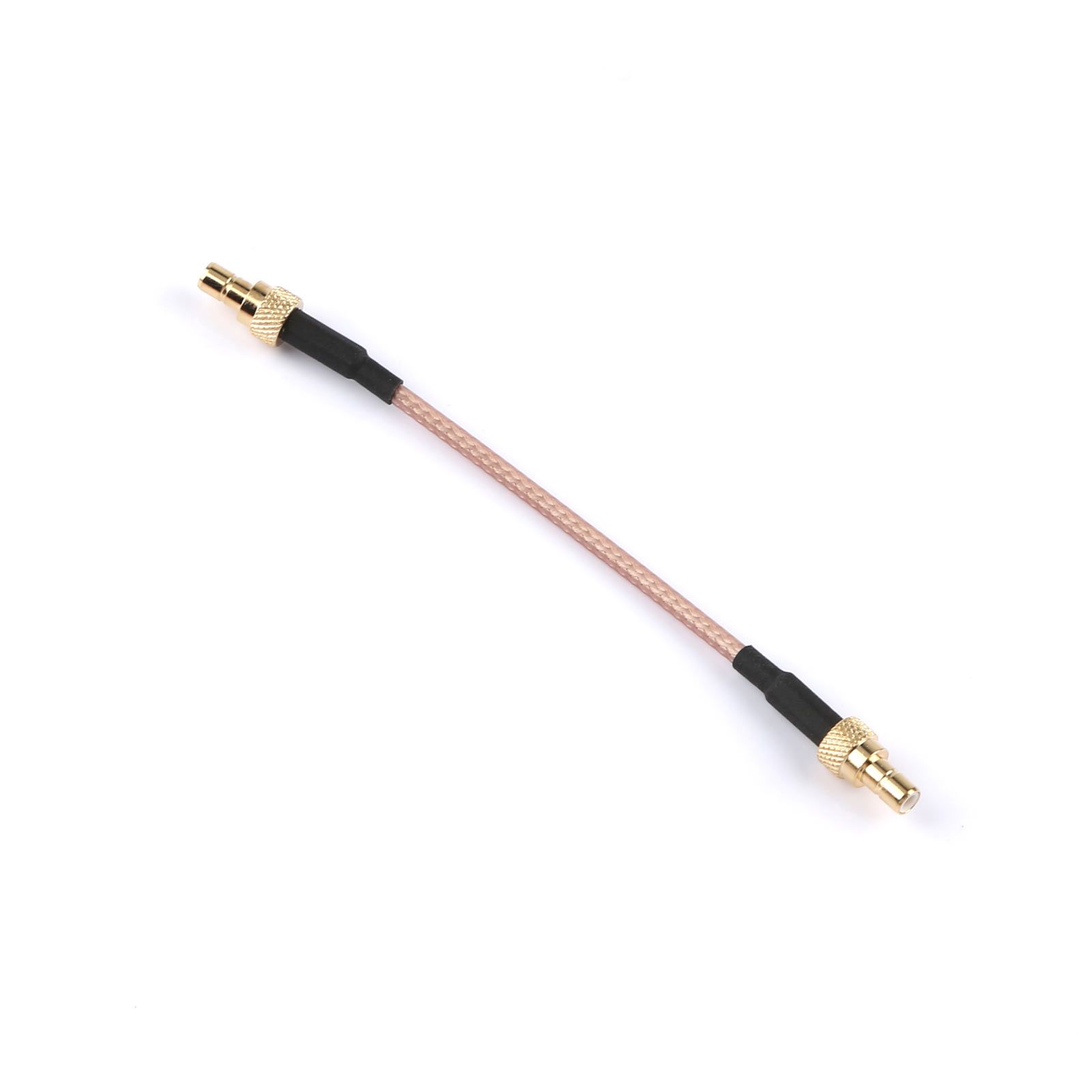

KH-SMBJ-SMBJ-RG316-80MM
Brand: Kinghelm
Product Type: SMB-J to SMB-J
Cable Length: 80 mm
Cable Type: RG316
Rated Voltage: 300 V
Features
- SMB male (plug) to SMB male (plug) RF coaxial cable assembly
- High-quality RG316 coaxial cable for stable signal transmission
- Rated voltage: DC 300V (10ms withstand capability)
- Low contact resistance: ≤ 3.0 Ω max
- High insulation resistance: ≥ 5.0 MΩ min
- 100% electrical tested before shipment
- Guaranteed performance: no open circuit, no short circuit, no miswiring, no intermittent failure
- RoHS compliant materials for environmental safety
Advantages
- Excellent RF performance: RG316 cable ensures low loss and stable high-frequency signal transmission
- High reliability: Full electrical testing ensures consistent quality and zero-defect delivery
- Compact interconnect solution: 60mm short cable ideal for tight PCB and module integration
- Strong durability: Stable mechanical structure suitable for vibration and compact electronic systems
- Safe and compliant: Meets RoHS environmental standards and industrial safety requirements
- Easy installation: SMB-to-SMB plug configuration enables quick connection and replacement
Applications
- RF communication modules and wireless devices
- GPS and Beidou navigation systems
- IoT devices and smart sensors
- Automotive electronics and in-vehicle communication systems
- Test and measurement equipment
- RF signal extension inside compact PCB assemblies
- Communication infrastructure and antenna interconnect systems
