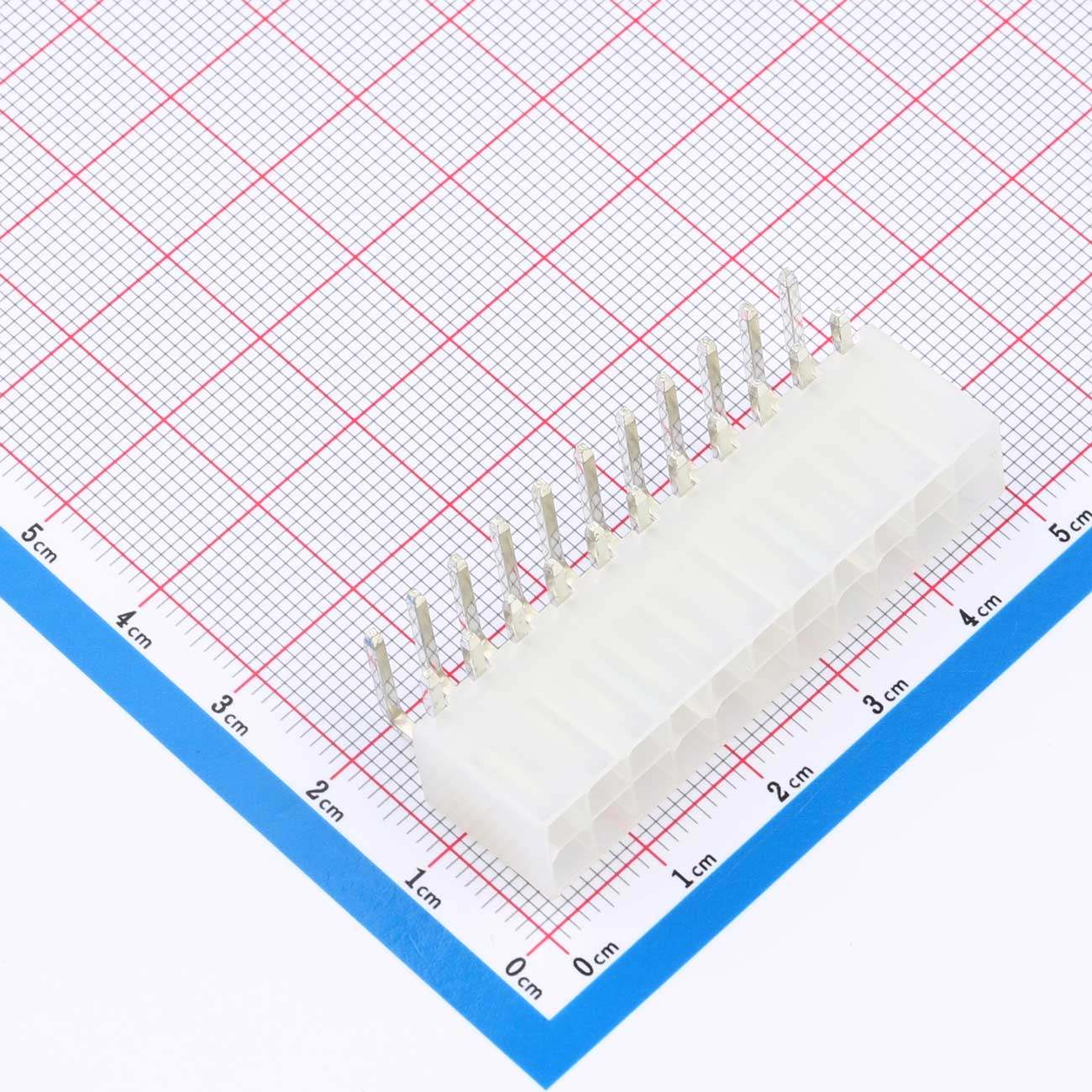

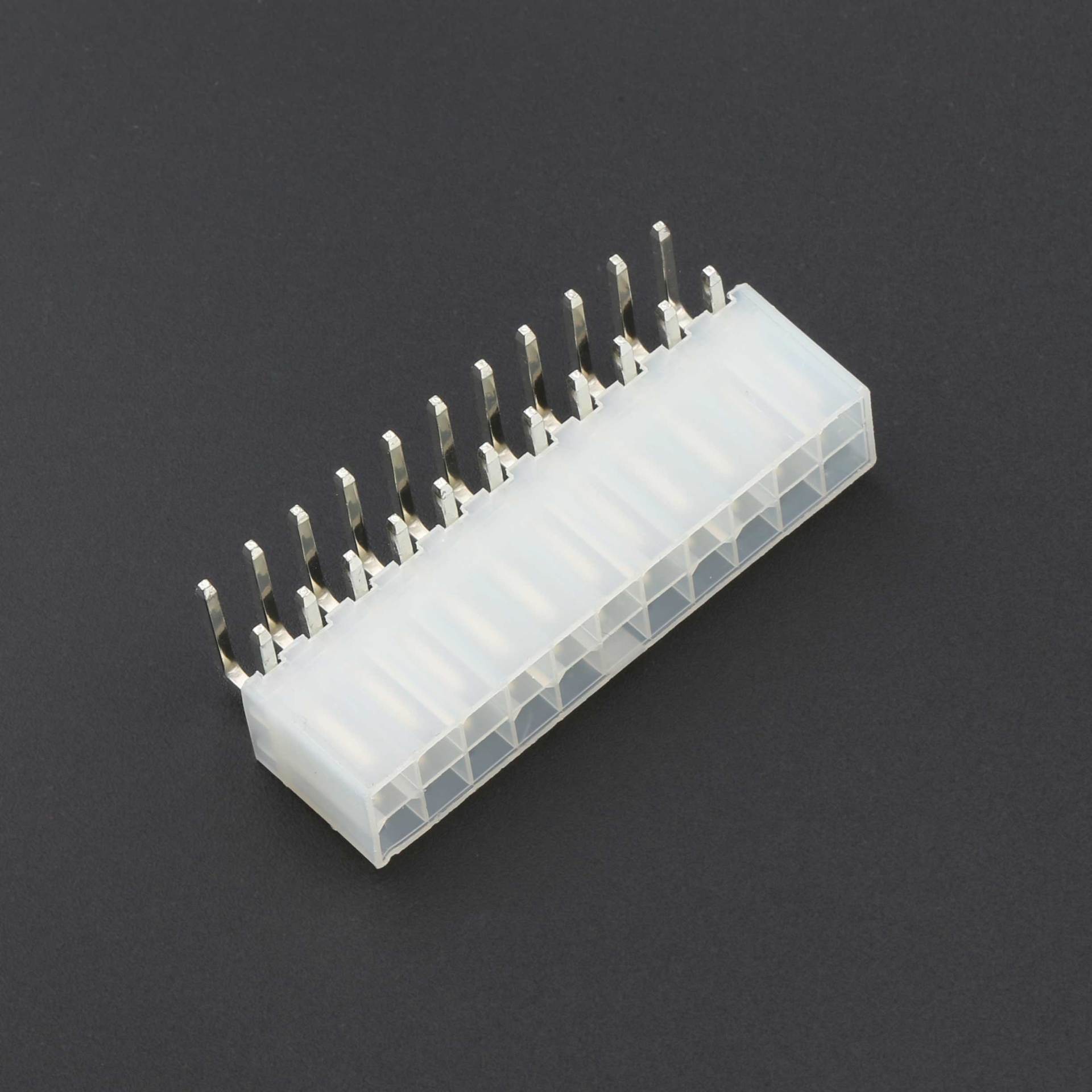

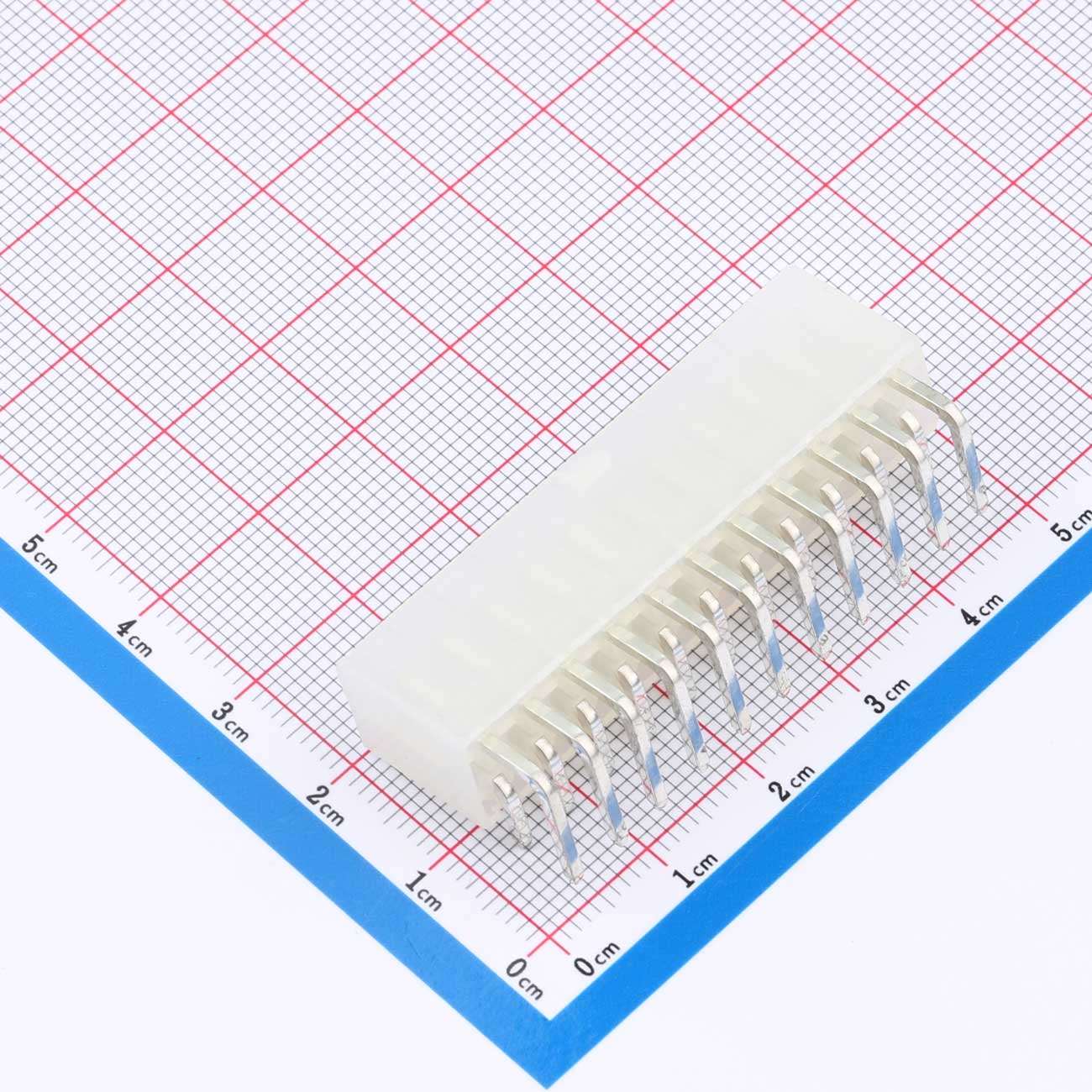

KH-A42002-2X11AW
Brand: Kinghelm
Model: KH-A42002-2X11AW
Package:Through Hole,Right Angle,P=4.2mm
Packaging: Bag
Rated Current: 7A
Features
- 4.2mm pitch wire-to-board connector with a 2×11-pin configuration
- Right-angle through-hole (DIP) mounting design for secure PCB installation
- Rated current up to 7A, suitable for medium to high current applications
- Rated voltage of 600V for reliable electrical performance
- Operating temperature range of -25°C to +85°C
- Durable connector structure designed for stable wire-to-board connections
- Bag packaging for convenient storage and handling
Advantages
- High current carrying capacity supports demanding power transmission applications
- Right-angle mounting design helps optimize PCB space utilization
- Through-hole soldering provides strong mechanical retention and connection reliability
- 4.2mm pitch design ensures excellent insulation performance and contact stability
- Wide operating temperature range allows use in various industrial environments
- Robust construction enhances durability and long-term operational reliability
- Compatible with a broad range of wire-to-board connection applications
Applications
- Industrial control equipment
- Power supply and power distribution systems
- Consumer electronics devices
- Household appliances
- LED lighting equipment
- Security and surveillance systems
- Communication equipment
- Automotive electronic systems
- Battery management systems (BMS)
- Instrumentation and measurement equipment
