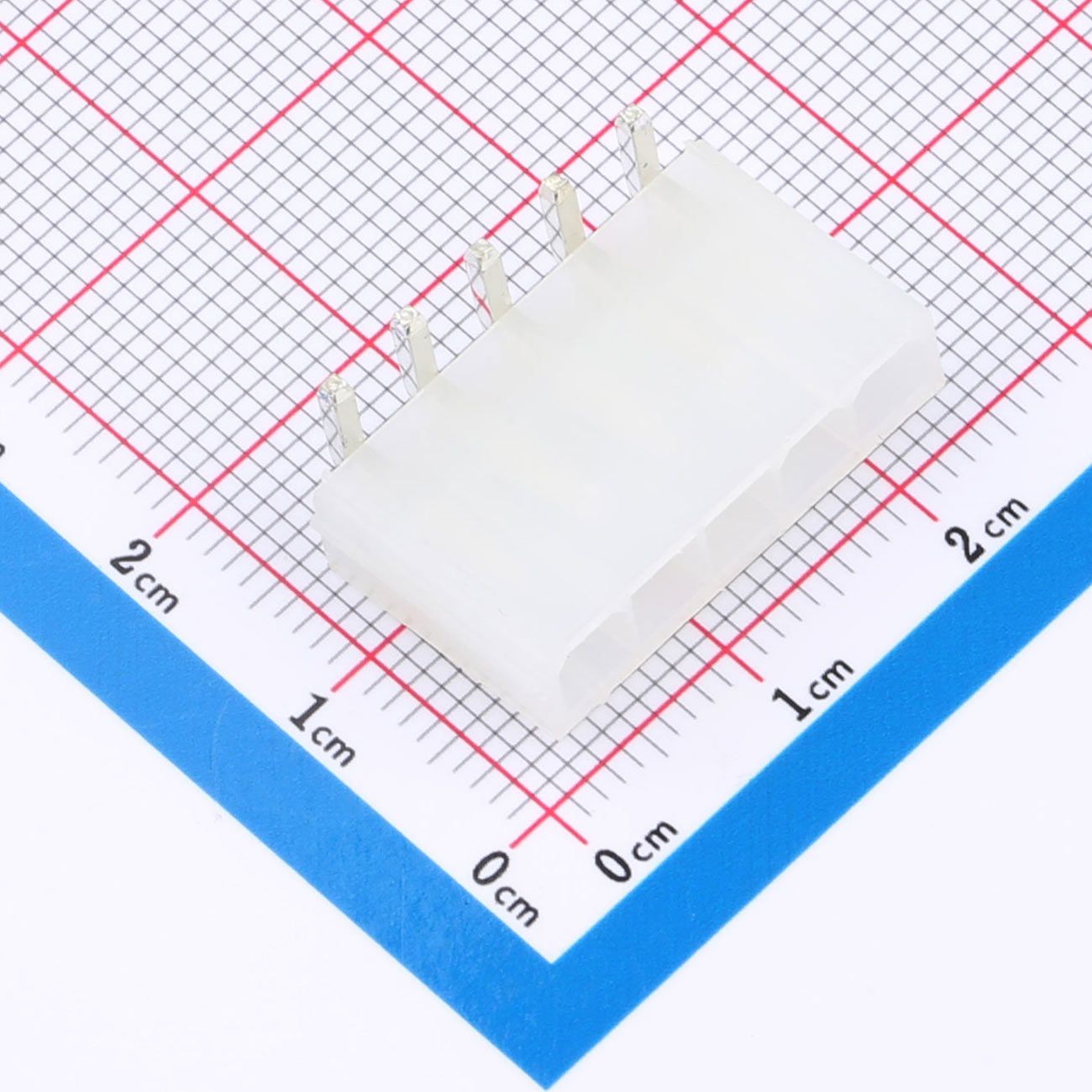

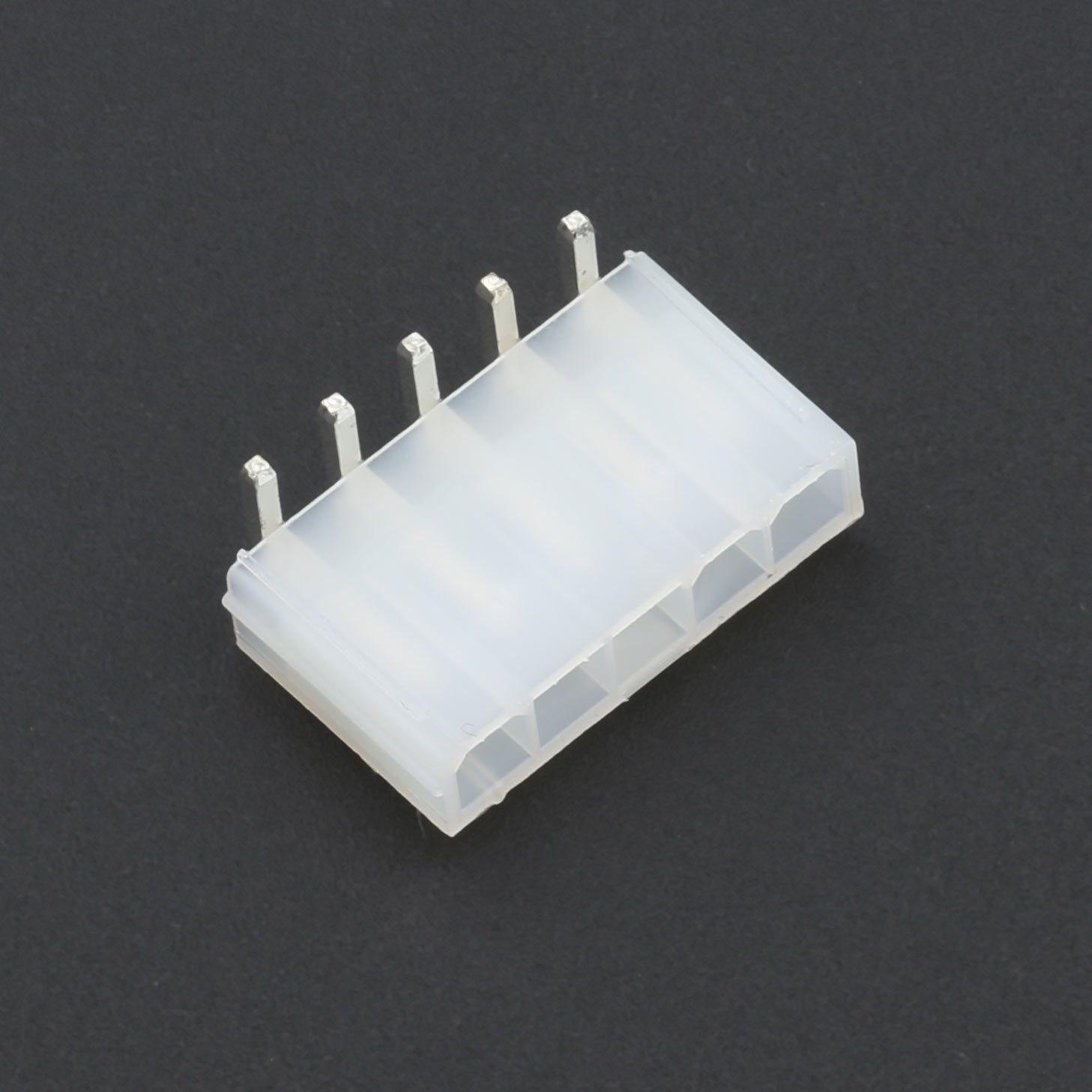

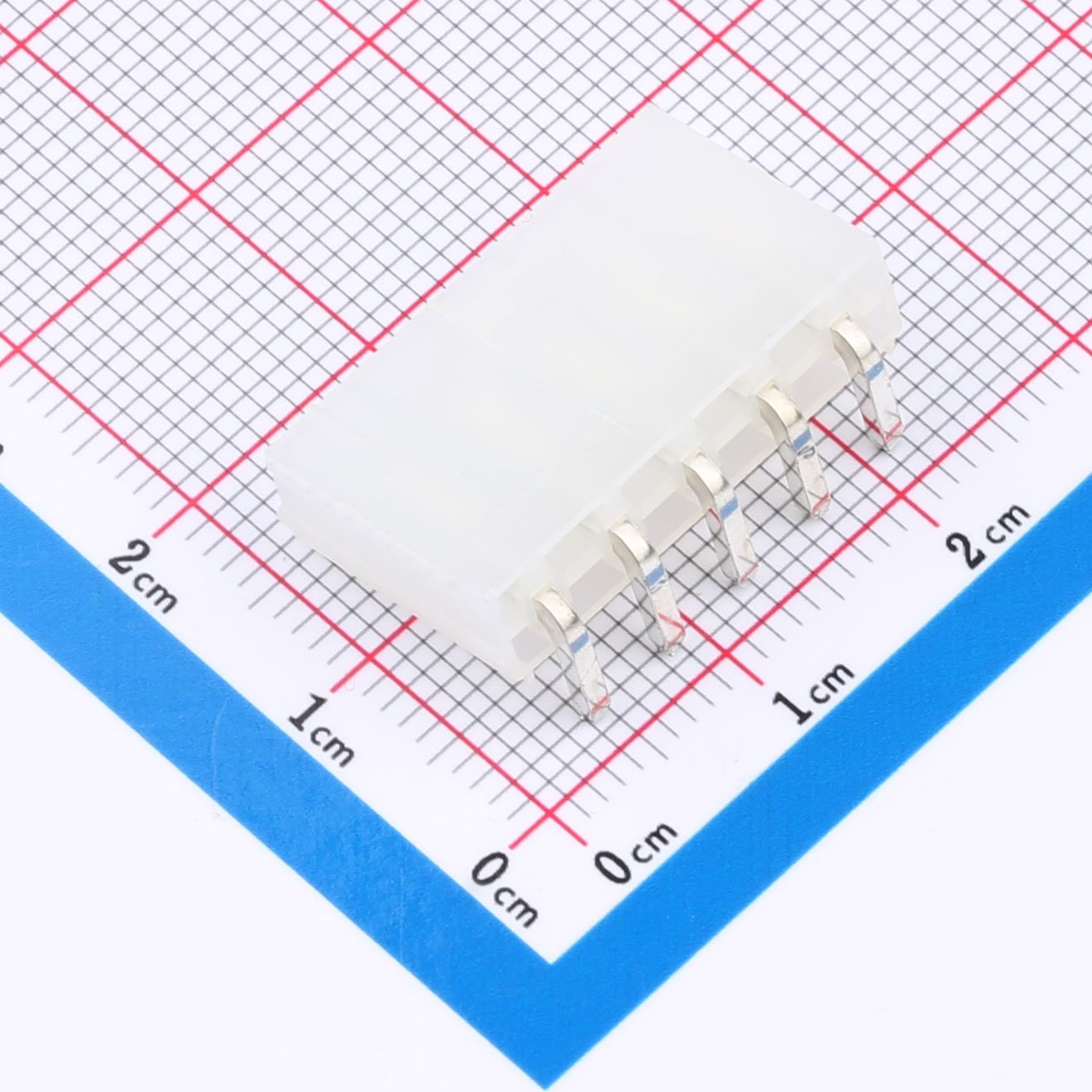

KH-A42002-05AW
Brand: Kinghelm
Model: KH-A42002-05AW
Package: Through Hole,Right Angle,P=4.2mm
Packaging: Bag
Rated Current: 7A
Features
● 4.2mm pitch wire-to-board connector with a 1×5-pin right-angle header configuration
● Right-angle through-hole mounting for horizontal PCB connections
● Rated current up to 7A for reliable power transmission
● 600V rated voltage suitable for high-voltage applications
● Operating temperature range from -25°C to +85°C
Advantages
● Right-angle design helps reduce connector height and optimize PCB layout
● Provides secure and stable electrical connections with low contact resistance
● Robust through-hole construction enhances mechanical strength and durability
● Compatible with standard 4.2mm pitch wire housings for easy assembly
● Suitable for both power and signal transmission applications
Applications
● Industrial control systems
● Power supplies and battery packs
● Consumer electronics and home appliances
● LED lighting equipment
● Automotive electronic devices
