Kinghelm Tactile Switch KH-6X6X11H-ZJ: The Eternal Covenant in Millimeters

Deep within the joints of assembly-line robots and atop the emergency buttons of medical monitors, an 11mm black cube upholds the rhythmic pulse of modern industry with a covenant of 100,000 actuations. Kinghelm Electronics has infused aerospace-grade reliability into the DNA of the KH-6X6X11H-ZJ tactile switch. When fingertips press its matte-finished circular button, the precise 260gf feedback transmits with chronometer-like clarity. Within a 0.25mm travel distance, the synergistic defense of horizontal PC pins and metal brackets permanently seals vibration failure into obsolescence.

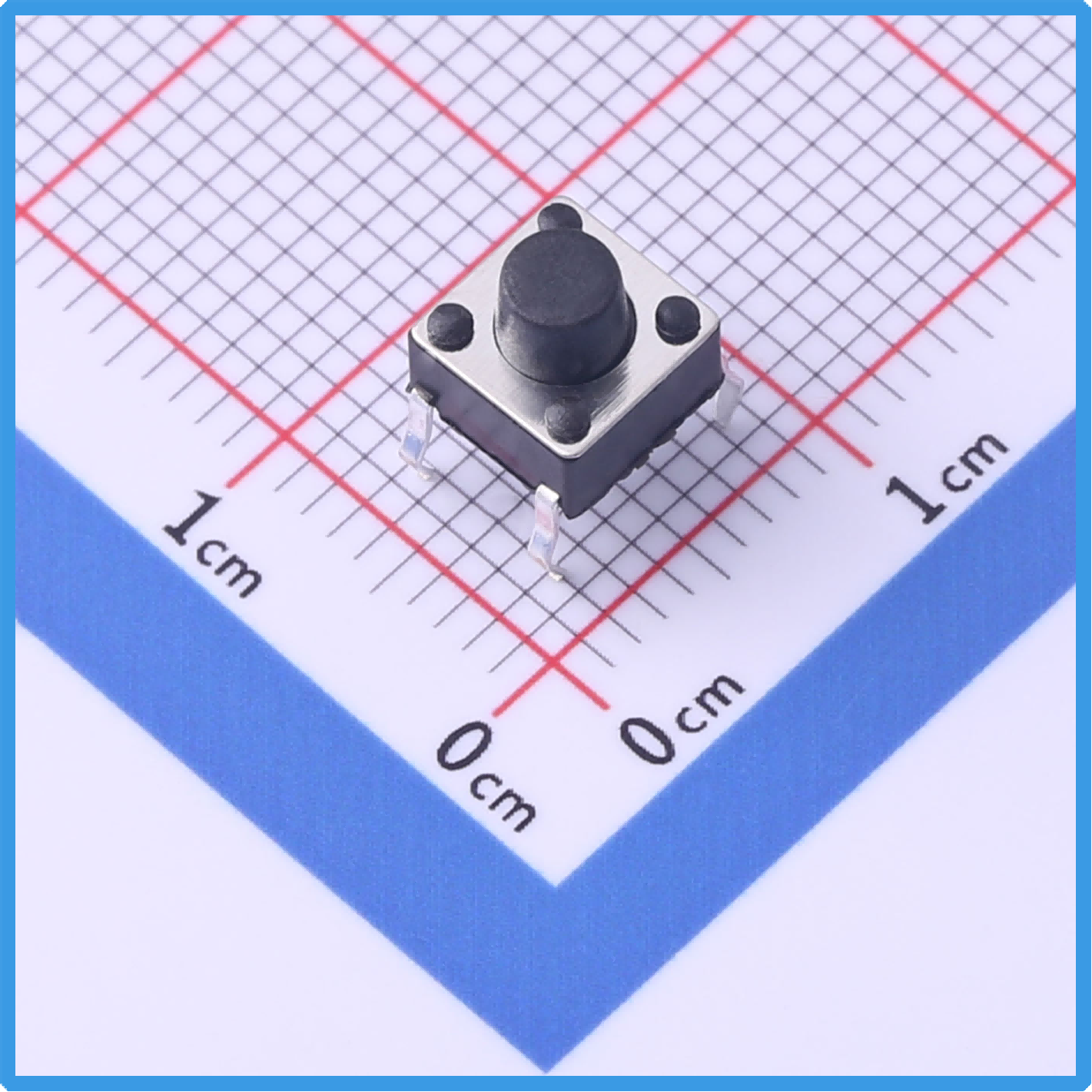

Kinghelm KH-6X6X11H-ZJ Product Image

This SPST (Single Pole Single Throw) minimalist architecture fortifies its 100MΩ insulation resistance barrier, blocking current desertion in humid environments. Accelerated aging tests at Kinghelm’s Dongguan laboratory decode its longevity cipher: After 100,000 compression cycles, silver-plated stainless steel contacts maintain resistance below 30mΩ—40% more durable than industry standards. Under 85℃ thermal assault, the engineering polymer base locks deformation resistance at 14MPa, keeping control buttons steadfast in textile mills’ humid air. In -25℃ freezing chambers, specialty silicone seals preserve elastic memory, guaranteeing absolute cold-start reliability for arctic construction machinery.

The revolutionary bracket structure renders KH-6X6X11H-ZJ invincible on vibration battlefields. When elevator control cabinets endure continuous 10G acceleration impacts—causing competing switches’ solder joints to fail catastrophically—its quad-bracket system disperses stress like seismic isolation bearings, reducing solder failure rates to one-tenth of imported alternatives. This vibration resistance wisdom, born from military equipment, now empowers white appliances’ energy-saving controls. Repair logs from an air-conditioner manufacturer reveal: Control boards with bracket structures reduce service hours by 80%, as soldering irons replace components via PC pins in 10 seconds—no hot-air rework stations needed.

From life-critical medical buttons to automotive mode selectors, this switch operates across three dimensions:

On insulin pens, the 11mm height achieves ergonomic perfection, enabling diabetic patients to dose accurately through tactile feedback;

In industrial PLC programmers, bracket structures absorb equipment resonance, ensuring 100% emergency-stop response amidst roaring machinery;

Across smart home hubs, the black cubes waltz with RGB light bars on aluminum panels—seamlessly switching "Guest Mode" to "Theater Scene" at fingertip command.

Kinghelm KH-6X6X11H-ZJ Specification

Kinghelm’s microscopic mastery manifests through LCP liquid crystal polymer bases and Au/Ni composite plating. LCP material counters injection molding deformation at 120℃ while costing 30% less than imported PA66. Contacts armored with 0.8μm gold over 2μm nickel withstand 48-hour salt spray tests, restricting corrosion to within the critical 3% threshold. At Guangxi factory, machine vision sculpts springs with ±0.01mm precision. When German TÜV inspectors dismantled competitors, they discovered Kinghelm’s electrical endurance exceeds Omron equivalents by 50,000 cycles—China’s reliability genes now stake claims in cubic-millimeter territories.
