Kinghelm FPC Connector KH-CL1.0-H2.5-22PIN: Engineered for High-Density Reliable Connections

In the dual pursuit of miniaturization and high performance in modern electronic devices, precise and stable internal component interconnections have become paramount. Kinghelm's KH-CL1.0-H2.5-22PIN FFC/FPC connector is engineered to address this critical need. Designed for applications requiring robust pin spacing and exceptional connection performance, this connector delivers a powerful and reliable pathway for data transmission and signal transfer within devices through its 1.0mm precision pitch and 22-pin configuration. The optimized 2.5mm height seamlessly adapts to spatial constraints in compact devices while ensuring terminal stability and long-term electrical reliability within limited spaces. Crafted with meticulous standards from material selection to manufacturing, and refined through rigorous processes, this connector consistently provides outstanding stability and extended service life across diverse operating environments and demanding conditions. It stands as a trusted solution for engineers building reliable electronic systems.

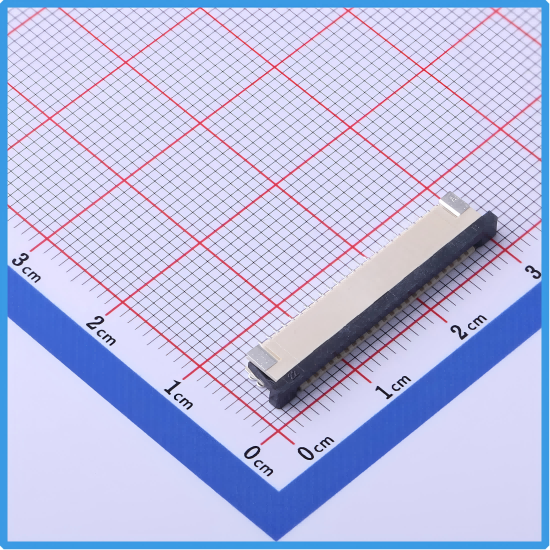

Kinghelm KH-CL1.0-H2.5-22PIN Product Image

1.0mm Precision Pitch: The Art of Balancing Density and Reliability
The competitive edge of the KH-CL1.0-H2.5-22PIN FFC/FPC connector lies in its 1.0mm "golden pitch" design—a meticulously calculated balance point. It significantly outperforms traditional 2.54mm pitch connectors in space efficiency, increasing signal channel density per unit area to meet modern PCB integration demands. Simultaneously, it offers greater physical tolerance than ultra-miniature 0.5mm (or smaller) pitch alternatives. This design drastically reduces risks of pin-to-pin short circuits (bridging) caused by manufacturing variances, assembly stress, or operational micro-vibrations. The wider spacing enhances electrical insulation, improves heat dissipation, and accommodates manufacturing tolerances, fundamentally boosting production yield and operational safety. It is particularly suited for critical nodes in industrial control boards, medical device core modules, and automotive electronics where long-term connection reliability is non-negotiable.

22-Pin High-Capacity Configuration: Building Efficient Data Pathways
With 22 precisely arranged pins, this connector meets the parallel data transmission and multi-signal control requirements of mainstream compact electronics. The 22 independent channels effortlessly handle tasks such as data/backlight control for mid-small LCDs, multi-functional board interconnects in portable smart devices, signal transmission in printer scanner heads, and complex communication between industrial control modules. Compared to solutions requiring multiple low-pin-count connectors (increasing cost/failure points) or oversized connectors wasting space and causing signal interference, the 22-pin design offers exceptional versatility. Each pin undergoes precision machining and plating (e.g., gold/tin/silver), ensuring ultra-low contact resistance and stable current-carrying capacity. This creates high-efficiency, low-loss data and power "highways" within devices—cornerstones for enhanced operational efficiency and signal integrity.

2.5mm Low Profile Height: Conquering Compact Space Challenges
In space-constrained modern electronics—especially ultrathin consumer devices and highly integrated industrial modules—vertical clearance is often critical. The KH-CL1.0-H2.5-22PIN achieves an unparalleled 2.5mm board-mounted height. This ultra-slim profile allows it to "disappear" within narrow cavities or between stacked PCBs, freeing vital space for heatsinks, batteries, or larger components. Crucially, the low height does not compromise strength. Optimized mechanical structures, including ZIF/LIF locking mechanisms and reinforced housing, maximize stability within minimal height. This design effectively resists lateral stresses during mating/unmating and persistent operational vibrations, ensuring unwavering connection integrity in space-sensitive applications like mobile devices, wearables, and drone flight controllers—eliminating risks of intermittent contact or disconnection due to height limitations.

Precision Engineering: Unyielding in Harsh Environments
Kinghelm’s commitment to quality shines in the KH-CL1.0-H2.5-22PIN. Contact terminals use high-performance phosphor bronze or beryllium copper alloys, offering superior conductivity, elasticity, and fatigue resistance. Precision-stamped and finished with thick gold plating (or optional tin/silver), this "golden armor" drastically reduces contact resistance, boosts signal efficiency, and provides exceptional corrosion/oxidation/wear resistance. It maintains stable interfaces even in humid, salty, or mildly corrosive industrial atmospheres. The connector body employs high-strength, heat-resistant, UL94 V-0 flame-retardant engineering plastics (e.g., LCP/PBT), precision-molded for structural integrity, dimensional accuracy, and insulation. It withstands SMT reflow soldering temperatures. Every process—from materials to finished product—undergoes stringent controls, ensuring consistent electrical performance and mechanical reliability across a wide temperature range (-40°C to +85°C+) under sustained mechanical stress and humidity cycling. This meets rigorous standards for automotive, outdoor, and industrial automation applications.

Tube Packaging: Ensuring Flawless Delivery and Production Readiness
Attention to detail extends to packaging. The KH-CL1.0-H2.5-22PIN utilizes professional tube packaging for transport and delivery. This is not merely a container but critical protection for precision components. Connectors are aligned, ordered, and secured within each tube, preventing pin bending, body scratches, or plating damage from collisions during transit. Tube packaging is ideal for automated SMT assembly lines, enabling direct loading into pick-and-place feeders for efficient, precise, damage-free automated handling and soldering. This significantly boosts production efficiency while reducing human error and ESD risks. The lightweight tube design (~0.63g gross weight) optimizes storage and logistics costs. Kinghelm understands that only undamaged, production-ready delivery allows their quality to shine—tube packaging embodies this customer-first philosophy.

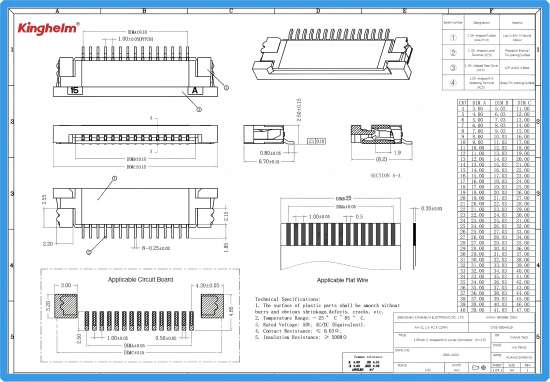

Kinghelm KH-CL1.0-H2.5-22PIN Specification

The Kinghelm KH-CL1.0-H2.5-22PIN FFC/FPC connector epitomizes the core value of modern interconnect solutions: maximizing reliable connections within minimal space. With its 1.0mm pitch precision, 22-pin efficiency, 2.5mm compact height, mil-spec materials/processes, and user-centric tube packaging, it transcends being a mere interface—it is a foundational component ensuring smooth signals, stable operation, and extended device lifespan. Whether deployed in rugged industrial equipment, cutting-edge consumer electronics, or life-critical medical instruments, the KH-CL1.0-H2.5-22PIN delivers unparalleled performance, providing engineers with a steadfast connection guarantee for their designs. Choosing Kinghelm is choosing an unwavering commitment to quality and a solemn promise of reliability.
