Kinghelm FPC Connector KH-FPC0.5-H5.0-20P-LTQB: Precision Defines Reliability

The high-performance KH-FPC0.5-H5.0-20P-LTQB FPC connector, meticulously developed by Kinghelm, is specifically designed for modern electronic devices that demand high-precision and high-reliability connection solutions. This connector features a 0.5mm fine pitch, combined with an H5.0 height standard and a 20-pin compact layout, supplemented by an LTQB special mechanical structure. It achieves stable, efficient, and durable electrical connections within extremely limited space. Its surface-mount packaging further enhances its compatibility and efficiency in automated production, making it suitable for applications sensitive to space and requiring high performance, such as smartphones, tablets, wearable devices, and precision instruments. With its profound technical expertise and strict quality control system, Kinghelm ensures that this connector excels in transmission stability, mechanical strength, and environmental adaptability, making it an ideal choice for engineers designing compact layouts.

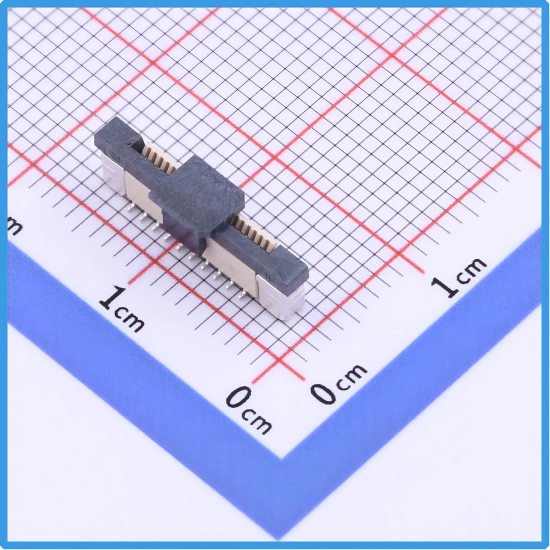

Kinghelm KH-FPC0.5-H5.0-20P-LTQB Product Image

High-Precision Pitch Design to Meet Miniaturization Needs
One of the core advantages of the KH-FPC0.5-H5.0-20P-LTQB FPC connector is its 0.5mm ultra-fine pitch design. As electronic devices continue to trend toward lightweight and miniaturization, internal PCB space is becoming increasingly constrained, making traditional connectors inadequate for high-density integration needs. Through precision mold development and high-precision stamping processes, this product ensures the accuracy and consistency of each pin position, avoiding short-circuit risks caused by overly small spacing while minimizing board space usage. This design is particularly suitable for scenarios with dense signal lines and limited space, such as display modules, sensor modules, and camera modules, helping customers achieve more flexible and compact product structure designs and providing critical support for the thinning and functional integration of end devices.

Compact Structure and High Compatibility to Optimize Space Utilization
This connector adopts a 20-pin configuration and a 5.0mm board-to-height (H5.0) design, achieving efficient routing of multiple signal lines within a limited height. Its structural design not only considers the size control of the connector itself but also fully accommodates the compatibility with FPC/FFC flexible flat cables and the convenience of assembly operations. By optimizing the structural ratio of the plastic body and metal terminals, Kinghelm further reduces the overall volume while ensuring mechanical strength. This feature makes it especially suitable for applications highly sensitive to space, such as the hinge areas of foldable smartphones and the interiors of miniaturized IoT devices, helping engineers integrate more functional modules within limited space and enhancing the flexibility and space utilization efficiency of the overall design.

LTQB Special Locking Mechanism to Enhance Connection Reliability
To address the challenge of connection stability in harsh environments such as vibration, drops, or frequent plugging and unplugging, the KH-FPC0.5-H5.0-20P-LTQB FPC connector incorporates an LTQB special locking mechanism. This mechanism uses a drawer-style locking method to securely fasten the FPC cable after insertion via a mechanical latch, effectively preventing connection loosening or dislodgement due to external impact or prolonged vibration. Compared to traditional lock-free or simple lock designs, the LTQB structure offers higher retention force and longer durability, significantly improving the long-term reliability of connection points. This feature is particularly suitable for applications with extremely high demands for connection stability, such as mobile devices, automotive electronics, and industrial control systems, greatly reducing the risk of failures caused by connection failures.

High-Reliability Terminal Design to Ensure Stable Electrical Performance
In the terminal design of this connector, Kinghelm uses high-quality copper alloy materials combined with precision plating processes, endowing it with low impedance, high current-carrying capacity, and excellent corrosion resistance. The contact area between the terminals and the FPC gold fingers is optimized through simulation, maintaining stable and uniform contact pressure during long-term use and avoiding instantaneous power interruptions or signal attenuation caused by micro-vibrations or thermal expansion and contraction. Additionally, the excellent terminal design supports high-frequency signal transmission, meeting the demands of modern mobile devices for high-speed data exchange. This ensures outstanding performance in applications such as transmitting high-definition video signals and high-speed data streams, guaranteeing reliable electrical connection performance for end products in various application environments.

SMT Mounting Process to Improve Production Efficiency and Consistency
TheKinghelmKH-FPC0.5-H5.0-20P-LTQBFPCconnector adopts a surface-mount device (SMD) packaging form, compatible with mainstream placement equipment and reflow soldering processes. This enables efficient, automated assembly, significantly improving production efficiency and reducing labor costs. Its packaging design features good pad coplanarity and solder paste wettability, helping to reduce common soldering issues such as tombstoning and cold joints, thereby improving first-pass yield. Meanwhile, the high-precision placement offered by the SMT process ensures consistency between mass-produced products, making it particularly suitable for large-scale, high-speed manufacturing scenarios such as smartphones and consumer electronics, helping customers enhance overall production quality and supply chain efficiency.

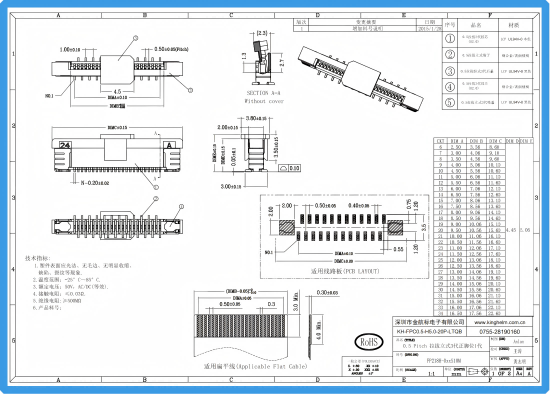

Kinghelm KH-FPC0.5-H5.0-20P-LTQB Specification

In summary, the Kinghelm KH-FPC0.5-H5.0-20P-LTQB FPC connector, with its fine pitch, compact structure, special locking mechanism, high-reliability terminals, and SMT process compatibility, demonstrates Kinghelm's profound technical expertise and innovation capabilities in the field of precision electronic connectivity. It not only addresses space constraints in high-density integrated devices but also ensures the long-term stable operation of connection systems in complex environments through multiple reliability designs. Whether used in consumer electronics, mobile devices, industrial control, or automotive electronics, this connector can provide customers with efficient, stable, and economical connection solutions, serving as a key component in driving electronic devices toward greater miniaturization and higher performance. Kinghelm remains committed to providing the market with more high-quality interconnection products, supporting global innovation and progress in the electronics industry.
