Kinghelm Tactile Switch: KH-6X6X7H-TJ Reliable Performance, Compact Design

In the realm of electronic control systems, where reliability and space efficiency are paramount, the Kinghelm KH-6X6X7H-TJ vertical mount tactile switch stands as a testament to precision engineering. This compact component, measuring just 6×6×7mm, incorporates a single-pole single-throw (SPST) circuit structure and through-hole mounting design, making it an ideal solution for 12V circuit control applications across various industries.

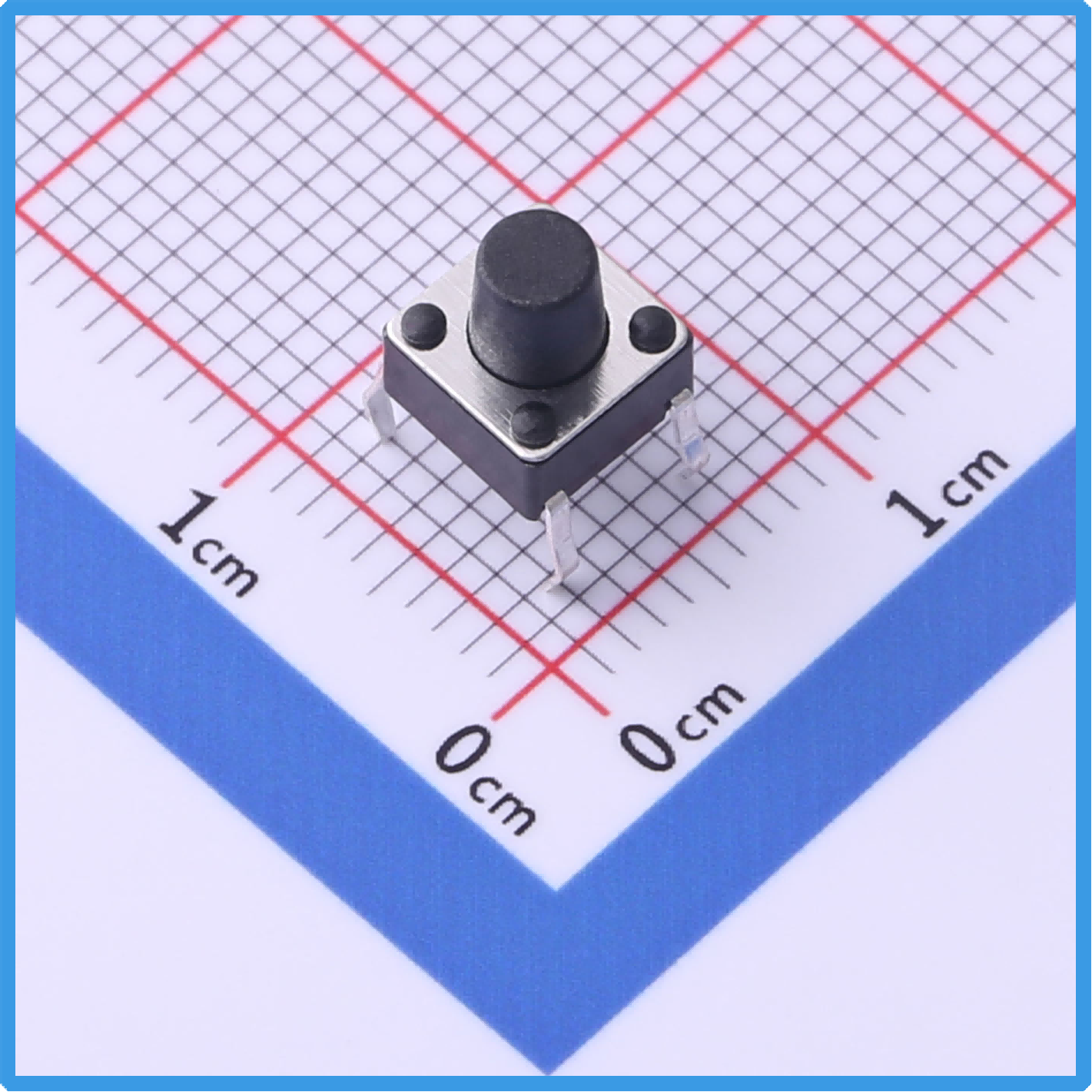

Kinghelm KH-6X6X7H-TJ Product Image

The switch's physical architecture demonstrates thoughtful engineering. Its 7mm vertical profile provides sufficient actuation travel while maintaining a low overall footprint, particularly valuable in space-constrained applications. The black circular button features a matte finish that resists fingerprint marks and maintains aesthetic appeal through extended use. PC material pins offer enhanced durability with a bending resistance of 4N, ensuring reliable insertion and retention in PCB boards during the assembly process.

Electrical performance characteristics underscore the switch's reliability. With a 50mA contact current rating and 100MΩ insulation resistance (tested at 500VDC), it provides secure circuit control in 12V systems. The SPST configuration ensures straightforward signal routing without cross-talk concerns. Operating temperature range from -25℃ to +70℃ accommodates most environmental conditions, with contact resistance variation remaining within 2mΩ throughout this range.

Mechanical durability meets industry demands, with tested lifespan exceeding 50,000 actuations under standard operating conditions (60 presses/minute). The 260±30gf actuation force provides balanced tactile feedback - sufficient to prevent accidental triggers yet light enough for comfortable operation. This force characteristic remains consistent through the switch's lifespan, with degradation measuring less than 10% after full lifecycle testing.

The through-hole mounting design offers particular advantages for certain applications. It provides robust mechanical attachment superior to surface-mount alternatives in high-vibration environments. The design also facilitates manual assembly and repair operations, as components can be easily replaced with standard soldering equipment. These features make it particularly suitable for industrial control systems, test equipment, and other applications where long-term reliability takes precedence over automated assembly efficiency.

Application versatility spans multiple sectors. In consumer electronics, it serves in audio equipment control interfaces and power management systems. Industrial applications include machinery control panels and instrumentation interfaces. The switch has demonstrated reliability in environmental testing, maintaining performance through 500 hours of 85% humidity exposure and vibration testing per IEC 60068-2-6 standards.

Manufacturing quality is ensured through comprehensive quality control measures. Automated optical inspection verifies pin straightness and component dimensions, while 100% electrical testing confirms continuity and insulation resistance specifications. Batch testing includes solderability validation and mechanical life testing to ensure consistent performance across production runs.

For optimal performance, recommended soldering parameters include 350±10℃ peak temperature with contact time limited to 3 seconds maximum. Storage conditions should maintain humidity below 65% RH to preserve pin solderability. The switch should be protected from excessive mechanical stress during handling to prevent pin damage.

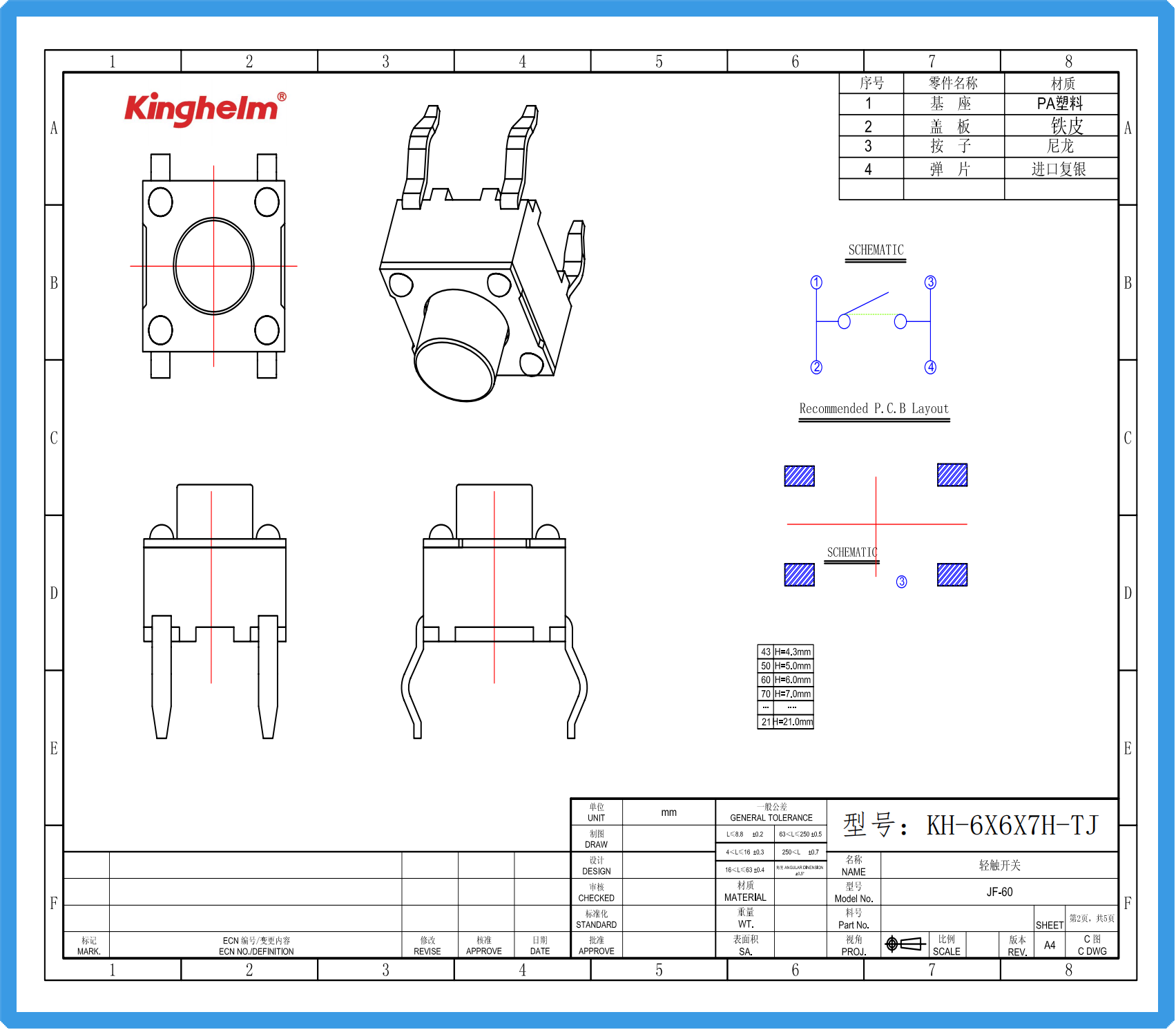

Kinghelm KH-6X6X7H-TJ Specification

Kinghelm's quality management system, certified to ISO 9001 standards, ensures consistent manufacturing quality. The KH-6X6X7H-TJ has been deployed in numerous applications including industrial control systems, automotive electronics, and consumer appliances, with demonstrated field reliability supporting its technical specifications.
