Kinghelm 2.54mm Female Header Connector KH-2.54FH-1X3P-H8.5: Reliable Choice for High-Density PCBs

In modern electronics, the female header plays a vital role as a fundamental connector that ensures stable interconnections between printed circuit boards. Thanks to its standardized pitch and versatile structure, it provides engineers with flexible design options while maintaining reliability. The KH-2.54FH-1X3P-H8.5 by Kinghelm is a prime example, featuring a 2.54mm pitch and a compact through-hole design. Despite its small size, this female header offers strong electrical performance and high compatibility, making it an ideal solution for high-density PCB applications.

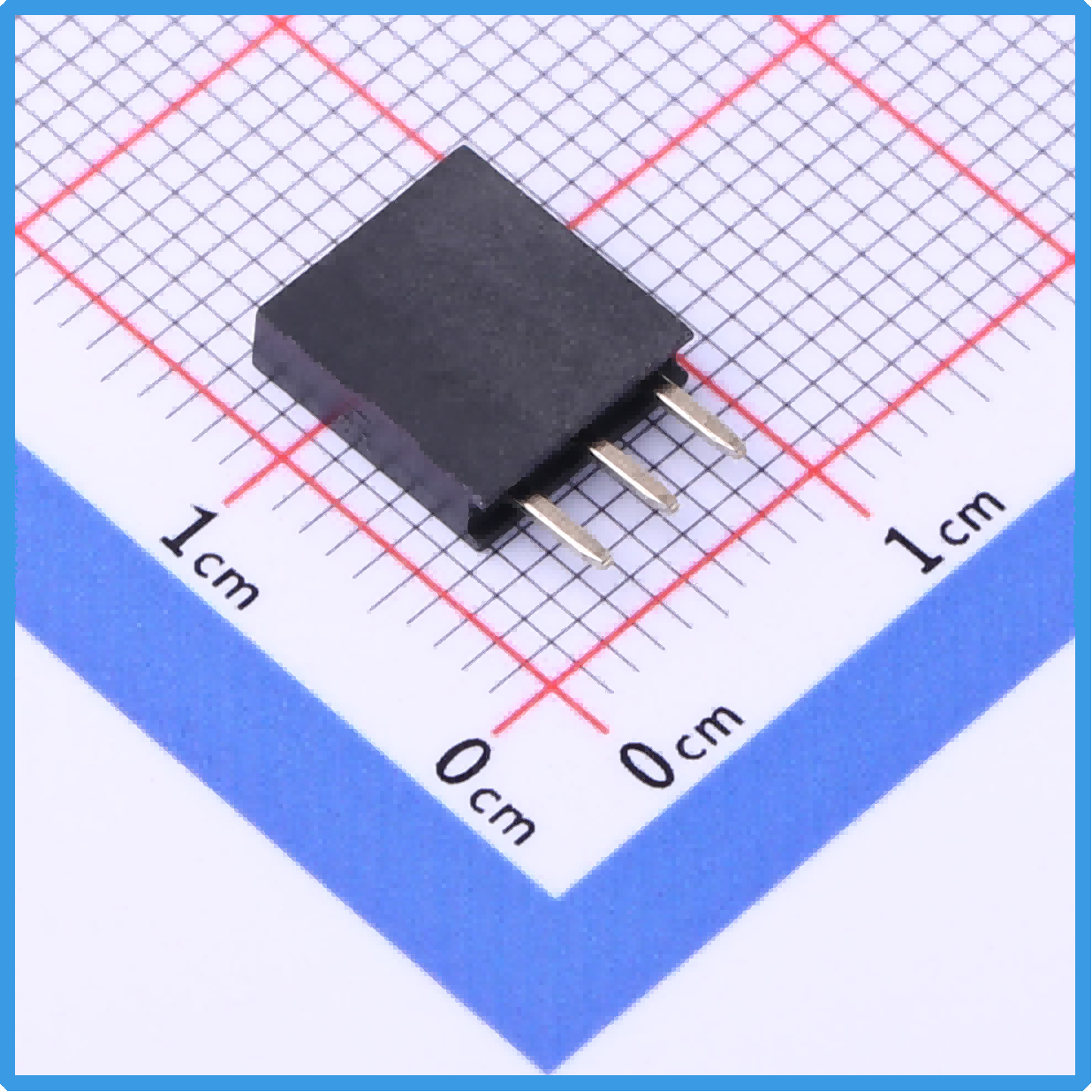

Kinghelm  KH-2.54FH-1X3P-H8.5 Product Image

1. Basic Definition and Classification

A female header consists of multiple receptacle pins arranged at fixed intervals, primarily designed to mate with pin headers and enable detachable connections between circuits. They are categorized by pitch, such as 2.0mm, 2.54mm, or 1.27mm, with 2.54mm being the most widely adopted due to its proven compatibility and maturity. Structurally, female headers may be single-row, double-row, or multi-row. Installation methods include through-hole, surface mount, or right-angle types. This flexibility allows them to be used across consumer electronics, industrial systems, and communication hardware.

2. Technical Specifications

Taking KH-2.54FH-1X3P-H8.5 as a case in point, its design highlights reliability and performance. It features a single-row 3-pin structure, standard 2.54mm pitch, top-entry orientation, and an insulator height of 8.5mm. The connector supports a rated current of 3A, contact resistance of ≤20mΩ, insulation resistance of ≥1000MΩ, and withstand voltage of DC 1000V. Moreover, it operates in environments from -40℃ to +105℃. These specifications ensure that the female header performs consistently even in demanding high-density PCB designs, from consumer devices to industrial-grade electronics.

3. Application Fields

Thanks to its durability and universal design, the 2.54mm female header is used across countless applications. It is found in computer motherboards, storage devices, smart home control units, and industrial automation controllers. In scenarios requiring frequent plug-and-play, the combination of female headers and pin headers enhances production efficiency and reduces maintenance complexity. Furthermore, as IoT and smart hardware continue to expand, compact models like KH-2.54FH-1X3P-H8.5 are increasingly applied in wearable electronics, automotive OBD interfaces, and embedded systems.

4. Market Status and Trends

As an essential part of the connector industry, female headers represent a stable and growing market. The 2.54mm pitch type dominates demand because of its low cost and broad compatibility. With the rise of domestic brands like Kinghelm, high-quality and competitive female headers are closing the gap with established international manufacturers. Meanwhile, industry development is shifting toward higher density, miniaturization, and improved reliability, pushing future female headers to evolve toward lower impedance, higher current carrying capacity, and better environmental resistance.

5. Industry Challenges and Strategies

Despite promising opportunities, the female header sector faces challenges such as raw material price fluctuations and rising demands for miniaturization and high-frequency performance. Intense competition in low-end markets has also led to homogenization. The solution lies in technological innovation and strict quality assurance. Companies like Kinghelm focus on advanced design, automation in production, and rigorous inspection to guarantee consistency, while continuously improving product performance to win customer trust.

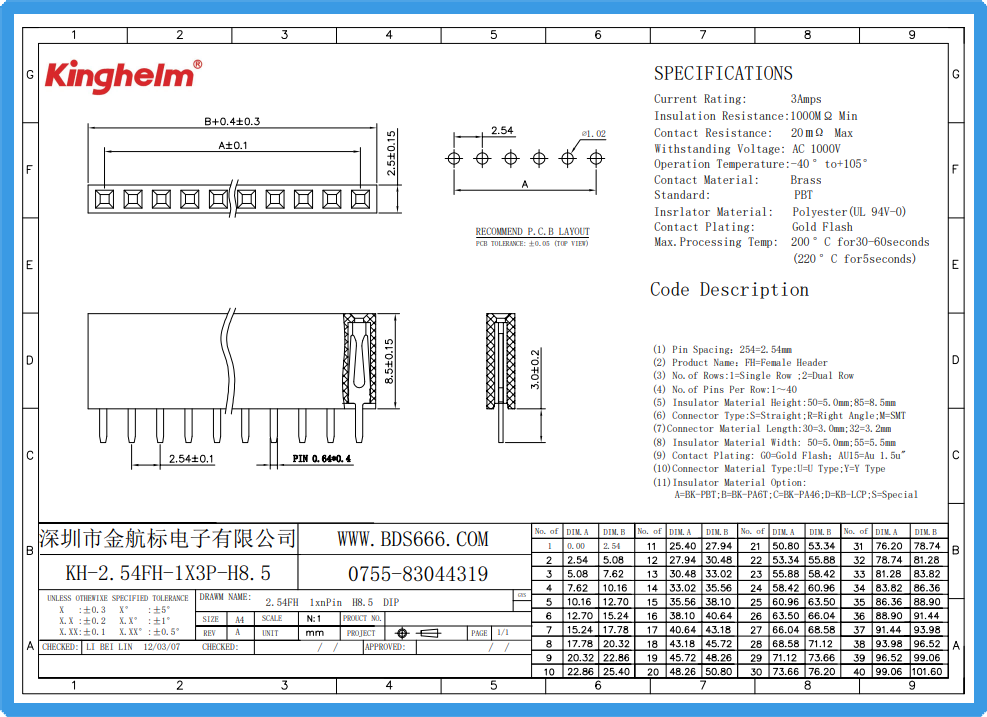

Kinghelm KH-2.54FH-1X3P-H8.5 Specification

6. Future Outlook

Looking forward, the demand for high-performance female headers will continue to grow with the rapid expansion of electric vehicles, smart homes, IoT, and industrial internet. The female header is evolving from a simple mechanical connector into a multifunctional solution that integrates signal integrity, heat management, and modular design. High-speed data transmission, vibration resistance, high-temperature endurance, and eco-friendly materials will define the next generation of female headers. At the same time, domestic brands advancing in innovation and global distribution will strengthen their position in the worldwide connector market.

In conclusion, the female header remains a key component in circuit interconnections with wide-ranging applications and bright prospects. The KH-2.54FH-1X3P-H8.5, with its balance of standardized design, reliability, and compatibility, demonstrates how a seemingly small component can have a substantial impact. For engineers and procurement managers alike, recognizing the importance of female headers in design and long-term system performance is crucial to unlocking their full potential.
