Kinghelm 2.54mm Female Header KH-2.54FH-1X2P-H8.5: Stable PCB Connection Solution

In modern electronic engineering, the female header plays a vital role in PCB connectivity, offering reliable current and signal transmission. As one of the most widely used board-to-board connectors, it works in pair with male headers to create flexible and robust circuit layouts. This article explores the definition, classifications, key applications, market status, and future development of female headers, while highlighting the features of Kinghelm’s KH-2.54FH-1X2P-H8.5, a high-reliability 2.54mm female header specifically designed for compact PCB layouts.

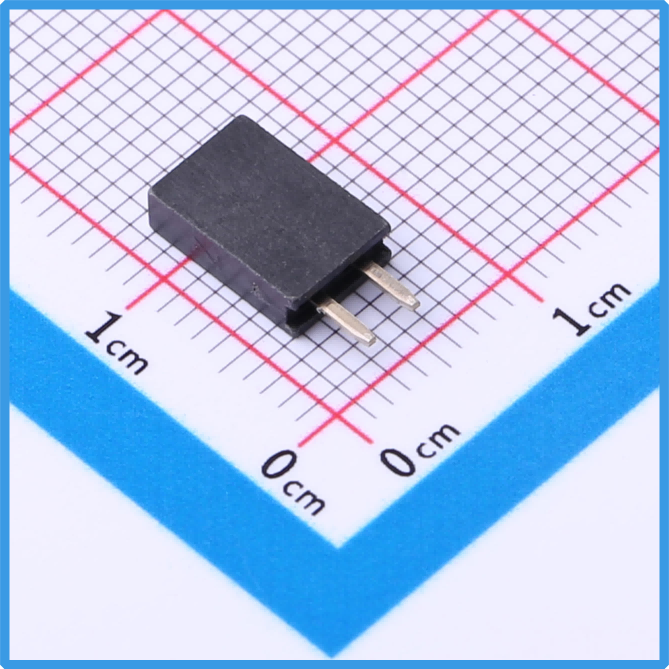

Kinghelm KH-2.54FH-1X2P-H8.5 Product Image

Definition and Key Features of Female Headers

A female header, also known as a socket connector, is designed to mount onto a PCB and provide electrical connection by mating with a male header. The main characteristics include:

1. Multiple row configurations — from single-row to up to four rows;
2. Standardized pitch sizes such as 0.8mm, 1.0mm, 1.27mm, 2.0mm, and the industry-favorite 2.54mm;
3. Various mounting methods including through-hole (DIP), right-angle, and SMT;
4. Reliable electrical parameters such as insulation resistance, contact resistance, and dielectric strength to ensure stable signal transmission.

Classifications of Female Headers

By Pitch: Common options are 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, with 2.54mm being the most popular for universal compatibility.
By Plastic Height: Ranges from 2.1mm to 9.0mm, with half-eject and full-eject designs.
By Row Count: Available in single, dual, triple, and up to four rows.
By Mounting Type: 180° straight (DIP), 90° right-angle, or SMT type.
By Terminal Shape: U-type terminals with three contact points suit low-profile designs, while Y-type and O-type terminals with dual contact points are preferred for taller designs.
Special Designs: Optional locating posts (inner or side positioning) and customized high-profile structures for specific applications.

Product Highlight: Kinghelm KH-2.54FH-1X2P-H8.5 Female Header

Kinghelm, a trusted manufacturer of electronic connectors, offers the KH-2.54FH-1X2P-H8.5, a compact and high-performance female header. This product adopts a standard 2.54mm pitch with a single-row 2-pin configuration, through-hole mounting, and an 8.5mm plastic height. The vertical top-entry socket design makes it suitable for tight PCB layouts without sacrificing electrical reliability.

Technical Specifications:
Rated Current: 3A
Insulation Resistance: ≥1000MΩ
Contact Resistance: ≤20mΩ
Dielectric Strength: AC 1000V
Operating Temperature: -40℃ to +105℃
Unit Weight: 0.22g

These parameters ensure long-term stable performance, making it an ideal choice for industrial control boards, consumer electronics, and embedded system designs.

Applications of Female Headers

Female headers are versatile and widely adopted across industries:

1. Consumer Electronics: Smartphones, tablets, and wearable devices use female headers for power and data transmission.
2. Industrial Equipment: Control modules, automation boards, and sensor interfaces rely on female headers for stable modular connectivity.
3. Automotive Electronics: Used in OBD diagnostic ports, infotainment systems, and navigation devices.
4. Medical Devices: Portable analyzers and monitoring equipment where reliability and insulation are crucial.
5. IoT and Communications: Routers, smart home hubs, and wireless gateways for board-to-board and module-to-board connections.

Market Trends and Development

The global connector market continues to expand, with female headers maintaining steady demand due to their standardization and broad usability. Key market trends include:

1. Miniaturization and High Density: PCB designs require smaller pitches and compact connectors.
2. Enhanced Reliability: Low resistance, high temperature tolerance, and stable dielectric strength are essential.
3. Customization: Increased demand for unique layouts, pin counts, and mounting structures.
4. Sustainability: Eco-friendly materials and recyclable designs are becoming industry priorities.

selection and Usage Guidelines

When selecting a female header, engineers should consider:

1. Pitch and Pin Count: Ensure compatibility with PCB layout, with 2.54mm being a common choice.
2. Electrical Ratings: Match the rated current, voltage, and insulation strength to system requirements.
3. Mounting Style: Choose between through-hole, right-angle, or SMT according to board design.
4. Plastic Height: 8.5mm or customized height depending on available space.
5. Brand Reliability: select trusted manufacturers such as Kinghelm for long-term stability and consistent quality.

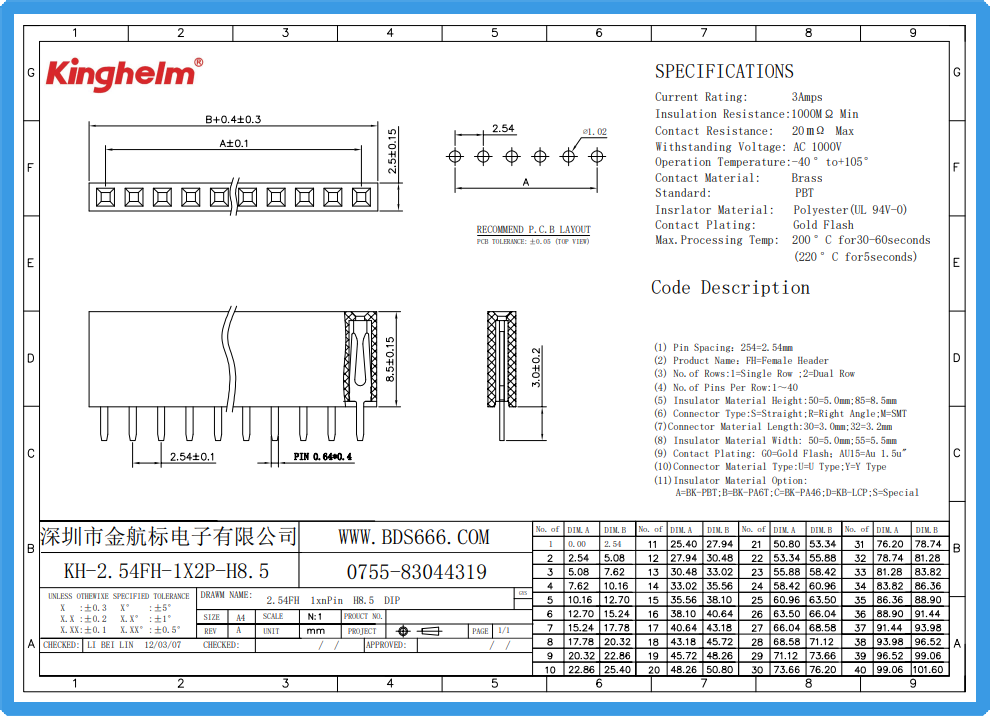

Kinghelm KH-2.54FH-1X2P-H8.5 Specification

Future Outlook

As electronics continue to evolve toward miniaturization and higher performance, female headers will remain indispensable in PCB connectivity. Future developments will focus on high-speed signal compatibility, improved contact reliability, and environmentally sustainable materials. Kinghelm will continue to innovate and deliver high-quality female header products like the KH-2.54FH-1X2P-H8.5, supporting engineers worldwide in building stable and efficient electronic systems.
