Kinghelm HDMI Connector KH-HDMI-0024-JBS: Meticulous Craftsmanship, Uninterrupted Signal

The Kinghelm KH-HDMI-0024-JBS is a high-performance HDMI connector specifically designed for high-definition audio and video transmission. It is widely used in various consumer electronics, audio-visual equipment, and industrial control applications. This product incorporates advanced signal transmission technology and rigorous manufacturing processes, ensuring stable support for high-resolution video and multi-channel audio formats. It guarantees crisp images and pure, delay-free sound. The female port design offers strong compatibility and can adapt to various HDMI male devices, meeting users' diverse needs for high-quality connection experiences. Whether for home theater setup, gaming console connection, or professional conference system deployment, the KH-HDMI-0024-JBS HDMI connector provides reliable technical support and lasting performance.

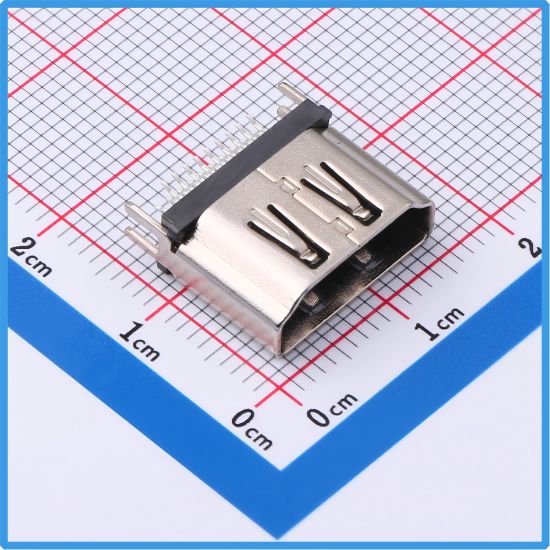

Kinghelm KH-HDMI-0024-JBS Product Image

Superior Compatibility and Interface Design
The Kinghelm KH-HDMI-0024-JBS HDMI connector features a standard 19-pin HDMI-A female port design, offering perfect compatibility with various high-definition devices, including TVs, monitors, projectors, gaming consoles, and sound systems. Its precise pin layout and optimized contact structure effectively reduce signal attenuation, ensuring signal integrity and consistency even over long-distance transmission. The interface is sturdy and durable, capable of withstanding repeated plugging and unplugging without damage, making it suitable for both daily home use and high-frequency commercial operations.

Robust Clamp Mounting and Structural Advantages
This connector utilizes a clamp mounting method, providing a stable structure and easy integration into various devices. Its unique bent pin design (L=2.7mm, T=0.4mm) further enhances soldering stability and vibration resistance, making it particularly suitable for mobile devices or high mechanical stress environments. After installation, the connection points fit tightly, effectively preventing loosening or circuit breaks caused by external pulling, significantly improving the overall reliability of the equipment.

Wide Temperature Operation and High Durability
The Kinghelm KH-HDMI-0024-JBS HDMI connector can operate stably within a wide temperature range from -20°C to 85°C, adapting to harsh environments such as extreme cold or heat. The nickel plating process not only improves oxidation and corrosion resistance but also significantly extends the connector's service life. With a rated current of 500mA, it meets high-standard electrical performance requirements, capable of providing ample and stable power and signal support in various complex application scenarios.

Exquisite Craftsmanship and Brand Assurance
As a representative product of the Kinghelm brand, the KH-HDMI-0024-JBS adheres to the brand's consistent high-quality standards. From material selection to manufacturing, it strictly follows a quality management system, and all products undergo multiple performance and reliability tests. The nickel plating layer is uniform and fine, and the solder pads are flat and consistent, demonstrating excellent craftsmanship and attention to detail. The SMD packaging form better meets the needs of modern electronic production, facilitating automated mounting and improving production efficiency.

Versatile Applications and User Value
This connector is not only suitable for traditional audio-visual entertainment fields but can also be embedded in security monitoring systems, medical displays, in-vehicle entertainment systems, and industrial control equipment, demonstrating exceptional versatility. Its lightweight design (gross weight only 1.94 grams) saves internal space in devices, and tray packaging facilitates storage and transportation, providing convenience for bulk procurement and use. Whether for manufacturers, integrators, or end-users, this component can significantly enhance device connection performance.

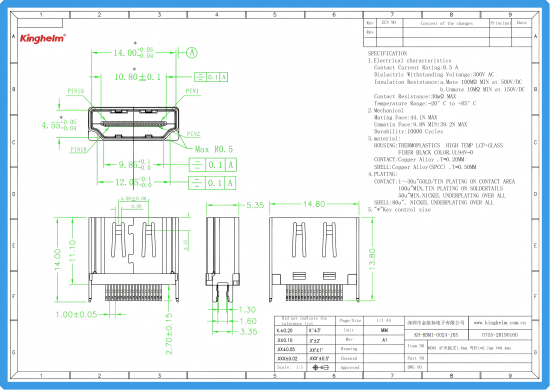

Kinghelm KH-HDMI-0024-JBS Specification

The Kinghelm KH-HDMI-0024-JBS HDMI connector, with its exceptional transmission performance, broad compatibility, and robust structural design, is a premium choice in the field of high-definition audio and video connectivity. The product excels in interface design, environmental adaptability, craftsmanship quality, and application diversity, fully meeting consumers' high-end demands for picture quality, sound quality, and device reliability. Through this product, the Kinghelm brand once again demonstrates its professional expertise and innovation capabilities in the field of connectivity technology, offering a trustworthy high-performance signal transmission solution.
