Kinghelm USB Type A Female Receptacle KH-AF180ZJ-15-JB: Durable & Reliable · 1.5A Current Carrying Capacity

In the design and manufacturing of modern electronic devices, a tiny yet critical component often determines the overall reliability and user experience of the product: the connector. Whether it's smartphones, tablets, industrial control equipment, or household appliances, stable and efficient data transmission and power supply rely heavily on a high-quality USB interface. The KH-AF180ZJ-15-JB Type-A Female Vertical Through-Hole Connector, introduced by Kinghelm Electronics, is an exceptional product born to meet this core need. It is not merely a simple interface but a solid foundation for the stable operation of devices. With its outstanding durability, high current carrying capacity of up to 1.5A, and convenient vertical through-hole design, it has won the favor of numerous engineers and manufacturers.

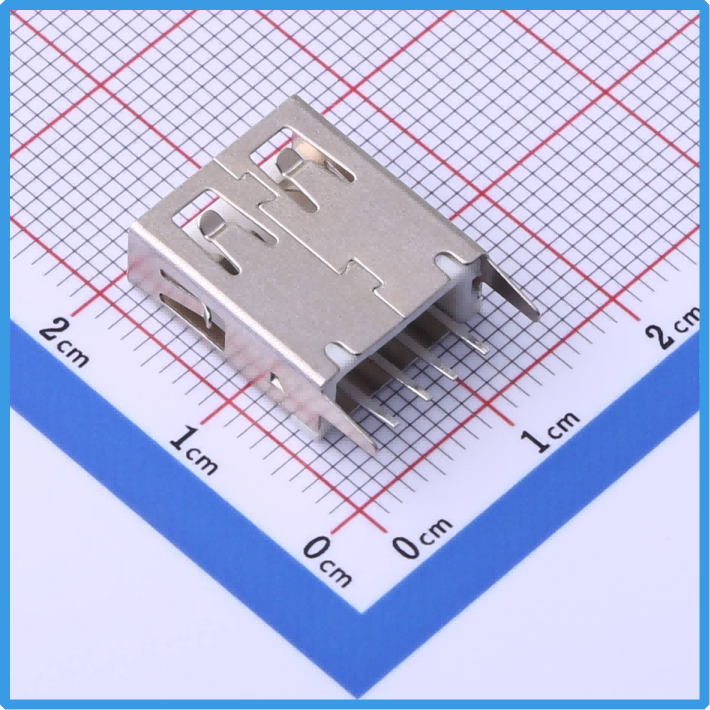

Kinghelm KH-AF180ZJ-15-JB Product Image

The KH-AF180ZJ-15-JB is a Type-A female receptacle connector that strictly complies with the USB 2.0 standard. For devices prioritizing stability and compatibility, USB 2.0 remains one of the most widely used and mature standards. This connector features a classic 4-pin (4P) design, perfectly supporting both data transfer and power charging functions. Its single-port configuration makes it an ideal choice for various compact electronic devices, ranging from smart home hubs and network routers to diverse industrial control equipment and consumer electronics. Its core value lies in its "vertical through-hole" mounting style. Unlike surface-mount technology (SMT), the through-hole design (DIP) creates an extremely robust mechanical connection by inserting the connector's pins directly into pre-drilled holes on the printed circuit board (PCB) and soldering them in place. This structure effectively resists lateral stress and vibrations generated during plugging and unplugging, significantly enhancing the interface's lifespan and the overall product's reliability in harsh environments.

Durability and reliability are the most prominent features of the KH-AF180ZJ-15-JB. Kinghelm Electronics employs high-quality materials and precision manufacturing processes. The connector housing is typically made of high-strength, wear-resistant engineering plastic, effectively protecting the internal delicate metal contacts from physical damage and dust intrusion. The internal metal contacts are treated with superior plating processes, such as gold or tin plating. This not only ensures very low contact resistance and excellent electrical performance but also significantly enhances the contacts' resistance to corrosion and oxidation. Even after tens of thousands of repeated mating cycles, it maintains stable connection performance, effectively preventing data interruption or charging failures caused by poor contact, thereby providing end-users with a lasting and trustworthy experience.

In addition to excellent mechanical durability, the electrical performance of the KH-AF180ZJ-15-JB is equally impressive. Its rated current is as high as 1.5A, a parameter considered high among similar connectors. This means it can easily meet the demands of most devices requiring higher current supply, such as fast-charging tablets or providing sufficient power to peripherals like portable hard drives or small fans. The high current carrying capacity stems from its optimized internal design and the use of low-resistance, high-quality materials, ensuring less heat generation during current transmission and safer, more stable operation. It fully supports USB 2.0 data transfer speeds, meeting the requirements for daily file transfers and peripheral connections. Its operating temperature range is stable between 0°C and +50°C, covering the needs of the vast majority of daily and commercial application environments, ensuring consistent performance under various conditions.

For product designers and production engineers, the vertical through-hole design of the KH-AF180ZJ-15-JB offers great convenience. This package style simplifies PCB layout design and the assembly process. During prototyping and small-batch production, manual soldering and repairs become much easier. The connector is firmly fixed to the board, contributing to the structural integrity of the entire device. Kinghelm, as a brand, provides strong backing for the performance of this connector through its quality control system, giving procurement and engineering teams confidence in their selection.

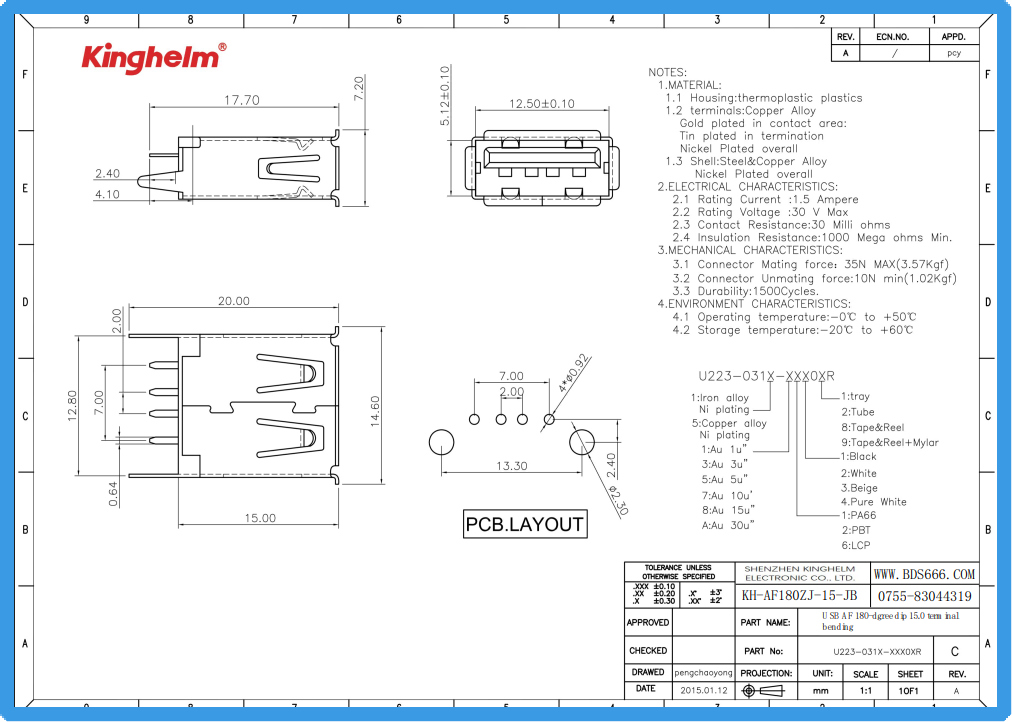

Kinghelm KH-AF180ZJ-15-JB Specification

In summary, Kinghelm's KH-AF180ZJ-15-JB Type-A Female Vertical Through-Hole Connector is an excellent component that combines reliability, high performance, and practicality. With its robust physical structure, strong 1.5A current carrying capacity, and broad compatibility, it has become an indispensable key element in countless electronic devices. When selecting a USB connector, it provides not just a connection solution but also a solid guarantee for the long-term quality and user satisfaction of the product. For manufacturers committed to creating high-quality, long-life electronic products, choosing such a durable and reliable connector is undoubtedly a wise decision.
