KinghelmVGA Connector KH-DR-15S: Exceptional Performance, Stable Transmission

The Kinghelm Gold Navigation Standard KH-DR-15S VGA connector is a classic VGA interface connector, fully known as Video Graphics Array. As a representative product in the field of analog video transmission, it is widely used for connections between computers, monitors, and various video devices. Since its introduction by IBM in 1987, the VGA interface has become a mainstream standard for analog signal transmission due to its high resolution, fast display speed, and rich color performance. This connector features a classic D-shaped design with a 15-pin interface arranged in three rows of five pins each, ensuring a sturdy structure and strong compatibility. It is suitable for various industrial and civilian applications. Its black appearance is simple and elegant, and it comes in box packaging to ensure safe transportation and storage. With a product weight of approximately 10.47 grams, it is lightweight and practical.

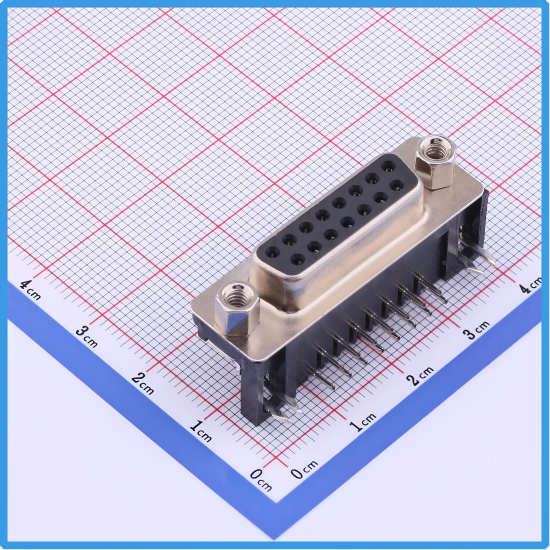

Kinghelm The KH-DR-15S Product Image

Classic D-Shaped Design with Strong Compatibility
The KH-DR-15S VGA connector adopts a D-shaped interface design, which not only effectively prevents incorrect insertion but also enhances the mechanical stability of the interface. Its female interface is compatible with standard VGA male connectors, making it widely adaptable to various graphics cards, display devices, and projectors. The classic shape of the D-Sub interface allows users to connect without deliberately distinguishing the direction, significantly improving ease of use. Additionally, this design facilitates secure fixation to device ports, preventing signal interruptions caused by loosening, making it particularly suitable for applications requiring long-term stable operation.

15-Pin Precision Layout for Efficient Signal Transmission
This connector features 15 pins arranged in three rows of five pins each, with a compact and rational layout. This structure is optimized for analog video signal transmission, enabling simultaneous transmission of red, green, and blue primary color signals as well as key control signals such as horizontal and vertical synchronization. The pins are made of high-quality metal materials, offering excellent conductivity and supporting high-resolution displays of up to 1920×1200@60Hz, meeting the needs of most analog video devices. The precision pin design also reduces signal crosstalk, ensuring clear and stable image transmission.

Right-Angle Installation Method, Saving Space and Offering Flexibility
The KH-DR-15S VGA connector adopts a right-angle installation method, making it particularly suitable for device layouts with limited space. The right-angle interface allows cables to be routed along the back or side of the device, reducing space occupancy and optimizing the overall structure. In industrial computers, embedded systems, and multimedia devices, this installation method effectively prevents excessive cable bending, extending the service life of the connector and cables. Simultaneously, the right-angle structure enhances the interface's vibration resistance, making it suitable for mobile devices or high-vibration environments.

Excellent Electrical Performance, Suitable for Various Environments
This connector excels in electrical performance, with a signal pin rated current of 5A, enabling it to withstand high current loads and ensuring stable signal transmission. Although the power pin does not have a defined rated current, its signal transmission capability meets the requirements of most video devices. The operating temperature range is -55°C to 105°C, and its wide-temperature design allows it to operate normally in extreme environments, whether in high-temperature industrial settings or low-temperature outdoor equipment, ensuring stable performance. The black housing is not only aesthetically pleasing but also offers certain corrosion and oxidation resistance.

Wide Range of Applications, Reliable and Economical
As a classic interface for analog video transmission, the KH-DR-15S VGA connector is widely used in computers, monitors, projectors, medical devices, surveillance systems, and other fields. Its analog signal transmission method offers strong compatibility, allowing it to connect various older and modern devices without complex conversions, making it economical and practical. Meanwhile, the Kinghelm Gold Navigation Standard brand, with its years of technical expertise, ensures high reliability and consistency of the product, providing users with long-term stable connection solutions.

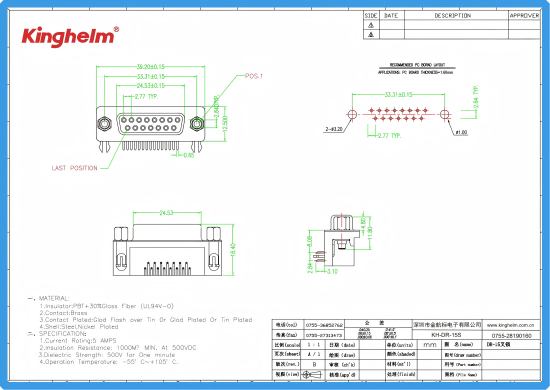

Kinghelm KH-DR-15S Specification

The Kinghelm Gold Navigation Standard KH-DR-15S VGA connector, with its classic design, stable performance, and wide applicability, has become a preferred component in the field of analog video transmission. Its D-shaped interface, 15-pin structure, right-angle installation, excellent electrical performance, and wide-temperature working range collectively ensure the product's efficiency and reliability in various scenarios. Whether for daily office use or industrial applications, the KH-DR-15S can provide clear and stable video signal transmission, reflecting the Kinghelm Gold Navigation Standard brand's deep understanding of quality and user needs.
