Kinghelm Micro Pogo Pin Connector KH-204065-DZ: A Reliable Choice for Compact Device Connectivity

In the realm of electronic connectivity, pogo pin connectors play a vital role across various devices. The KH-204065-DZ, a product from Kinghelm, is a micro pogo pin connector designed specifically for high-frequency mating cycles, with a length of 6.5mm. This makes it ideal for applications with stringent space constraints. Its primary function is to ensure stable electrical contact while maintaining consistent performance over extended use, catering to industries like consumer electronics and telecommunications. The spring-loaded mechanism enables it to handle repeated connections and disconnections without compromising contact reliability.

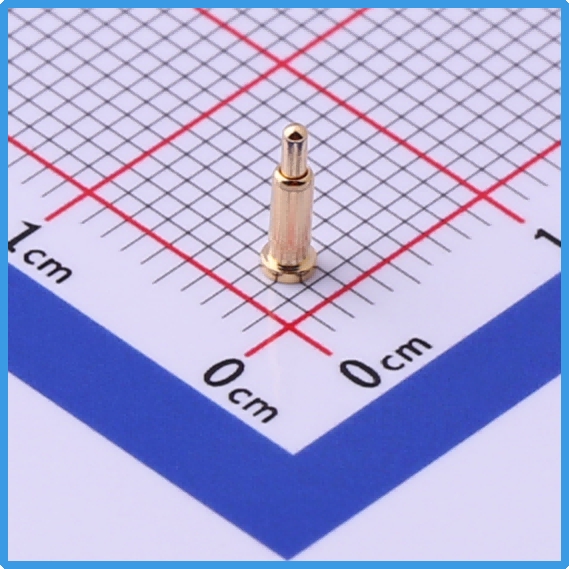

Kinghelm KH-204065-DZ Product Image

Compact Design for Integration

The KH-204065-DZ pogo pin connector is engineered to meet the demands of miniaturized device integration. In modern electronics, space is often a premium resource, and this 6.5mm-long pogo pin fits seamlessly into compact circuit boards or modules without occupying excessive space. Both the pin barrel and head are crafted from brass alloy, a material known for its excellent conductivity and corrosion resistance, ensuring stable electrical performance across diverse environments. The use of brass alloy also enhances mechanical strength during repeated mating cycles, preventing material fatigue. Packaged in bags, the product is convenient for bulk transport and storage, with a gross weight of just 0.055 grams, highlighting its lightweight nature for streamlined assembly processes.

Electrical Specifications and Durability

The KH-204065-DZ pogo pin connector supports a continuous operating current of up to 1.0A, allowing it to handle moderate current transmission without overheating or excessive loss. Its operating voltage is capped below 12V at 25°C, aligning with the requirements of many low-voltage electronic systems, ensuring safe operation under standard conditions. With a lifespan exceeding 10,000 mating cycles, this pogo pin has undergone rigorous durability testing, making it suitable for high-frequency use cases. A positive force greater than 70gf at the working point ensures sufficient contact pressure, preventing loose or intermittent connections. This combination of specifications makes the product highly effective in applications requiring frequent connections.

Pogo Pin Technology

As part of the pogo pin spring probe connector family, the KH-204065-DZ operates on the principle of spring compression and release. This mechanism allows the pin to self-adjust during contact, compensating for minor alignment deviations and enhancing connection reliability. In consumer electronics, such as smartphone or tablet charging interfaces, this pogo pin can facilitate antenna signal transmission, ensuring stable signals free from external interference. In telecommunications, such as wireless routers or base station modules, it serves as an internal connector, supporting high-speed data transfer. Kinghelm’s design emphasizes compatibility, enabling seamless integration into existing systems.

Material selection

The choice of brass alloy for the pin barrel and head is deliberate. Brass offers low resistivity, minimizing energy loss during signal transmission. Its moderate elastic modulus complements the internal spring, providing even force distribution. Compared to other metals, brass offers superior machinability, allowing for precise shapes and sizes. In the KH-204065-DZ, this material ensures functionality in humid or dusty environments, though it is not fully waterproof, its durability is sufficient for everyday use.

Application Versatility

The KH-204065-DZ pogo pin connector excels in diverse applications. In consumer electronics, it is commonly used in wearable devices like smartwatches or earbuds for charging contacts. Its 6.5mm length meets the size constraints of such devices. In telecommunications, it supports fixed connections in antenna modules, ensuring continuous signal transmission. For instance, in wireless base stations, it connects circuit boards to antenna units, providing reliable electrical pathways. In medical devices, though not a core component, similar products are used in portable monitors to ensure accurate data transfer.

Industry Trends and Compatibility

The trend toward miniaturization and higher durability in pogo pin connectors aligns with the KH-204065-DZ’s design. The rise of 5G communications has increased demand for low-impedance connectors, and this product’s 6.5mm length fits the miniaturization wave. Its brass alloy complies with ROHS standards, meeting environmental requirements. The product’s bag packaging facilitates bulk procurement, and its lightweight design reduces shipping costs, offering cost-effectiveness for manufacturers.

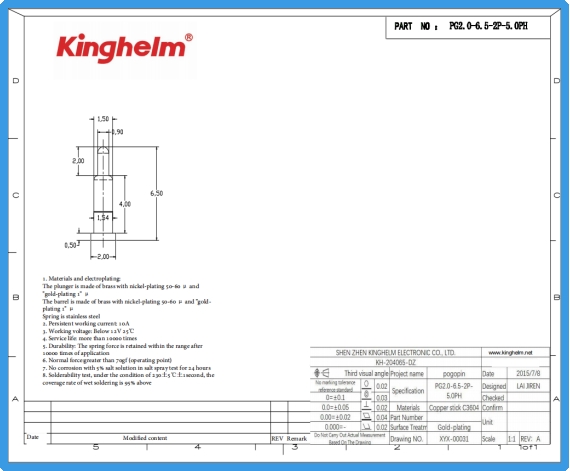

Kinghelm KH-204065-DZ Specification

Installation and Maintenance

Installation is straightforward, typically via through-hole mounting on PCBs. The concave pin head aids alignment with mating components. During assembly, ensuring even spring force distribution prevents deformation. Maintenance involves periodic cleaning of contact points, especially in dusty environments, while avoiding corrosive cleaners to protect the brass surface.

Conclusion

The Kinghelm KH-204065-DZ represents a robust example of pogo pin technology, balancing size, performance, and durability to meet diverse application needs. As electronic devices continue to shrink, this connector will play a pivotal role in enabling innovative designs.
