Kinghelm KH-A2009-2X04Y Locking Housing Connector: Designed for High-Density Wiring Applications

Product Overview

In modern electronic systems, compact and reliable connectors are essential for efficient signal and power transmission. The Kinghelm KH-A2009-2X04Y locking housing connector is engineered to meet the demands of small-form-factor electronics where space is limited but stable and secure connections are required. This 2×4 PIN connector offers high-density connectivity while maintaining mechanical stability and consistent electrical performance.

Designed for wire-to-board and wire-to-wire applications, the Kinghelm KH-A2009-2X04Y provides a compact dual-row configuration that supports multiple signal channels in a small footprint. Its 2.0mm pitch ensures compatibility with standard PCB layouts while allowing precise alignment for signal integrity and power delivery.

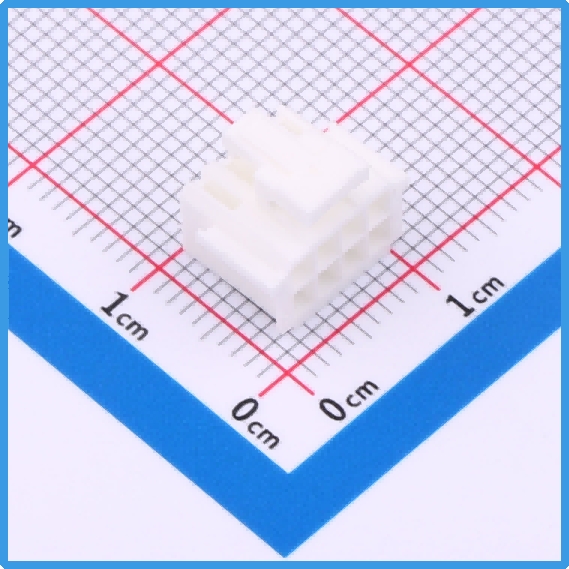

Kinghelm KH-A2009-2X04Y Product Image

Design Features

The KH-A2009-2X04Y features a 2×4 PIN dual-row layout with a locking mechanism to secure the connection and prevent accidental disconnection due to vibration, handling, or external stress. Unlike other models, this connector does not include side wings, which results in a smaller overall footprint and simplifies installation in high-density boards or compact modules.

The connector’s design prioritizes ease of assembly, with pins and housing carefully engineered to ensure smooth insertion into mating components. The locking feature provides audible and tactile feedback, confirming a secure connection during installation. Its small size and dual-row structure make it ideal for applications requiring multiple signal lines in limited space.

Material and Safety

KH-A2009-2X04Y is manufactured from PA66 (Nylon 66), a high-performance engineering plastic known for its strength, dimensional stability, and chemical resistance. The connector can operate reliably within a temperature range of –25°C to +85°C, making it suitable for both industrial and consumer electronic environments.

In addition, the housing is rated UL94V-0 for flame retardancy, ensuring it self-extinguishes if exposed to fire or heat. This safety feature is critical for protecting devices and users in applications where thermal safety is a concern.

Electrical Performance

Kinghelm ensures KH-A2009-2X04Y delivers reliable electrical performance for a variety of applications. Key specifications include:

l Current rating: 3A AC/DC

l Voltage rating: 250V AC/DC

l Contact resistance: ≤ 20 mΩ

l Insulation resistance: ≥ 1000 MΩ

l Withstanding voltage: 800V AC/minute

These specifications make the connector suitable for signal transmission and moderate power delivery. Its low contact resistance ensures minimal voltage drop, and its high insulation resistance prevents leakage and short-circuit risks. Combined with the locking design, this connector provides stable and secure connectivity for compact modules and boards.

Applications

The KH-A2009-2X04Y locking housing connector is versatile across multiple industries and device types:

1. Embedded Control Boards: Perfect for small-scale PCBs in industrial or consumer devices where multiple signal lines are required.

2. Sensors and Actuators: Supports compact sensor interfaces, actuator modules, and control circuits, maintaining reliable connections in tight spaces.

3. Communication and Networking Devices: Suitable for small routers, IoT gateways, and networking modules where stable signal transmission is needed.

4. Consumer Electronics: Ideal for smart home devices, robotics, and portable electronics requiring compact and reliable connectors.

5. Automotive and IoT Modules: Can be applied in auxiliary electronic modules or vehicle interior electronics where vibration resistance and stable connections are important.

Its compact size, locking mechanism, and high-quality PA66 housing make KH-A2009-2X04Y a reliable choice for engineers designing high-density wiring layouts in modern electronics.

Kinghelm Product Series

KH-A2009-2X04Y is part of Kinghelm’s extensive KH-A2009 series, which includes connectors with different PIN counts and configurations to suit diverse applications. Kinghelm’s product lineup also includes:

l KH-A2015 Series: Pin headers for board-to-board and signal transmission.

l KH-A2504 Series: Wire-to-board connectors for power and signal integration.

l KH-A1252VS Series: Wire-to-board terminals for LEDs and small modules.

l KH-2.54PH180 Series: Standard 2.54mm pitch pin headers and sockets for development boards and control systems.

These series are designed with consistent quality, precision dimensions, and reliable electrical performance, allowing designers to select compatible connectors across different projects.

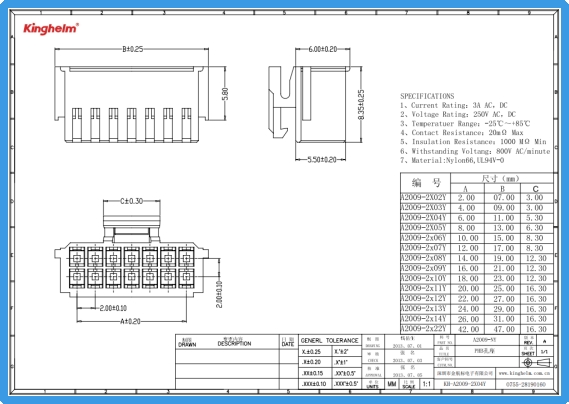

Kinghelm KH-A2009-2X04Y Specification

Conclusion

The Kinghelm KH-A2009-2X04Y locking housing connector combines compact design, secure mechanical performance, and high-quality flame-retardant materials to provide a dependable solution for high-density wire-to-board or wire-to-wire applications. With its dual-row configuration, PA66 UL94V-0 housing, and reliable electrical performance, it meets the requirements of industrial, consumer, and automotive electronics. As part of the KH-A2009 series, this connector provides engineers with a flexible, space-saving, and secure connection option suitable for modern high-density electronic designs.
