Kinghelm Top-Cover Jumper Cap KH-2.54TXM-BK-6.5H-Y: Easy Shorting, Quick Configuration

Jumper caps, also known as shorting caps, are widely used electronic components that create temporary or permanent connections between pins on a circuit board, allowing users to modify circuit paths or enable specific functions. They are essential in electronics development, prototyping, and production environments, offering a convenient way to adjust circuits without soldering. The KH-2.54TXM-BK-6.5H-Y is a top-cover jumper cap from Kinghelm, designed with a standard 2.54mm pitch. Its compact structure and easy operation make it a preferred choice for engineers, hobbyists, and educational applications.

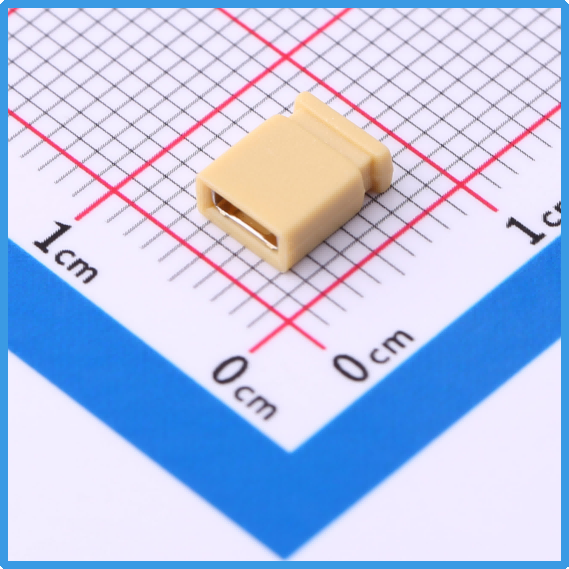

Kinghelm KH-2.54TXM-BK-6.5H-Y Product Image

The primary advantage of the KH-2.54TXM-BK-6.5H-Y jumper cap lies in its simplicity and speed of configuration. By placing the cap over adjacent pins, users can easily complete a circuit connection, quickly enabling functions or switching configurations. This design is particularly useful in development boards that require frequent adjustments, such as selecting I2C or SPI communication modes, or switching power options on Arduino or Raspberry Pi platforms. The top-cover design not only gives a neat appearance but also protects the internal metal contact, preventing dust, debris, and external interference, ensuring long-term stability. The standard 2.54mm pitch and 6.5mm height make it compatible with a wide range of circuit boards and connectors, whether in breadboard experiments or industrial control boards.

The bright yellow housing of the KH-2.54TXM-BK-6.5H-Y allows for quick visual identification on complex circuit boards, minimizing operational errors. Each unit weighs only 0.1 grams, and the bag packaging makes storage, transport, and distribution convenient—ideal for laboratories, educational institutions, or production environments. The plastic housing is typically made of heat-resistant and impact-resistant ABS or similar resin, while the internal metal contact is made of high-conductivity phosphor bronze, providing excellent electrical conductivity and spring performance. Each jumper cap undergoes strict quality checks to ensure compliance with the 2.54mm pitch standard and reliable electrical connection.

The KH-2.54TXM-BK-6.5H-Y jumper cap is highly versatile in applications. In open-source hardware and development boards, it is commonly used to quickly switch module modes, select power paths, or conduct signal testing. For example, when connecting a temperature and humidity sensor or a display module, the jumper cap allows users to choose between I2C or SPI interfaces without complex soldering. In industrial control systems, it is used to configure PLC input/output ports, ensuring accurate signal paths. In educational settings, students can place and remove the jumper cap to visually observe circuit changes and understand the fundamentals of logic gates, signal routing, and power switching. For DIY projects, it is ideal for customizing keyboards, game controllers, or small robots, enabling quick functional adjustments and improving operational efficiency. In professional applications, such as automotive diagnostic modules and medical monitoring devices, the yellow jumper cap helps engineers and technicians quickly locate pins and configure circuit modes, ensuring safe and efficient operation.

From a usage and maintenance perspective, the KH-2.54TXM-BK-6.5H-Y is very user-friendly. Installation only requires aligning the cap with the pins and pressing gently into place. Removal can be done using fingers or tweezers, avoiding excessive force that could damage pins. The caps should be stored in a dry environment to prevent oxidation of the metal contacts. Regular inspection of the cap’s appearance and contact performance is recommended to maintain long-term reliability. The lightweight design ensures that even in bulk use, it does not significantly increase the overall weight of devices while reducing shipping costs and environmental impact.

Historically, jumper caps have been used since the mid-20th century, when circuit adjustments primarily relied on soldering or mechanical switches, limiting flexibility. With the development of integrated circuits, jumper caps emerged as a removable and repeatable connection solution, providing engineers with an efficient way to configure circuits. The KH-2.54TXM-BK-6.5H-Y continues this tradition while incorporating modern design standards, offering high compatibility and ease of use, making it an effective tool for both prototyping and industrial applications.

In terms of environmental considerations, the KH-2.54TXM-BK-6.5H-Y complies with RoHS standards, free from hazardous substances such as lead and mercury, making it suitable for electronics with strict environmental requirements. Kinghelm focuses on material selection and standardized production processes to ensure consistent quality and reliability across global supply chains.

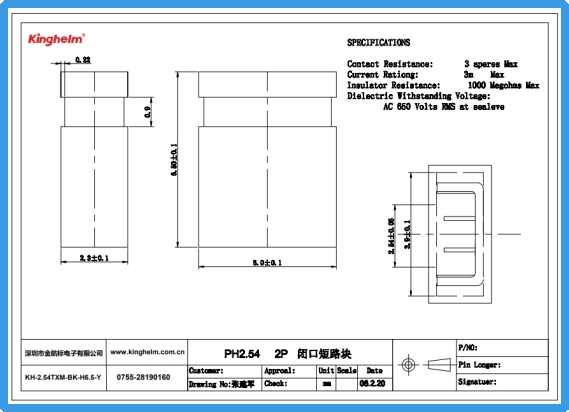

Kinghelm KH-2.54TXM-BK-6.5H-Y Specification

In conclusion, the Kinghelm KH-2.54TXM-BK-6.5H-Y is a compact, practical top-cover jumper cap that offers simple operation, rapid configuration, and reliable performance. Its high compatibility, clear yellow identification, and lightweight design make it an indispensable component in electronics projects, industrial control, educational experiments, and professional applications. By using this jumper cap correctly, users can save time, reduce error risks, and achieve efficient, repeatable connections in their circuits, making it an ideal choice for engineers, hobbyists, and educators alike.
