Kinghelm Quick-Wiring Terminal Block KH-TPCT-218: Structural Design for Efficient Installation and Stable Power Transmission

In electrical wiring and equipment assembly, the reliability of each connection and the efficiency of installation often determine how stable the entire system performs over time. The KH-TPCT-218 quick-wiring terminal block, developed by Kinghelm, is engineered around safety, ease of operation, and long-term durability. With a compact form factor and carefully selected materials, the product meets the wiring demands of distribution boxes, lighting systems, equipment retrofits, and a wide range of electrical installations.

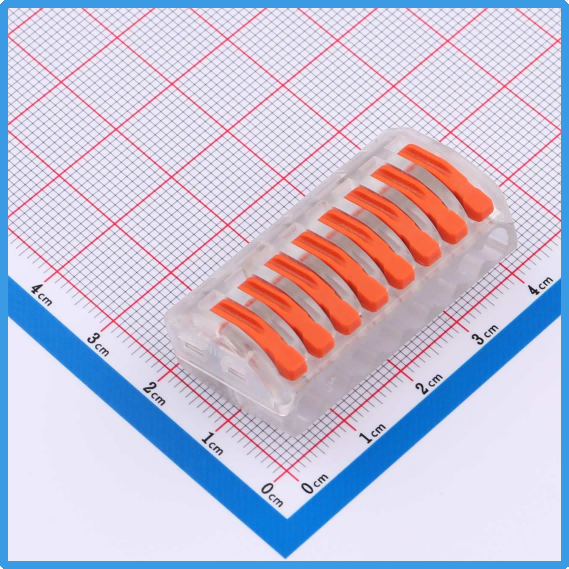

Kinghelm KH-TPCT-218 Product Image

1. Structural Details with Practical Considerations

The shell of the Kinhgelm KH-TPCT-218 is made from flame-retardant PC material, offering both mechanical toughness and visual transparency. Installers can easily check whether the copper conductor is fully inserted, which reduces the risk of poor contact or incomplete wiring. The flame-retardant properties further enhance safety under high-temperature conditions or unexpected electrical faults.

Inside the housing, the copper contact elements provide excellent conductivity and mechanical strength. Their low resistance and stable clamping performance ensure consistent electrical transmission even under long-term load. The stainless-steel spring clip delivers strong and lasting elasticity, allowing repeated operations without losing clamping force. This design ensures a secure hold on both soft and solid wires while maintaining reliable pressure throughout the terminal’s service life.

Together, these components give the KH-TPCT-218 a robust internal structure that maintains performance across diverse installation environments.

2. Electrical Ratings and Supported Wire Range

The KH-TPCT-218 meets the typical requirements for residential, commercial, and low-voltage industrial wiring tasks:

• Rated Current: 32A

• Rated Voltage: 400V

• Operating Temperature: –20°C to 105°C

This wide temperature range ensures stable performance in indoor and outdoor environments, including high-temperature distribution cabinets or colder regions.

The terminal supports both solid and stranded wires, a key advantage for installers who often deal with mixed cable types on-site. Supported conductor ranges include:

• Solid wires: 0.08 mm² – 4.0 mm²

• Stranded wires: 0.08 mm² – 2.5 mm²

This broad compatibility minimizes the need to carry multiple terminal models and simplifies wiring tasks. The recommended stripping length of 9–10 mm ensures proper insertion and full contact with the conductive element.

3. Efficiency Gains Through Quick-Wiring Design

The quick-connection structure is the defining strength of the KH-TPCT-218. Compared with traditional screw-type terminals, its press-to-connect design greatly reduces installation time and eliminates torque-related errors. Installers can complete wiring with a simple sequence—strip, insert, press—without any tools.

This mechanism is especially valuable in tight installation spaces such as compact distribution boxes, ceiling wiring channels, or lighting fixtures. For scenarios requiring frequent adjustments or maintenance, the quick-wiring structure significantly improves operational efficiency and reduces labor costs.

4. Stable Performance Across Multiple Application Scenarios

Rather than focusing on a single wiring category, the KH-TPCT-218 is engineered to support a wide range of real-world applications. Typical scenarios include:

• Lighting systems: driver connections, lamp wiring, indoor and commercial lighting arrangements.

• Distribution boxes and circuit expansion: ideal for dense wiring and branch extensions.

• Household electrical installations: switches, sockets, appliance wiring, and small equipment assembly.

• Industrial control and low-voltage equipment: control cabinets, instrumentation wiring, and light-duty device connections.

Its combination of safety, simplicity, and reliability makes it suitable for both professional electricians and everyday users handling repairs or upgrades.

5. Lightweight Packaging and On-Site Convenience

Packed in a compact bag, the KH-TPCT-218 weighs only 10.55 grams, making it easy to carry or store in a tool kit. For technicians who frequently move between job sites, this small and modular packaging approach is practical and efficient.

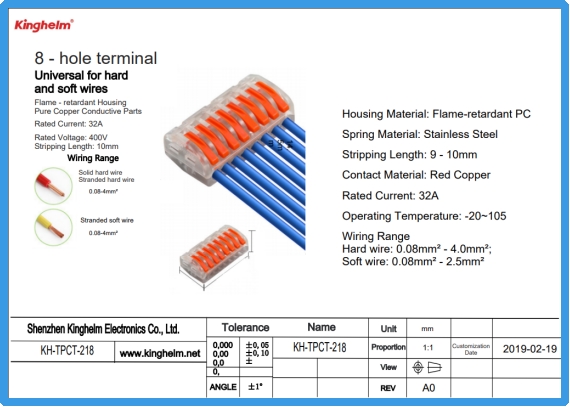

Kinghelm KH-TPCT-218 Specification

6. Brand Positioning and Product Philosophy

As part of Kinghelm’s product lineup, the Kinghelm KH-TPCT-218 reflects the brand’s long-standing commitment to material quality, structural optimization, and application-oriented design. With extensive R&D experience in connectors, antennas, and electronic components, Kinghelm integrates precision manufacturing and practical engineering into even the smallest wiring accessories.The Kinghelm KH-TPCT-218 embodies this approach—compact, safe, easy to operate, and built for lasting reliability.
