Kinghelm RF Cable Assembly KH-FAKRACK-FAKRACK-RG174-600MM for Stable Signal Transmission in Automotive and Communication Systems

In modern automotive electronics and wireless communication systems, signal stability is no longer determined only by antennas or RF modules.In many real-world projects, performance issues such as signal attenuation, intermittent reception, or unstable positioning are often traced back to one overlooked component — the RF cable assembly.An RF cable assembly plays a critical role as the physical bridge between RF devices. Its connector type, cable material, length, and assembly quality directly affect overall system reliability.The Kinghelm KH-FAKRACK-FAKRACK-RG174-600MM RF Cable Assembly is designed to meet practical requirements in automotive and communication applications where standardized interfaces and stable RF transmission are essential.

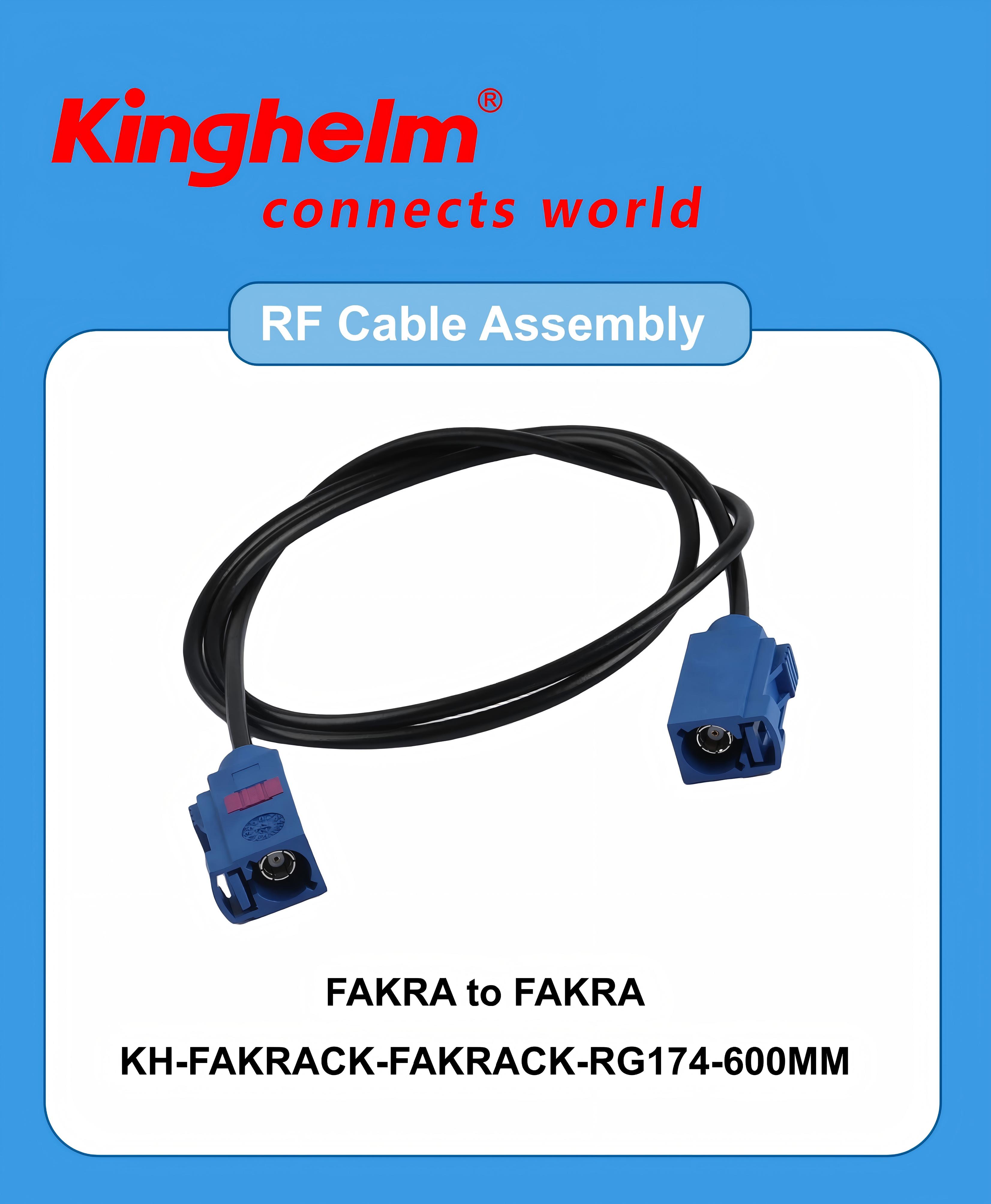

Kinghelm KH-FAKRACK-FAKRACK-RG174-600MM Product Image

1. Product Overview and Key Specifications

The Kinghelm KH-FAKRACK-FAKRACK-RG174-600MM is a FAKRA-to-FAKRA RF cable assembly featuring:

• Connector Type: FAKRA Blue C Type Female to Female

• Cable Type: RG174 Coaxial Cable

• Cable Length: 600 mm

• Rated Voltage: 300 V

• Packaging: Bagged

• Weight: Approximately 14.95 g per piece

This configuration positions the product as a practical solution for short- to mid-distance RF signal connections, especially within vehicle systems or compact electronic devices.

2. Importance of FAKRA Blue C Type Connectors

FAKRA connectors are widely adopted in automotive and RF communication systems due to their standardization and mechanical keying design.
Color coding and connector geometry help prevent mismatching during installation, reducing assembly errors and improving system consistency.

The Blue C Type FAKRA connector is commonly used for:

• GPS and GNSS signal transmission

• Automotive infotainment systems

• Wireless communication modules

By using a female-to-female configuration, this RF cable assembly offers flexibility in system integration, particularly for:

• Module-to-module connections

• RF signal extension within enclosures

• Prototyping, testing, and validation environments

3. Why RG174 Is Chosen for This RF Cable Assembly

RG174 is a commonly used coaxial cable in RF applications where compact size and flexibility are required.

Compact and Flexible Design

The small diameter of RG174 allows easy routing in confined spaces, making it suitable for dense automotive dashboards, control units, and embedded systems.

Lightweight Structure

With a total weight under 15 grams, the cable supports lightweight system design, which is increasingly important in automotive and mobile equipment.

Suitable for Short-Distance RF Transmission

For cable lengths around 600 mm, RG174 provides a balanced combination of electrical performance and mechanical flexibility, meeting typical RF transmission needs without unnecessary bulk.

4. Practical Value of the 600 mm Cable Length

A 600 mm RF cable length is commonly used in real installations because it offers sufficient routing margin without excessive cable slack.

Typical use cases include:

• Connections between RF modules and control boards

• Internal wiring between GPS antennas and receivers

• Automotive system integration where moderate spacing is required

This length helps maintain organized internal layouts while supporting reliable signal transmission.

5. Typical Application Scenarios

Automotive Electronics

In vehicle systems, RF cable assemblies are used to connect GPS modules, infotainment units, and communication devices.
The KH-FAKRACK-FAKRACK-RG174-600MM supports stable RF connections in environments subject to vibration and limited installation space.

Communication Equipment

The cable assembly can be used inside wireless communication terminals, industrial controllers, or embedded systems requiring standardized RF interfaces.

Testing and Development

During product development and system testing, female-to-female RF cable assemblies provide flexibility for rapid configuration changes and signal verification.

6. Kinghelm’s Expertise in RF Connectivity

Kinghelm is a technology-oriented brand focused on RF and connectivity solutions. Guided by the brand mission “Kinghelm, Connecting the World”, the company continues to invest in RF innovation and system-level reliability.

With a core technical team originating from Tsinghua University and nearly two decades of experience in RF and microwave communication, Kinghelm has developed strong capabilities in antenna and RF interconnect design, testing, and validation.

Supported by a modern manufacturing base in Luzhai County, Guangxi, Kinghelm operates flexible and intelligent production lines capable of supporting both standard RF products and customized cable assemblies. This integrated approach ensures consistency from design to mass production.

7. RF Cable Assembly as a System Reliability Component

In RF system design, connectors and cables are often underestimated.
However, a well-matched RF cable assembly can significantly improve system stability, simplify installation, and reduce long-term maintenance risks.

The KH-FAKRACK-FAKRACK-RG174-600MM reflects a design philosophy focused on practical application, standardized interfaces, and reliable signal transmission, making it suitable for both production and development environments.

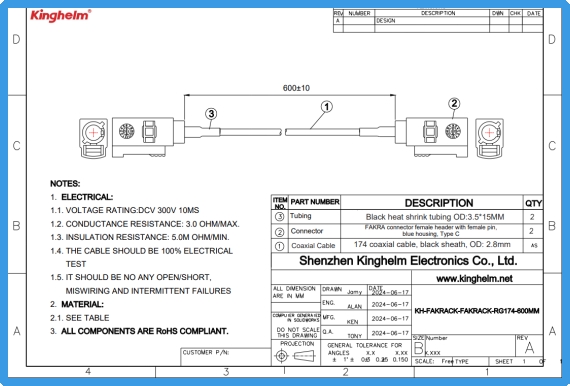

Kinghelm KH-FAKRACK-FAKRACK-RG174-600MM Specification

Conclusion: Reliable Connections Start with the Right RF Cable Assembly

Stable RF performance is built on reliable connections.
By combining FAKRA Blue C Type connectors, RG174 coaxial cable, and a practical 600 mm length, the Kinghelm KH-FAKRACK-FAKRACK-RG174-600MM RF Cable Assembly provides a dependable solution for automotive and communication systems.

As RF applications continue to evolve, Kinghelm remains committed to delivering well-engineered connectivity solutions that support consistent performance and long-term reliability across diverse industries.
