Kinghelm FAKRA Z-Type RF Cable Assembly KH-FAKRAZK-FAKRAZK-RG174-300MM: A Reliable Connection Solution for Automotive Signal Systems

In modern automotive electronic systems, stable signal transmission is a fundamental requirement for navigation, communication, and data interaction. While antennas and modules often receive the most attention, the reliability of the RF cable assembly that connects these components is equally critical. Improper connector selection, limited installation space, or inconsistent cable quality can all lead to signal degradation and system instability.

The Kinghelm KH-FAKRAZK-FAKRAZK-RG174-300MM RF Cable Assembly is designed for automotive signal applications that require standardized FAKRA interfaces, controlled cable length, and dependable connection performance. By addressing common connection challenges in real-world vehicle environments, this RF cable assembly provides a practical and balanced solution for system integration and testing.

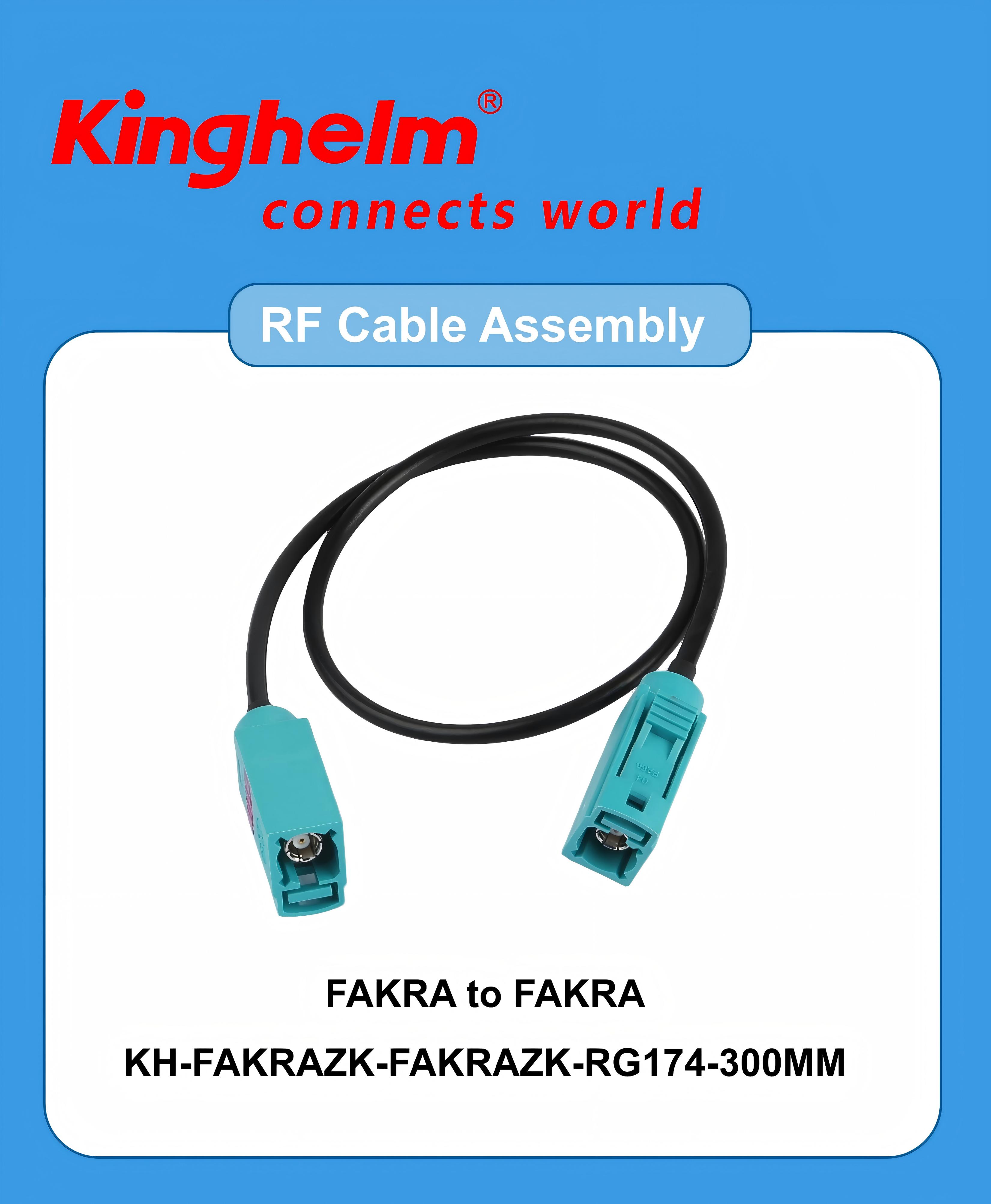

Kinghelm KH-FAKRAZK-FAKRAZK-RG174-300MM Product Image

Connector Identification Challenges in Automotive Systems

Pain Point: Complex Interfaces Increase the Risk of Mismatching

Automotive signal systems often integrate multiple RF connections within confined spaces, such as infotainment units, T-BOX modules, and navigation control systems. Without clear connector coding, installation errors and maintenance confusion can easily occur, leading to signal interruptions or extended troubleshooting time.

Solution: Clearly Defined FAKRA Z-Type Interfaces

This RF cable assembly uses water-blue FAKRA Z-type female connectors on both ends, ensuring consistent interface identification across the system. The standardized Z coding helps technicians quickly recognize and match connectors during installation and servicing, reducing human error and improving overall efficiency.

Limited Space and Cable Routing Constraints

Pain Point: Rigid Cables Complicate Installation

Inside automotive enclosures, space is often restricted, and cable routing paths may involve tight bends or layered components. Stiff or oversized RF cables can place mechanical stress on connectors and negatively affect long-term reliability.

Solution: RG174 Coaxial Cable with Flexible Routing

The KH-FAKRAZK-FAKRAZK-RG174-300MM RF Cable Assembly adopts RG174 coaxial cable, known for its slim diameter and flexibility. The 300 mm cable length provides a balance between routing freedom and signal path control, making it suitable for compact automotive assemblies and test setups.

Signal Stability and Transmission Integrity

Pain Point: Signal Loss Is Often Overlooked at the Connection Level

When signal performance issues arise, attention is frequently focused on antennas or RF modules, while cable assemblies are underestimated. However, impedance mismatch, shielding quality, and connector consistency all influence signal integrity.

Solution: Controlled Assembly for Consistent RF Performance

By combining standardized FAKRA connectors with RG174 cable, this RF cable assembly supports stable signal transmission for common automotive RF applications. When properly installed, it helps maintain consistent performance throughout system operation, supporting reliable navigation and communication functions.

Frequent Switching Between Testing and Production

Pain Point: Limited Compatibility Increases Operational Costs

During development and validation phases, engineers often need to connect and disconnect RF components across multiple test benches and prototype systems. Cable assemblies with limited compatibility can lead to redundant inventory and inefficiencies.

Solution: Versatile Female-to-Female RF Cable Assembly Design

The female-to-female FAKRA Z-type configuration allows this RF cable assembly to be used across various automotive testing and integration scenarios. Its packaging and standardized structure make it suitable for engineering validation, system debugging, and small-batch applications.

Long-Term Reliability in Automotive Environments

Pain Point: Vibration and Temperature Changes Affect Connections

Automotive environments expose RF connections to continuous vibration and temperature variation. Poor connector precision or inconsistent assembly can result in intermittent contact issues over time.

Solution: Emphasis on Manufacturing Consistency and Detail

Kinghelm applies long-term experience in RF connectors and cable assemblies to ensure structural consistency and reliable mating performance. Attention to assembly detail supports stable operation in environments where durability and repeatability are essential.

Why System Designers Value Supplier Background

Pain Point: Single-Product selection Limits Future Scalability

RF system design often evolves beyond initial prototypes, requiring additional components, customized assemblies, or extended product lines. Working with suppliers lacking technical depth can complicate future expansion.

Solution: Integrated RF and Connector Expertise from Kinghelm

Originating from Shenzhen’s Huaqiangbei electronics ecosystem, Kinghelm has spent over a decade focusing on RF technology and connector solutions. Guided by principles of integrity, precision, resilience, and attention to detail, Kinghelm develops products ranging from GNSS antennas and RF cable assemblies to board-level connectors and customized harness solutions. This integrated approach supports long-term collaboration and scalable system design.

Typical Application Scenarios

The KH-FAKRAZK-FAKRAZK-RG174-300MM RF Cable Assembly is commonly used in:

• Automotive GNSS and navigation signal connections

• T-BOX and telematics module RF interfaces

• Automotive antenna testing and validation setups

• RF signal routing where standardized FAKRA Z coding is required

These applications share a need for stable connections, clear interface identification, and adaptable cable routing.

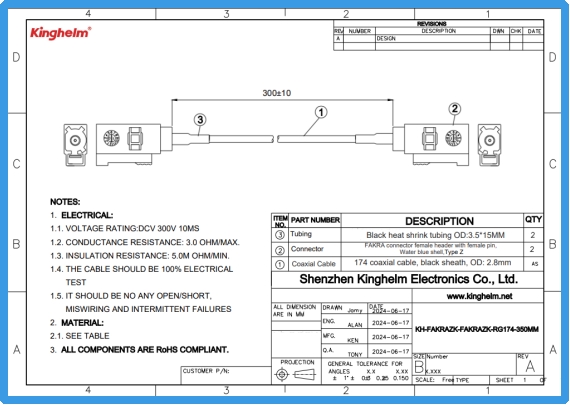

Kinghelm KH-FAKRAZK-FAKRAZK-RG174-300MM Specification

Conclusion

Reliable RF performance in automotive systems depends not only on advanced components but also on the quality of every connection between them. The Kinghelm FAKRA Z-Type RF Cable Assembly addresses practical challenges such as interface identification, space constraints, and signal consistency. Backed by Kinghelm’s long-standing focus on RF and connector technologies, this cable assembly offers a dependable solution for engineers and system integrators seeking balanced performance and long-term reliability.
