Kinghelm RF Cable Assembly KH-BNC-RG178IPEX-100: How to Connect Micro IPEX Modules with BNC Instruments Smoothly

Wireless devices and embedded modules often use compact RF interfaces, while test instruments rely on classic BNC ports. This interface difference creates a common challenge: connecting micro IPEX ports to BNC instruments without signal loss or unstable data. The solution lies in selecting the right RF cable assembly that ensures proper impedance, flexibility, and mechanical reliability. Kinghelm RF Cable Assembly KH-BNC-RG178IPEX-100 is designed as a 100mm RG178 solution bridging a BNC male straight connector with a first-generation IPEX178 gold-plated terminal. Understanding its design and applications allows users to optimize testing efficiency, simplify installation, and maintain signal integrity.

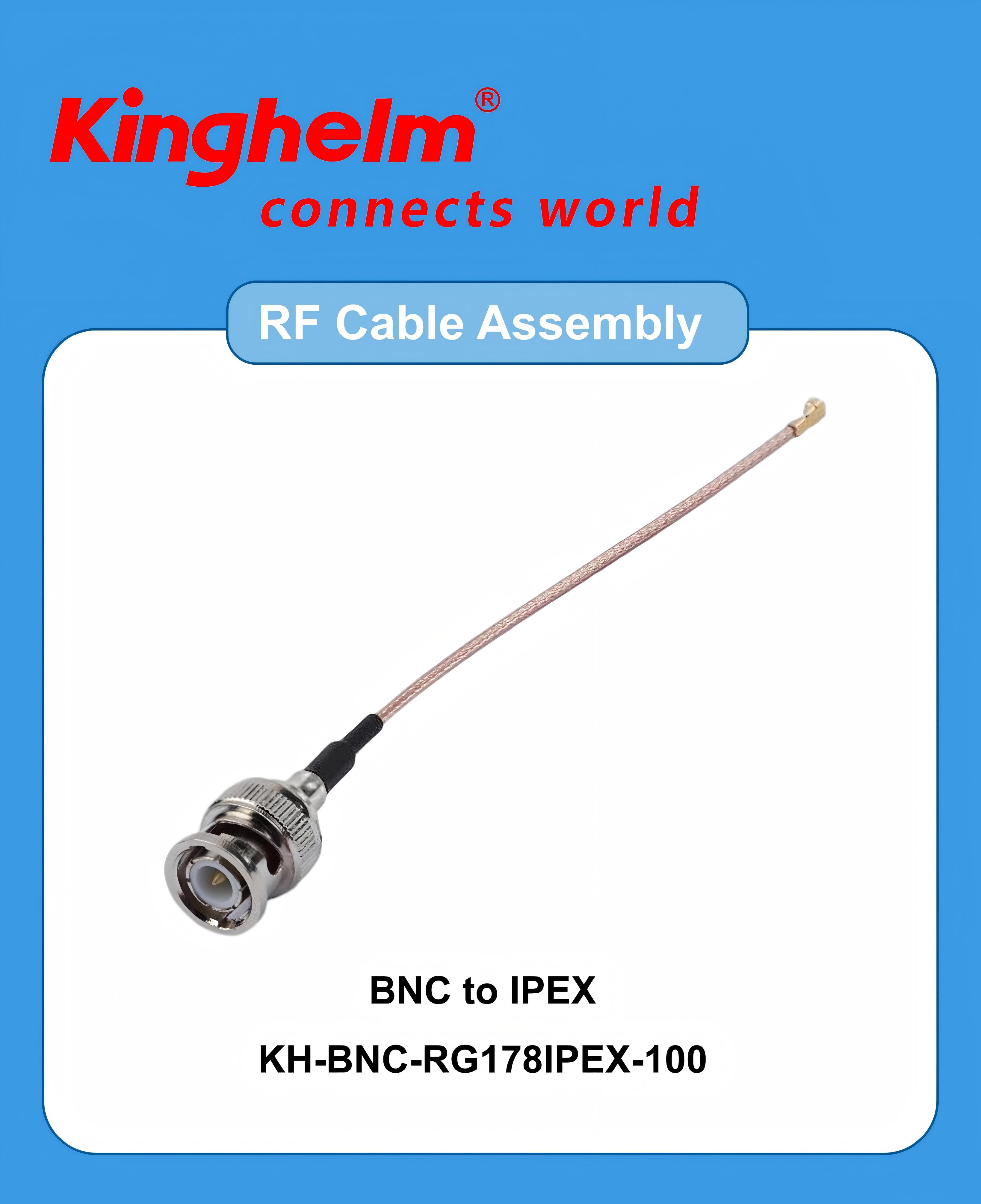

Kinghelm KH-BNC-RG178IPEX-100 Product Image

1. Why BNC and IPEX Connections Are Critical

BNC connectors are widely used on oscilloscopes, spectrum analyzers, and vehicle wireless terminals due to their durability and ease of use. In contrast, first-generation IPEX ports are compact and used in embedded modules, Bluetooth devices, and IoT terminals where space is limited. Without a suitable RF cable assembly, users may encounter several challenges: a thick or stiff coaxial line may not fit inside compact devices, poor terminal treatment reduces reliability after repeated connections, and excessive cable length can increase signal loss and create clutter on test benches.

Kinghelm RF Cable Assembly KH-BNC-RG178IPEX-100 addresses these challenges. Its 1.80mm OD RG178 coaxial cable is thin and flexible, ideal for micro modules and compact spaces. The 100mm length is short enough for desktop testing and vehicle terminal applications, keeping connections tidy while preserving high-frequency signal integrity.

2. Design Features of KH-BNC-RG178IPEX-100

Although lightweight at 8.993g and packaged in bags for convenient storage, KH-BNC-RG178IPEX-100 incorporates full RF design considerations. The BNC male straight connector is nickel-plated for durability and compatibility with instruments. The first-generation IPEX178 terminal is gold-plated, providing stable contact in small interfaces. An OD2.5×15mm black heat shrink tube protects the joint, reducing stress on solder points and extending service life. Rated voltage reaches 300V, making the assembly suitable for a variety of test setups, vehicle modules, and industrial applications.

3. Advantages in Practical Use

Users often notice handling comfort first. The flexible RG178 coax of KH-BNC-RG178IPEX-100 can bend and turn along device corners without adding mechanical stress. The straight BNC male connector minimizes lateral stress during repeated plugging, protecting instrument ports. The gold-plated IPEX178 terminal ensures consistent conductivity and reduces the risk of oxidation over time. The heat shrink tube provides additional strain relief, making the assembly reliable for frequent use in compact spaces.

Another advantage is efficiency. With KH-BNC-RG178IPEX-100, users do not need temporary adapters or complex rework. The 100mm length allows instruments and modules to be placed close together for accurate testing and quick installation, saving time in both lab and field scenarios.

4. Applications in Desktop and Vehicle Testing

In laboratory testing of micro RF modules, compact space is common. Short RF cable assemblies like KH-BNC-RG178IPEX-100 keep test benches tidy and reduce unnecessary loops. For vehicle wireless terminals, external detectors or recorders often use BNC ports, while internal modules rely on IPEX. The flexible RG178 thin coax ensures the cable can be routed along corners and fixed securely, improving workflow efficiency and reducing handling errors.

KH-BNC-RG178IPEX-100 acts as an interface translator and signal extender, suitable for RF module testing, vehicle wireless terminal inspection, and compact embedded device debugging. It provides a reliable connection path for high-frequency signals without compromising performance.

5. RF Cable Assembly Variety

The RF cable assembly family offers multiple interface combinations. Users may need BNC to IPEX, SMA to IPEX, MMCX to BNC, or TNC/N connector variations. Coaxial types include RG178, RG174, RG316, and others. Cable lengths range from 50mm short test connections to several meters for antenna extension. Connectors may be straight or elbow, with nickel or gold plating, and heat shrink tubes of different diameters for protection.

Kinghelm provides a diverse range of RF cable assemblies covering module testing, antenna debugging, vehicle terminals, and consumer electronics. KH-BNC-RG178IPEX-100 is a representative model focusing on BNC male to first-generation IPEX micro modules with 100mm RG178 thin coax. Other interface types and lengths can be selected from the same product family to build complete RF connection paths.

6. selection Guidelines

Choosing the right RF cable assembly can follow practical steps. First, confirm the module interface type and generation. Second, check the instrument port, usually BNC male. Third, evaluate available space; for compact devices, RG178 OD1.80mm thin coax is recommended. Fourth, select appropriate cable length—100mm is suitable for desktop and vehicle applications. Fifth, consider connector plating: gold-plated IPEX terminals and nickel-plated BNC male connectors improve reliability and reduce oxidation risk.

Following these steps ensures smooth signal transfer from micro IPEX modules to BNC instruments. Kinghelm RF Cable Assembly KH-BNC-RG178IPEX-100 embodies this approach with its 100mm RG178 thin coax, straight BNC male connector, and gold-plated IPEX178 terminal, protected by an OD2.5×15mm heat shrink tube.

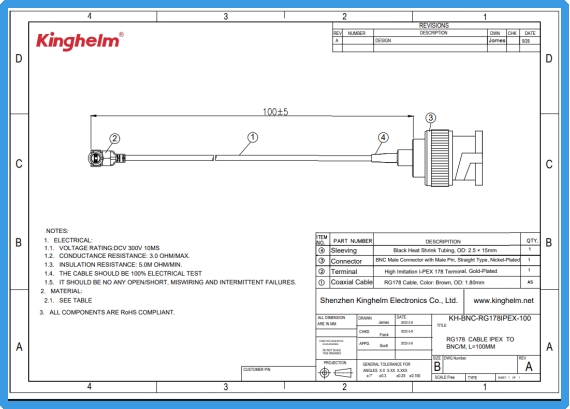

Kinghelm KH-BNC-RG178IPEX-100 Specification

Conclusion

High-frequency signals require continuous and stable paths, and RF cable assemblies serve as the bridge between different interfaces. Kinghelm RF Cable Assembly KH-BNC-RG178IPEX-100 provides a reliable solution for connecting BNC instruments to first-generation IPEX micro modules, maintaining signal integrity and improving handling in compact spaces. Its 100mm RG178 thin coax, gold-plated IPEX178 terminal, and nickel-plated BNC male connector with protective heat shrink tube ensure durability and performance. Kinghelm continues to offer a wide range of RF cable assemblies, supporting users in module testing, vehicle terminals, and consumer electronics. With models like KH-BNC-RG178IPEX-100, BNC and IPEX connections become smooth, practical, and efficient.
