​Kinghelm FAKRA RF Adapter Cable KHB160-45: 16cm 1.13mm Wire in Practical RF Connections

In RF systems, the weakest link often isn’t the device itself but the connections. Whether in automotive equipment, communication modules, or RF testing setups, signal issues frequently arise from interface transitions, cable mismatches, or routing challenges. A well-specified and reliable RF adapter cable can make the entire system run more smoothly.

The Kinghelm FAKRA RF adapter cable KHB160-45 was designed with these real-world requirements in mind. Featuring a FAKRA male connector, 1.13mm coaxial wire, and a 16cm cable length, it provides a practical and engineer-friendly solution for a variety of RF connection scenarios.

Understanding the Role of an RF Adapter Cable in Real Applications

In RF systems, the primary function of an RF adapter cable is simple: transmit signals reliably between different interfaces or locations. In practice, space constraints, interface standards, and assembly methods can significantly impact performance.

The KHB160-45 covers a frequency range of DC–3GHz, suitable for most RF communication and signal transmission applications. In 50Ω systems, this cable helps maintain stable signal integrity and ensures compatibility with modules, antennas, and test equipment.

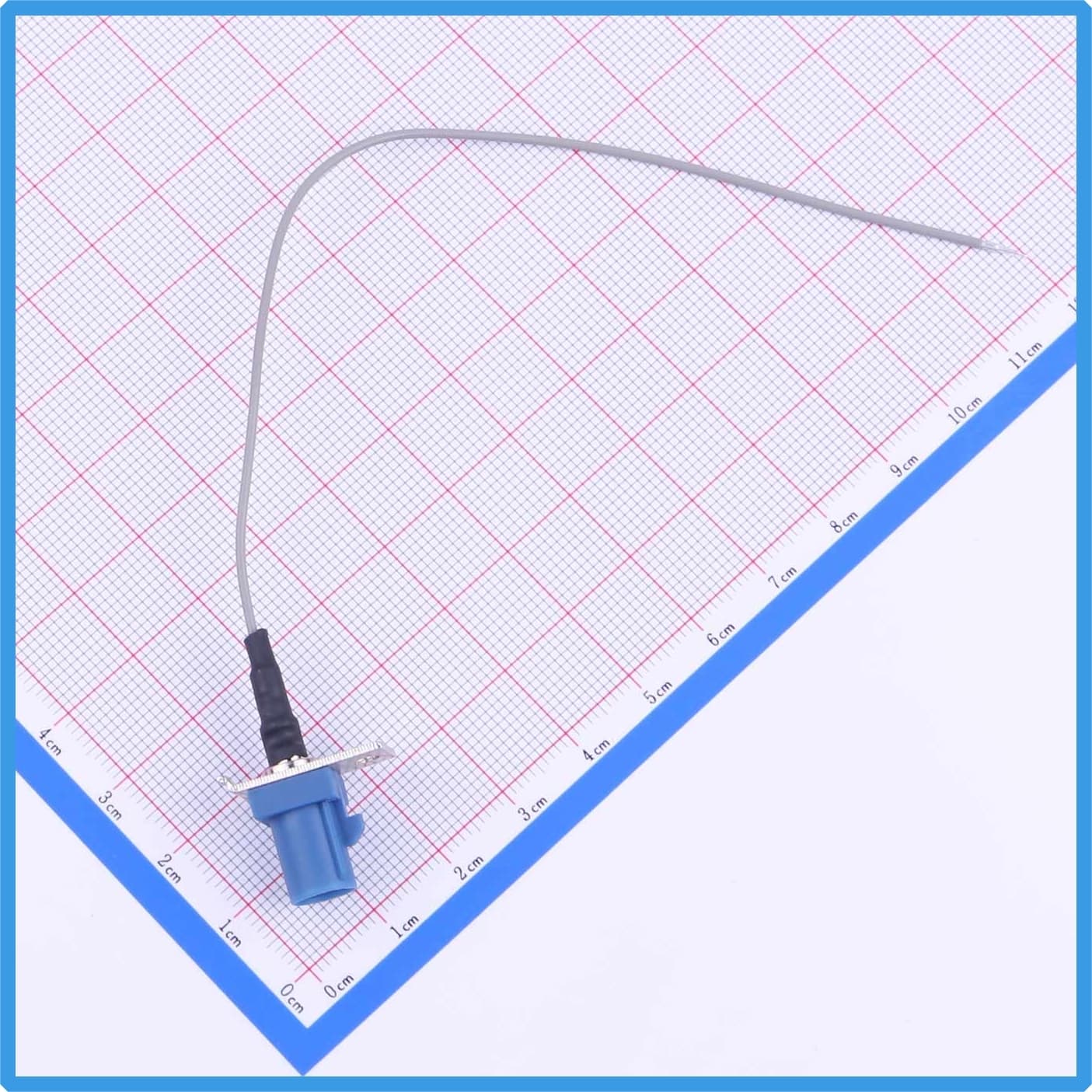

Kinghelm KHB160-45 Product Image

The Value of FAKRA Connectors in RF Connections

FAKRA connectors are widely used in automotive and communication systems for their stable structure and clear interface standards.
The KHB160-45 uses a blue FAKRA male connector, which simplifies identification in multi-interface environments, reducing installation errors and saving time during assembly.

For applications connecting automotive head units, communication modules, or external antennas, FAKRA connectors provide a proven, practical solution that performs reliably over time.

1.13mm Coaxial Wire and 16cm Cable Length

Cable flexibility and length are often more important than numbers on a datasheet. The KHB160-45 uses 1.13mm coaxial wire, which is more flexible than thicker cables, making it easier to route in tight internal spaces.

A 16cm cable length is a common choice for RF connections—it’s long enough to bridge interfaces without strain, yet short enough to avoid clutter or tangling.
Additionally, the PVC black heat-shrink tubing at the connector transition provides extra protection, ensuring stable performance during repeated plugging and unplugging.

Typical Applications

The Kinghelm FAKRA RF adapter cable KHB160-45 is versatile and practical:

• • Automotive Electronics
  Connects antennas to head units in compact systems where interface standards are critical.

• • Communication and RF Modules
  Serves as a medium-length connection between modules and external interfaces.

• • RF Testing and Lab Setups
  Provides convenient, reliable connections for quick test setups, maintaining consistent measurement conditions.

Despite differing contexts, these applications share common requirements: stable connections, easy routing, and reliable interfaces.

selection Guidelines: Focus on Practical Fit

When selecting an RF adapter cable, focus on whether it meets the system’s practical needs rather than chasing complex specifications:

• • Is the operating frequency compatible with your system?

• • Does the connector type match existing devices?

• • Are the cable diameter and length suitable for internal routing?

When these basic conditions are met, the RF adapter cable typically performs reliably without additional adjustments.

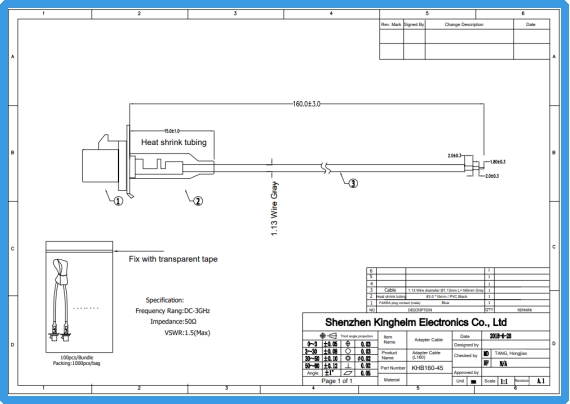

Kinghelm KHB160-45 Specification

Conclusion

The stability of an RF system often comes down to details. The Kinghelm FAKRA RF adapter cable KHB160-45, with its thoughtful specifications, FAKRA connector, and practical cable design, offers a reliable solution for a wide range of RF connection scenarios.
While often overlooked, this type of RF adapter cable plays a crucial role in the overall system performance, especially in automotive, communication, and testing applications.
