『Product Highlight』​Kinghelm IDC Connector KH-2.54PH180-2X6P-L8.9: 3A Current Capacity, No Wire Stripping Required

As electronic devices continue to develop toward miniaturization and modularity, connectors play an essential role in ensuring reliable electrical connections. From earlier large, discrete connector solutions to today’s compact and high-density designs, connector technology has gradually evolved to meet higher integration and durability requirements. In fields such as consumer electronics, industrial control, and embedded systems, connectors are expected to support dense layouts, stable contacts, and adaptability to various environments, which has led to the widespread adoption of IDC (Insulation Displacement Connector) types.

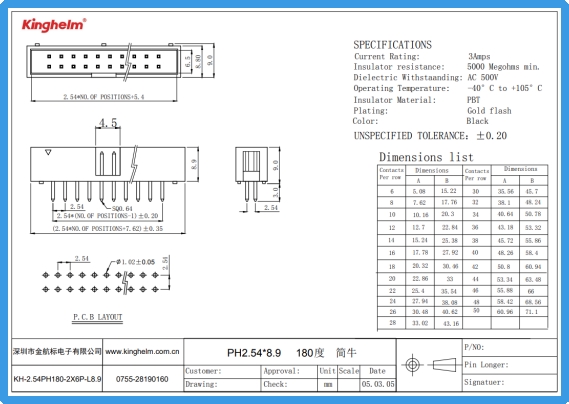

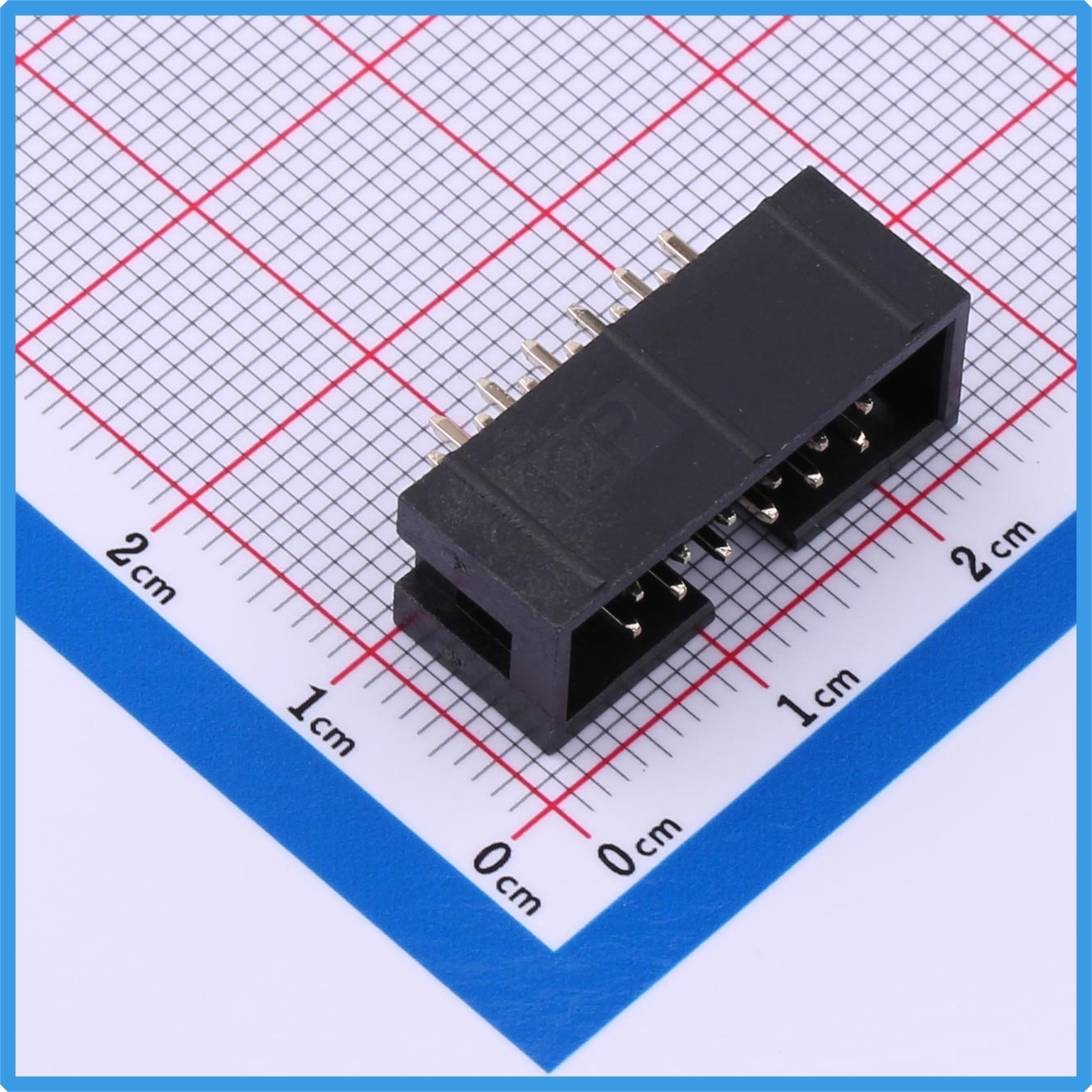

The Kinghelm KH-2.54PH180-2X6P-L8.9 is an IDC connector designed with a 2.54mm standard pitch and a 2×6P double-row configuration, enabling multiple signal connections in limited space. This connector employs the insulation displacement method, allowing it to connect wires without the need for pre-stripping. This design simplifies assembly and reduces potential instability caused by manual wire preparation.

Structurally, the connector uses a simplified “pin header” style suitable for board-to-wire applications. Its through-hole mounting allows direct insertion into a PCB, providing mechanical support while maintaining electrical continuity. The 2.54mm row and pin spacing balance compatibility with standard cabling and board layouts while maintaining reasonable connection density.

Electrically, the connector is rated for 3A, supporting medium-current signal and power transmission. The contacts are gold-plated, which helps reduce contact resistance and slow oxidation, maintaining reliable connection performance over time. These features are particularly beneficial in applications where consistent contact quality is required, such as data interfaces or control signal paths.

The connector operates within a temperature range of -40°C to +105°C, allowing use in a variety of conditions, from indoor devices to some industrial environments. Within this range, the connector maintains stable contact and mechanical performance, ensuring reliable operation under temperature variations.

Mechanically, the dual-row 6-pin configuration supports multiple connections while improving overall insertion stability. The black insulating body offers thermal resistance and helps visually distinguish connector positions. Tray packaging facilitates automated assembly and transportation, making it suitable for batch production.

In practical applications, this connector can be used in industrial control boards, communication devices, and consumer electronics. When combined with standard ribbon cables, it enables quick assembly and disassembly between modules, which helps improve manufacturing efficiency and maintenance convenience.

With ongoing attention to space utilization and connection reliability in electronic design, IDC connectors like the KH-2.54PH180-2X6P-L8.9 remain relevant across various applications. selecting the right connector requires considering current load, operating environment, and mounting method to ensure long-term stable performance.
