『Product Highlight』Kinghelm SMA Connector KH-SMA-KWE-W: Free Up Space in Compact Designs

In modern RF hardware design, engineers often face a common challenge: the overall device thickness must be extremely thin, for example ≤12mm. However, standard SMA straight board connectors often exceed 15mm in height. This “conflict between structure and function” not only slows down the design process but can also force compromises between performance and form factor.

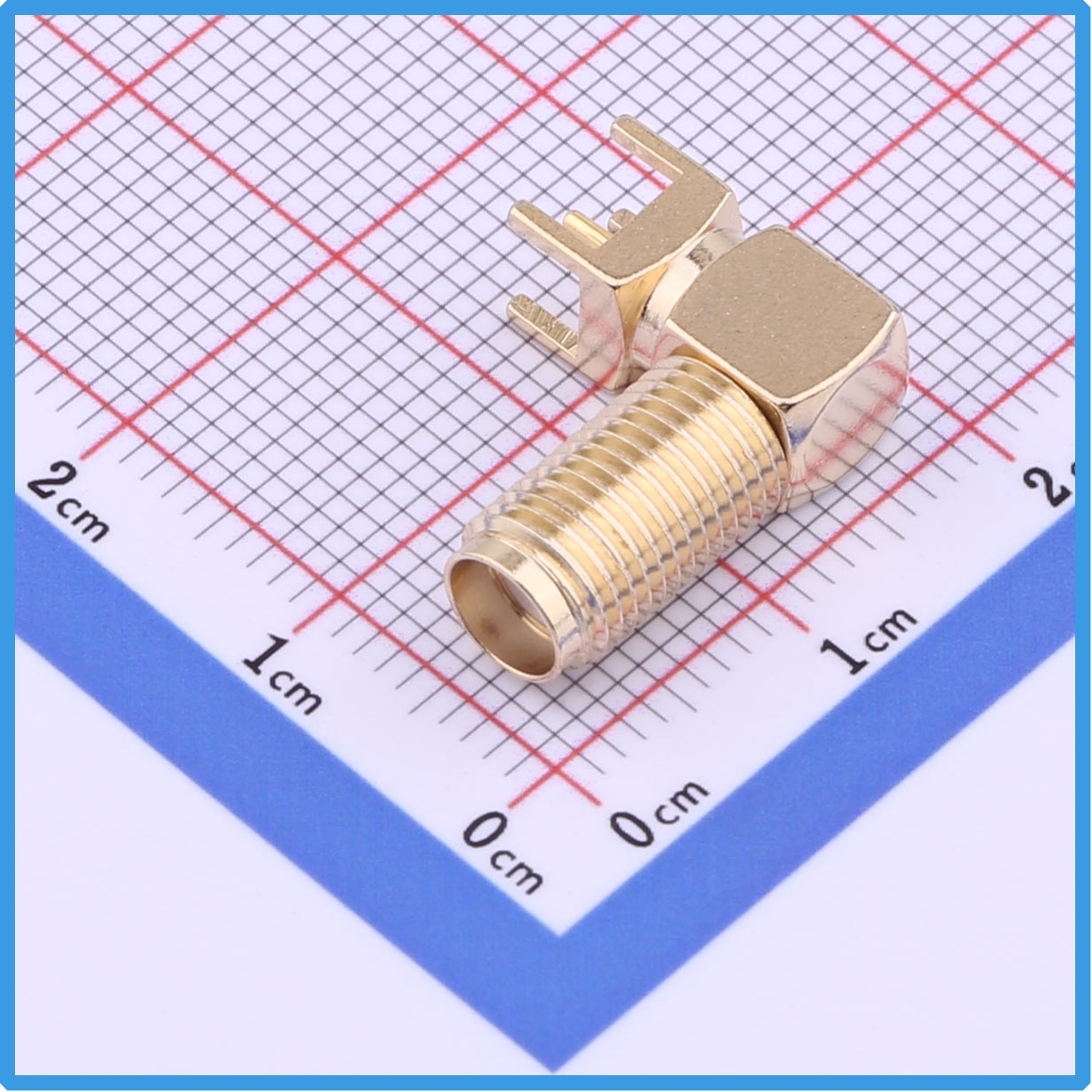

Kinghelm KH-SMA-KWE-W Product Image

1. Overcoming Height Constraints: Let the Connector “Turn”

For designs with limited vertical space, right-angle SMA connectors are a key solution. Their core value lies in changing the interface direction, shifting vertical space usage to the horizontal plane, and freeing up precious height.

The Kinghelm KH-SMA-KWE-W (SMA Full-Thread Right-Angle Female Board Connector) is specifically designed for such scenarios. Its right-angle structure not only meets low-profile requirements but also ensures reliable connection within tight spaces, making RF interface design more flexible.

2. selection Key Points: Full-Thread vs. Partial-Thread, Right-Angle vs. Straight

During connector selection, engineers often need to balance multiple options:

• Straight vs. Right-Angle

• Straight: simple structure but occupies more vertical space

• Right-angle: saves height, ideal for compact designs

• Full-Thread vs. Partial-Thread

• Partial-thread: limited panel retention, weaker vibration resistance

• Full-thread: secure panel locking, enhancing overall structural stability

In compact devices such as automotive modules, portable equipment, and industrial terminals, the full-thread right-angle combination is almost always the optimal solution. KH-SMA-KWE-W uses a full-thread + right-angle design, maintaining stable connections even in complex environments.

3. Precise Dimensioning: The Value of 11mm Interface Height

The KH-SMA-KWE-W features an 11mm interface length, carefully optimized to:

• Reserve sufficient space between the panel and PCB

• Avoid interference with the enclosure

• Provide adequate mechanical support

Compared to traditional straight SMA connectors (≥15mm), KH-SMA-KWE-W is clearly advantageous in compact designs, easily meeting the ≤12mm overall height requirement.

4. Electrical Performance Without Compromise: The 50Ω Impedance Challenge

Right-angle structures can easily introduce impedance discontinuities. If mismatched, signal reflections and insertion loss increase, affecting system performance. High-quality right-angle SMA connectors must optimize both structural design and material selection.

KH-SMA-KWE-W key features include:

• Standard 50Ω impedance: meets mainstream RF system requirements

• PTFE dielectric: stable dielectric constant reduces signal loss

• Gold-plated brass body + HPb59-1 gold-plated socket: improves conductivity and corrosion resistance

• Precision internal structure: ensures continuous signal path, achieving “bend without bending the signal”

Even in a right-angle structure, high-frequency performance remains excellent.

5. Assembly-Friendly Design: A Hidden Efficiency Advantage

Connectors are not just components; they directly affect production efficiency and yield. KH-SMA-KWE-W offers:

Through-Hole (TH) Packaging

• Suitable for manual prototype assembly

• Supports wave soldering in mass production

• Strong solder joints, ideal for high-reliability applications

Tray Packaging

• Pins neatly aligned, preventing deformation

• Easy for automated pick-and-place

• Reduces manual handling costs

These design details significantly improve assembly efficiency and reduce defects.

6. Product Specifications (Quick Reference)

• Model: KH-SMA-KWE-W

• Type: SMA Full-Thread Right-Angle Female Board Connector

• Interface Type: Socket

• Number of Ports: 1

• Interface Diameter: 5.3mm

• Interface Height: 11mm

• Impedance: 50Ω

• RF Series: SMA

• Materials:

• Body: Gold-plated brass

• Dielectric: PTFE

• Socket: HPb59-1 gold-plated

• Mounting: Through-hole

• Packaging: Tray

• Standard Compliance: RoHS

7. Conclusion: Let Structure Serve Function, Not Compromise

As modern electronic designs become more compact, engineers have less room for interface layout. A high-quality connector must not only meet electrical requirements but also provide structural solutions.

Kinghelm KH-SMA-KWE-W is more than just an SMA interface; it balances limited space and high-performance requirements, giving designers freedom in layout without being constrained by connector height. It truly allows structure to serve function.
