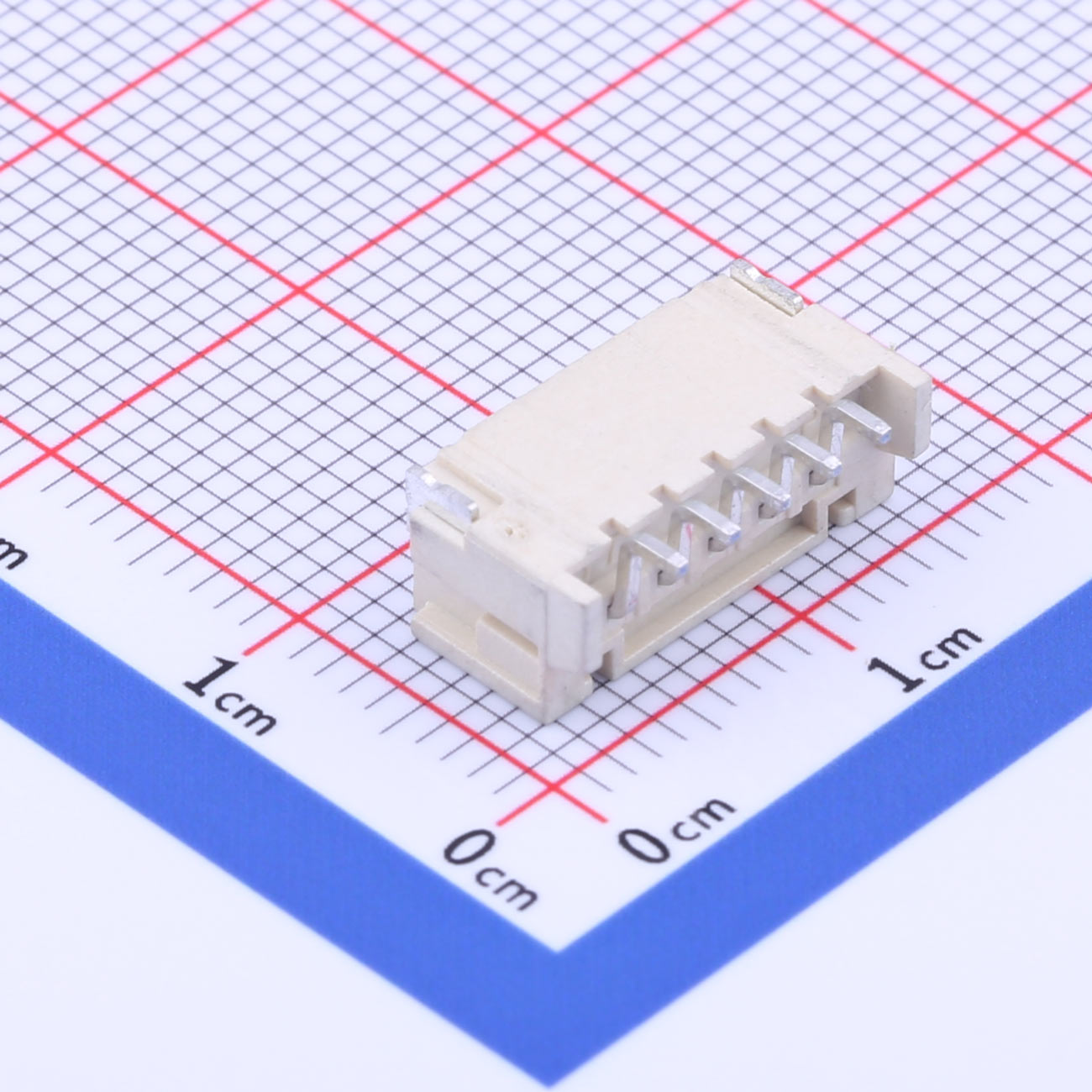

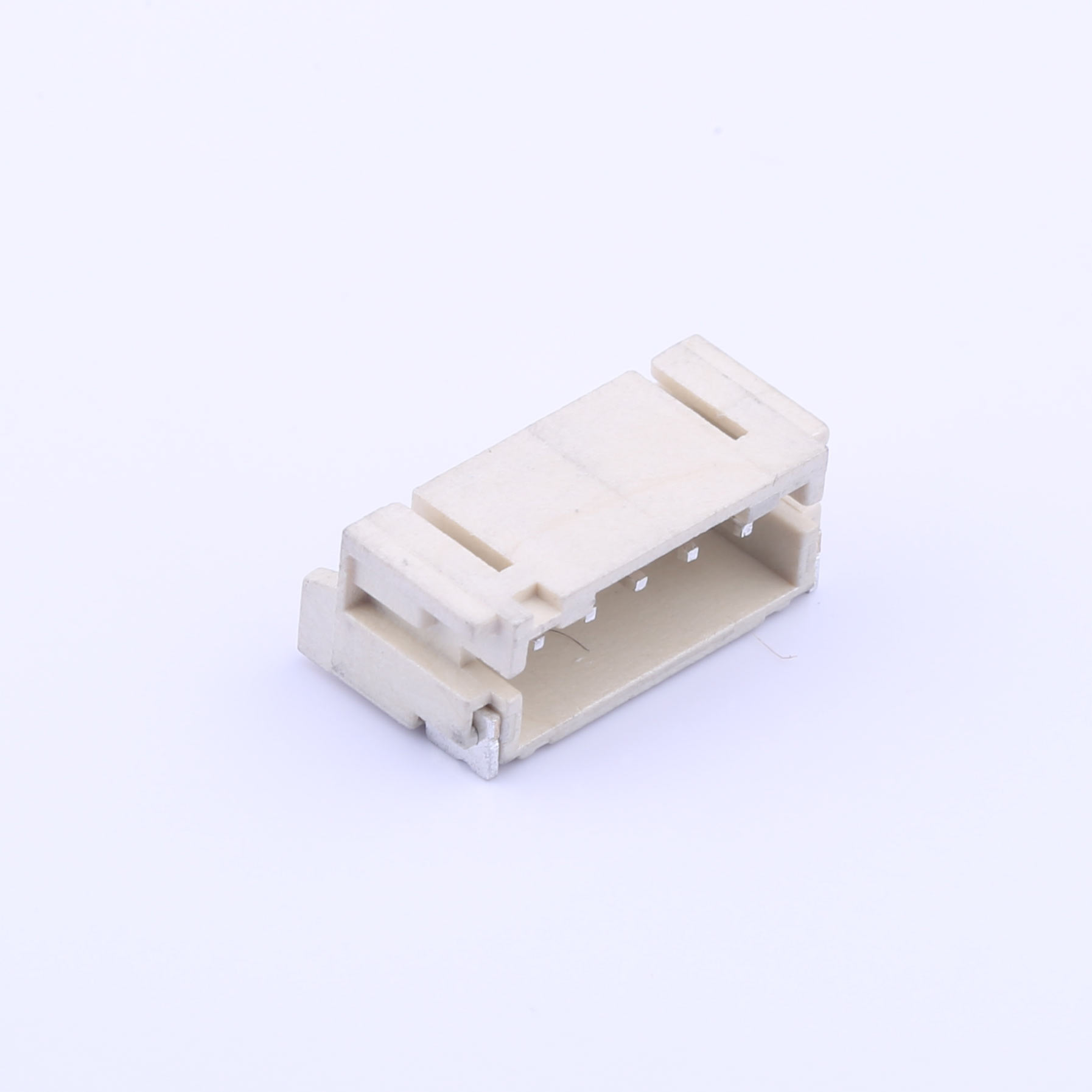

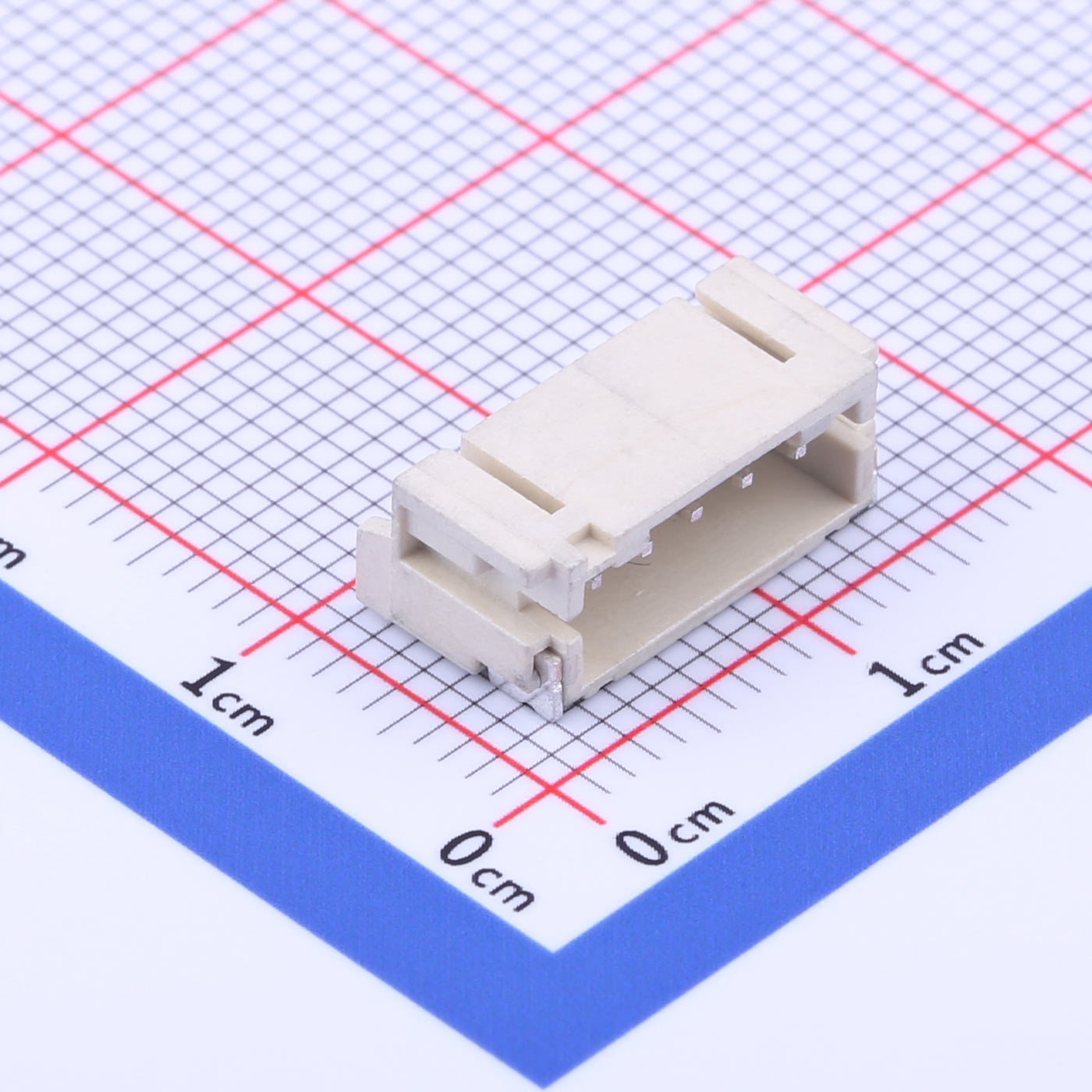

Wire to Board Connector, 2mm Pitch, 1x5P, SMD, KH-A2001WF-05A
Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.0mm pitch compact design
● 1x5P pin configuration
● Surface mount (SMD) type
● Compatible with PH series
● Tin-plated terminals for reliable contact
● Single-row, 5-pin layout
Product Benefits
● Saves PCB space in tight designs
● Simplifies SMT assembly
● Ensures stable electrical performance
● Compatible with standard PH connectors
● Wide operating temperature range (-25℃ to +85℃)
● Supports up to 2A current flow
Product Applications
● LED modules
● Home appliances
● Consumer electronics
● Communication terminals
● Smart control systems
● Medical portable devices
