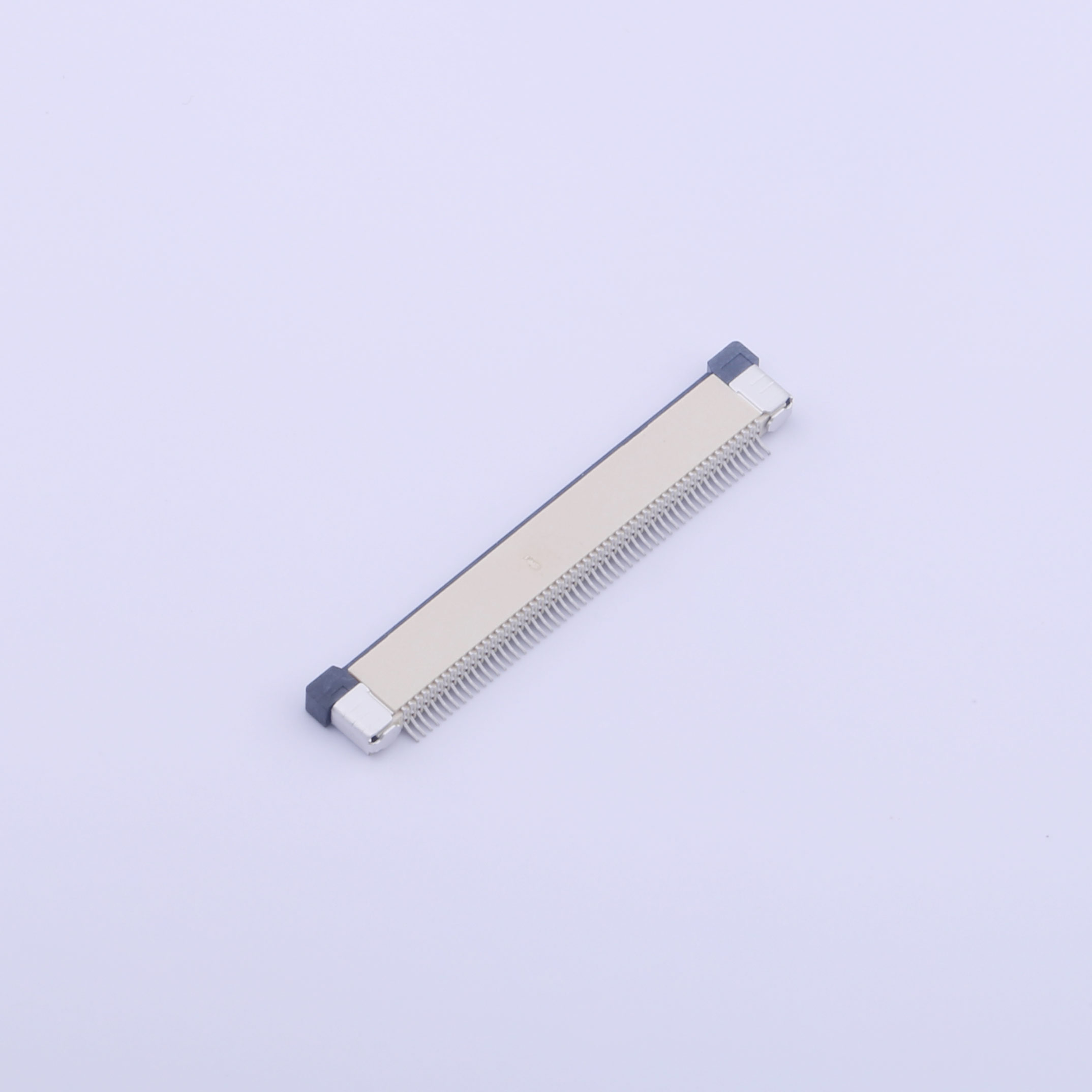

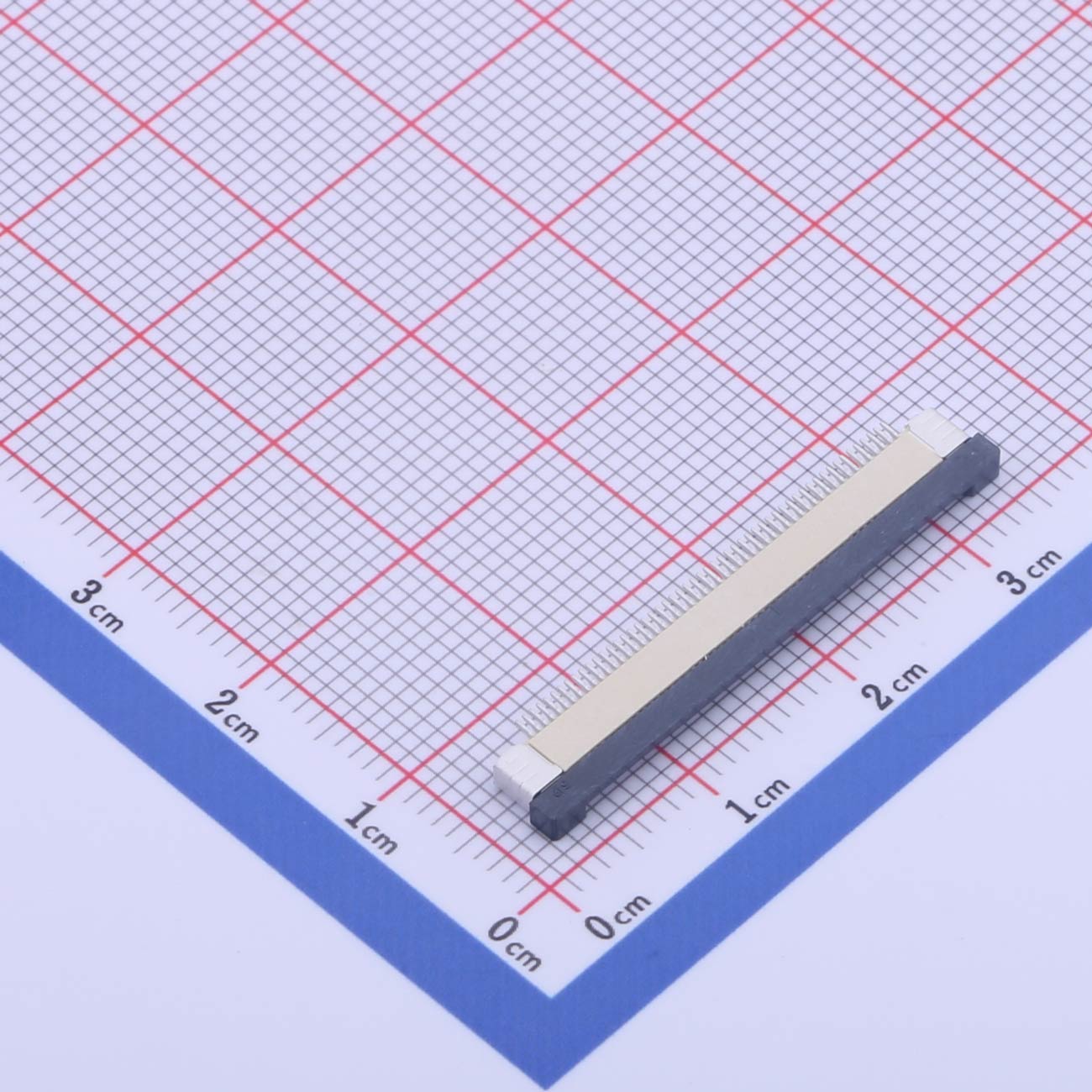

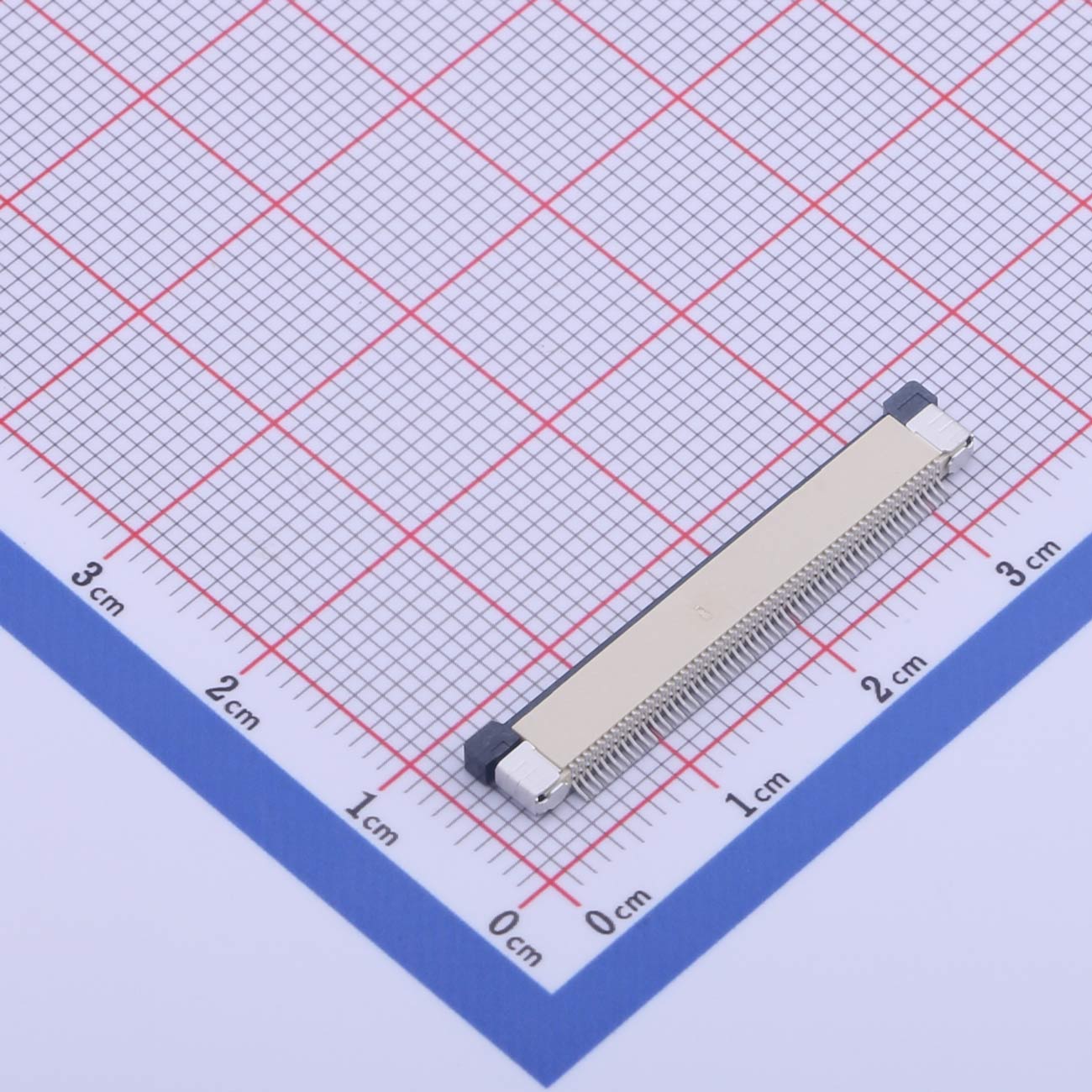

FFC/FPC Connector, 0.5mm Pitch, 54p,KH-CL0.5-H2.0-54PS
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● 54 pins arranged with a 0.5mm pitch
● Designed with an SMD (Surface Mount Device) package
● Drawer-style locking for secure connections
● Top contact interface for easy accessibility
● Compact footprint suitable for dense layouts
Product Benefits
● High pin count ideal for high-density applications
● Stable and dependable connections with drawer-style lock
● Supports flexible cables up to 0.3mm in thickness
● Operates reliably within a temperature range of -25℃ to +85℃
● Cost-effective solution without compromising on performance
Product Application
● Used extensively in high-end servers and cloud computing infrastructure
● Ideal for industrial automation systems and precision measurement tools
● Suitable for consumer electronics such as smartphones, tablets, and notebooks
● Applied in medical devices and imaging systems for precision and reliability
● Perfect for automotive electronics, including EVs and advanced driver assistance systems (ADAS)
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
