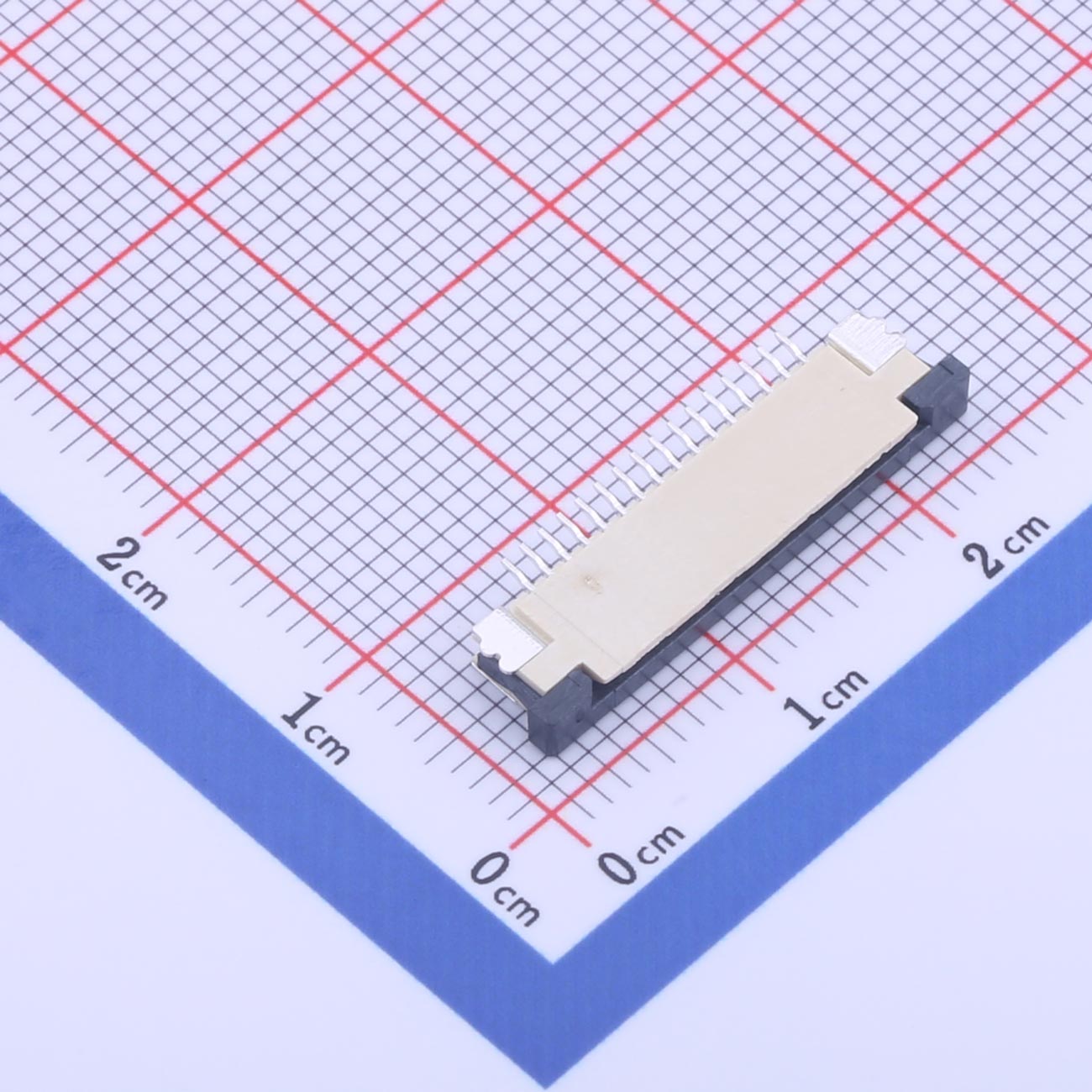

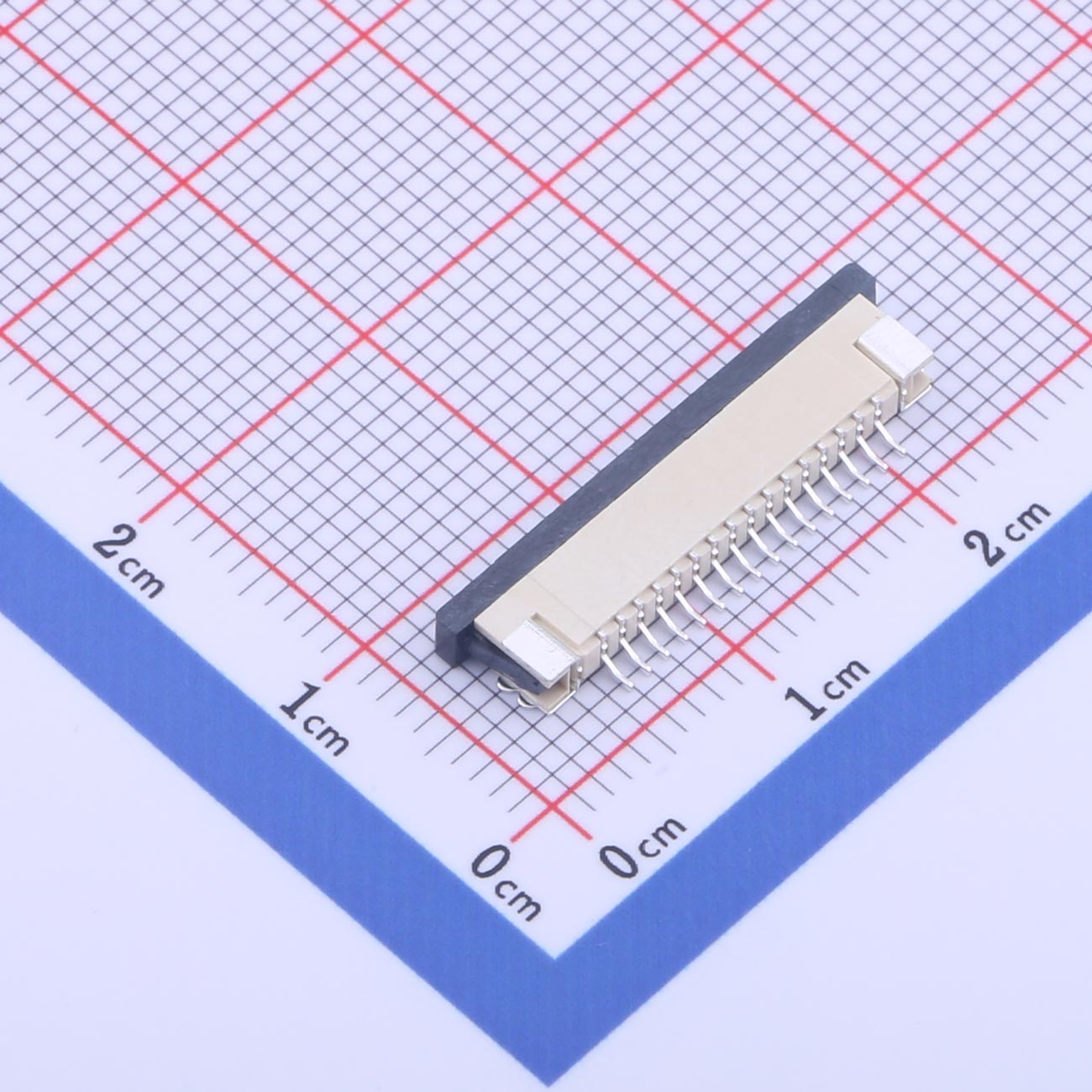

FFC/FPC Connector, 1mm Pitch, 16P, KH-CL1.0-H2.5-16pin
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● 16-pin configuration with 1mm pitch
● Board height of 2.5mm for compact installation
● Designed for FFC/FPC connections
● High-quality materials for durability
● SMD packaging for efficient assembly
Product Benefits
● Space-saving design ideal for dense layouts
● Ensures reliable electrical connections
● Supports a wide range of applications
● Cost-effective solution for high-pin-count needs
● Easy to integrate into existing systems
Product Application
● Suitable for consumer electronics like smartphones and tablets
● Ideal for automotive systems requiring precise connections
● Perfect for industrial automation and control systems
● Widely used in medical devices for reliable signal transmission
● Also applicable in aerospace and defense electronics
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
