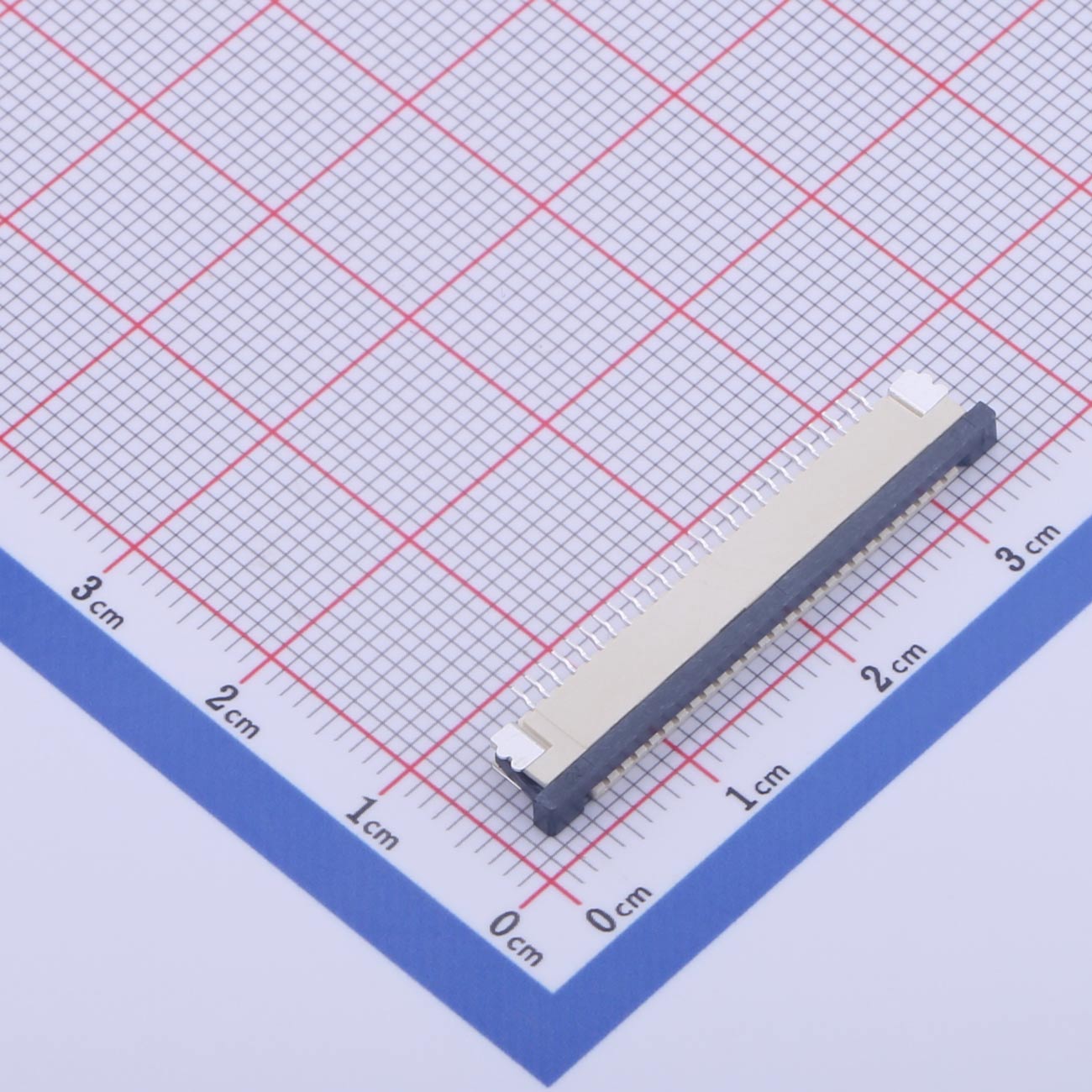

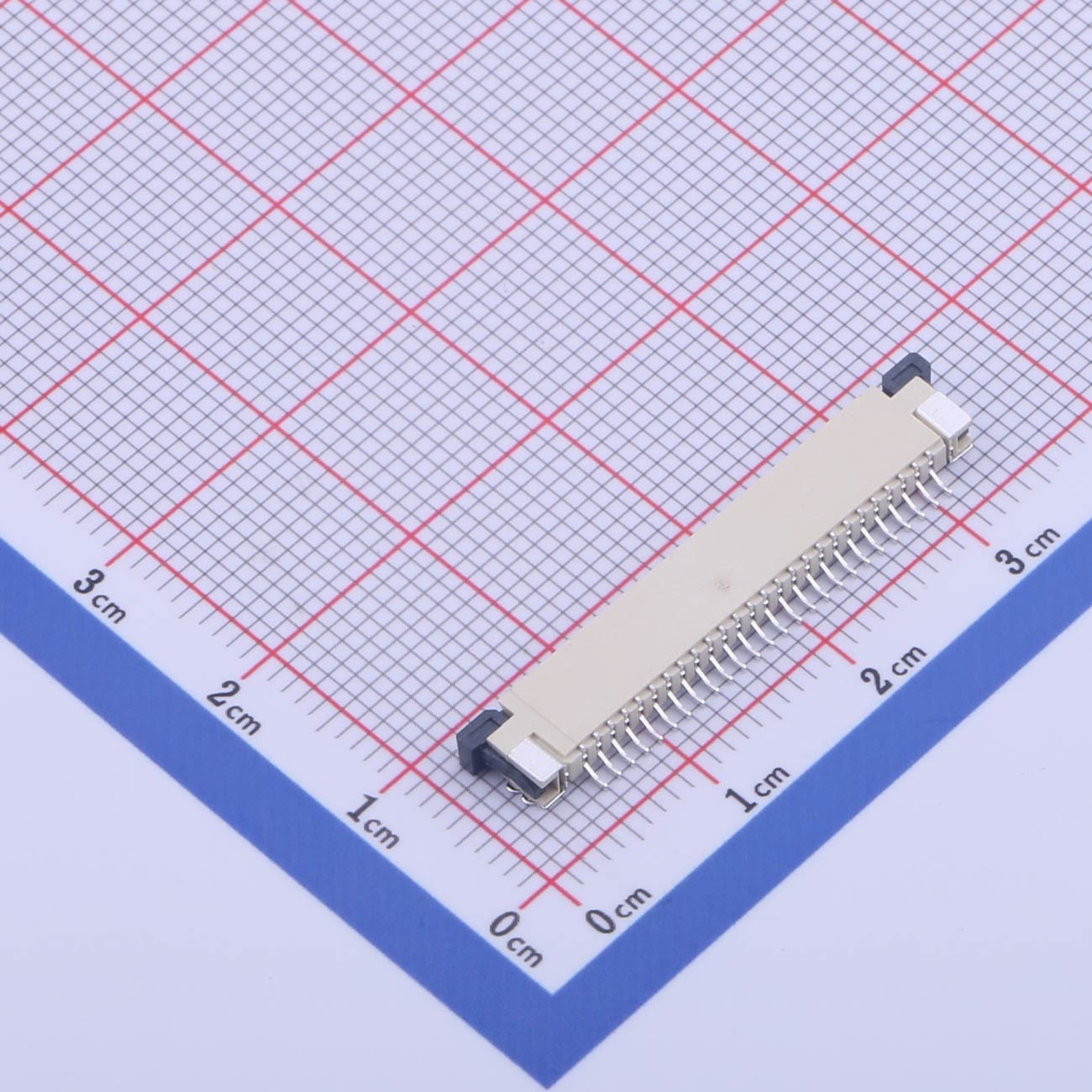

FFC/FPC Connector, 1mm Pitch, 26P, KH-CL1.0-H2.5-26PS
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● 26-pin interface with 1mm pitch
● Height of just 2.5mm
● Precise signal performance
● Secure and stable connections
● Plug-and-play compatibility
Product Benefits
● Maximizes PCB real estate
● Ensures high-speed data integrity
● Offers long-lasting durability
● Simplifies installation process
● Cost-effective connectivity solution
Product Application
● Ideal for compact electronics like smartphones
● Suitable for automotive control systems
● Perfect for industrial monitoring equipment
● Essential in medical diagnostic tools
● Widely used in consumer devices for reliability
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
