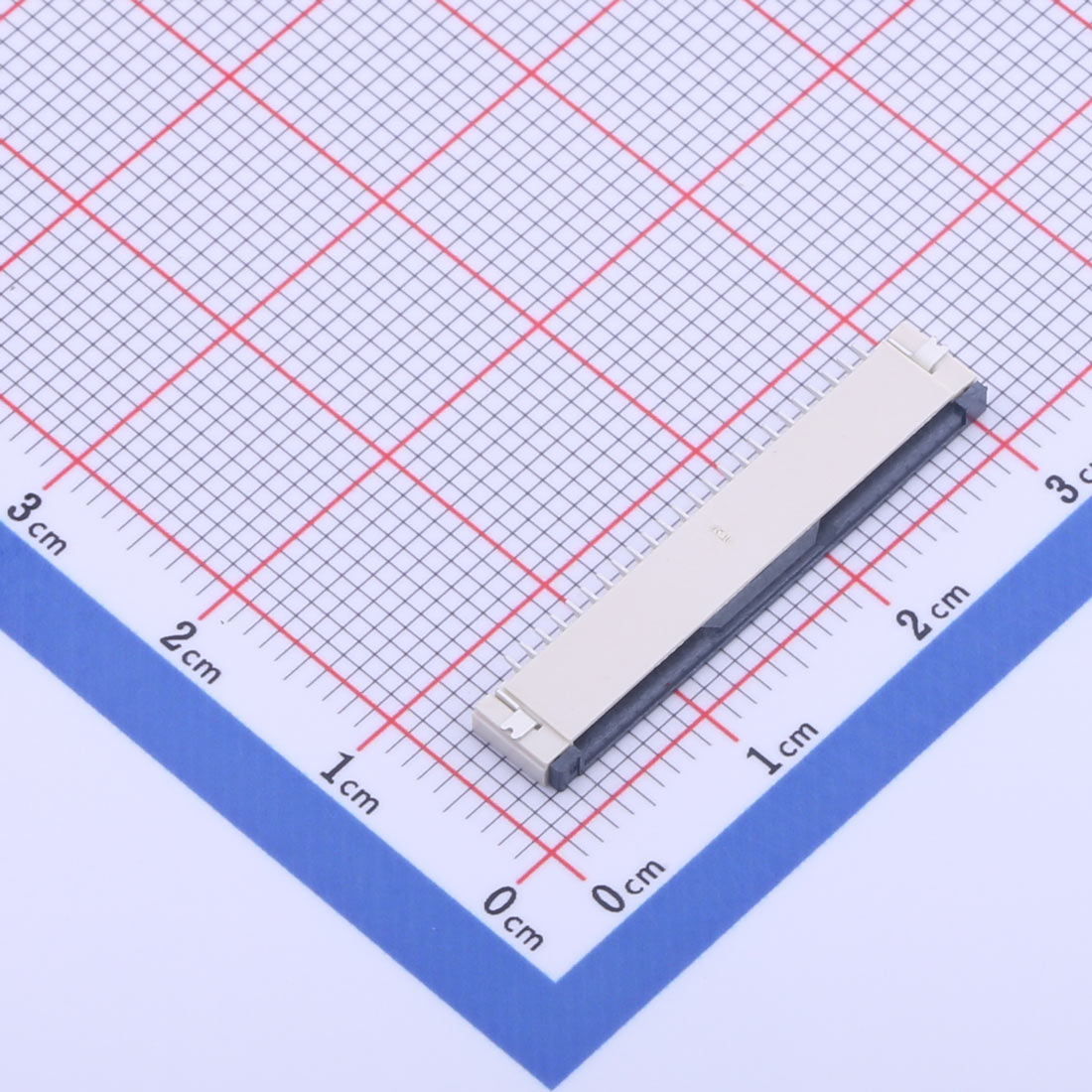

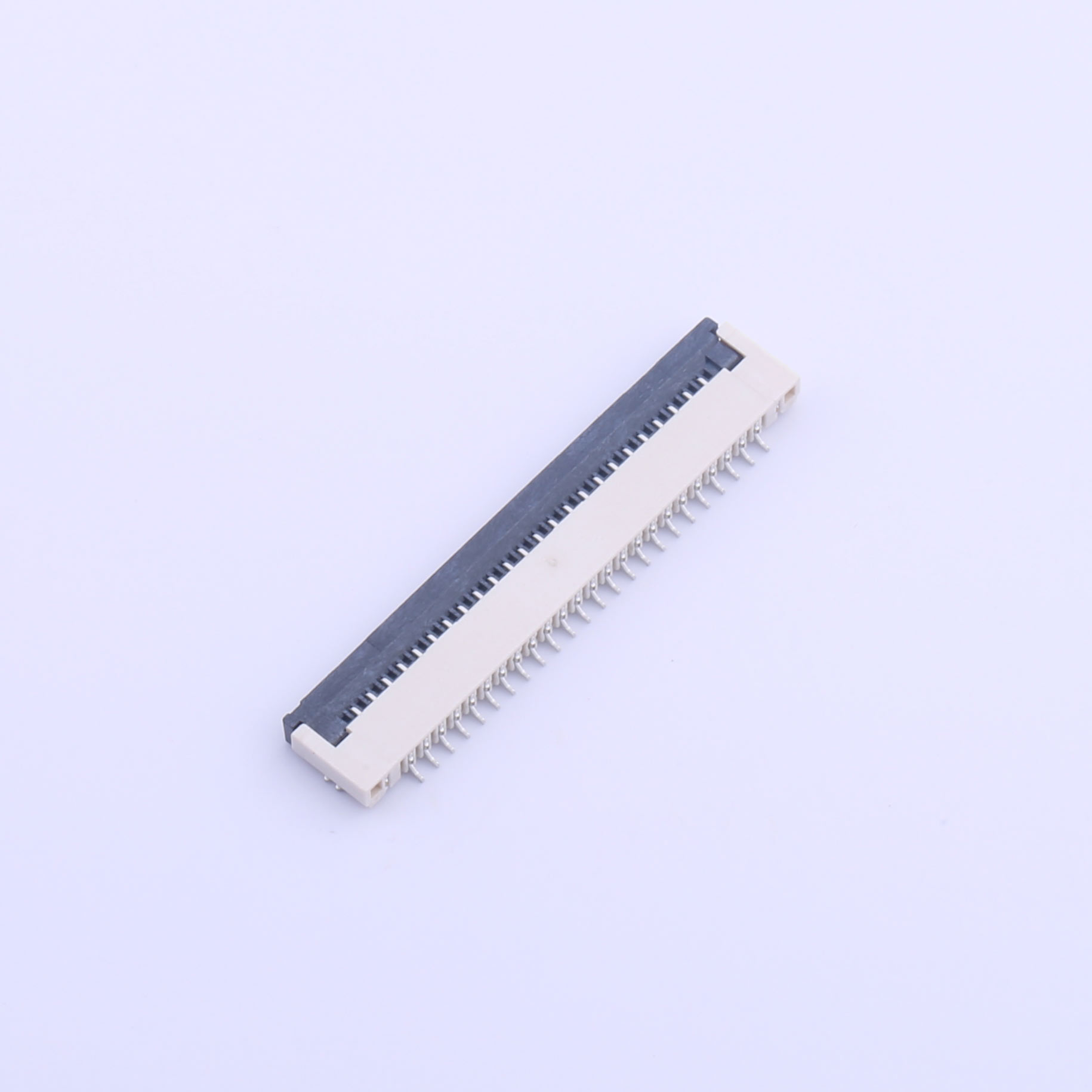

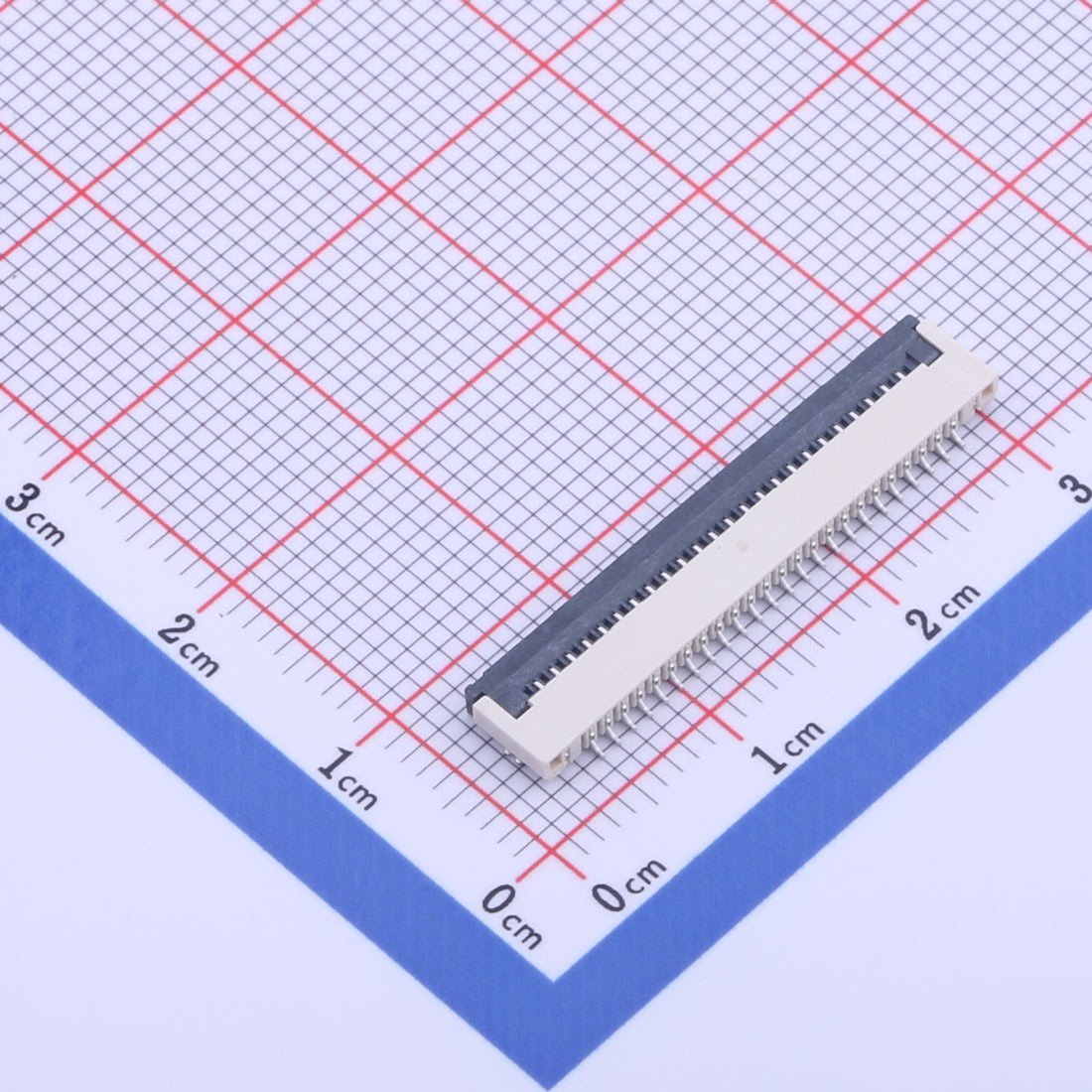

FFC/FPC Connector, 1mm Pitch, 24p, KH-FG1.0-H2.0-24PIN
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● Designed with 1.0mm pitch for compact PCB layouts
● Equipped with 24 pins for versatile connectivity
● Height of 2.0mm for seamless integration in limited spaces
● Utilizes surface mount technology for robust attachment
Product Benefits
● Enhances PCB space efficiency
● Supports high-speed data transmission with minimal loss
● Ensures reliable connections in harsh environments
● Facilitates easy maintenance and replacement
Product Application
● Ideal for connecting components in electronic gadgets
● Suitable for automotive electronics, industrial automation, and medical tools
● Perfect for high-density interconnect applications in diverse industries
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
