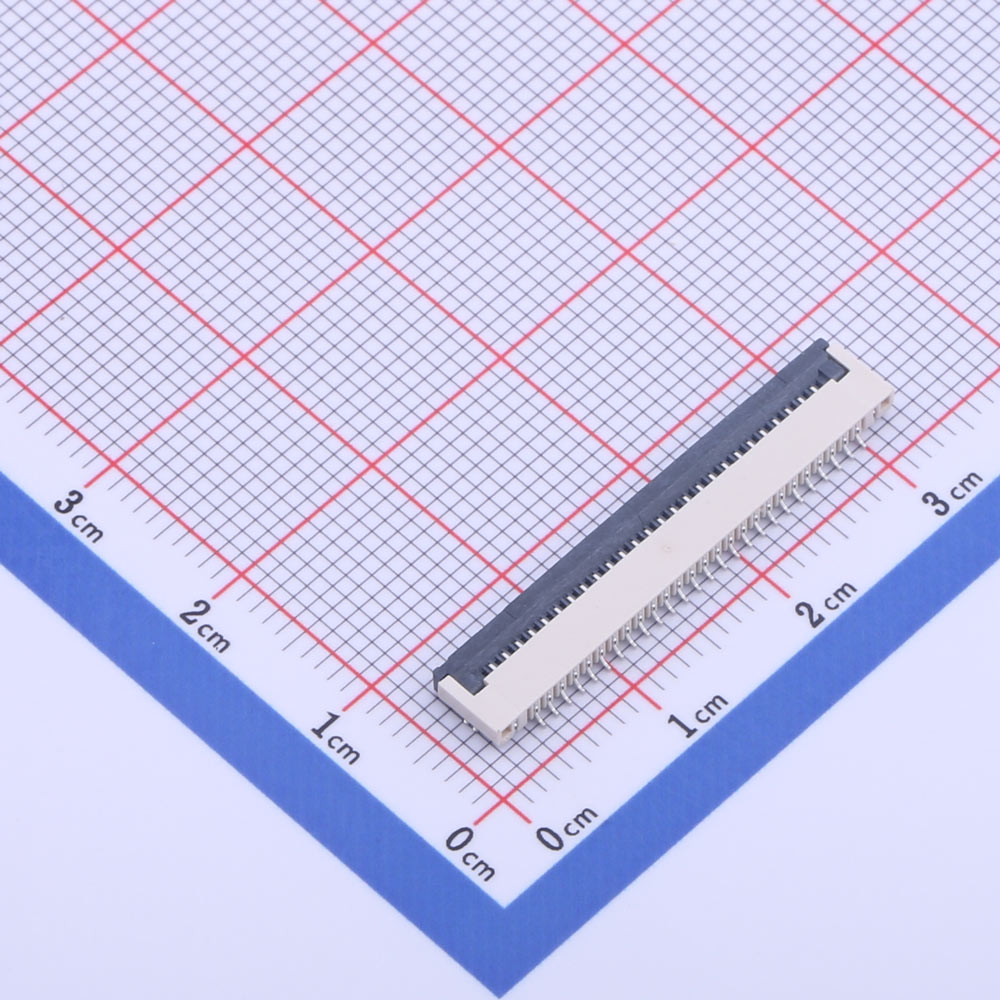

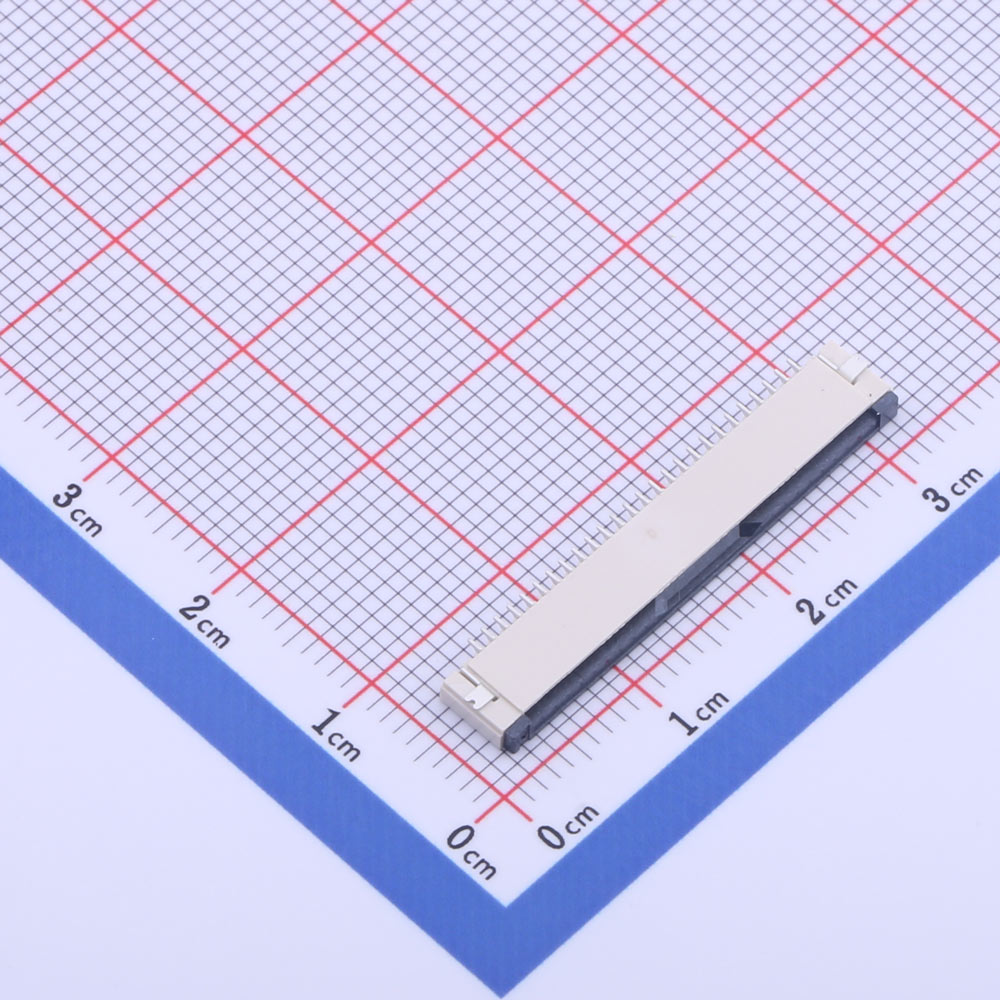

FFC/FPC Connector, 1mm Pitch, 26p, KH-FG1.0-H2.0-26PIN
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● Pitch size of 1.0mm for dense PCB integration
● Features 26 contacts for robust signal transfer
● Low-profile height of 2.0mm for space-saving design
● Surface mount technology for secure attachment
Product Benefits
● Facilitates high-speed data communication
● Enhances signal integrity and reliability
● Optimizes PCB space utilization
● Supports a wide range of electronic applications
Product Application
● Perfect for connecting electronic components in compact devices
● Ideal for use in automotive systems, industrial controls, and medical devices
● Suitable for high-density interconnect solutions in various electronics
