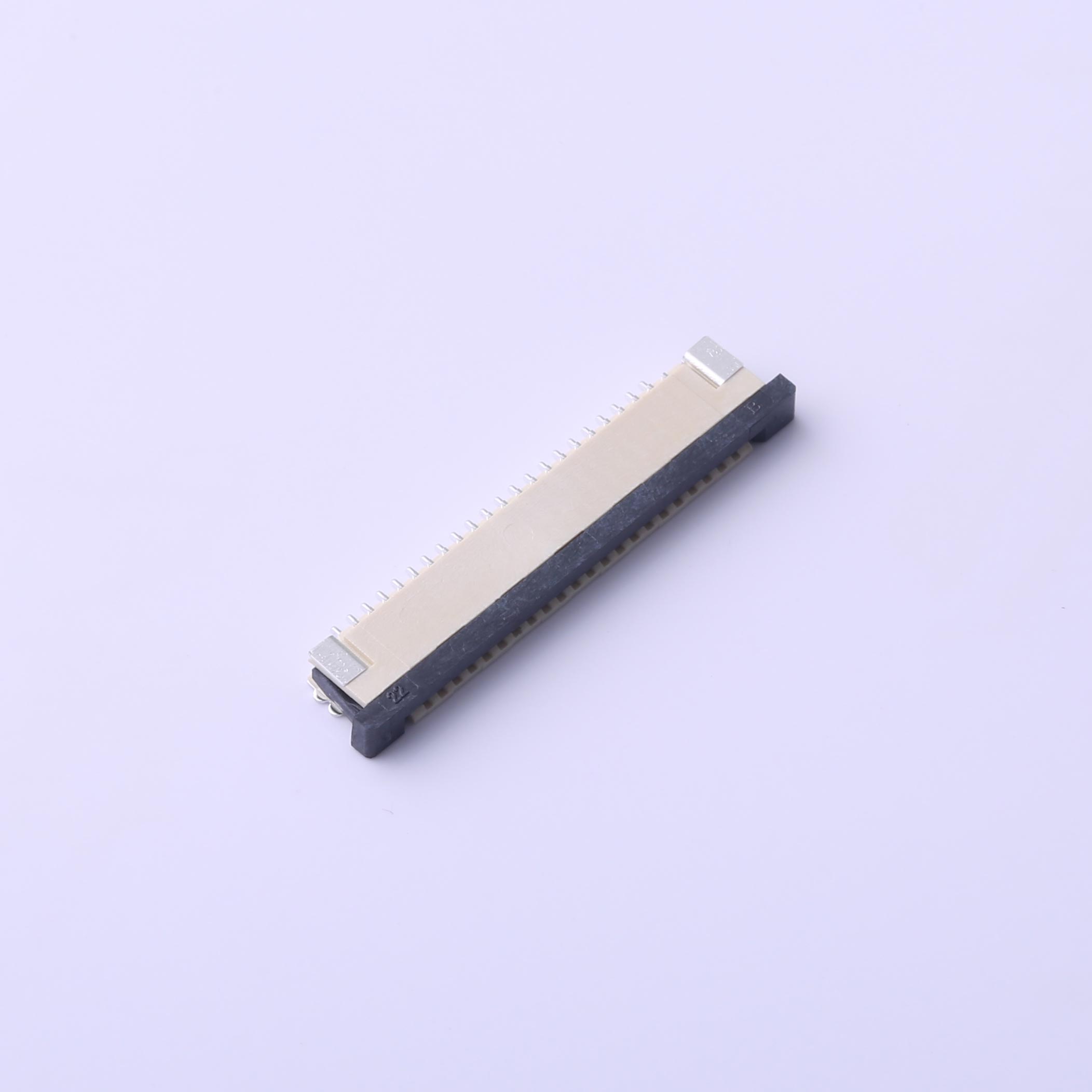

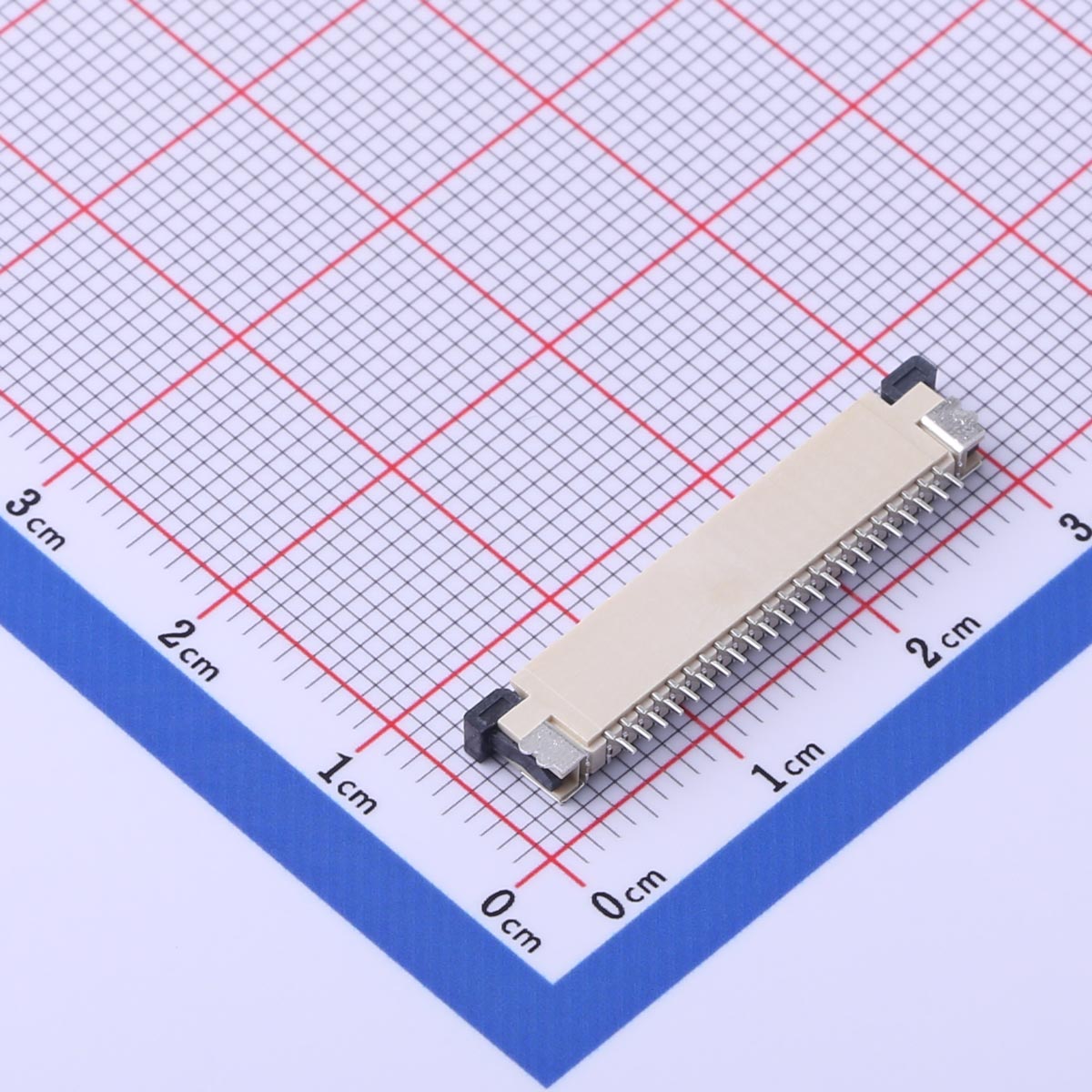

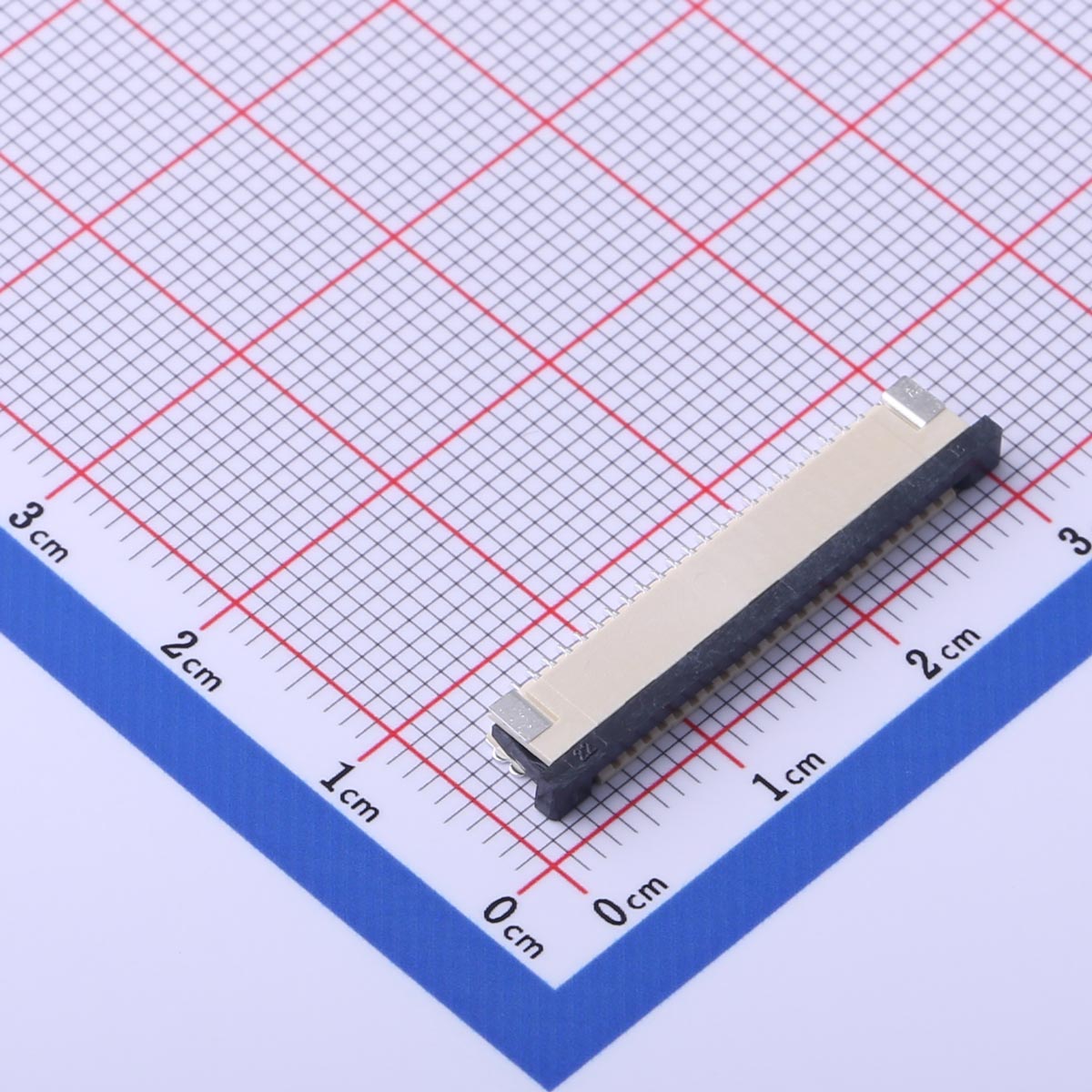

FFC/FPC Connector, 1mm Pitch, 22p, KH-CL1.0-H2.5-22pin
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● 22-pin FFC/FPC interface
● Pitch: 1.0mm for dense packaging
● Height: 2.5mm, ideal for space-constrained designs
● Reliable locking mechanism
● Supports cables up to 0.15mm thick
Product Benefits
● Provides ample connectivity options
● Ensures robust and dependable connections
● Simplifies installation and maintenance
● Optimizes space utilization in devices
● Supports high-speed data transfer
Product Application
● Ideal for internal wiring in smartphones and tablets
● Connects components in automotive dashboards and infotainment systems
● Utilized in compact industrial controllers and sensors
● Suitable for portable medical devices
● Perfect for linking PCBs in communication routers and switches
