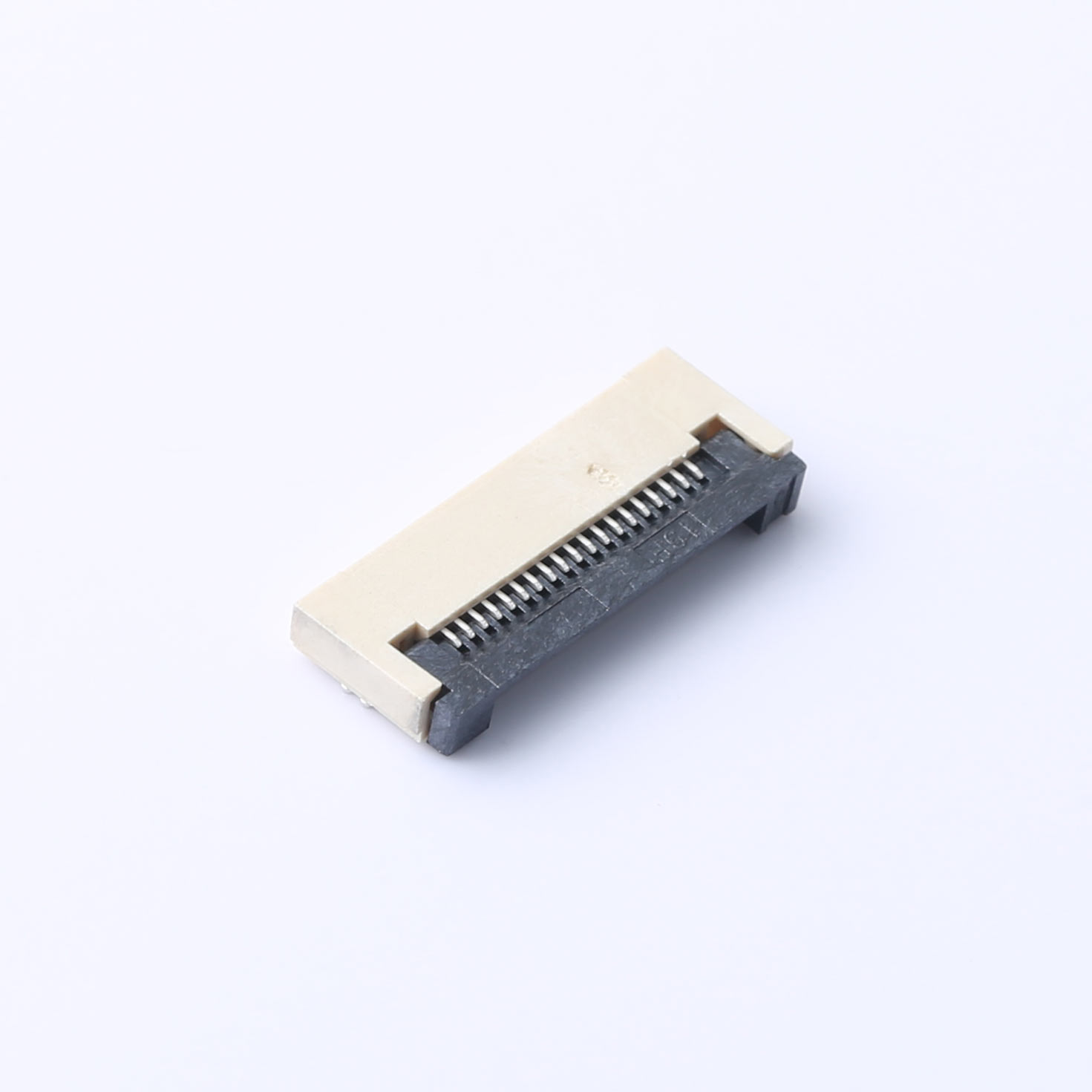

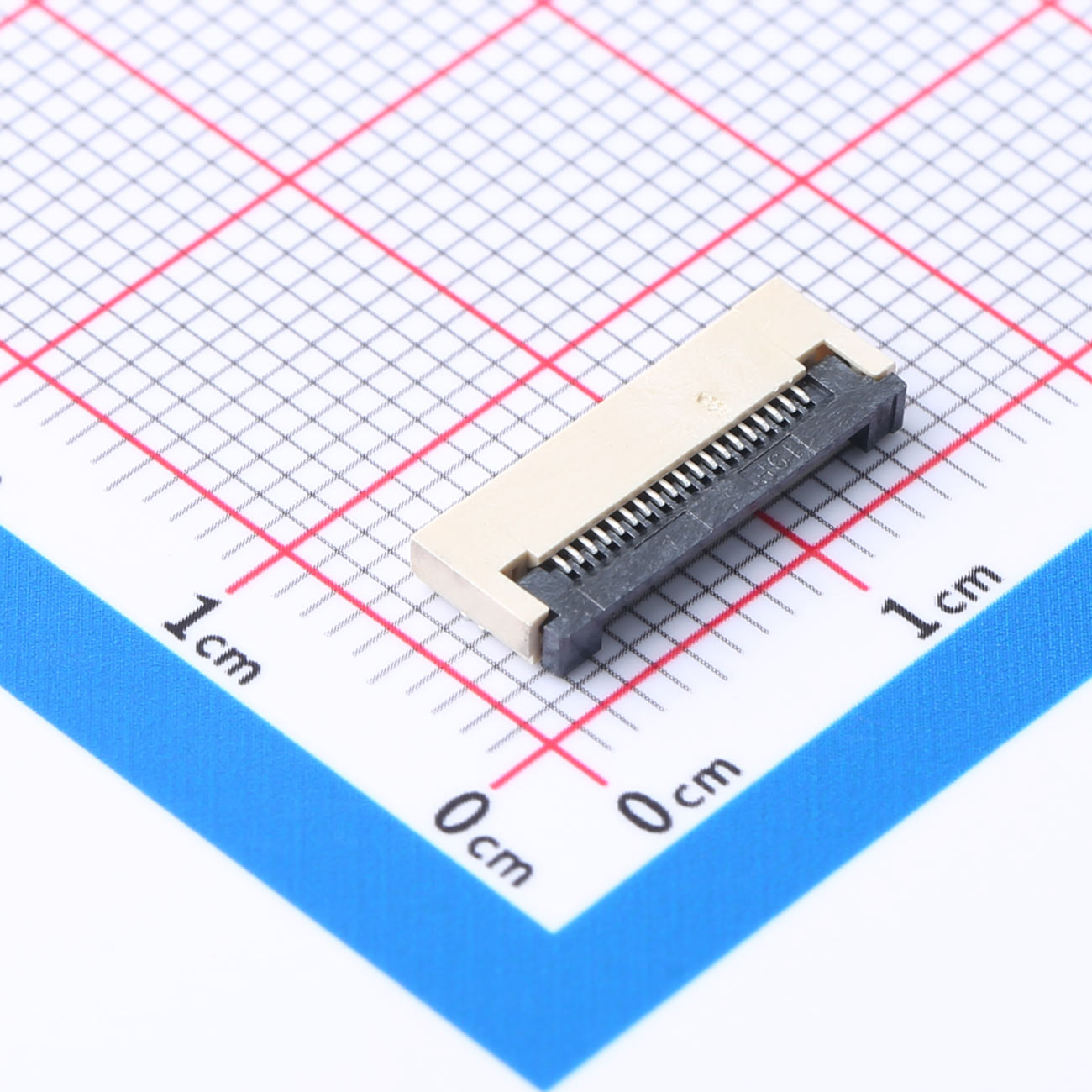

FPC Connector, 0.5mm Pitch, 6P, KH-FG0.5-H2.0-6P-SMT
Temperature range of -25°C to 85°C
Rated voltage of 50V AC/DC
Contact resistance of ≤0.03 ?
Insulation resistance of ≥500M ?
19 pins with a pitch of 0.5mm
Product Description:
The Kinghelm FPC Connector KH-FG0.5-H2.0-19P-SMT is a high-quality connector designed for use in various electronic devices. It features a smooth and defect-free plastic surface, a temperature range of -25°C to 85°C, a rated voltage of 50V AC/DC, a contact resistance of ≤0.03 ?, and an insulation resistance of ≥500M ?. This connector is suitable for use with flat cables and circuit boards.
Product Features:
--Smooth and defect-free plastic surface
--Temperature range of -25°C to 85°C
--Rated voltage of 50V AC/DC
--Contact resistance of ≤0.03 ?
--Insulation resistance of ≥500M ?
--19 pins with a pitch of 0.5mm
--Surface mount technology (SMT) for easy installation
--Suitable for use with flat cables and circuit boards
Product Specifications:
Model | KH-FG0.5-H2.0-19P-SMT |
Material | Plastic |
Number of Pins | 19 |
Pitch | 0.5mm |
Mounting Type | Surface Mount |
Orientation | Horizontal |
Connection Type | Bottom |
Application Fields:
The Kinghelm FPC Connector KH-FG0.5-H2.0-19P-SMT is suitable for use in various electronic devices, including smartphones, tablets, laptops, and other portable devices. It is ideal for use with flat cables and circuit boards, making it a versatile connector for a wide range of applications.
Brand Certificate:
Kinghelm is a trusted brand in the electronic components industry, known for its high-quality products and reliable performance. The KH-FG0.5-H2.0-19P-SMT connector is backed by the Kinghelm brand certificate, ensuring its quality and performance.
Product Packaging:
The KH-FG0.5-H2.0-19P-SMT connector is packaged in a secure and durable packaging to ensure safe delivery. The packaging includes the connector and any necessary documentation or instructions for use.
