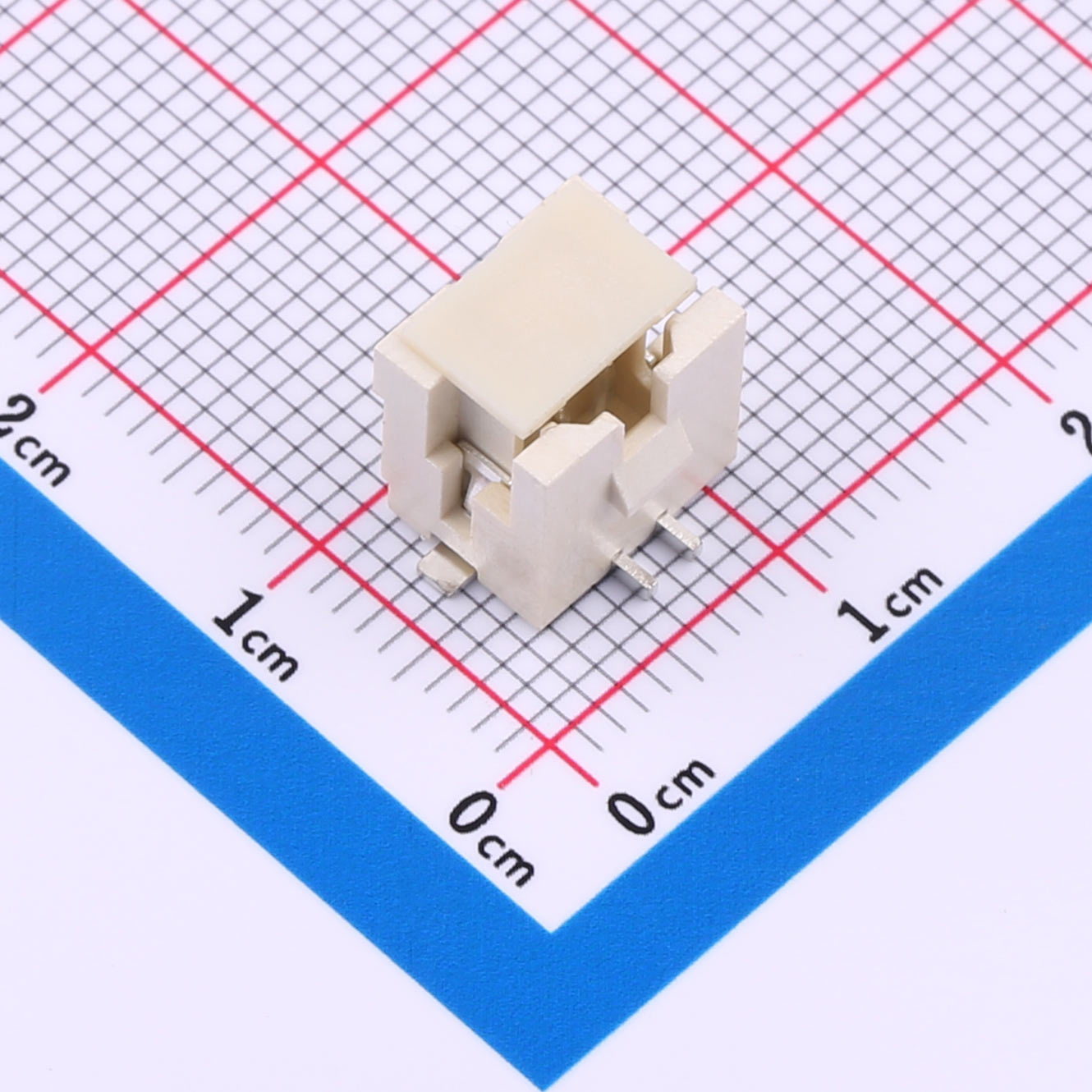

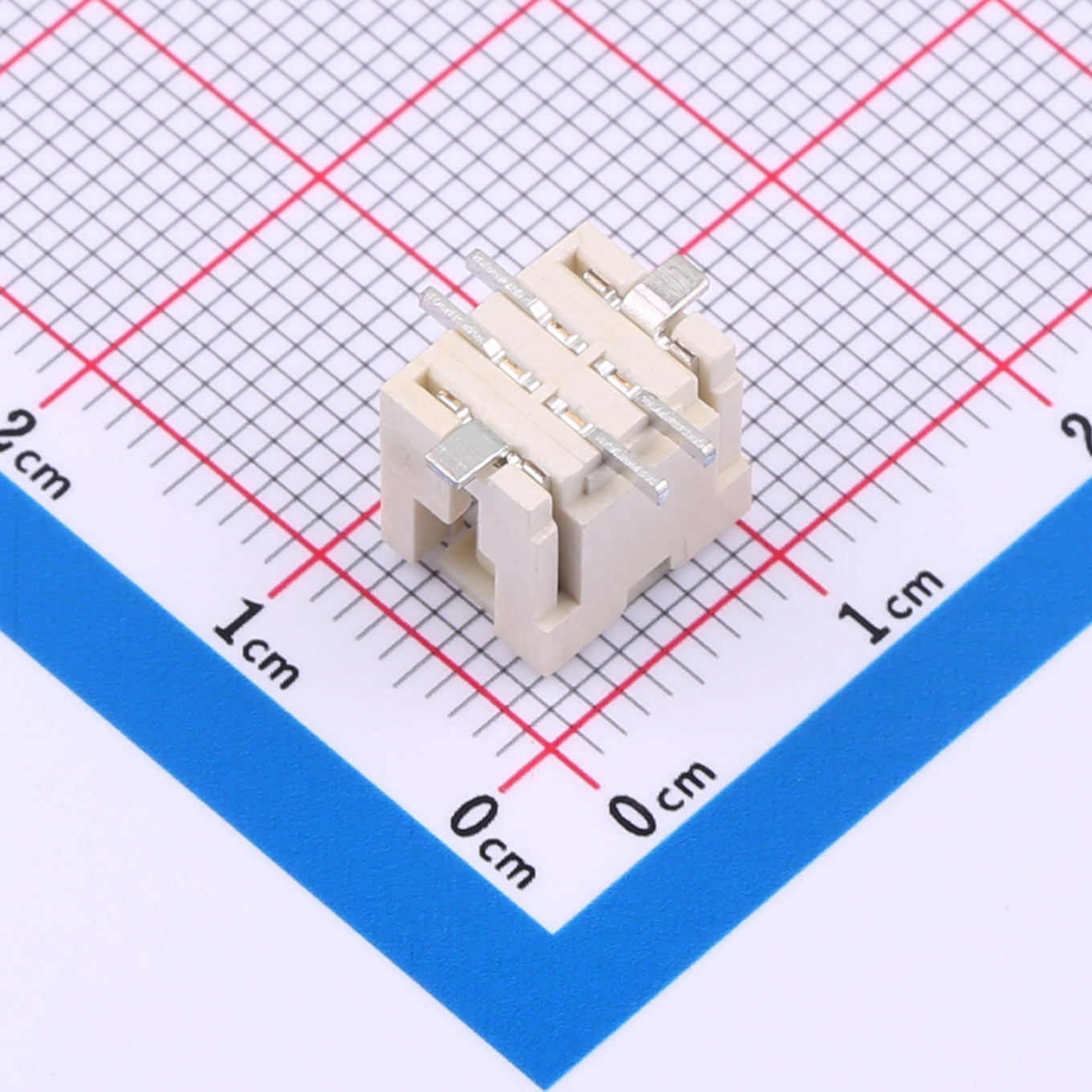

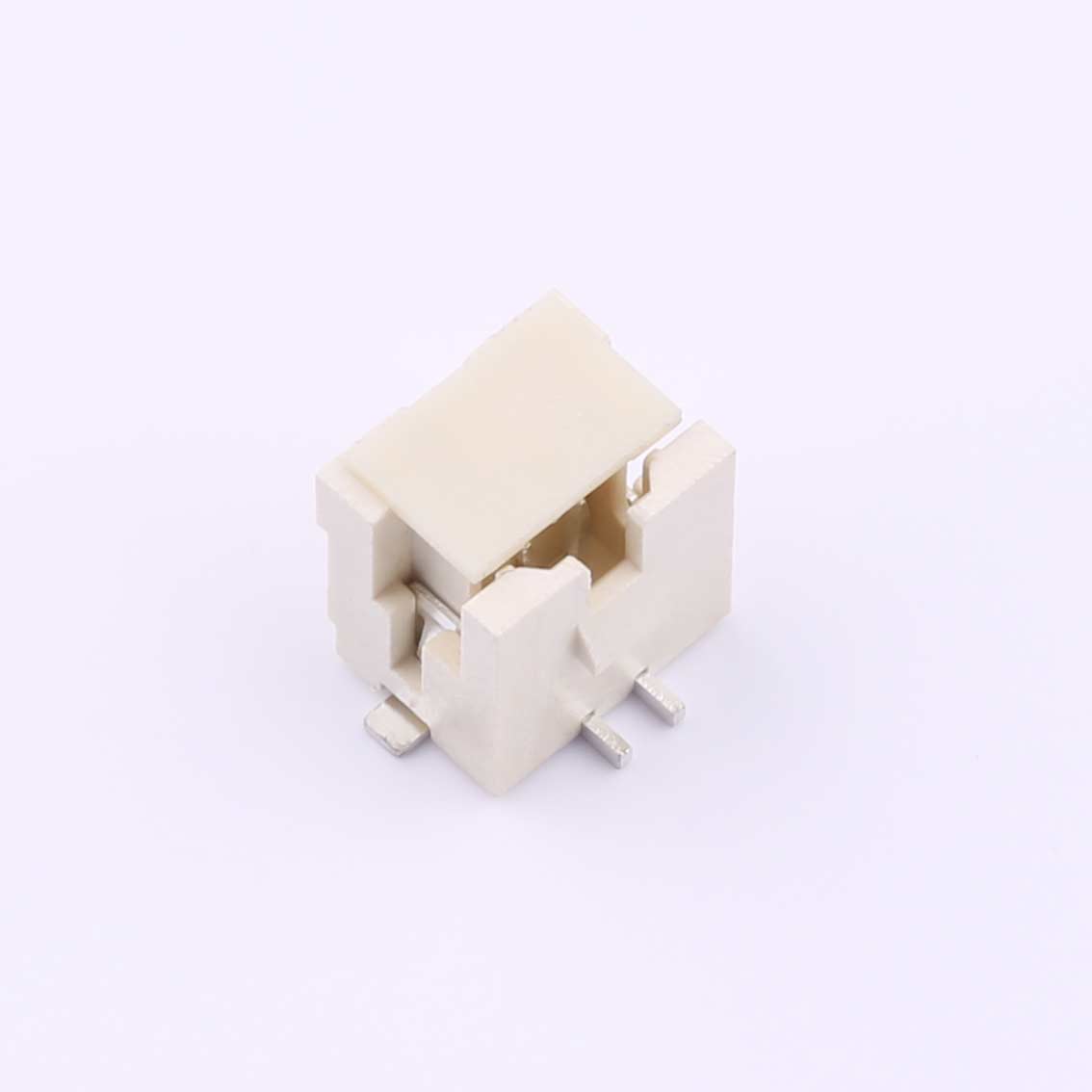

Wire-to-Board Connector, 2mm Pitch, 2x2P, Vertical SMT, KH-A2009-2X02AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x2 pin configuration
● 4 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● Ultra-compact for limited signal/power use
● Dual-row ensures secure mating in small form
● SMT ready for compact board design
● Easy alignment during assembly
Product Applications
● Power/reset lines
● Micro signal transmission
● PCB testing points
