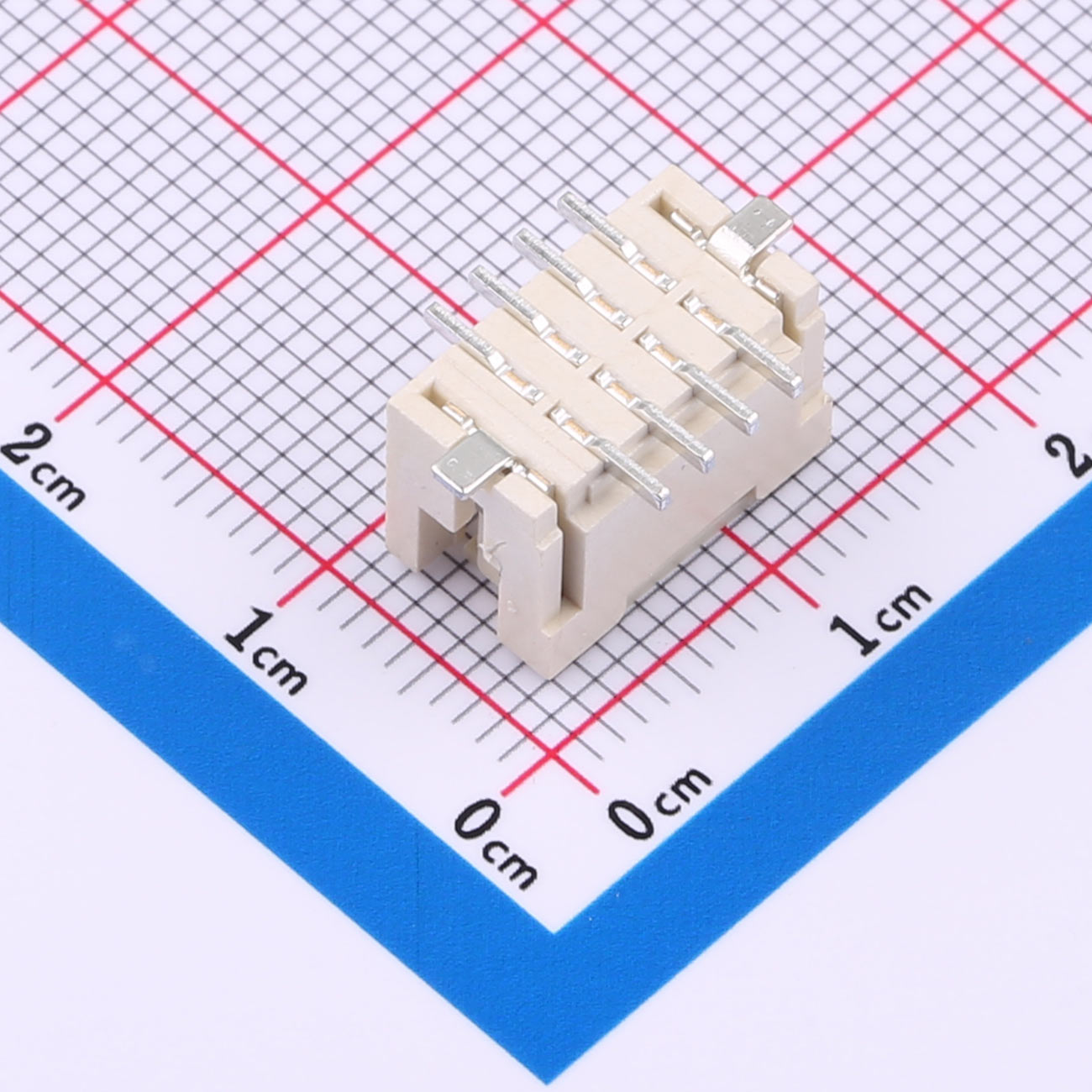

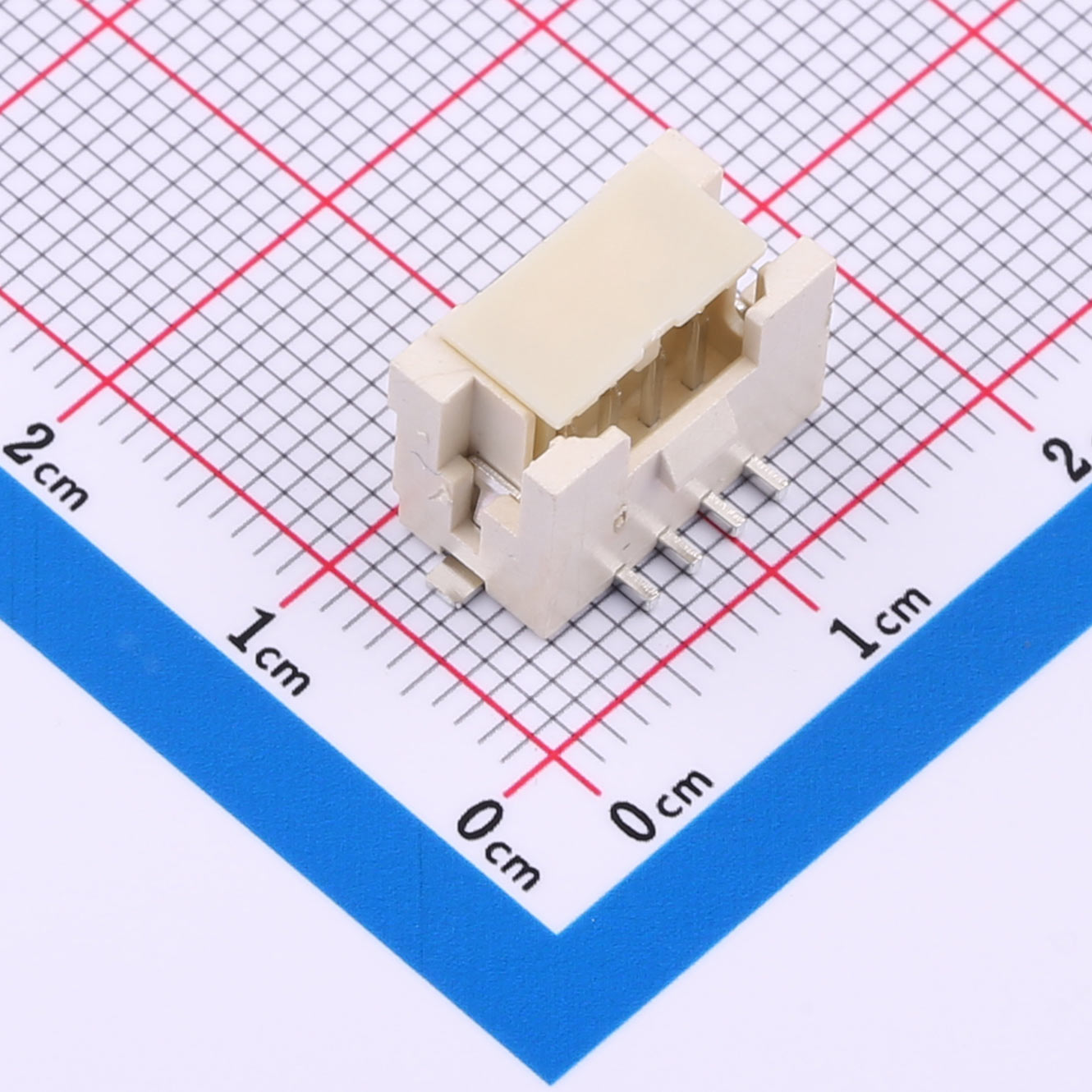

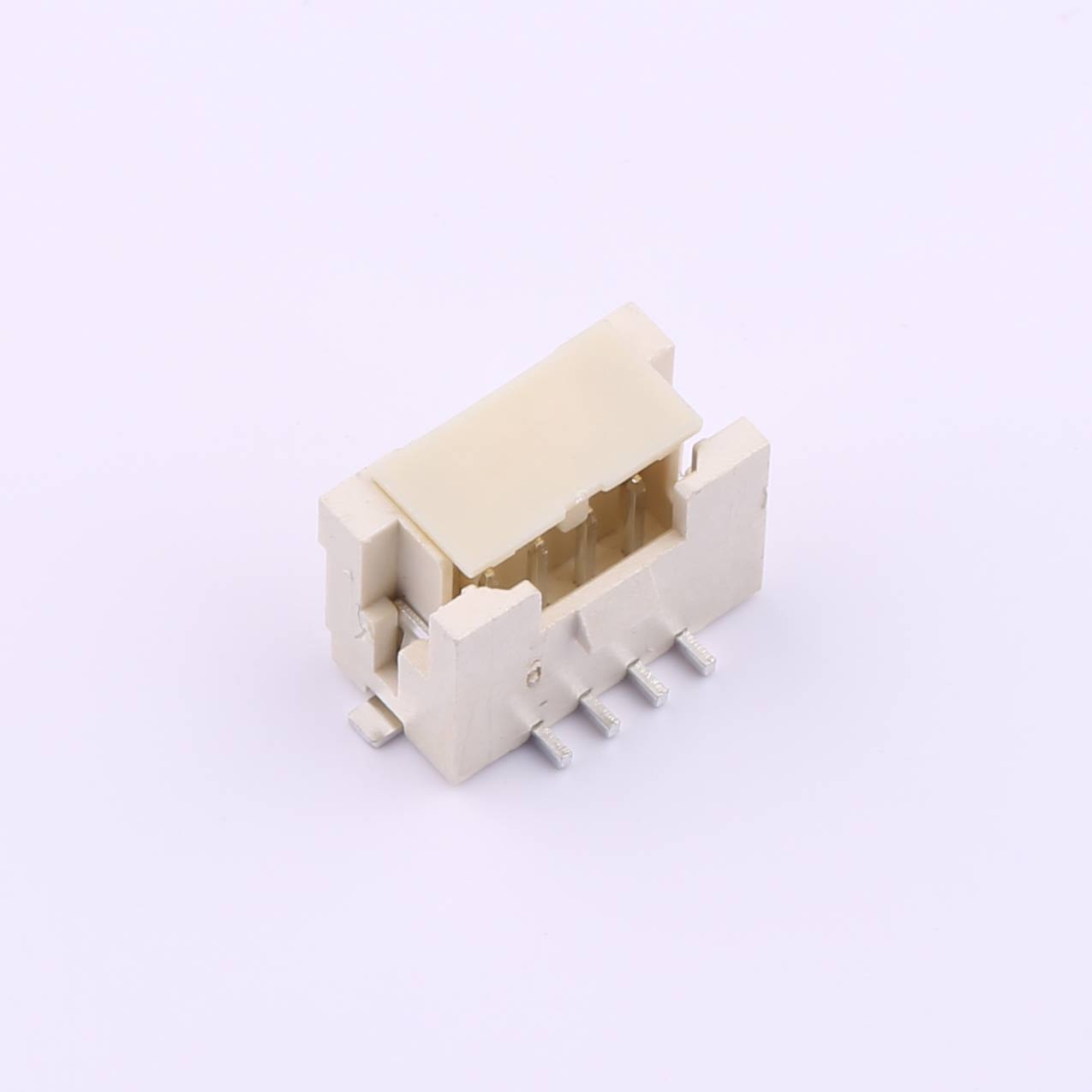

Wire-to-Board Connector, 2mm Pitch, 2x4P, Vertical SMT, KH-A2009-2X04AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x4 pin configuration
● 8 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● Minimal pin count for focused connections
● Dual-row ensures sturdy interface
● Vertical SMD reduces layout complexity
● Easy to solder and replace
Product Applications
● Power-signal split interfaces
● Button/LED connectors
● Compact relay modules
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
