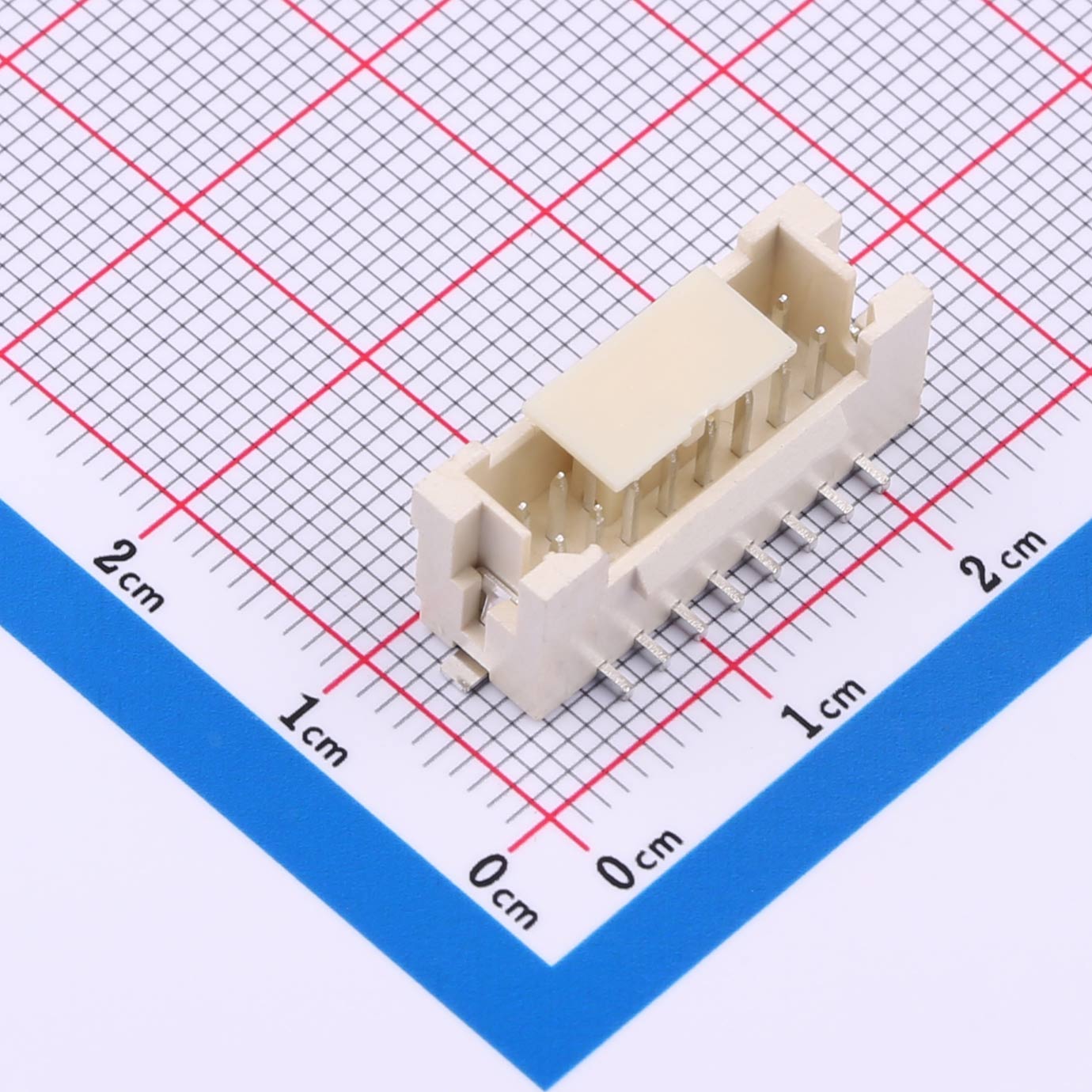

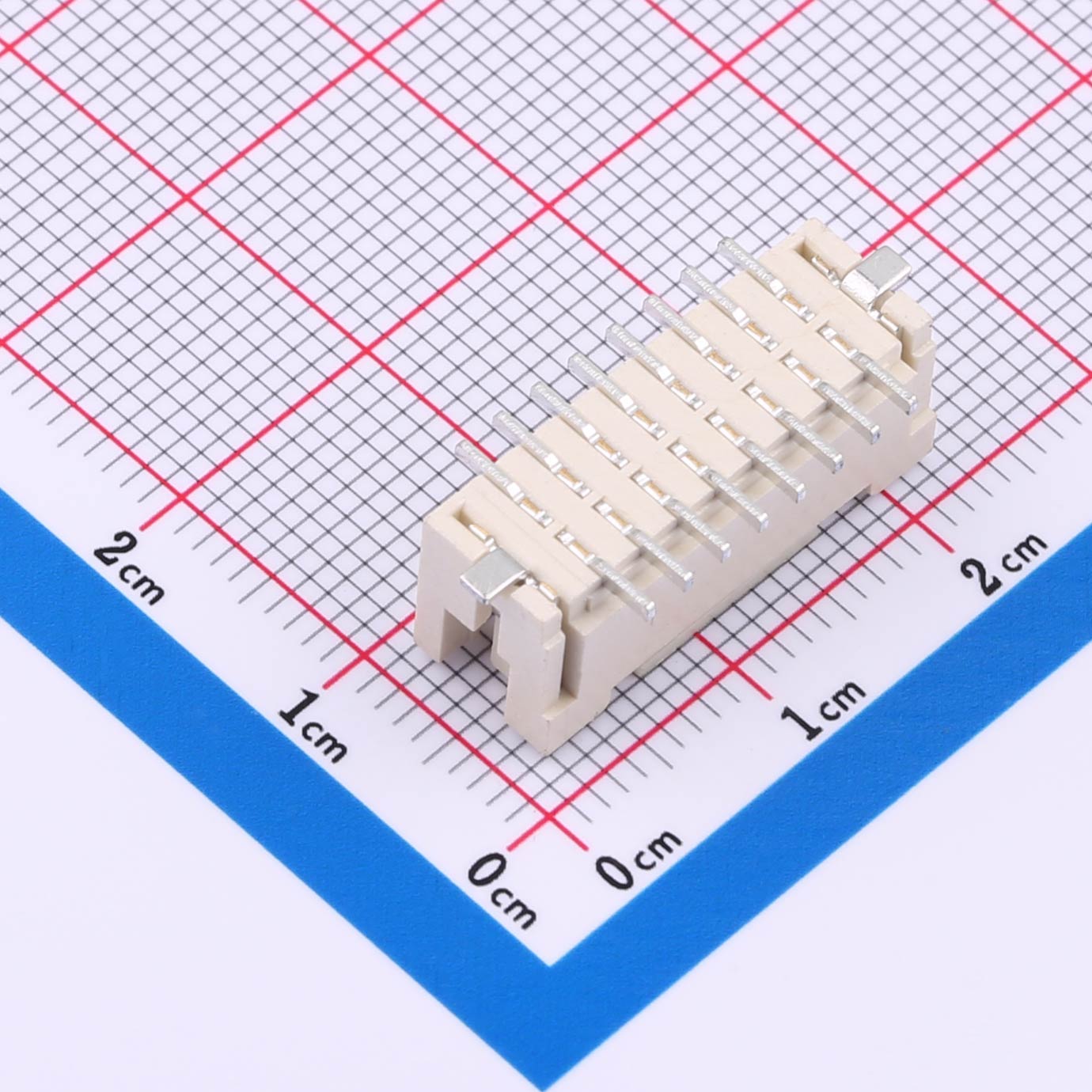

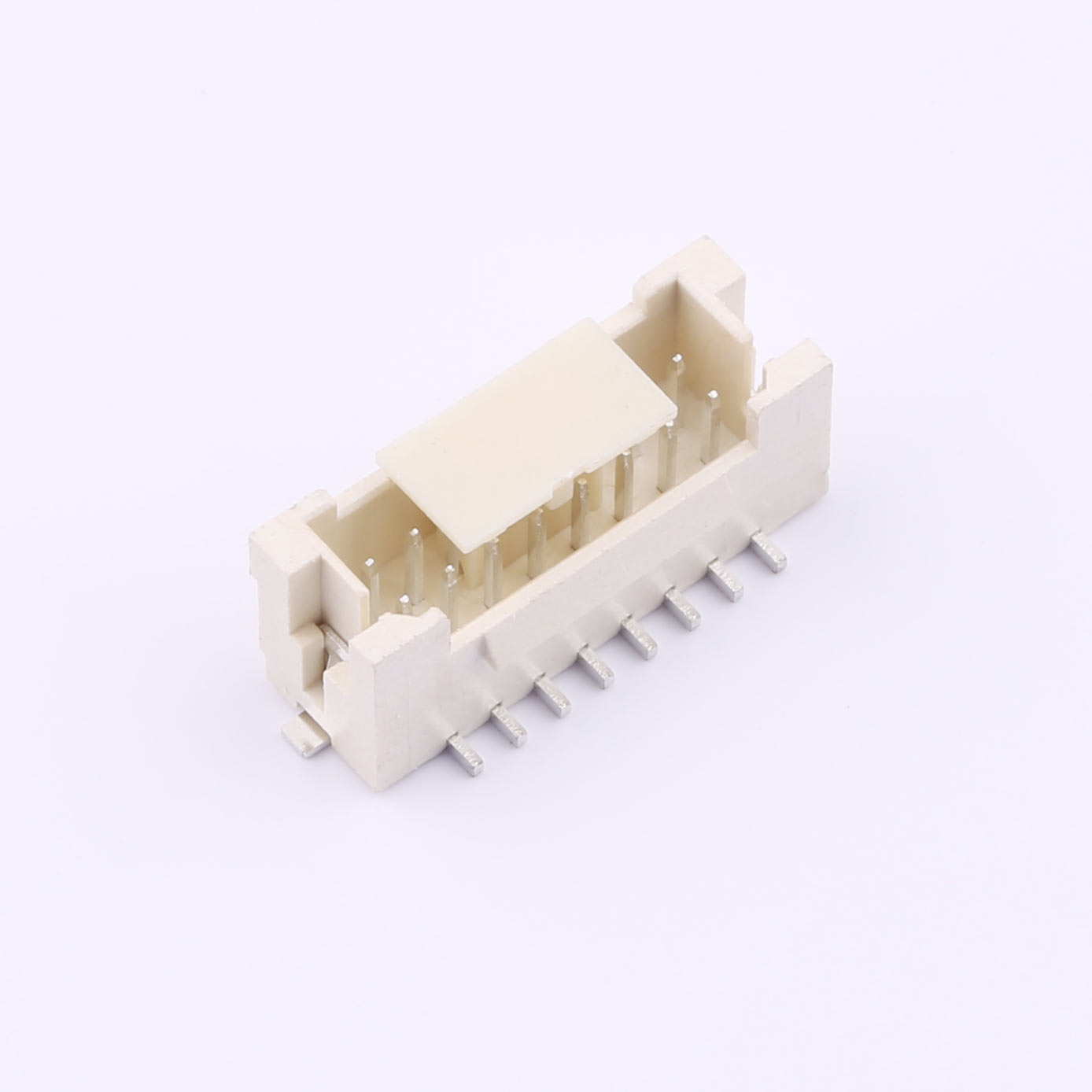

Wire-to-Board Connector, 2mm Pitch, 2x8P, Vertical SMT, KH-A2009-2X08AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x8 pin configuration
● 16 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● Efficient pin layout for signal and power mix
● Vertical mount suits tight board spaces
● SMT for streamlined soldering process
● Dual-row format offers mechanical strength
Product Applications
● Audio interface boards
● Smart sensor modules
● Wearable tech platforms
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
