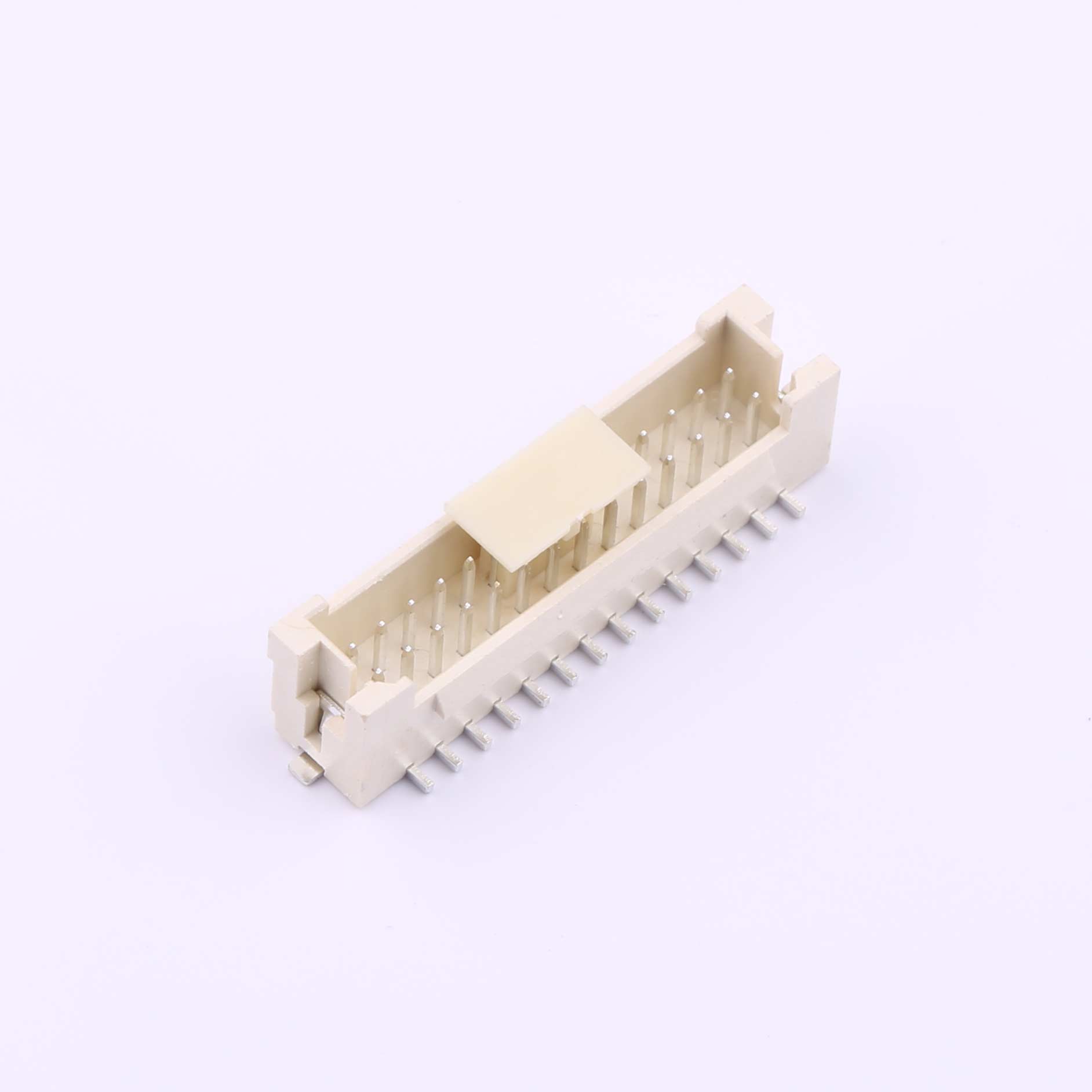

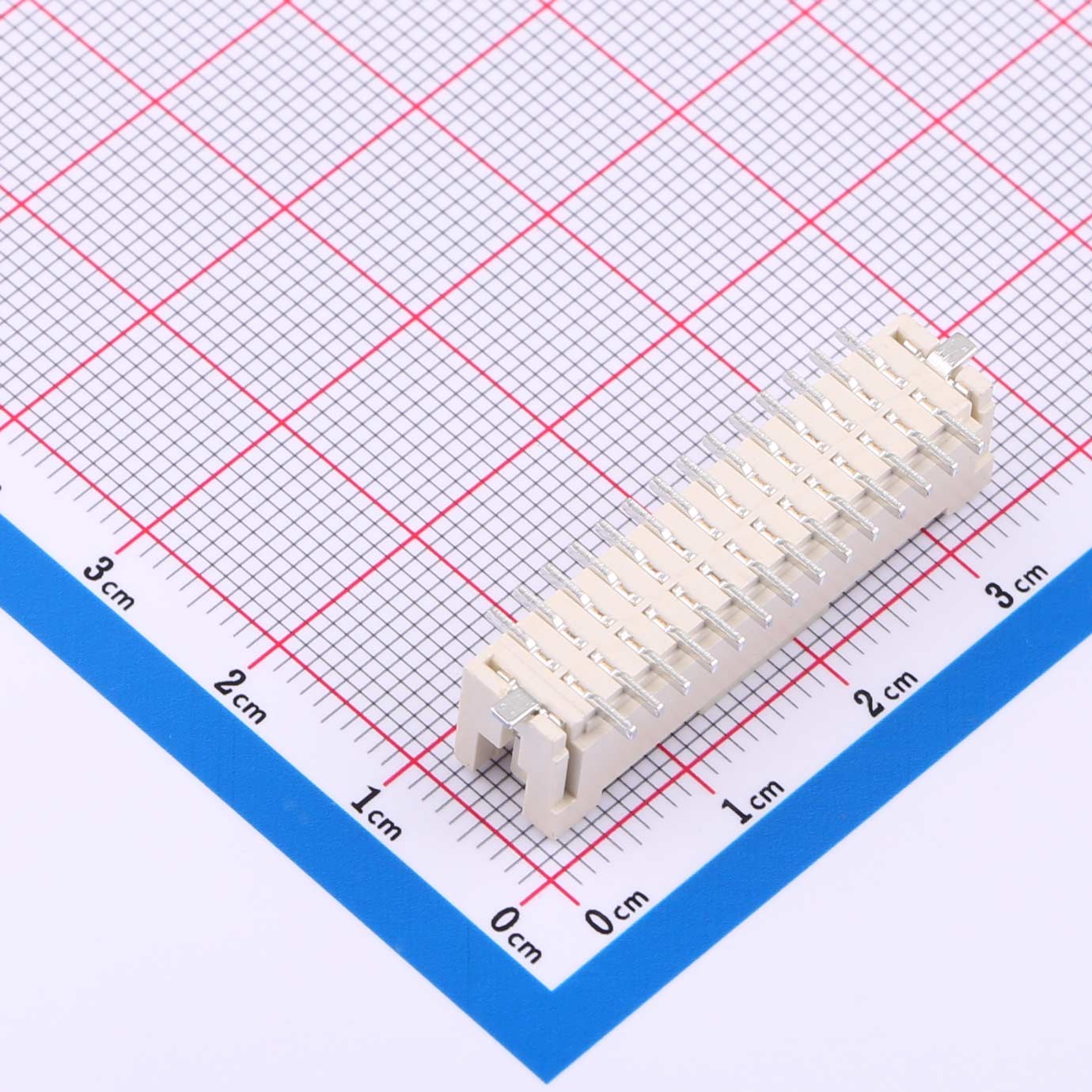

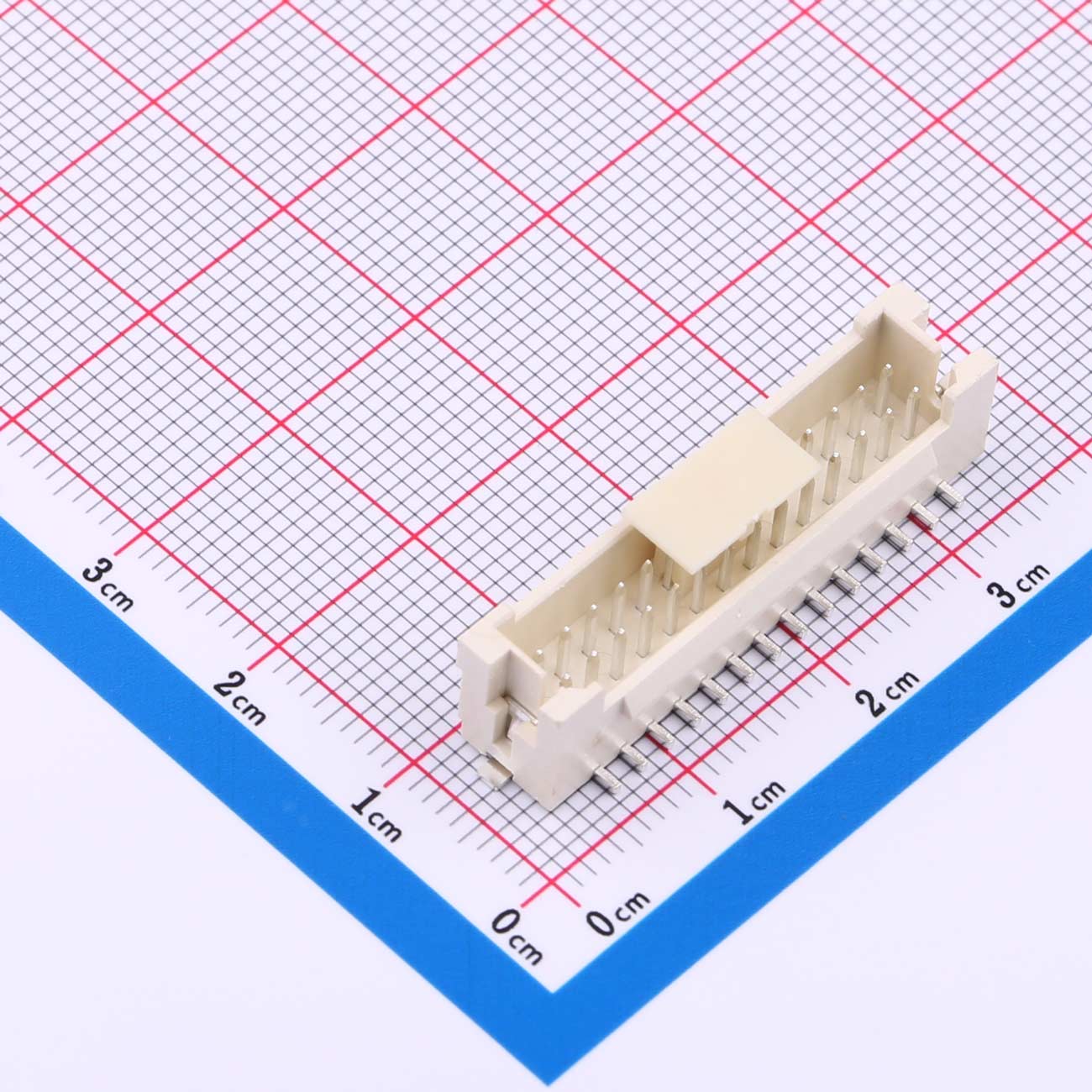

Wire-to-Board Connector, 2mm Pitch, 2x14P, Vertical SMT, KH-A2009-2X14AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x14 pin configuration
● 28 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● Optimized pitch for compact PCBs
● 28-pin capacity supports multiple I/O functions
● Dual-row structure ensures signal stability
● Vertical design simplifies layered board setup
● SMD mounting enables fast production
Product Applications
● Automation controllers
● Instrumentation panels
● Signal input/output interfaces
● Wearable electronics
