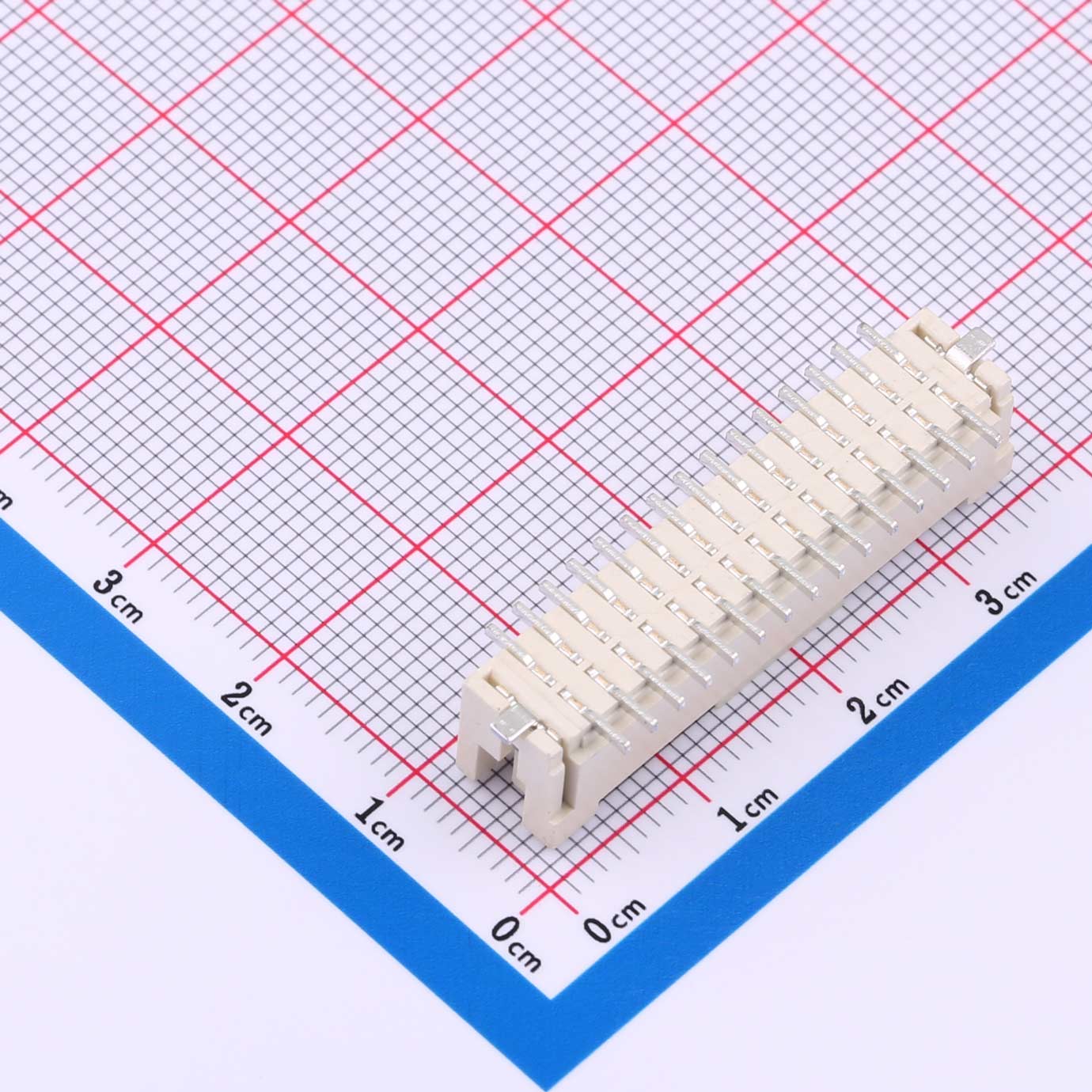

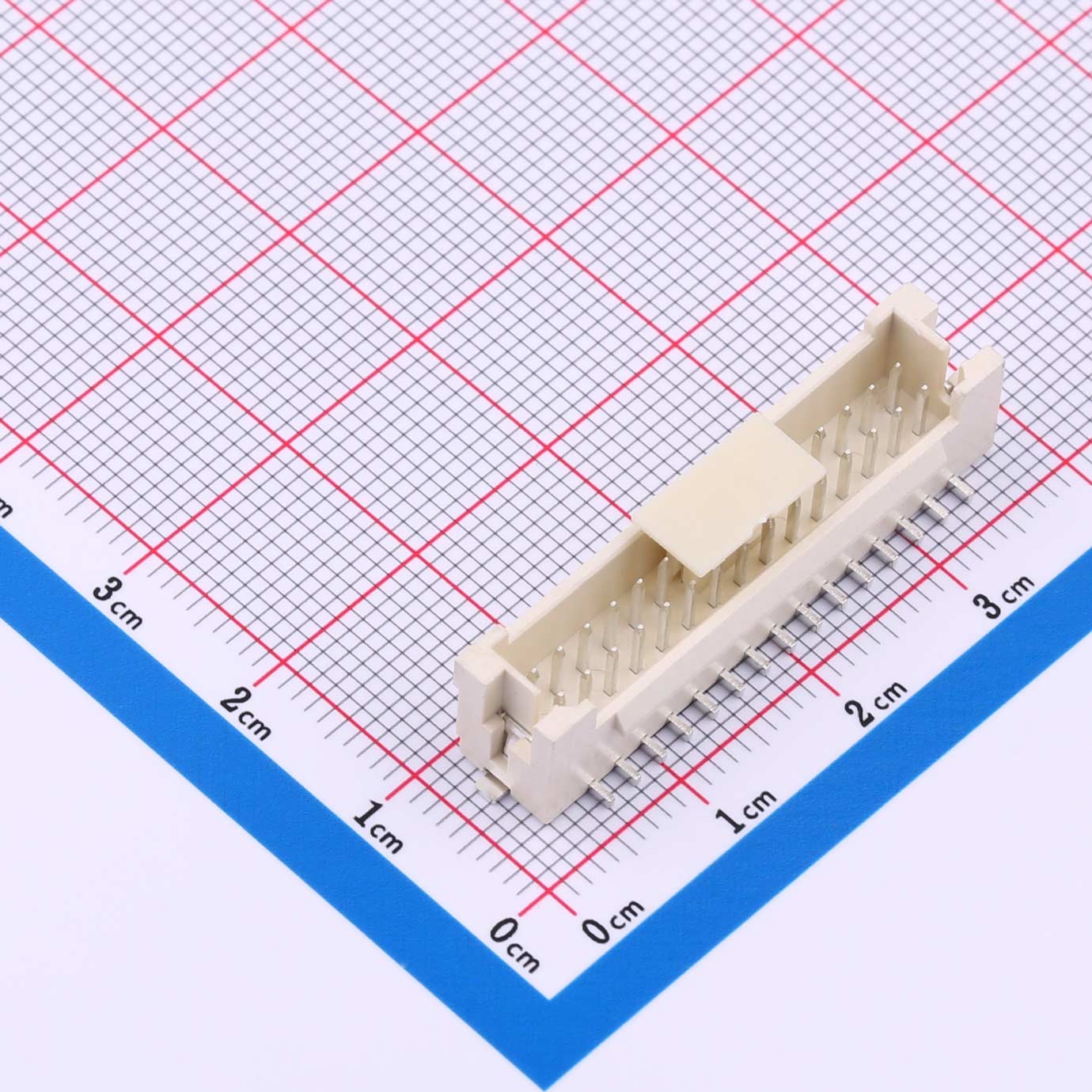

Wire-to-Board Connector, 2mm Pitch, 2x15P, Vertical SMT, KH-A2009-2X15AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x15 pin configuration
● 30 pins in total
● Dual-row structure
● Vertical mounting type
● SMD package
Product Benefits
● Fine pitch saves PCB space
● 30-pin layout supports medium signal loads
● Dual-row design ensures balanced connection
● Vertical SMD mounting simplifies board layout
● Suitable for automated production lines
Product Applications
● Compact control modules
● Smart home devices
● Signal transmission boards
● Portable electronic products
● Low-power embedded systems
● Sensor interface boards
