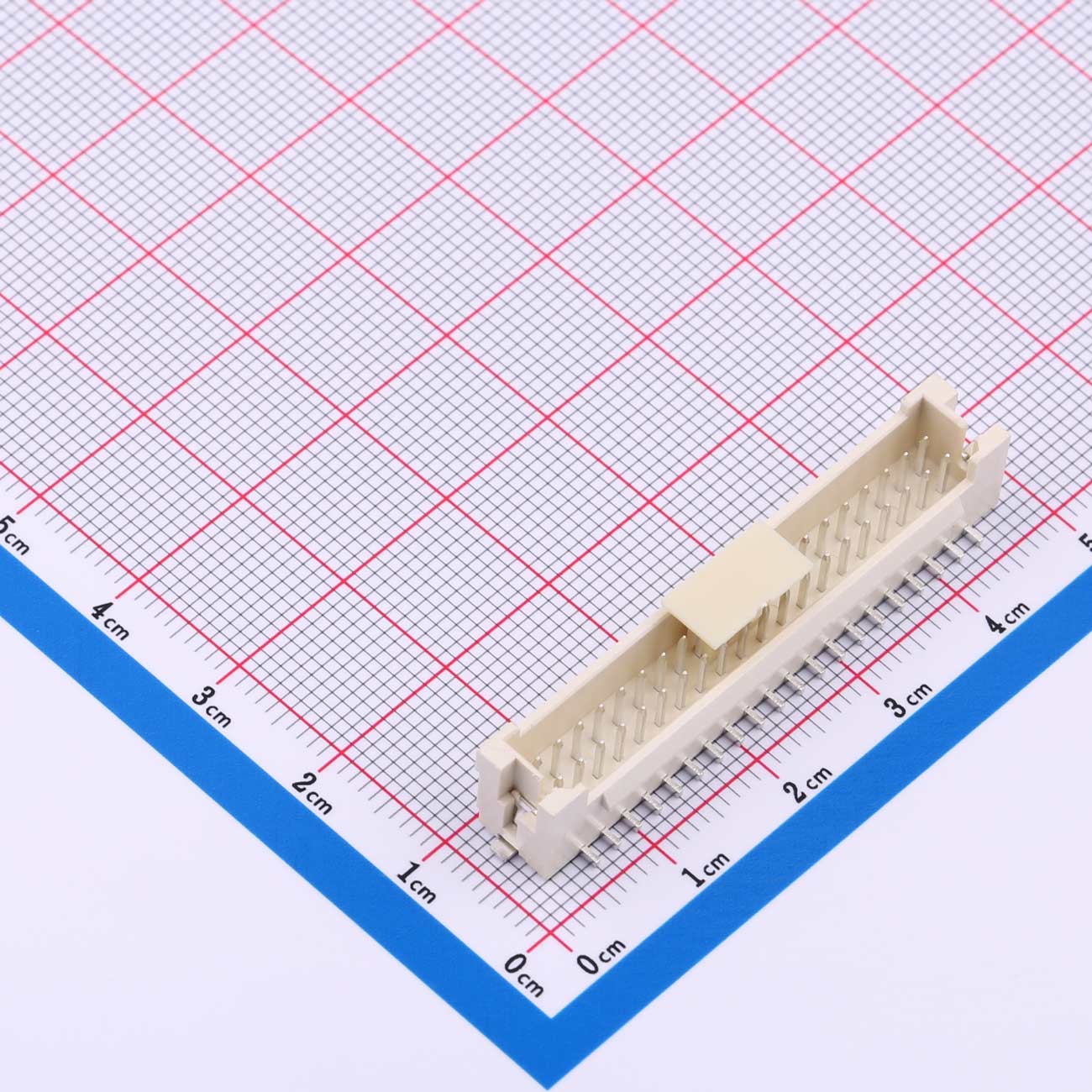

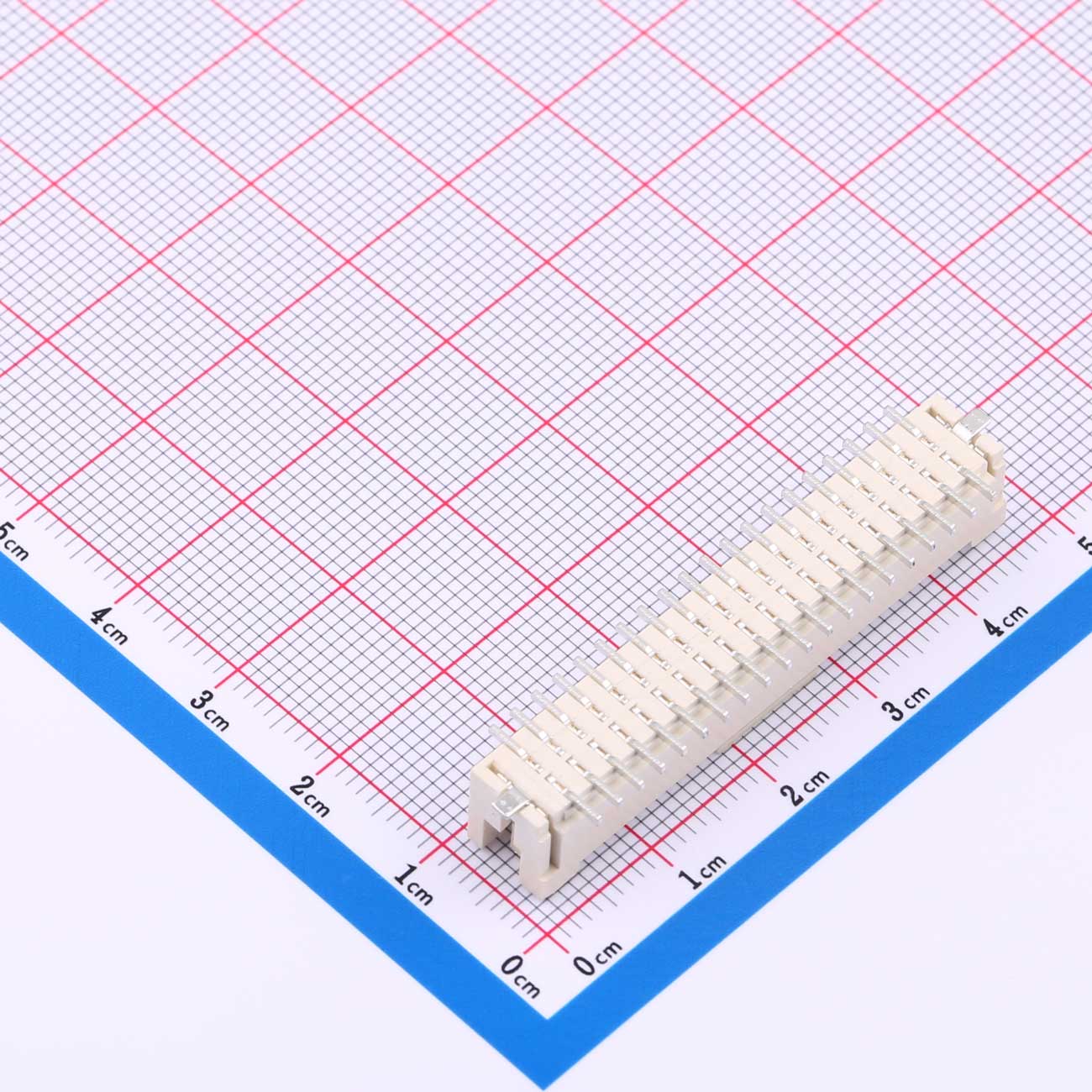

Wire-to-Board Connector, 2mm Pitch, 2x20P, Vertical SMT, KH-A2009-2X20AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x20 pin structure
● 40 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● Compact pin pitch for efficient board layout
● Dual-row structure for organized pin distribution
● High pin count supports multi-signal transmission
● Vertical mounting simplifies PCB stacking
● SMD design enables automated soldering
Product Applications
● Embedded control boards
● Communication equipment
● Industrial automation systems
● Consumer electronic devices
● Power management modules
● IoT control units
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
