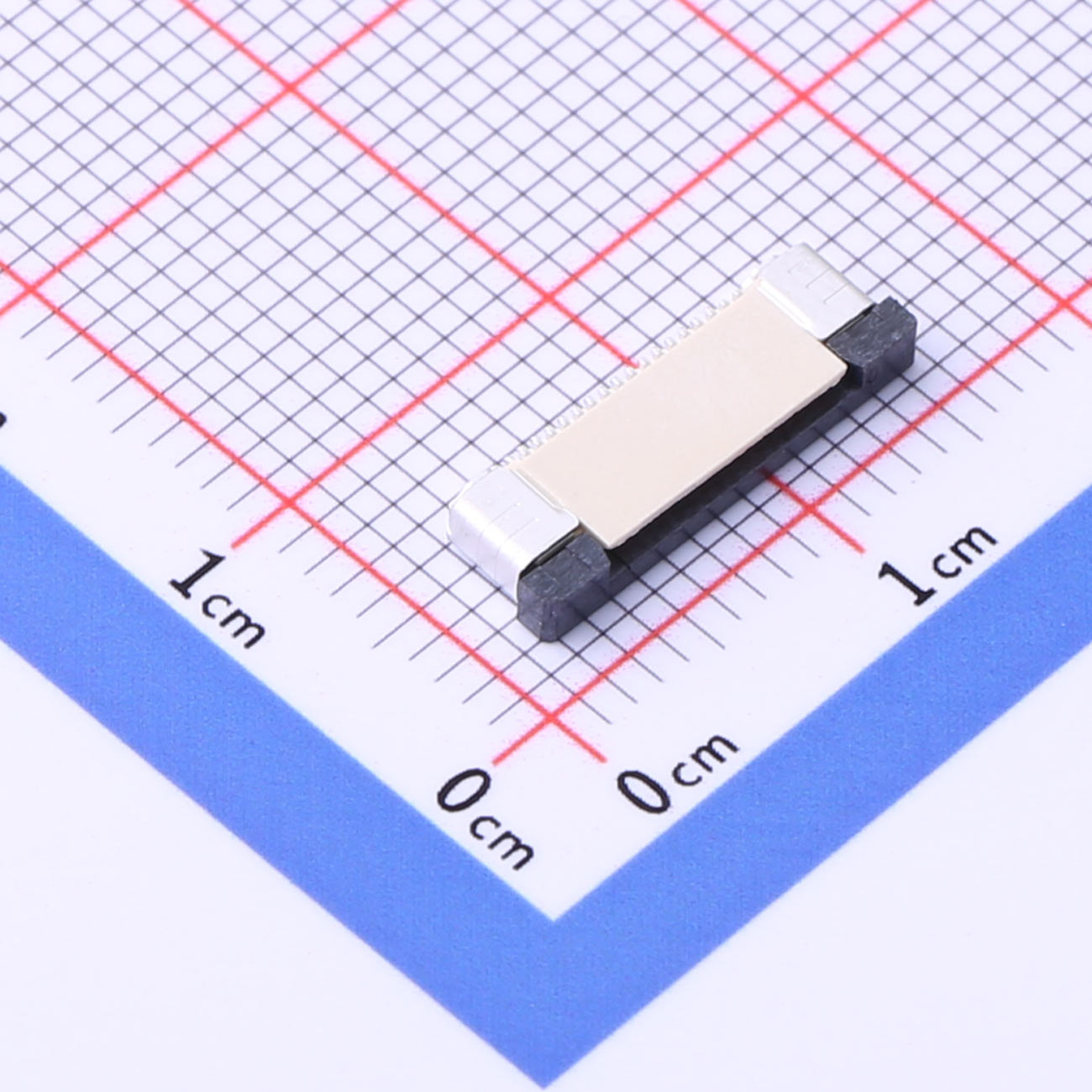

FFC/FPC Connector, 0.5mm Pitch, 4P, KH-CL0.5-H2.0-4PIN
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
●High-density design with a 0.5mm pitch and 17 pins
●Drawer-style top connection for secure and easy installation
●Made from high-quality materials for excellent electrical performance
●Versatile for various configurations like wire-to-board and wire-to-wire
●High reliability tested under strict quality control measures
Product Benefits
●Space-saving design ideal for compact devices
●Flexible drawer connection simplifies user operations
●Strong stability reduces failure rates in applications
●Easy maintenance and replacement improve device efficiency
Product Applications
●Used in smartphones for battery and motherboard connections
●Ideal for tablets and digital cameras linking display screens
●Commonly found in industrial control systems for reliable connections
●Applied in printers for seamless communication between components
●Utilized in automotive electronics for safe and efficient connectivity
●Essential in medical devices for dependable performance and safety
