FPC Connector, 1mm Pitch, 4P, KH-FPC1.0-H2.0SMT-4P-QCHF
Current Rating: 0.5A/PIN
Voltage Rating: 50V (AC/DC)
Insulation Resistance: 500MΩ Min
Contact resistance: Initial value 30MΩ Max.
Operating Temperature: -40°C ~ +85°C
Product Features
●1.0mm pitch for efficient space usage
●20-pin configuration for reliable signal transfer
●H2.0 surface mount technology for easy installation
●QCHF design ensures strong electrical connections
●Compact front-in, back-flip design saves space
Product Benefits
●Optimizes space for compact electronic designs
●Provides stable connections, minimizing signal loss
●Simplifies production with easy SMT assembly
●Versatile design fits various application needs
●High-quality materials enhance durability and performance
Product Application
●Used in smartphones for camera and display connections
●Ideal for tablets linking touchscreens and processors
●Common in wearables for battery and sensor integration
●Applied in automotive systems for infotainment connections
●Utilized in medical devices for accurate data transmission
●Suitable for industrial controls requiring reliable signal paths
Name
Title
Description

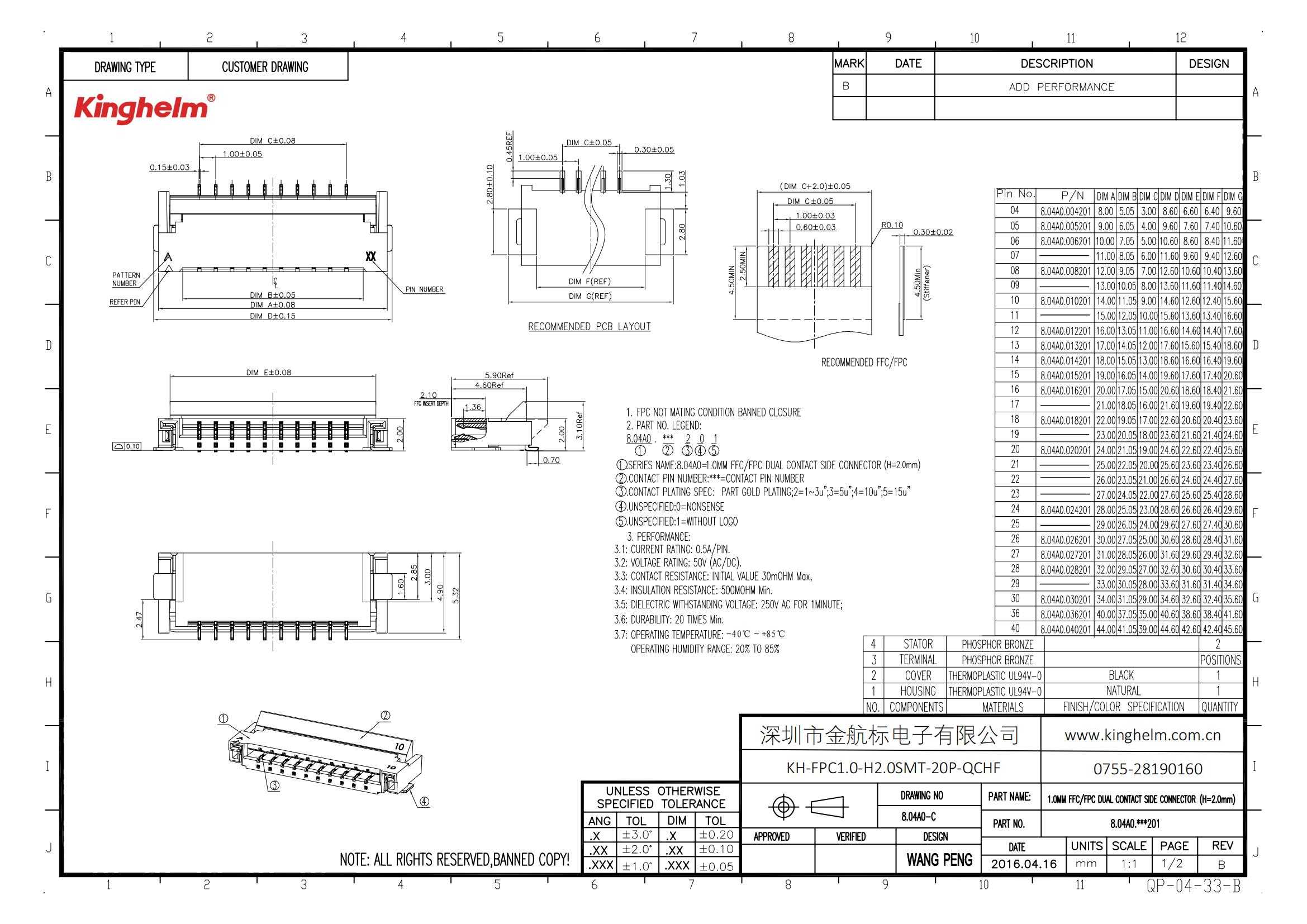

Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
