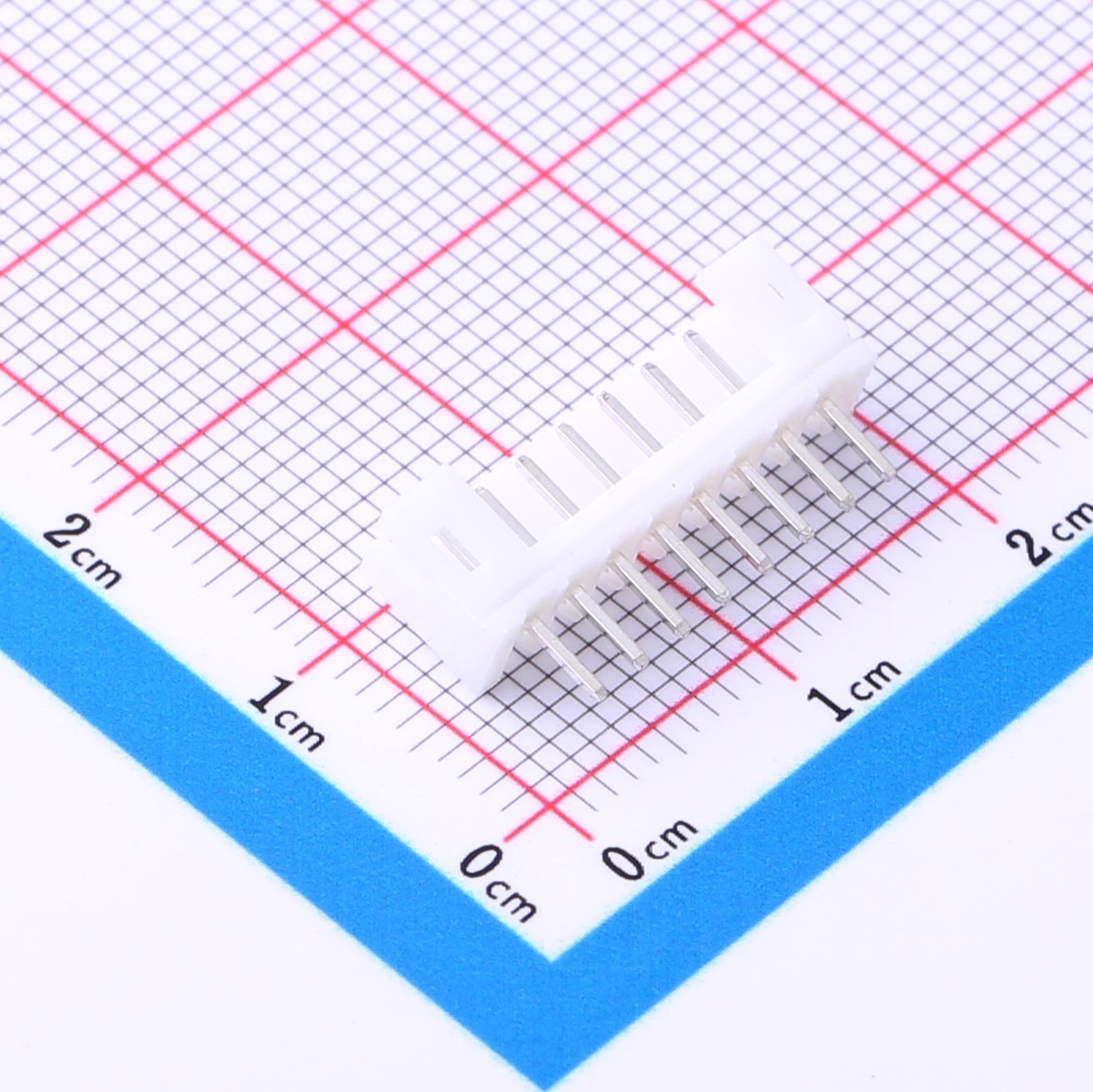

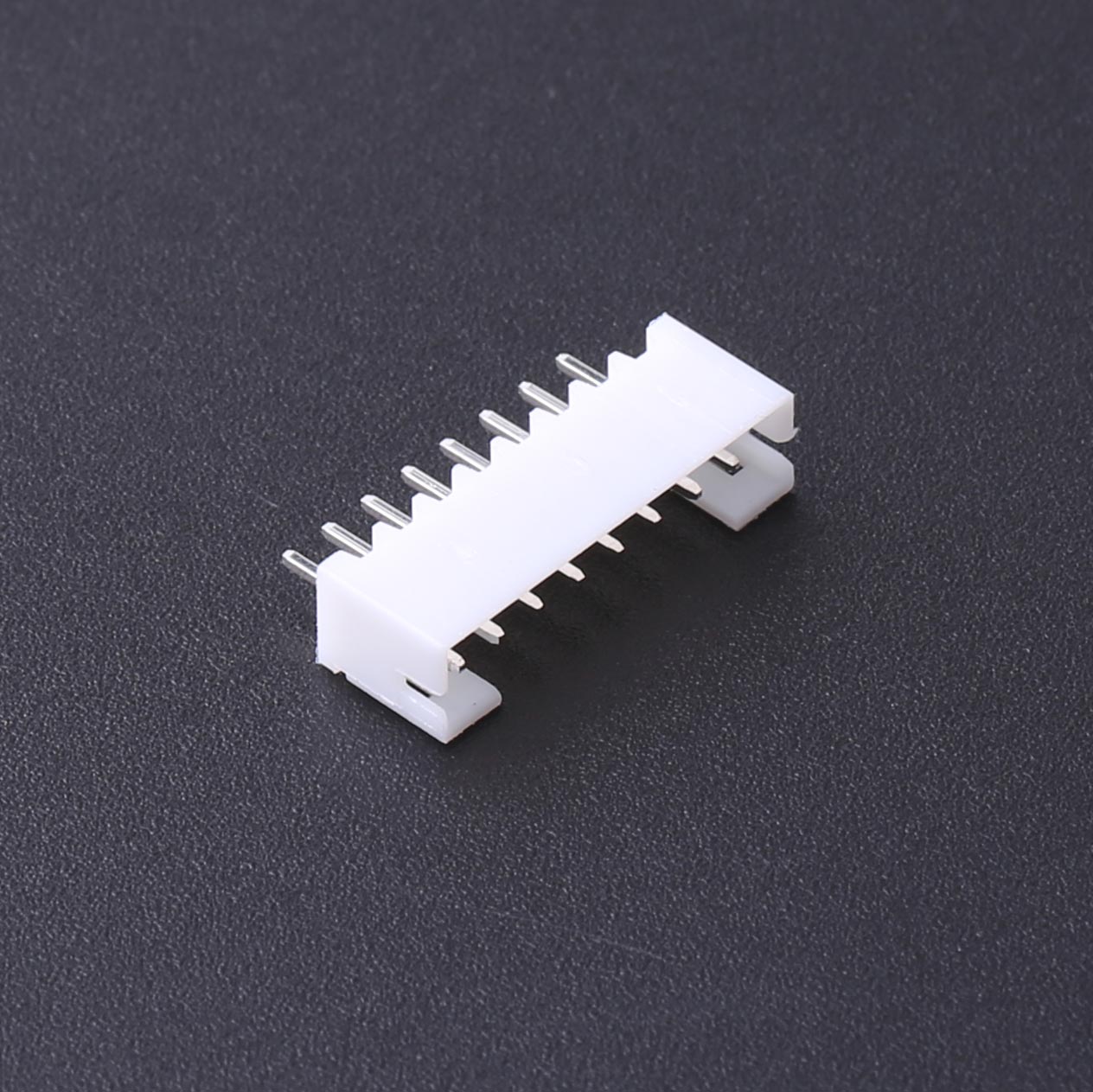

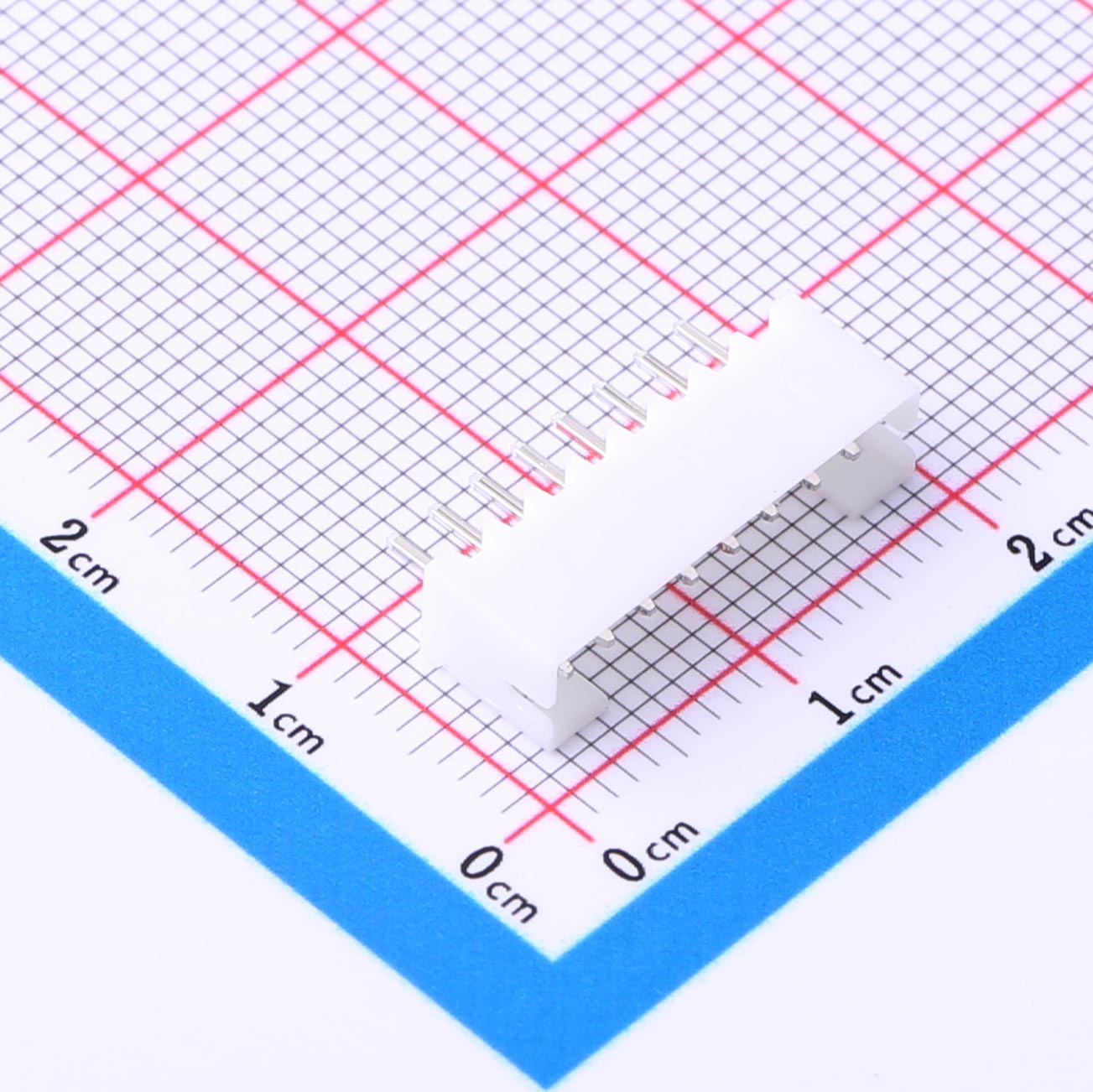

Wire-to-Board Connector, 2mm Pitch, 1x8P, KH-PH-8P-Z
Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.0mm pitch, single-row 8-pin structure
● Rated current: 2A AC/DC
● Voltage rating up to 250V AC/DC
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 1000MΩ
● Operating temperature: -25℃ to +85℃
● Plug-in design for easy assembly
● Compact footprint
Product Benefits
● Reliable electrical performance
● Strong insulation for protection
● Low resistance minimizes power loss
● Withstands wide temperature ranges
● Simple PCB mounting
● Optimizes space in designs
Product Applications
● Consumer gadgets
● LED lighting solutions
● Office equipment
● Household devices
● Communication gear
● Industrial electronics
Name
Title
Description

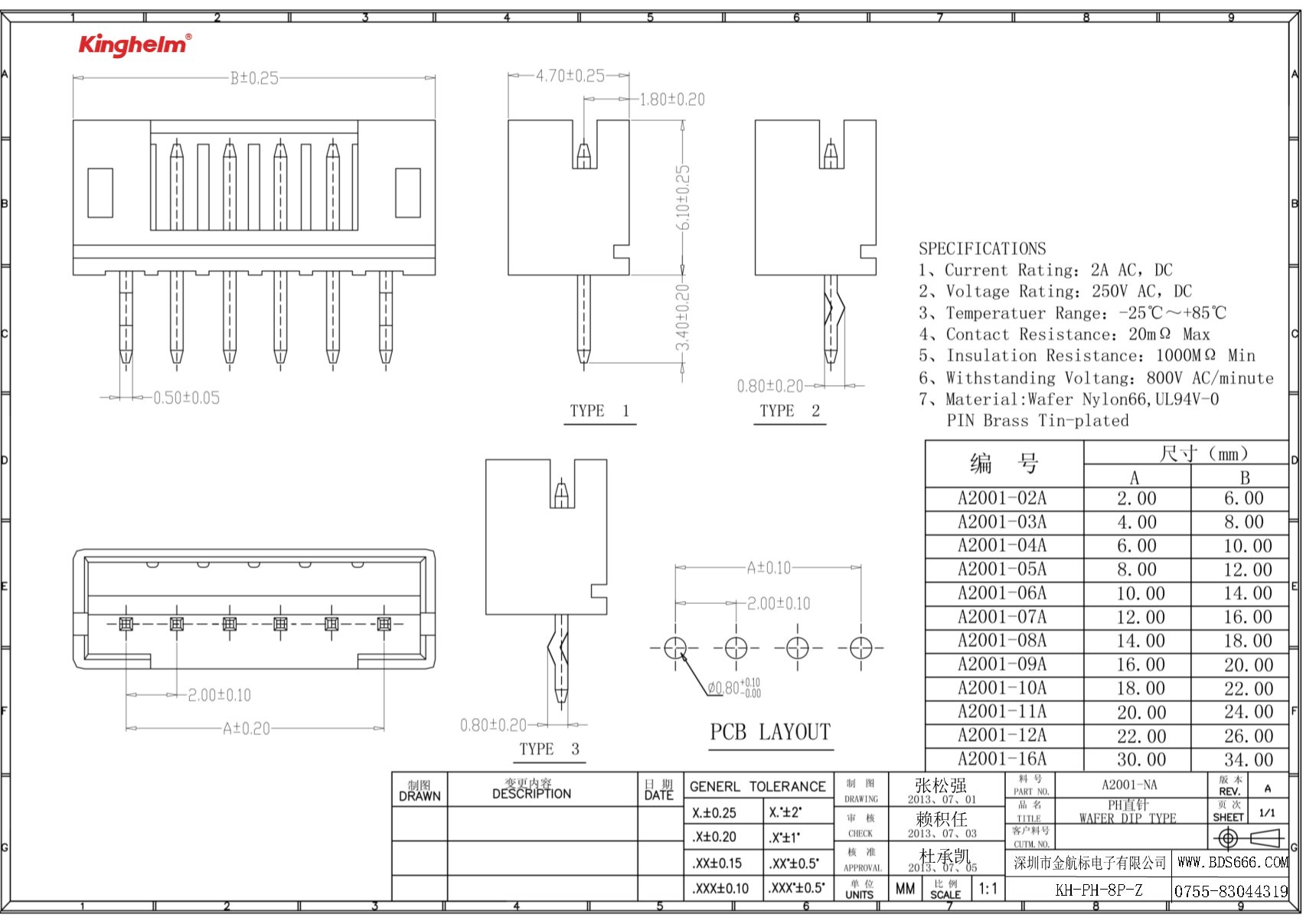

Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
