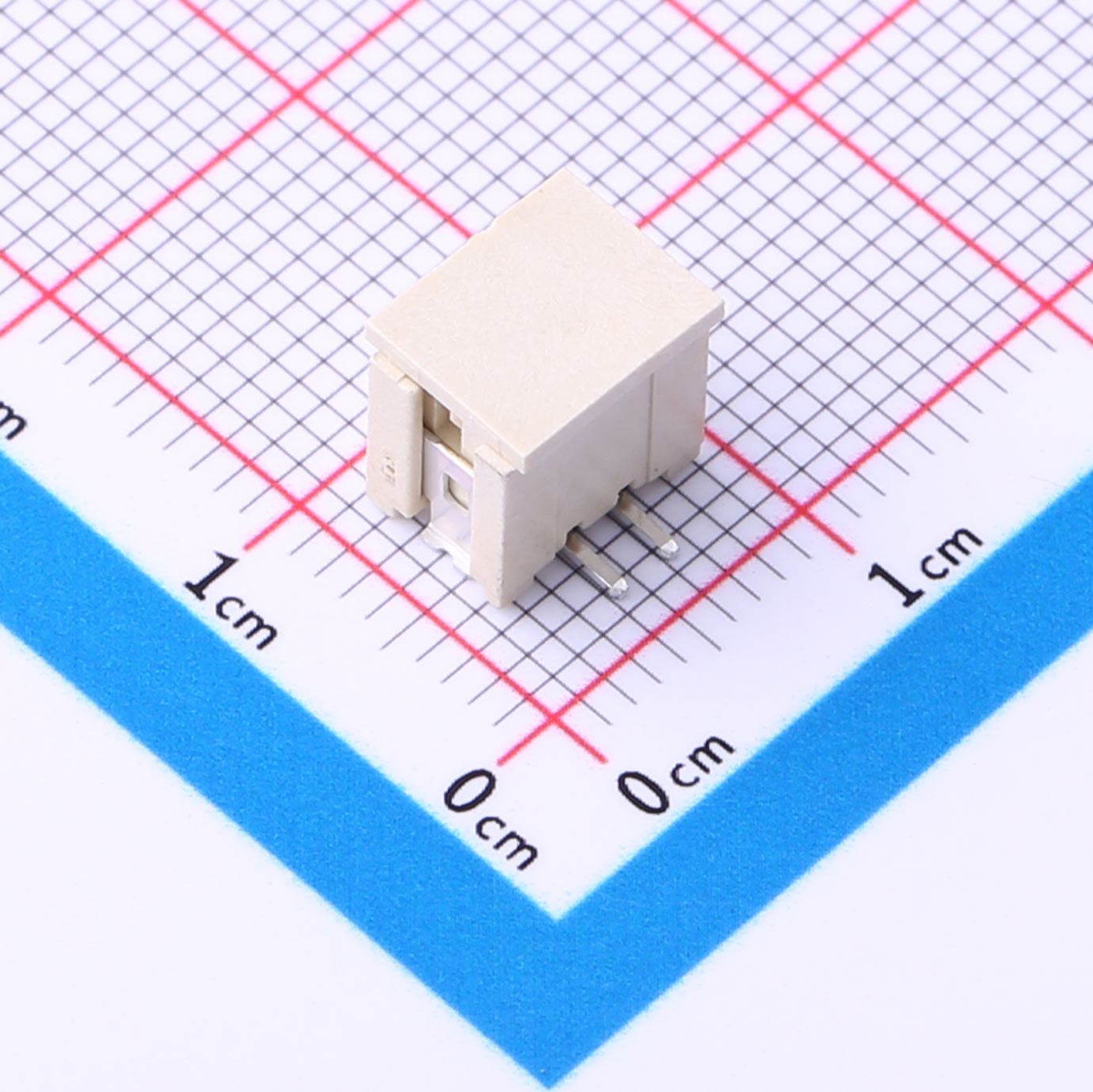

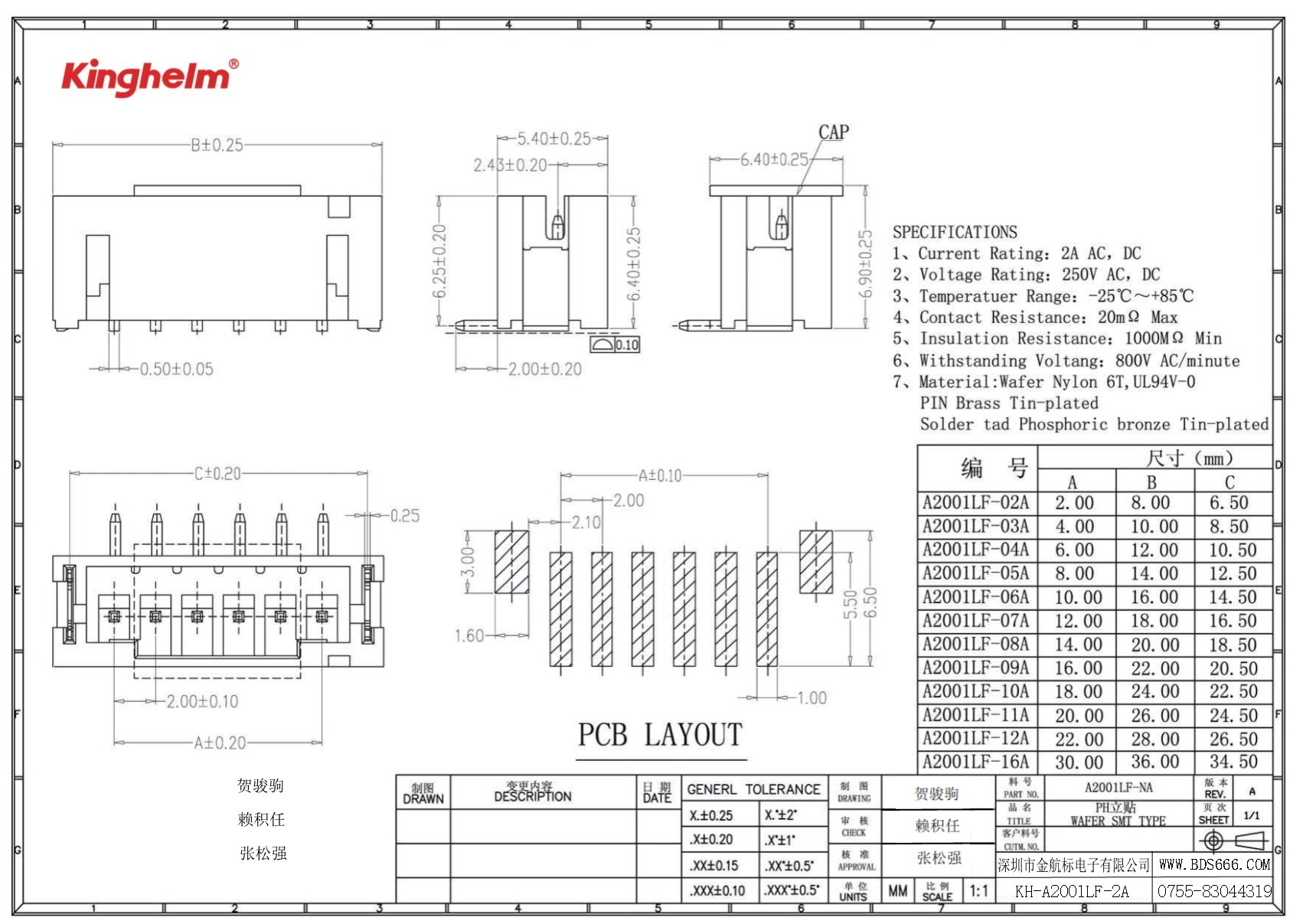

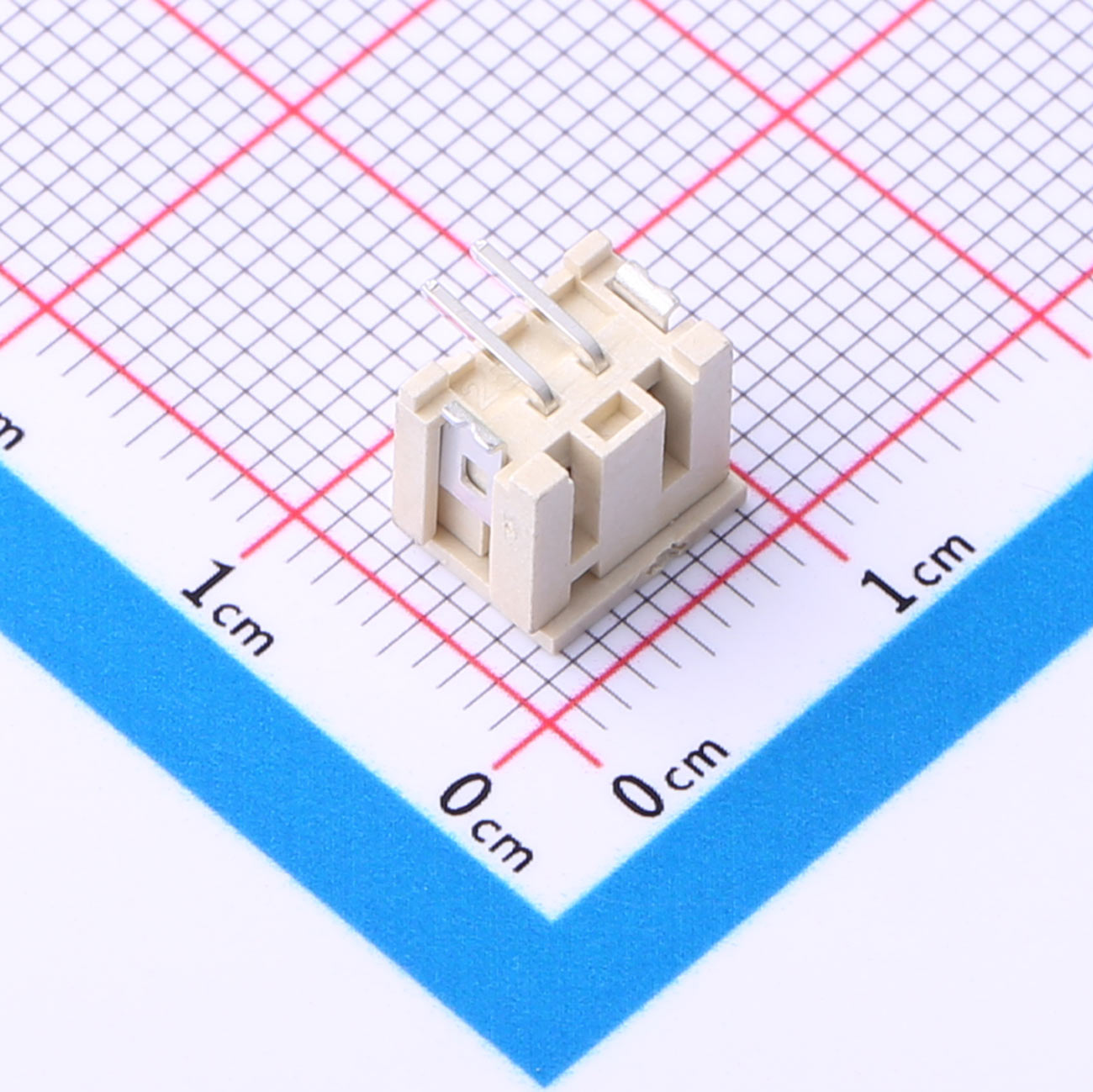

Wire-to-Board Connector, 2mm Pitch, 1x2P, Vertical SMT, KH-A2001LF-2A
Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch for high-density layouts
● 1x2P single-row configuration
● Surface-mount type (SMT)
● Vertical mount for efficient cable connection
● Voltage rating: 250V AC/DC
● Current rating: 2A
● Operating temperature: -25℃ to +85℃
● PH series compatible interface
Product Benefits
● Ideal for limited-space PCB applications
● Basic 2-pin setup for simple power or signal lines
● Supports high-efficiency automated assembly
● Maintains secure electrical contact
● Functions reliably in standard conditions
● Compatible with standard PH connectors
Product Applications
● Battery connectors
● LED light modules
● Small electronic gadgets
● Signal transmission in compact circuits
● Embedded control systems
● Wearable or handheld devices
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
