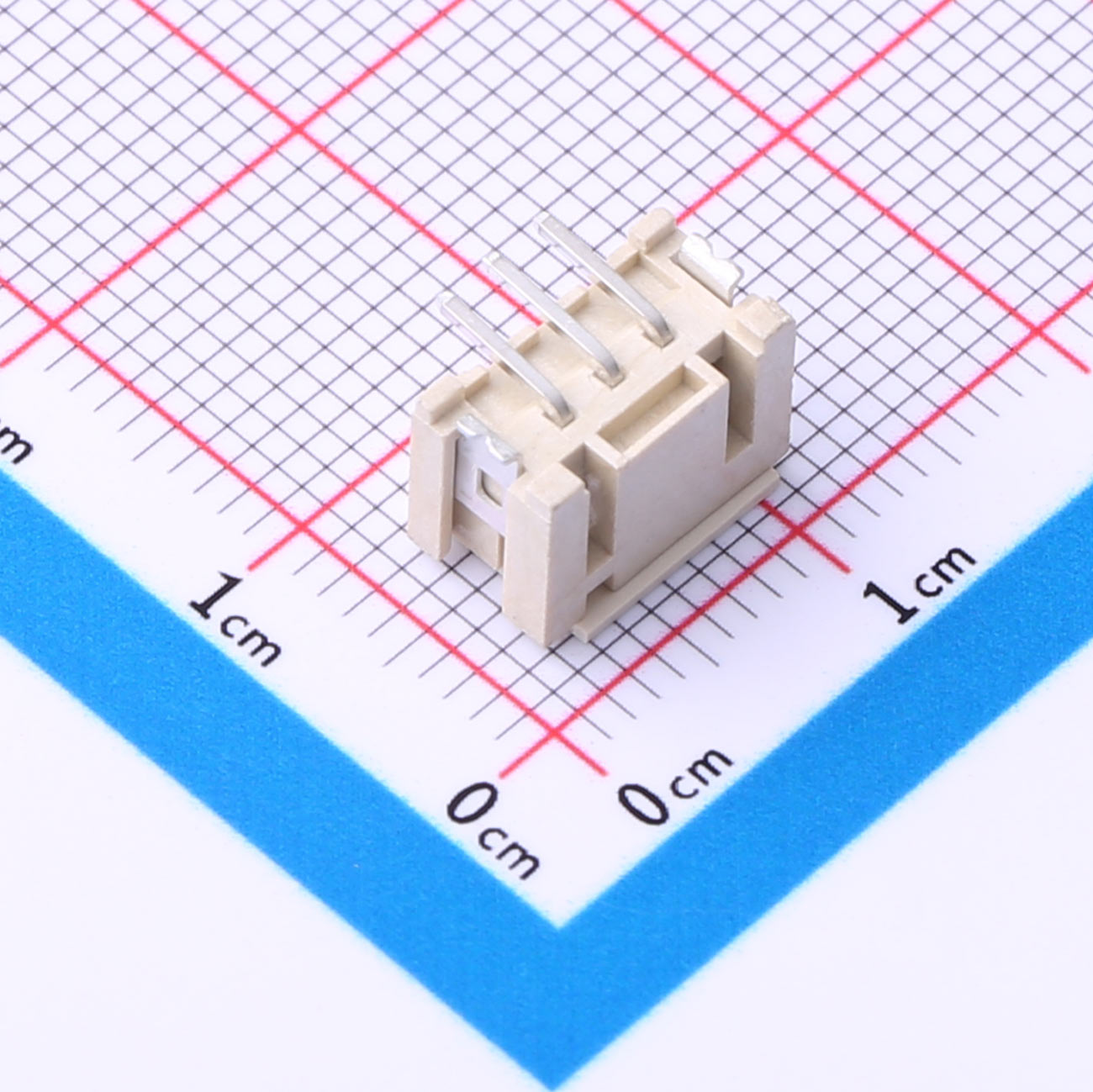

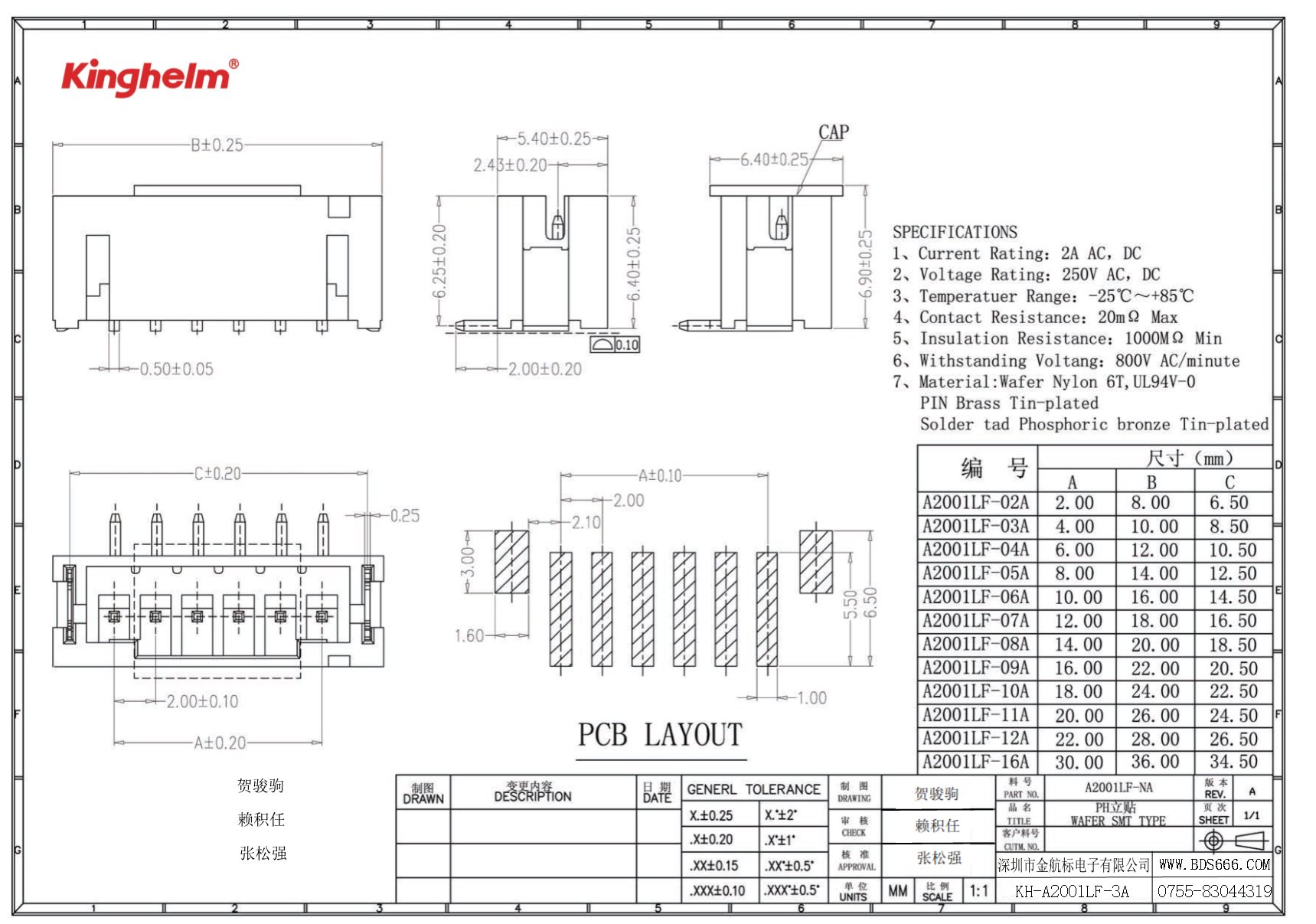

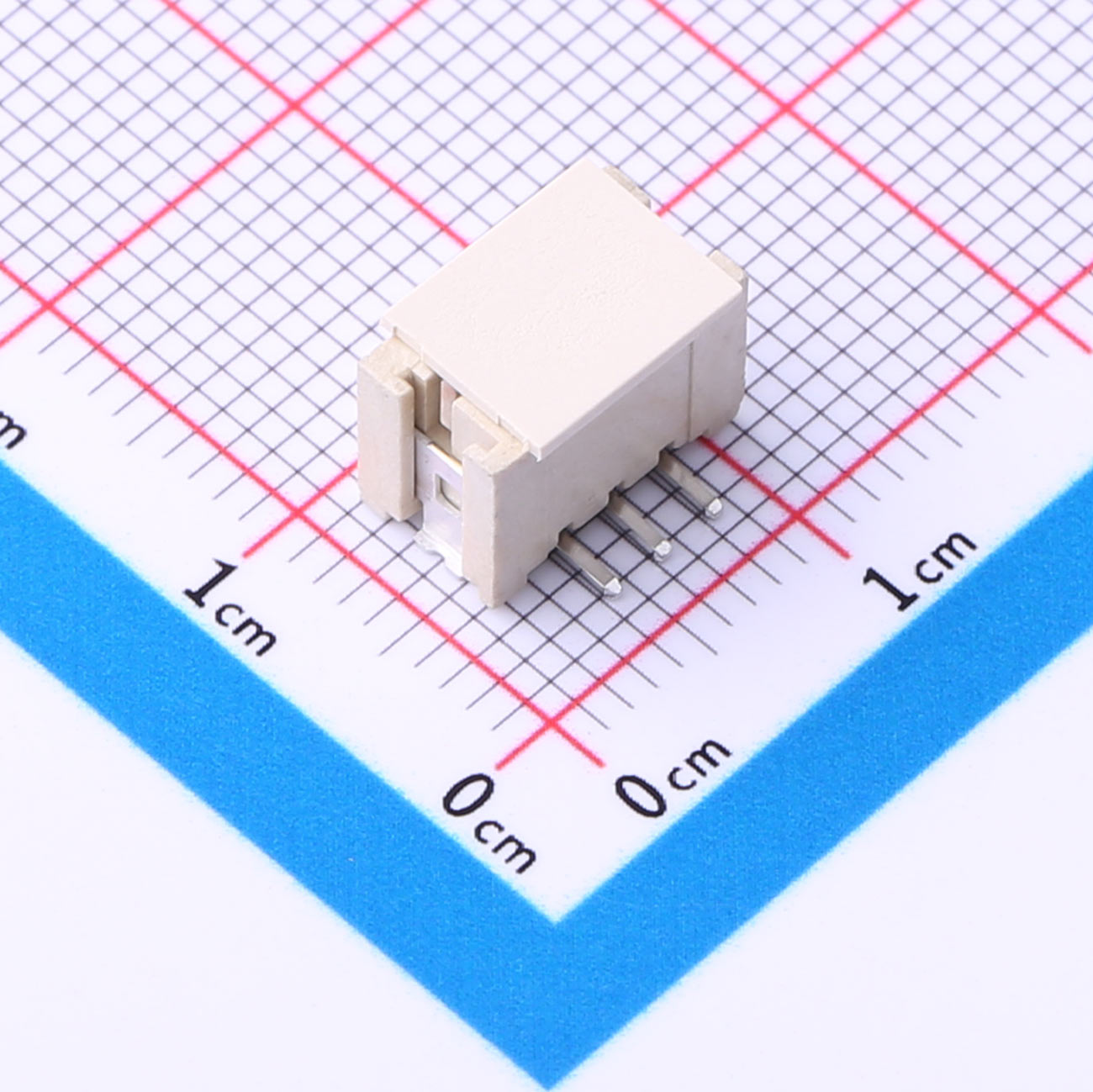

Wire-to-Board Connector, 2mm Pitch, 1x3P, Vertical SMT, KH-A2001LF-3A
Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch for compact board layout
● 1x3P single-row pin configuration
● SMT type for automated assembly
● Vertical mounting for top-entry connection
● Voltage rating: 250V AC/DC
● Current rating: 2A
● Operating temperature: -25℃ to +85℃
● PH series compatible design
Product Benefits
● Saves space on dense PCBs
● Simple 3-pin setup for basic signal or power use
● Streamlines manufacturing with SMT process
● Offers firm and stable mating interface
● Reliable under standard environmental conditions
● Matches with widely available PH connectors
Product Applications
● Miniature consumer electronics
● LED indicators or modules
● Sensor interface boards
● Compact control systems
● DIY electronics and prototypes
● Low-power industrial modules
