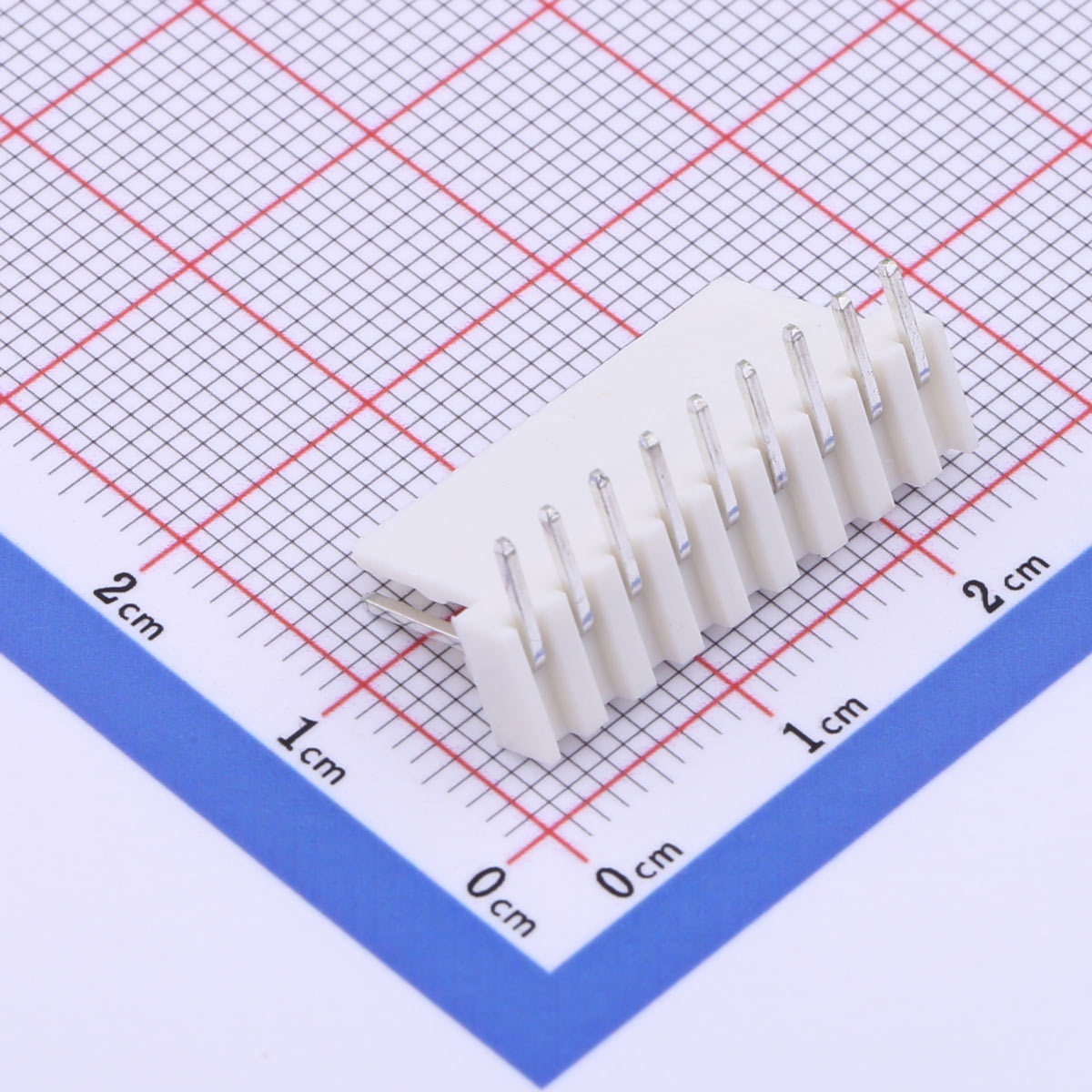

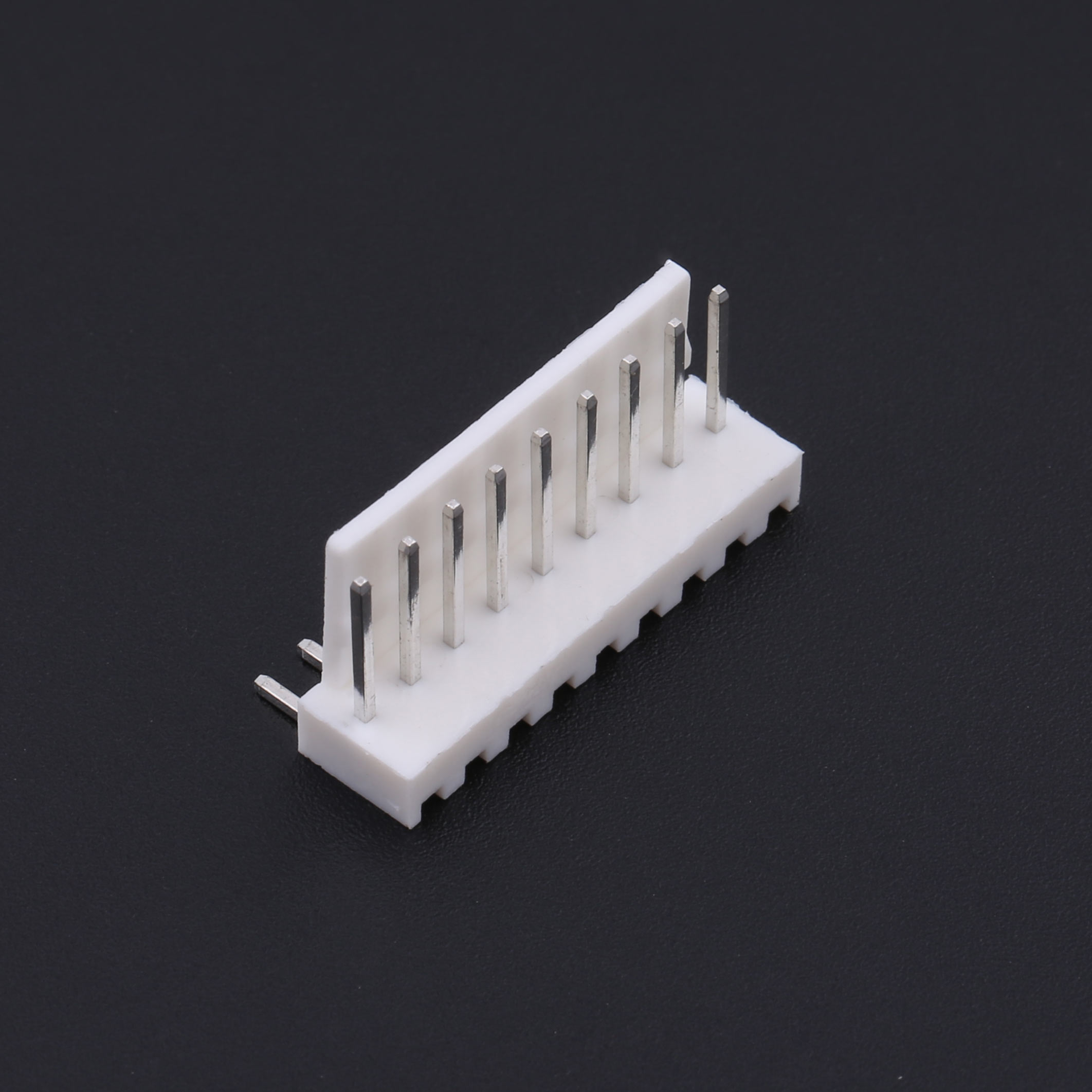

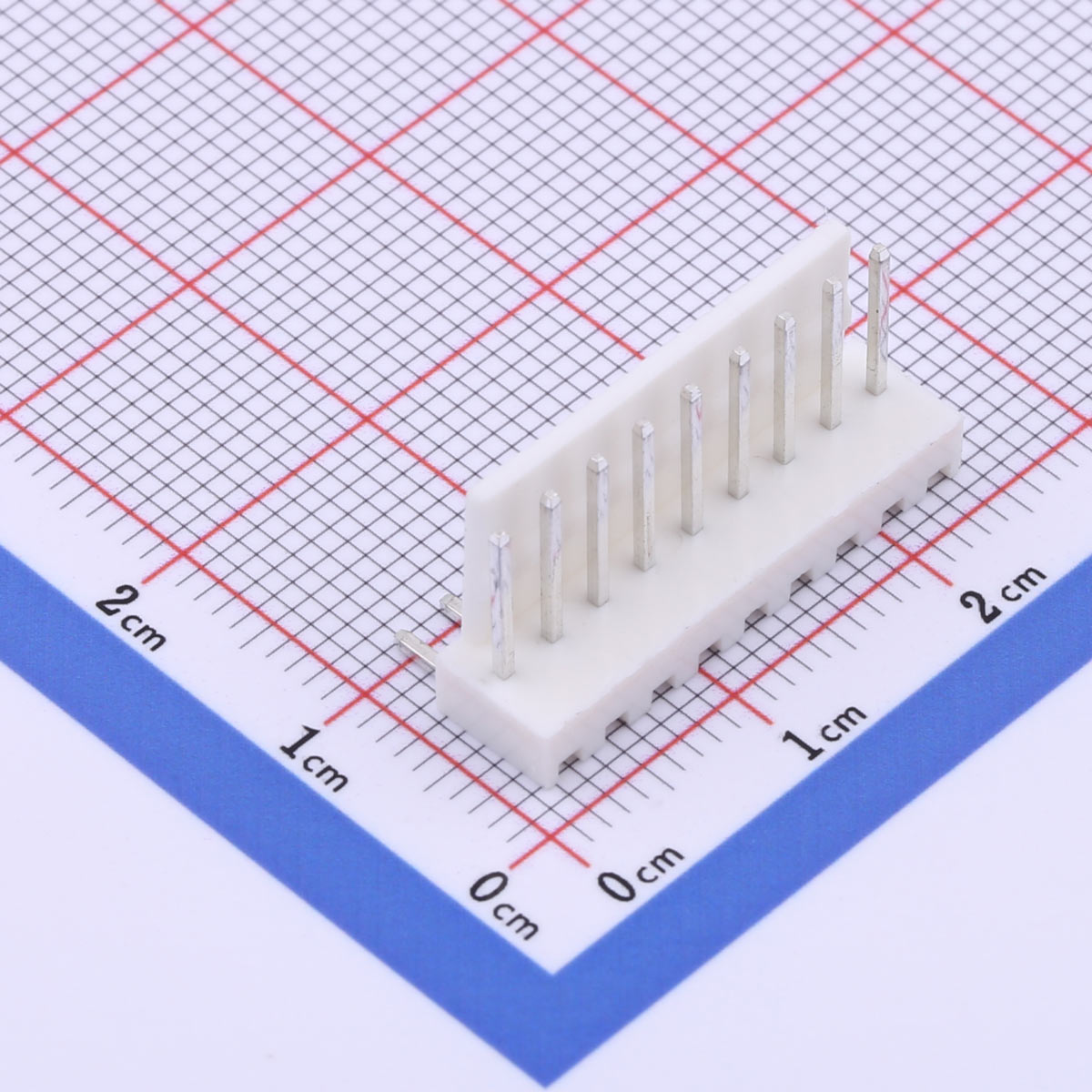

Wire-to-Board Connector, 2.54mm Pitch, 1x9P, KH-HX2.54-09PW
Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch
● 1x9 single-row layout
● Right-angle mounting
● 4A / 250V AC/DC rating
● -25℃ to +85℃ temperature range
Product Benefits
● Compact design for tight spaces
● Stable electrical connection
● Reliable temperature endurance
● Low contact resistance (Max 20mΩ)
● High insulation resistance (Min 1000MΩ)
Product Applications
● Consumer electronics
● Communication equipment
● Industrial automation
● LED lighting systems
● DIY hardware projects
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
