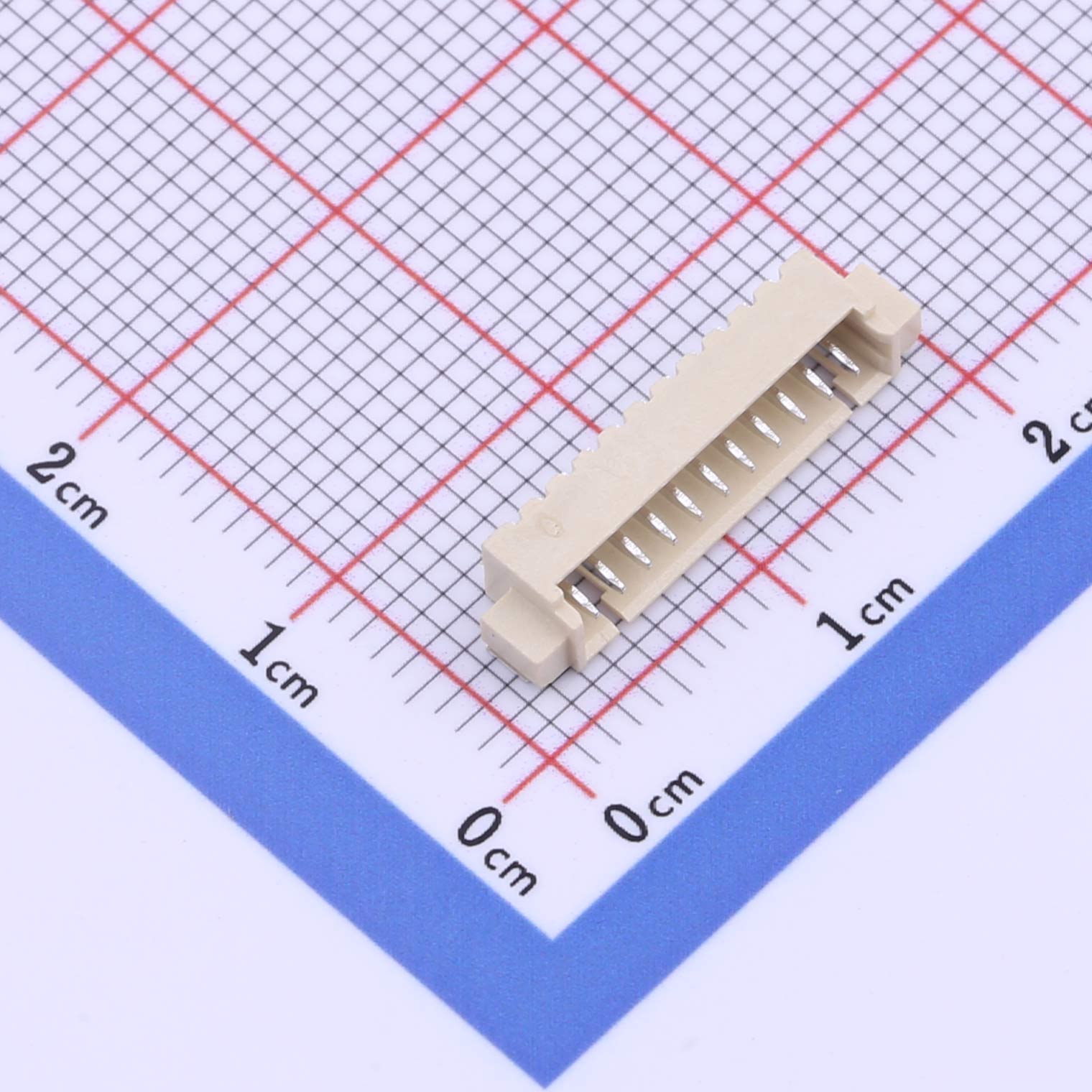

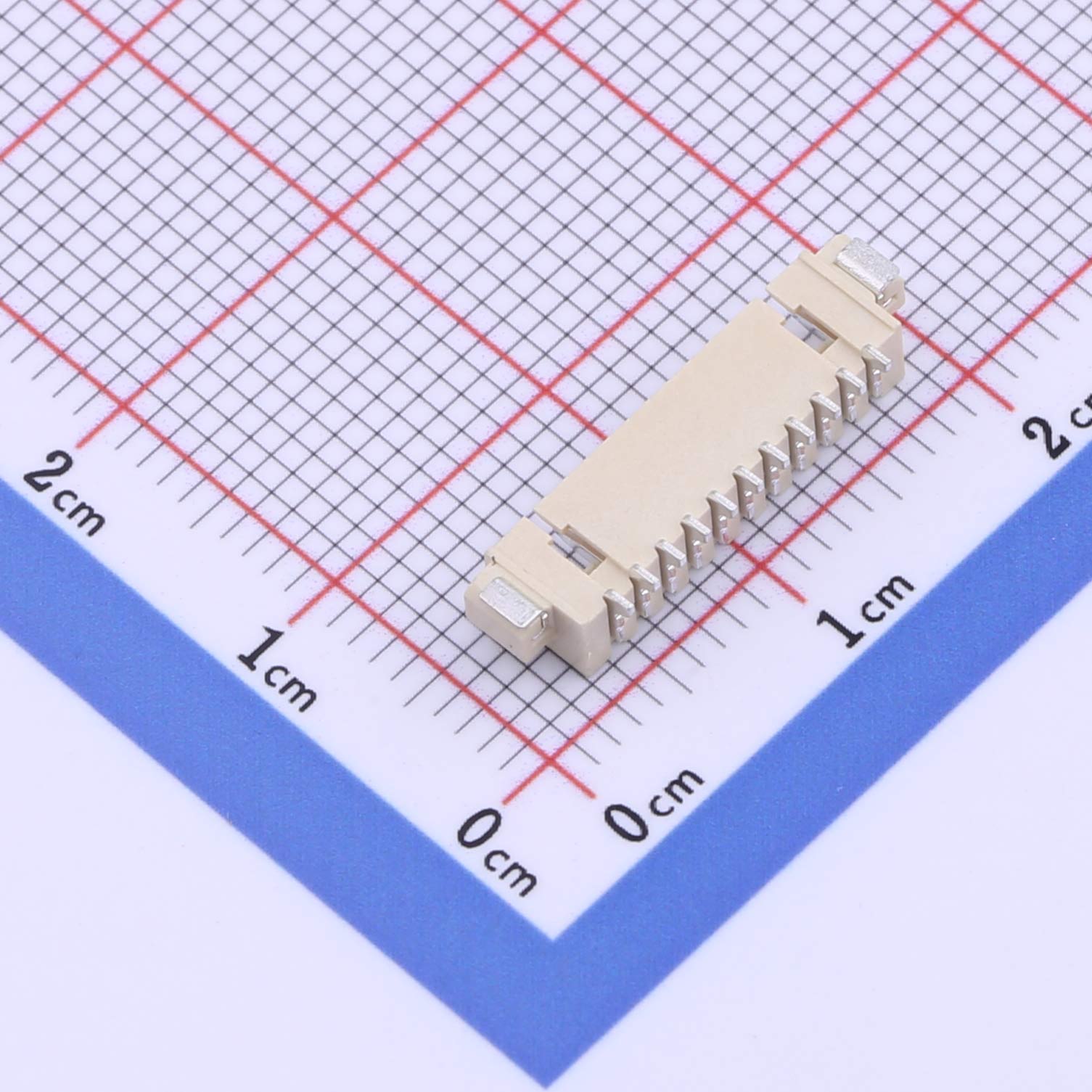

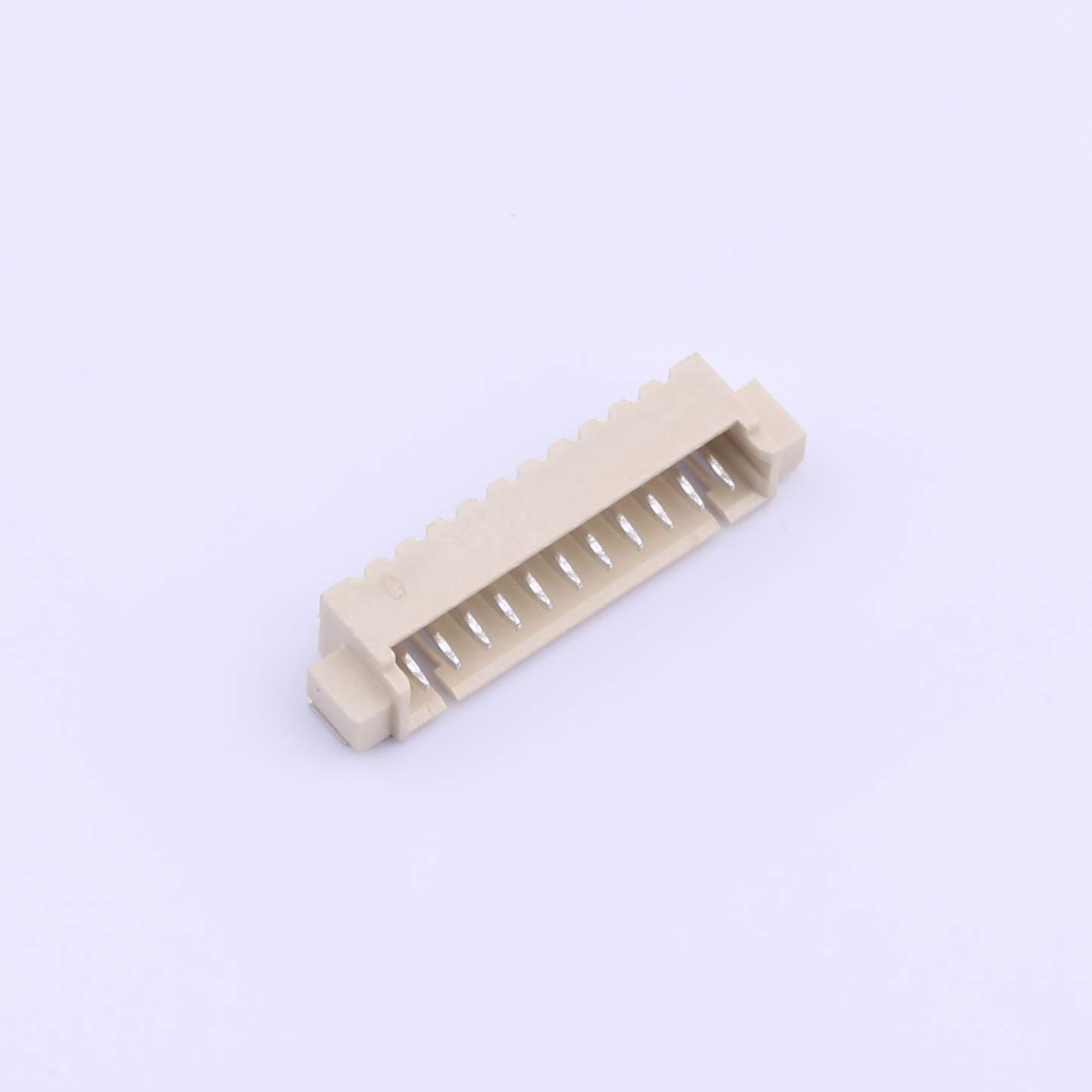

Wire-to-Board Connector/On-Board Connectors, 1.25mm Pitch, SMD, KH-A1251WF-11A
Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch compact design
● SMD surface mount horizontal type
● 11 pin configuration
● Phosphor bronze tin plated contacts
● Operating temperature range ?25°C to +85°C
Product Benefits
● Space-efficient for dense PCB layouts
● Stable low current connections
● Corrosion-resistant contacts
● Suitable for automated SMT assembly
● Ideal for small signal and power applications
Product Applications
● Consumer electronics
● LED lighting systems
● Communication devices
● Industrial controllers
● Home appliances
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
