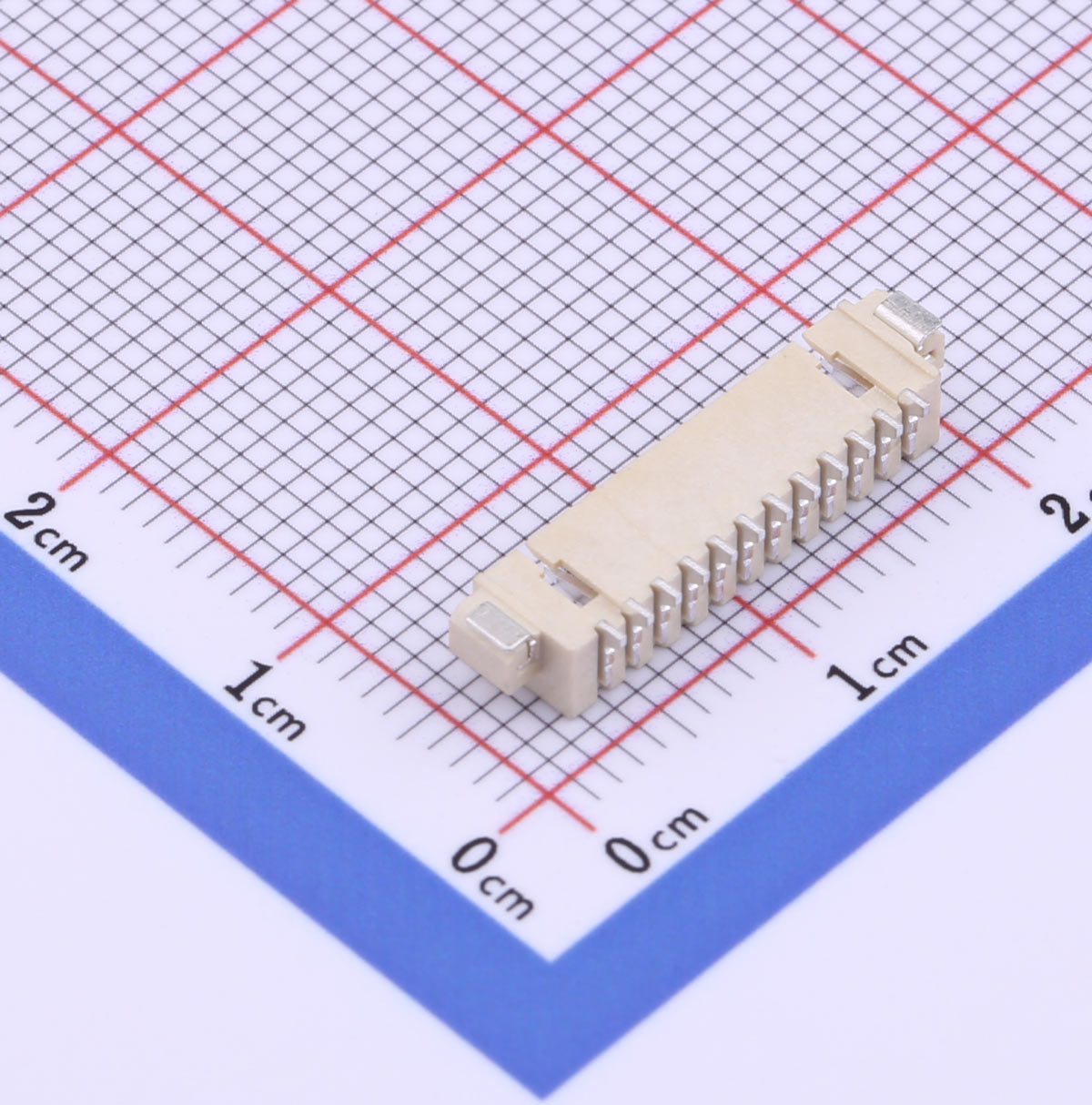

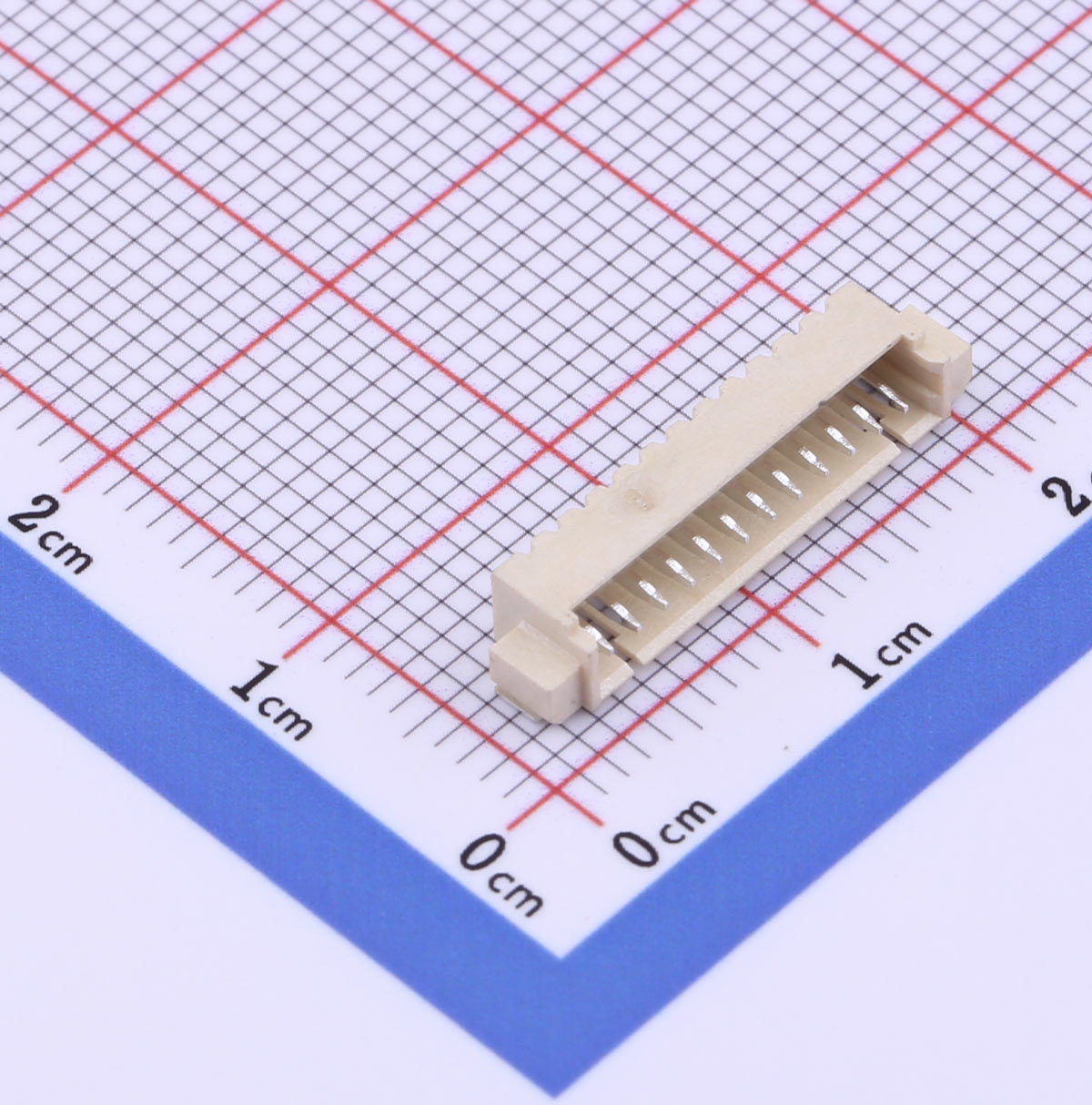

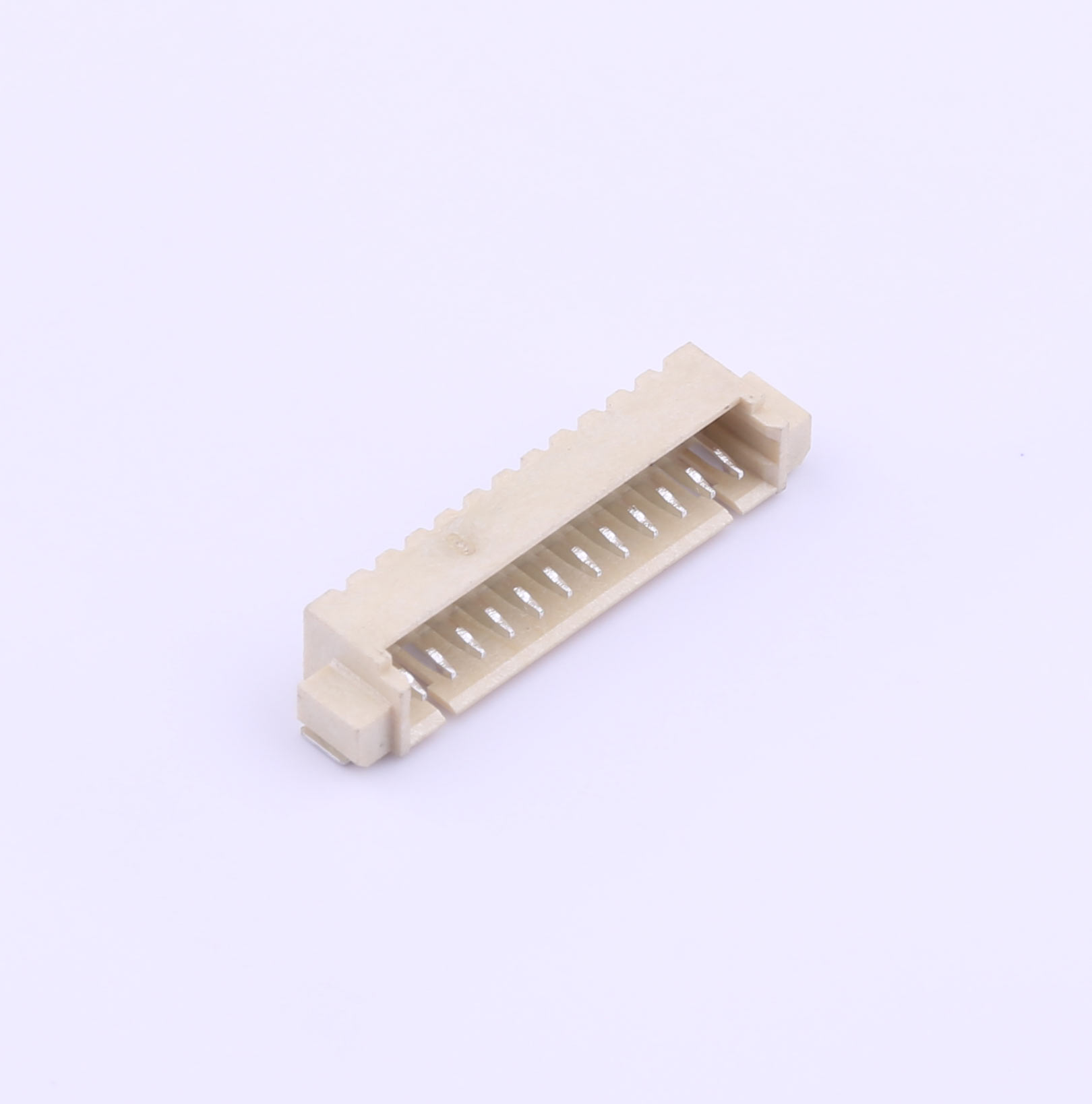

Wire-to-Board Connector/On-Board Connectors, 1.25mm Pitch, SMD, KH-A1251WF-12A
Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch compact design
● SMD surface mount horizontal type
● 12 pin configuration
● Phosphor bronze tin plated contacts
● Operating temperature range ?25°C to +85°C
Product Benefits
● Efficient use of space in tight layouts
● Reliable electrical connection with low contact resistance
● Resistant to corrosion and wear
● Compatible with automated SMT processes
● Suitable for low power and signal applications
Product Applications
● Consumer electronics
● LED lighting circuits
● Communication devices
● Industrial control boards
● Home appliance systems
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
